2016 LEXUS LS460L interior lights

4485-4. Using the interior lights
LS460/LS460L_GE (OM50G06E)
Front
“OFF”
Door position on/off
“ON”
Rear
On/off
If door position on is selected for the
front interior light, the rear interior
light is also turned on/off by the open-
ing and closing of a door.

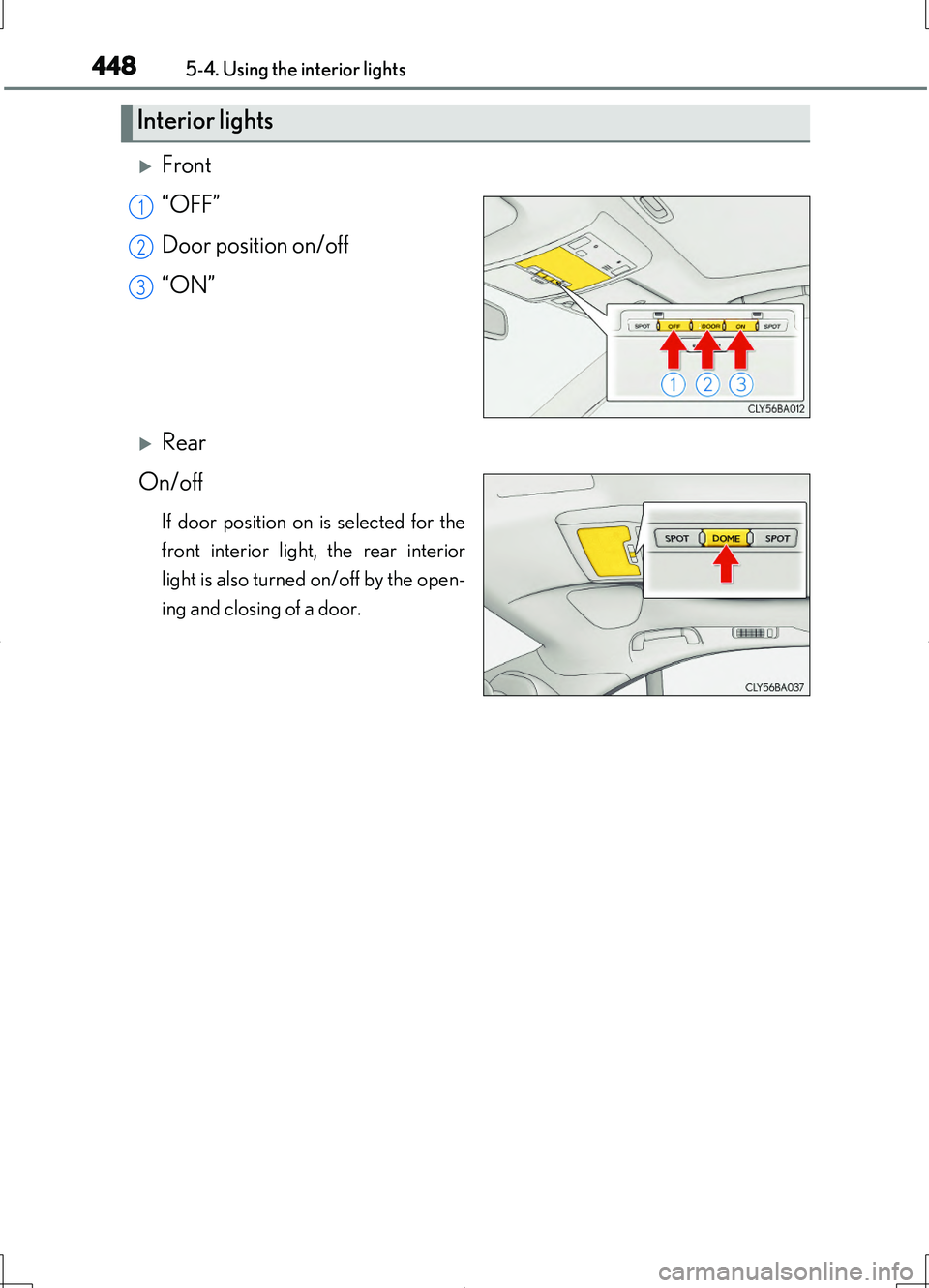

Interior lights
1
2
3

4495-4. Using the interior lights
5
Interior features
LS460/LS460L_GE (OM50G06E)
Front
On/off
Rear
On/off

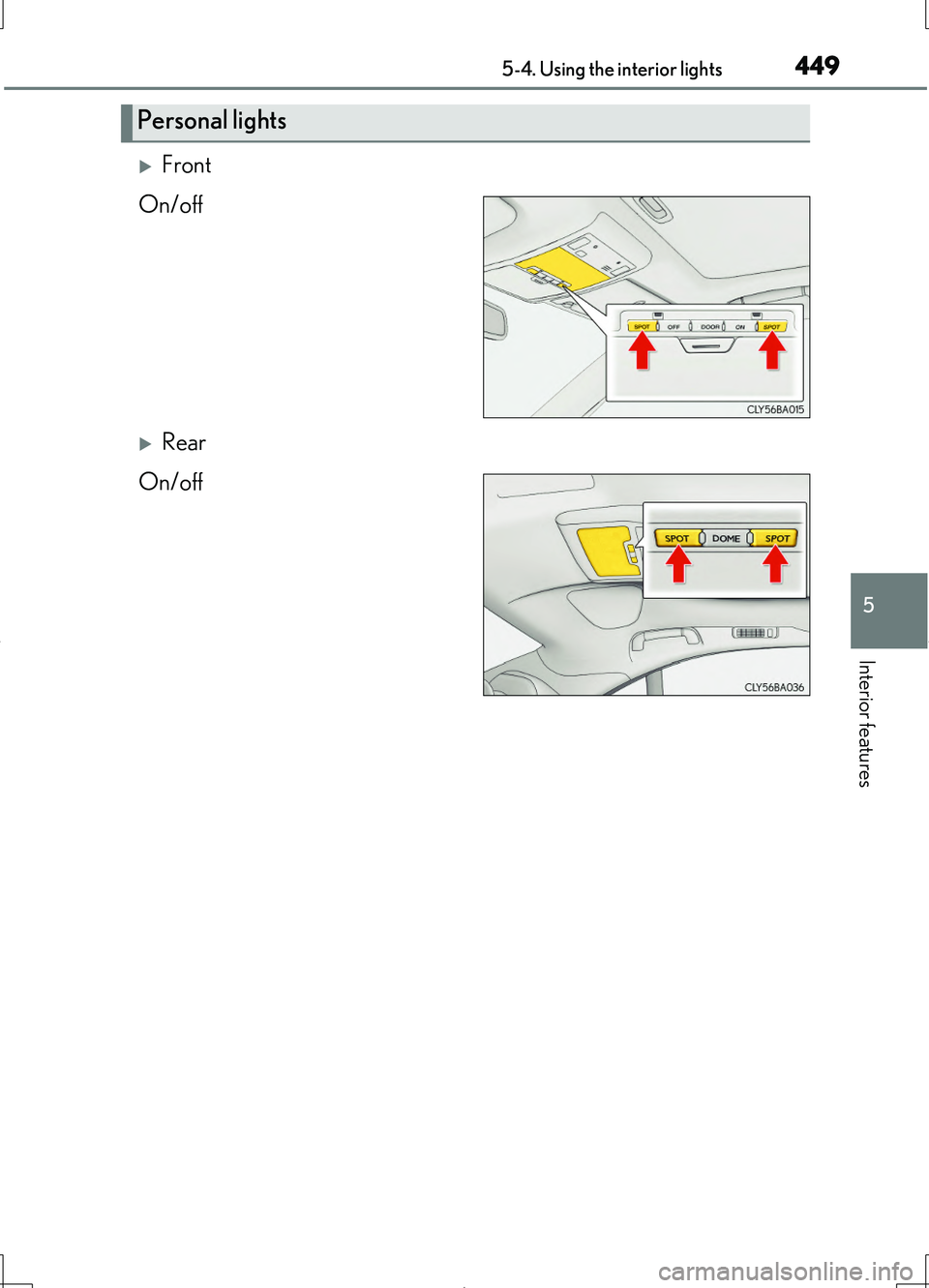

Personal lights

4505-4. Using the interior lights
LS460/LS460L_GE (OM50G06E)
■Illuminated entry system
The lights automatically turn on/off accordi ng to engine switch mode, the presence
of the electronic key, whether the doors are locked/unlocked, and whether the doors
are opened/closed.
■To prevent the battery from being discharged
If the following lights remain on when the engine switch is turned off, the lights will go
off automatically after 20 minutes:
●Interior lights
●Door courtesy lights
●Personal lights
●Inside door handle lights
●Seat belt buckle lights
●Footwell lights
●Engine switch light
■Customization
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 667)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

4535-5. Using the storage features
5
Interior features
LS460/LS460L_GE (OM50G06E)
Open (push button)
Unlock with the mechanical key
Lock with the mechanical key
■Glove box light
The glove box light turns on when the tail lights are on.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( P. 192)
■Removing the partition
The partition inside the glove box can be removed.
Glove box
1
2
3
Lift the front side of the partition and pull it out
at an angle.
CAUTION
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open glove box or the
items stored inside.

4685-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■To prevent battery discharge
If the vanity lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.
NOTICE
■When not in use
Keep the rear vanity mirror closed.
■To prevent the battery from being discharged
Do not leave the vanity lights on for extended periods while the engine is stopped.

5045-6. Other interior features
LS460/LS460L_GE (OM50G06E)
Microphone
“SOS” button
Indicator lights
■Automatic Collision Notification
If any airbag deploys, the system is designed to automatically call the
Public Safety Answering Point (PSAP).* The responding agent
receives the vehicle's location and attempts to speak with the vehicle
occupants to assess the level of emergency. If the occupants are unable
to communicate, the agent automatically treats the call as an emer-
gency, contacts the nearest emergency services provider to describe
the situation, and requests that assistance be sent to the location.
* : In some cases, the call cannot be made. ( P. 506)
ERA-GLONASS
: If equipped
ERA-GLONASS is a telematics service that uses Global Navigation
Satellite System (GLONASS) data and embedded cellular technology
to enable the following emergency calls to be made: Automatic emer-
gency calls (Automatic Collision No tification) and manual emergency
calls (by pressing the “SOS” button). This service is required by Eur-
asian Customs Union Regulations.
System components
1
2
3
Emergency Notification Services

5055-6. Other interior features
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Emergency Assistance Button (“SOS”)
In the event of an emergency, push the “SOS” button to reach the Pub-
lic Safety Answering Point (PSAP). The answering agent will determine
your vehicle's location, assess the emergency, and dispatch the neces-
sary assistance required.
If you accidentally press the “SOS” button, tell the agent that you are not expe-
riencing an emergency.
When the engine switch is turned to IGNITION ON mode, the red indi-
cator light will illuminate for 10 seconds and then the green indicator light
will illuminate for 2 seconds, indicatin g that the system is enabled. The
indicator lights indicate the following:
●If the green indicator light illuminates and stays on, the system is
enabled.
●If the green indicator light flashes, an emergency call is being made
(either automatically or manually).
●If no indicator lights illuminate, the system is not enabled.
●If the red indicator light illuminates any time other than immediately
after the engine switch is turned to IGNITION ON mode, the system
may be malfunctioning or the backup battery may be depleted. Con-
tact your Lexus dealer.
The service life of the backup battery is 3 years or more.
Indicator lights

6277-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
( P. 259)
●There may be a malfunction in the engine immobilizer system.
( P. 104)
One of the following may be the cause of the problem:
●The battery may be discharged. ( P. 636)
●The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse. How-
ever, an interim measure is available to start the engine. ( P. 627)
If the engine will not start
If the engine will not start even though correct starting procedures are
being followed ( P. 259), consider each of the following points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
The starter motor does not turn over
