■Pop-up display
Select to set the following pop-up displays, which may appear in some situa-
tions, on/off.• Route guidance display of the navigation system-linked system (if equipped)
• Incoming call display of the hands-free phone system (if equipped)
• Dynamic radar cruise control operation display (if equipped)
• Instrument panel brightne ss adjustment display
• Main meter switch operation display (F SPORT models)
■Accent color (except F SPORT models)
Select to change the accent colors on the screen, such as the cursor color.
■Tachometer settings
Select to set the display of the tachometer or Hybrid System Indicator to auto-
matically change according to the driving mode or static.
■Needle (F SPORT models)
Select to change the needle color for the tachometer.
■Speed indicator (F SPORT models)
Select to set the speed indicator on/
off.
When set to on, both sides of the dis-
played speed unit will turn yellow
when the vehicle reaches a set
speed.
Selectable speed range:
Except U.K.: 50 km/h to 200 km/h
(30 mph to 125 mph)
*
U.K.: 30 mph to 100 mph (50 km/h to 160 km/h)*
The indicator will illuminate in yellow at an optionally set speed and red at the fixed
high speed.
*: Always observe the legal speed limit when driving on public roads.

1212. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D56E)

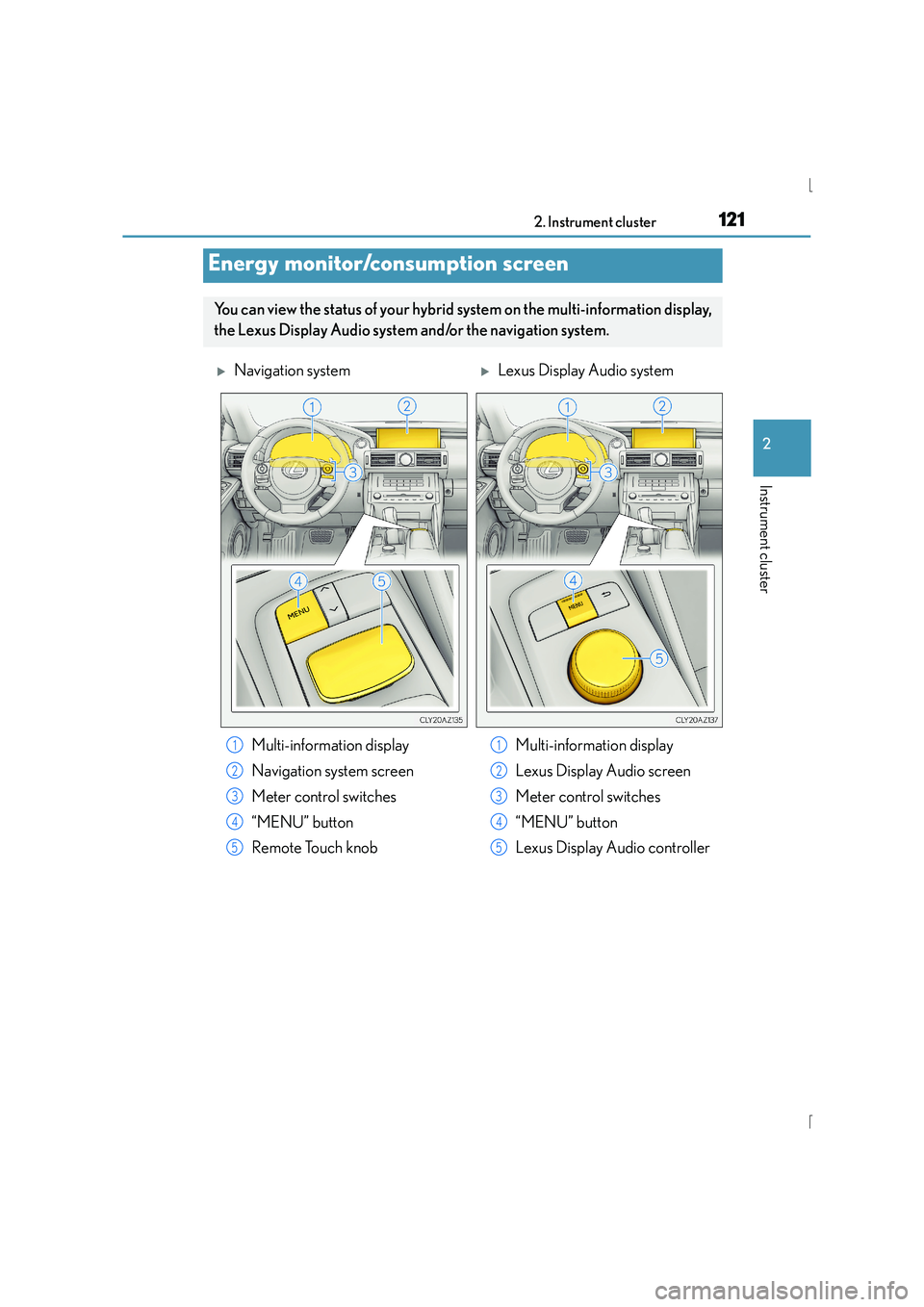

Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-information display,
the Lexus Display Audio system and/or the navigation system.
XNavigation systemXLexus Display Audio system
Multi-information display
Navigation system screen
Meter control switches
“MENU” button
Remote Touch knob Multi-information display
Lexus Display Audio screen
Meter control switches
“MENU” button
Lexus Display Audio controller
1
2
3
4
5
1
2
3
4
5

1222. Instrument cluster
IS300h_EE(OM53D56E)
XNavigation system
Press the “MENU” button on the
Remote Touch, and then select
“Car” on the “Menu” screen.
If the “Trip information” or “Past
record” screen is displayed, select
“Energy”.
XLexus Display Audio system
Press the “MENU” button on the
Lexus Display Audio controller, and
then select “Car” on the “MENU”
screen.
If the “Energy monitor” screen does
not appear, move the controller to
the right and select “Energy”.
XMulti-information display
Press the meter control switches several times to select the energy monitor
display.
Energy monitor

1232. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D56E)
Navigation system screenLexus Display Audio screenMulti-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric motor (trac-
tion motor)
When the vehicle is powered by the gasoline engine
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow

1242. Instrument cluster
IS300h_EE(OM53D56E)These images are examples only.
■Trip information
XNavigation system
Press the “MENU” button on the Remote Touch, and then select “Car” on the
“Menu” screen.
If the “Energy monitor” or “Past record” sc
reen is displayed, select “Trip informa-
tion”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time since the hybrid system was started.
Cruising range ( →P. 1 2 7 )
Hybrid battery (traction battery) status
Fuel consumption
Navigation system screenLexus Display Audio
screenMulti-information display
LowFull LowFullLowFull
1
2
3
4
5
6

1262. Instrument cluster
IS300h_EE(OM53D56E)
■Pa s t re c o r d
XNavigation system
Press the “MENU” button on the Remote Touch, and then select “Car” on the
“Menu” screen.
If the “Energy monitor” or “Trip information” screen is displayed, select “Past
record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
XLexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Past record” screen does not appear, move the controller to the right and
select “Past record”.
Previous fuel consumption record
Average fuel consumption
Best recorded fuel consumption
The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last updated. Use the displayed
average fuel consumption as a reference.
The image is an example only.
1
2
3
4
5
1
2
3

1272. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D56E)
■Updating the past record data
XNavigation system
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again.
XLexus Display Audio system
Update the average fuel consumption by moving the controller to the left and select
“Update” to measure the current fuel consumption again.
■Resetting the data
XNavigation system
The fuel consumption data can be deleted by selecting “Clear”.
XLexus Display Audio system
The fuel consumption data can be deleted by moving the controller to the left and select
“Clear ”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
