2016 Lexus IS300h engine coolant

4607-3. Do-it-yourself maintenance
IS300h_EE(OM53D56E)

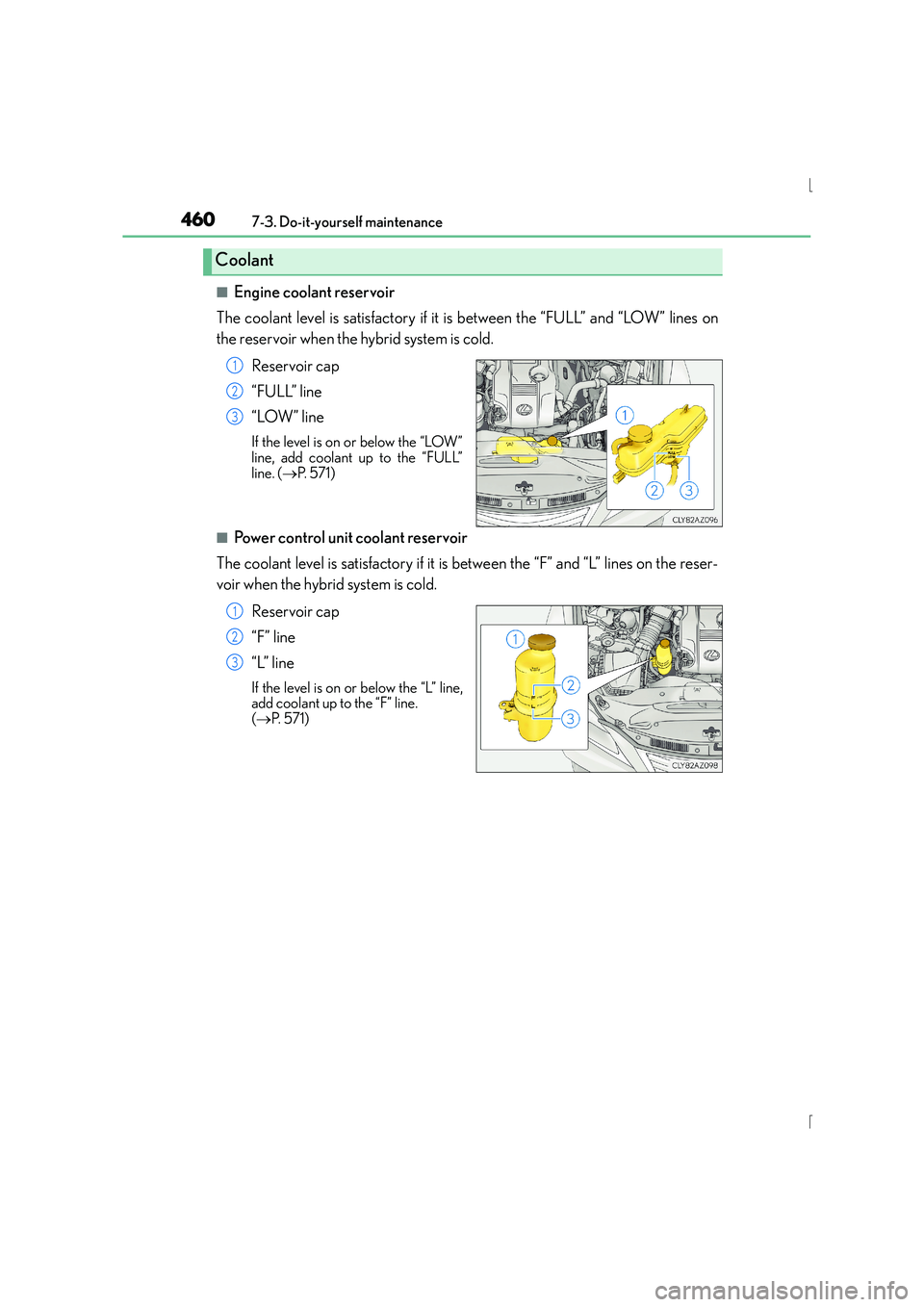

■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the hybrid system is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (→P. 5 7 1 )
■Power control unit coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the hybrid system is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L” line,
add coolant up to the “F” line.
( → P. 5 7 1 )
Coolant
1
2
3
1
2
3

4617-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53D56E)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water.
(Minimum temperature: -35 °C [-31 °F])
For more details about coolant, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine/power control unit coolant reservoir caps,
drain cock and water pump.
If you cannot find a leak, have any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, test the cap and check for leaks in the cooling sys-
tem.
CAUTION
■When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps or water filler cap.
( → P. 5 74 )
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

5208-2. Steps to take in an emergency
IS300h_EE(OM53D56E)
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the hybrid system
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional as soon as possible.
Visible s ymp toms
Audible symptoms
Operational symptoms

5318-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D56E)
Indicates that the hybrid battery (traction battery) is lowA buzzer also sounds.
→ When stopping the vehicle for a long period of time,
shift the shift lever to P. The hybrid battery (traction
battery) cannot be charged with the shift lever in N.
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the vehicle is being driven at 5 km/h (3
mph) or more with the parking brake still engaged
A buzzer also sounds.
→ Release the parking brake.
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in:
•The ABS; or
• The brake assist system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.
→ P. 5 7 1
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

5718-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D56E)
●The needle of the engine coolant temperature gauge (→P. 109) enters the
red zone or a loss of hybrid system power is experienced. (For example, the
vehicle speed does not increase.)
●“Hybrid System Overheat” is shown on the multi-information display.
●Steam comes out from under the hood.
■If the needle of the engine coolant temperature gauge enters the red zone
Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has
cooled down sufficiently, inspect
the hoses and radiator core (radi-
ator) for any leaks. Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact any autho-
rized Lexus dealer or repairer, or
another duly qualified and
equipped professional.
The coolant level is satisfactory if
it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2
4
1
2
3

5748-2. Steps to take in an emergency
IS300h_EE(OM53D56E)
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the “READY” indicator is off.
When the hybrid system operating, the gasoline engine may automatically start, or
the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the belt and fan, which may lead to fingers or
clothing (especially a tie, a scarf or a mu ffler) getting caught, resulting in serious
injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
●Do not loosen the coolant reservoir caps or
water filler cap while the hybrid system and
radiator are hot.
High temperature steam or coolant could
spray out.

583
9

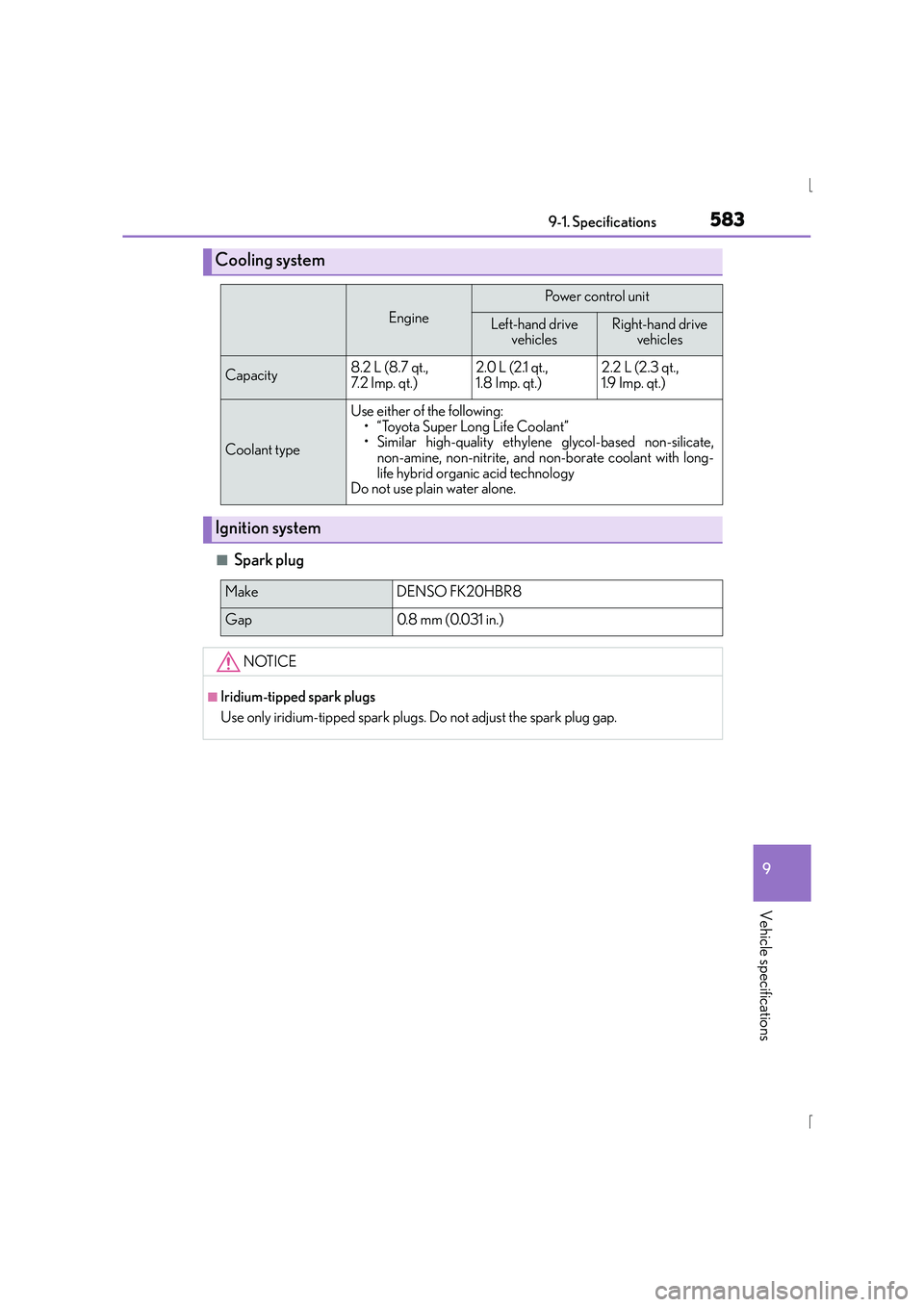

9-1. Specifications
Vehicle specifications
IS300h_EE(OM53D56E)
■Spark plug
Cooling system
Engine
Po w e r c o n t ro l u n i t
Left-hand drive
vehiclesRight-hand drive vehicles
Capacity8.2 L (8.7 qt.,
7. 2 I m p . q t . )2.0 L (2.1 qt.,
1.8 Imp. qt.)2.2 L (2.3 qt.,
1.9 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,non-amine, non-nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Make DENSO FK20HBR8
Gap 0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
