5178-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D18U)
Engine coolant reservoir:
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir.
Reservoir cap
“FULL” line
“LOW” line
Intercooler coolant reservoir (IS200t only):
The coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the engine is cold.
Reservoir cap
“F” line
“L” line4
IS350/IS300IS200t
1
2
3
1
2
3

5188-2. Steps to take in an emergency
IS350/300/200t_U (OM53D18U)
Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are oper ating by checking the fan sound and air flow.
If it is difficult to check th ese, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant High Temperat ure” is shown on the multi-informa-
tion display.
If the message does not disappear:
Stop the engine and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
5
Engine (IS350/IS300)Engine (IS200t)
Intercooler (IS200t only)
6
7
8

5198-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D18U)
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
●IS350/IS300: Do not loosen the coolant res-
ervoir caps or radiator cap while the engine
and radiator are hot. (The radiator cap is
located under the engine cover.)
High temperature steam or coolant could
spray out.
●IS200t: Do not loosen the coolant reservoir
cap or intercooler reservoir cap while the
engine and radiator are hot.
High temperature steam or coolant could
spray out.

5208-2. Steps to take in an emergency
IS350/300/200t_U (OM53D18U)
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and release the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC.
1
2
3
4
5

5259-1. Specifications
9
Vehicle specifications
IS350/300/200t_U (OM53D18U)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
This number is also on the Certifica-
tion Label.

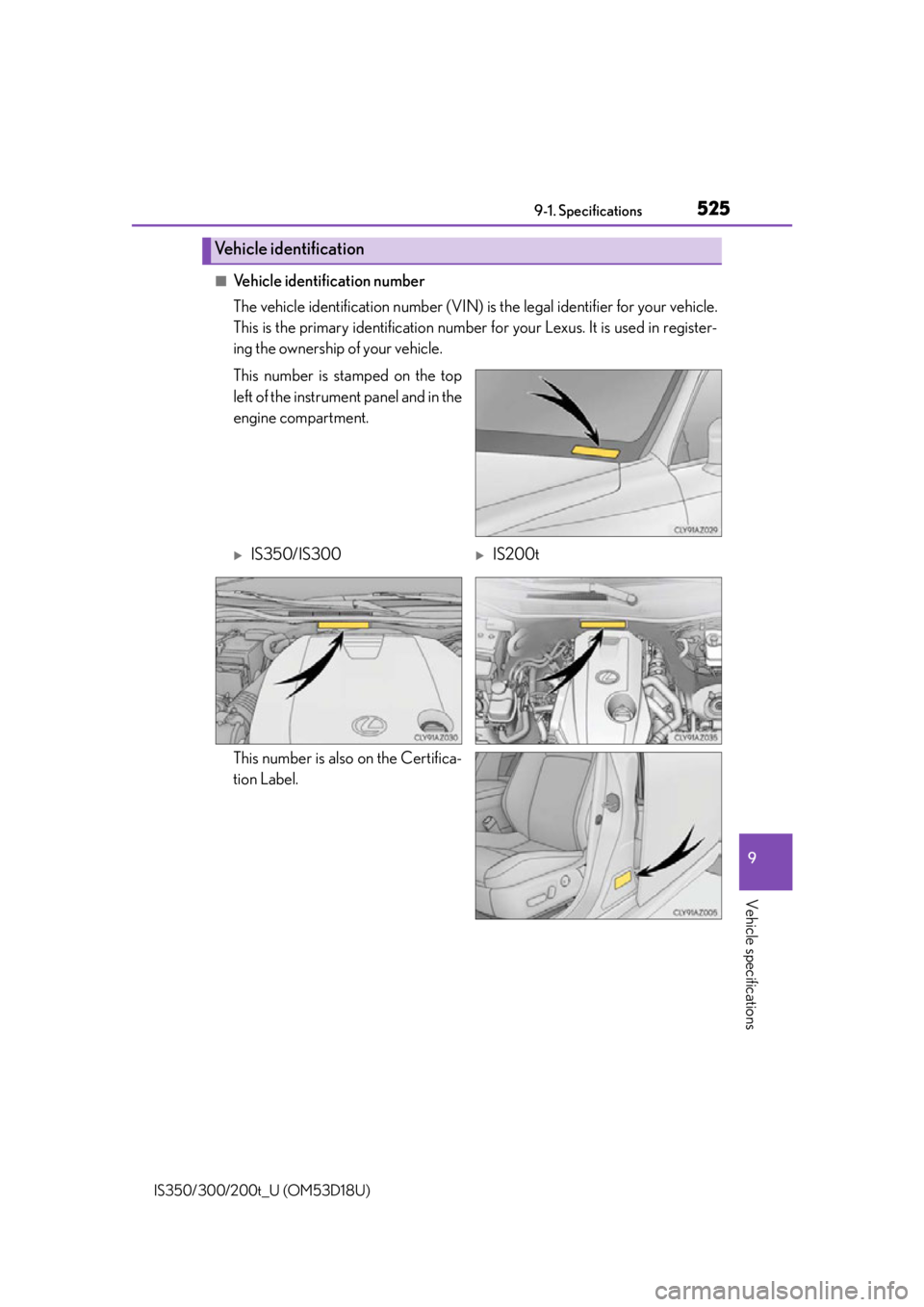

Vehicle identification
IS350/IS300IS200t

5269-1. Specifications
IS350/300/200t_U (OM53D18U)
■Engine number
The engine number is stamped on the engine block as shown.
IS350/IS300IS200t
Engine
IS350/IS300IS200t
Model3.5 L 6-cylinder (2GR-FSE)
engine2.0 L 4-cylinder (8AR-FTS)
engine
Ty p e 6-cylinder V type,
4-cycle, gasoline 4-cylinder in line,
4-cycle, gasoline
(with turbocharger)
Bore and stroke
3.70
 3.27 in.
(94.0  83.0 mm) 3.39
 3.39 in.
(86.0  86.0 mm)
Displacement 210.9 cu. in. (3456 cm3) 121.9 cu. in. (1998 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp. gal.)

5279-1. Specifications
9
Vehicle specifications
IS350/300/200t_U (OM53D18U)
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engineoil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Lubrication system
IS350 (2WD)IS350/IS300 (AWD)IS200t
With filter6.6 qt.
(6.2 L, 5.5 Imp. qt.)6.8 qt.
(6.4 L, 5.6 Imp. qt.)4.9 qt.
(4.6 L, 4.0 Imp. qt.)
Without filter6.2 qt.
(5.9 L, 5.2 Imp. qt.)6.3 qt.
(6.0 L, 5.3 Imp. qt.)4.5 qt.
(4.3 L, 3.8 Imp. qt.)

5289-1. Specifications
IS350/300/200t_U (OM53D18U)
■Engine oil selection (IS350/IS300)
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature
