2016 Lexus GS450h battery capacity

468
GS450h_OM_OM30E99U_(U)
8-1. Specifications
Engine
Model3.5 L 6-cylinder (2GR-FXE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output147 kW
Maximum torque202.8 ft•lbf (275 N•m, 28.0 kgf•m)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity40 modules
Overall voltage288 V

472
GS450h_OM_OM30E99U_(U)
8-1. Specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact your Lexus dealer for further
details.
Electrical system
12-volt battery
Open voltage at 68 F (20 C):12.0 V or higher
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates5 A max.
Hybrid transmission
Fluid capacity*6.01 qt. (5.69 L, 5.01 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality and ultimately damage the transmission of your vehicle.
Differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

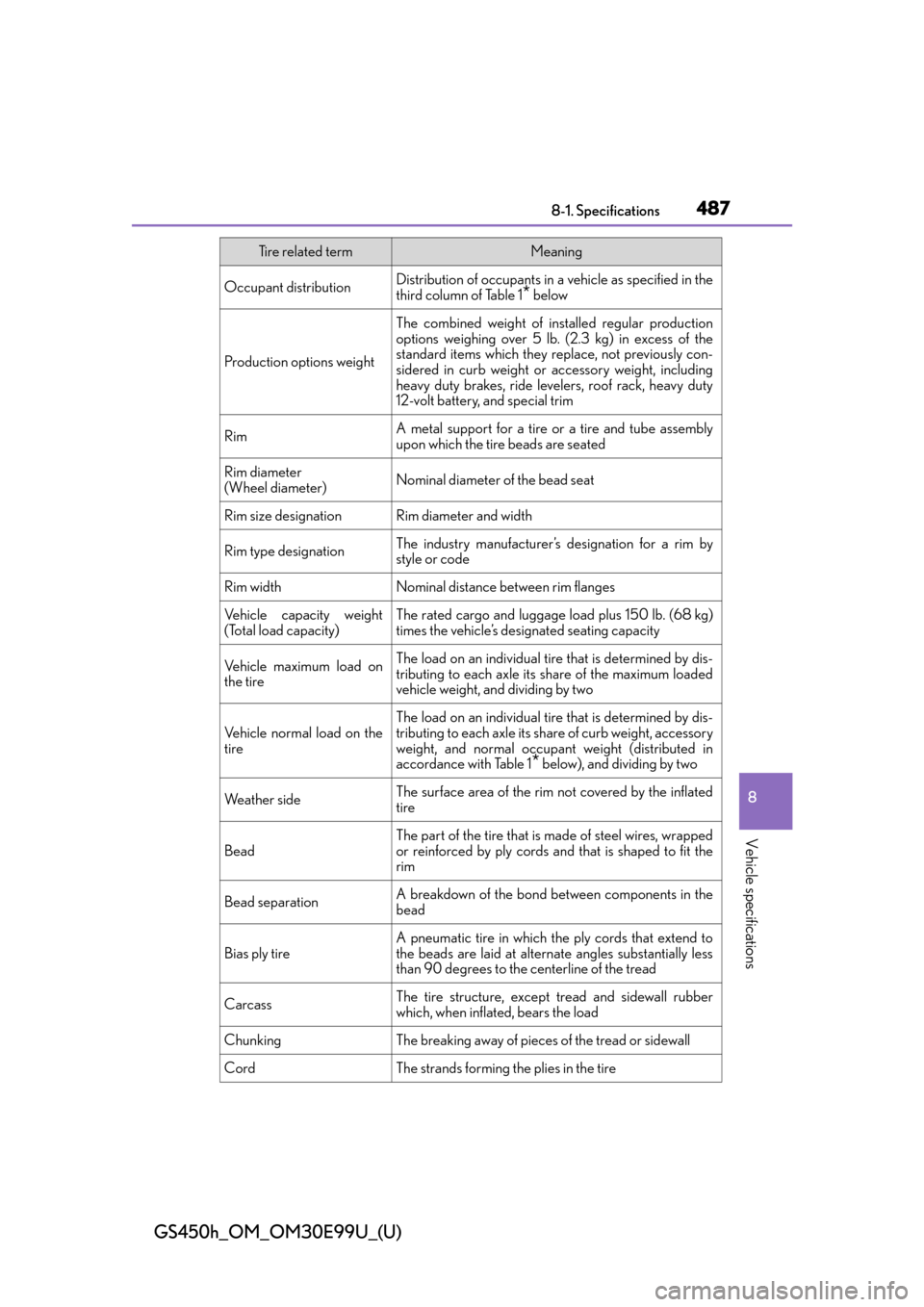

GS450h_OM_OM30E99U_(U)
4878-1. Specifications
8
Vehicle specifications
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1* below
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
12-volt battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim by
style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68 kg)
times the vehicle’s designated seating capacity
Vehicle maximum load on
the tireThe load on an individual tire that is determined by dis-
tributing to each axle its share of the maximum loaded
vehicle weight, and dividing by two
Vehicle normal load on the
tireThe load on an individual tire that is determined by dis-
tributing to each axle its sh are of curb weight, accessory
weight, and normal occupant weight (distributed in
accordance with Table 1
* below), and dividing by two
We a t h e r s i d eThe surface area of the rim not covered by the inflated
tire
Bead
The part of the tire that is made of steel wires, wrapped
or reinforced by ply cords and that is shaped to fit the
rim
Bead separationA breakdown of the bond be tween components in the
bead
Bias ply tireA pneumatic tire in which the ply cords that extend to
the beads are laid at altern ate angles substantially less
than 90 degrees to the centerline of the tread
CarcassThe tire structure, except tread and sidewall rubber
which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or sidewall
CordThe strands forming th e plies in the tire
Tire related termMeaning

525Alphabetical index
GS450h_OM_OM30E99U_(U)
Approach warning............................... 248
Armrest ..................................................... 315
Assist grips ............................................... 318
Audio input
*
Audio system*
Automatic headlight leveling system ......................................................199
Automatic light control system......... 197
AUX port
*
Auxiliary boxes ...................................... 309
AVS (Adaptive Variable Suspension system).......................... 267
Back-up lights Replacing light bulbs ....................... 388
Battery (12-volt battery) ....................358 If the 12-volt battery is discharged .........................................453
Preparing and checking before winter .................................................... 274
Warning light ...................................... 400
Battery (traction battery) ..................... 70
Blind Spot Monitor (BSM)................ 258 Blind Spot Monitor function .......... 261
Rear Cross Traffic Alert function ................................................263
Bluetooth
®*
Brake Brake Hold .............................................195
Fluid ..........................................................356
Parking brake ........................................193
Regenerative braking ..........................67
Warning light .......................... 400, 402
Warning message.............................406
Brake assist ..............................................266
Brake Hold................................................ 195
Break-in tips ............................................. 167
Brightness control Instrument panel light control ........ 89
BSM (Blind Spot Monitor) ............... 258 Blind Spot Monitor function........... 261
Rear Cross Traffic Alert function................................................ 263
Care................................................ 332, 336 Aluminum wheels .............................. 333
Exterior ................................................... 332
Interior ..................................................... 336
Seat belts................................................ 337
Cargo capacity ....................................... 177
Cargo hooks ............................................310
Caution label..............................................70
CD player
*
Chains ........................................................275
B
C
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

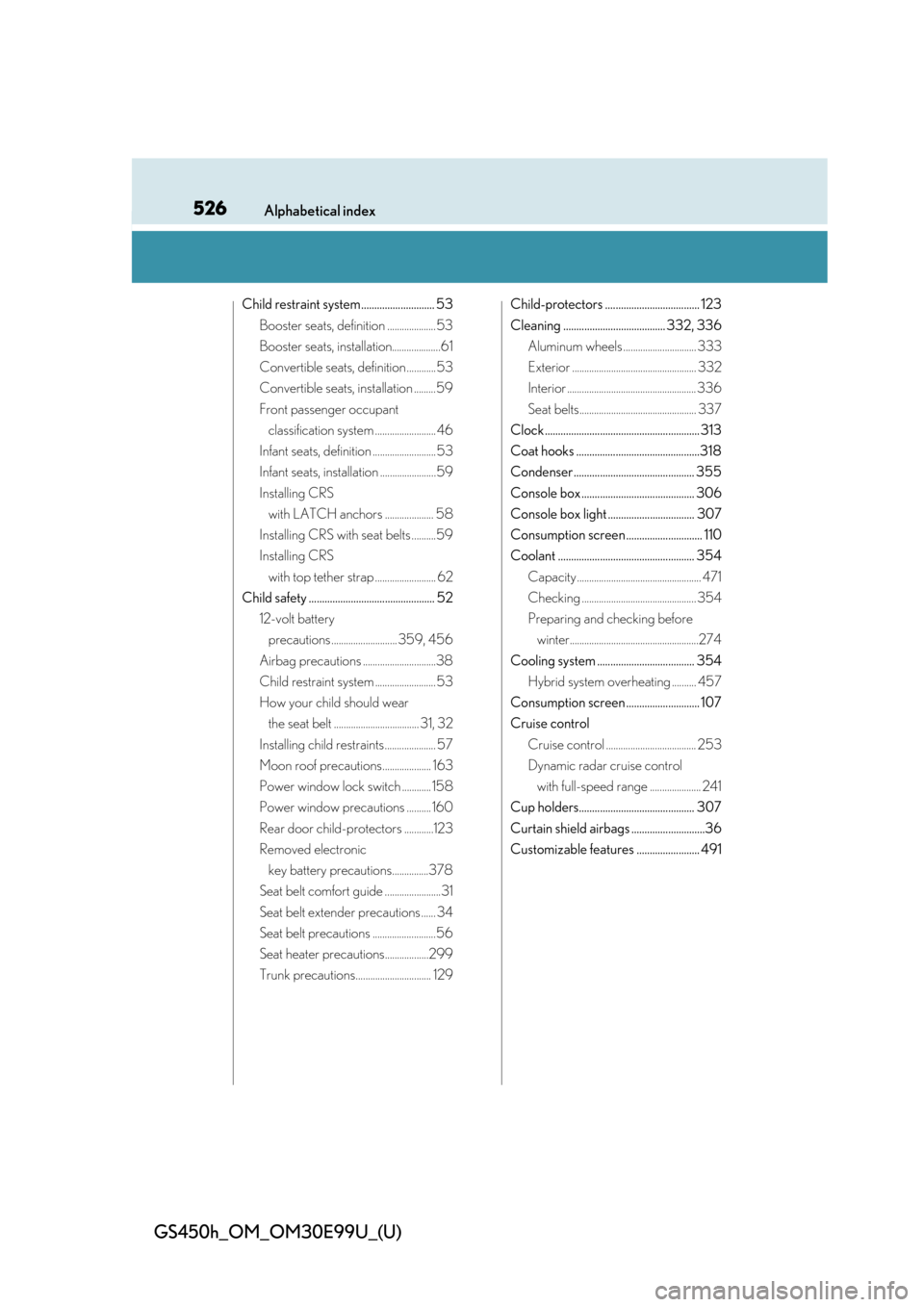

526Alphabetical index
GS450h_OM_OM30E99U_(U)
Child restraint system............................ 53Booster seats, definition ....................53
Booster seats, installation....................61
Convertible seats, definition ............53
Convertible seats, installation .........59
Front passenger occupant classification system ......................... 46
Infant seats, definition .......................... 53
Infant seats, installation .......................59
Installing CRS with LATCH anchors .................... 58
Installing CRS with seat belts ..........59
Installing CRS with top tether strap ......................... 62
Child safety ................................................ 52 12-volt battery precautions ........................... 359, 456
Airbag precautions ..............................38
Child restraint system ......................... 53
How your child should wear the seat belt ................................... 31, 32
Installing child restraints..................... 57
Moon roof precautions.................... 163
Power window lock switch ............ 158
Power window precautions .......... 160
Rear door child-p rotectors ............123
Removed electronic key battery precautions...............378
Seat belt comfort guide .......................31
Seat belt extender precautions ...... 34
Seat belt precautions ..........................56
Seat heater precautions..................299
Trunk precautions............................... 129 Child-protectors .................................... 123
Cleaning ....................................... 332, 336
Aluminum wheels .............................. 333
Exterior ................................................... 332
Interior ..................................................... 336
Seat belts................................................ 337
Clock........................................................... 313
Coat hooks ...............................................318
Condenser .............................................. 355
Console box ........................................... 306
Console box light ................................. 307
Consumption screen ............................. 110
Coolant .................................................... 354 Capacity ................................................... 471
Checking ............................................... 354
Preparing and checking before winter.....................................................274
Cooling system ..................................... 354 Hybrid system overheating .......... 457
Consumption screen ............................ 107
Cruise control Cruise control ..................................... 253
Dynamic radar cruise control with full-speed range ..................... 241
Cup holders............................................ 307
Curtain shield airbags ............................36
Customizable features ........................ 491

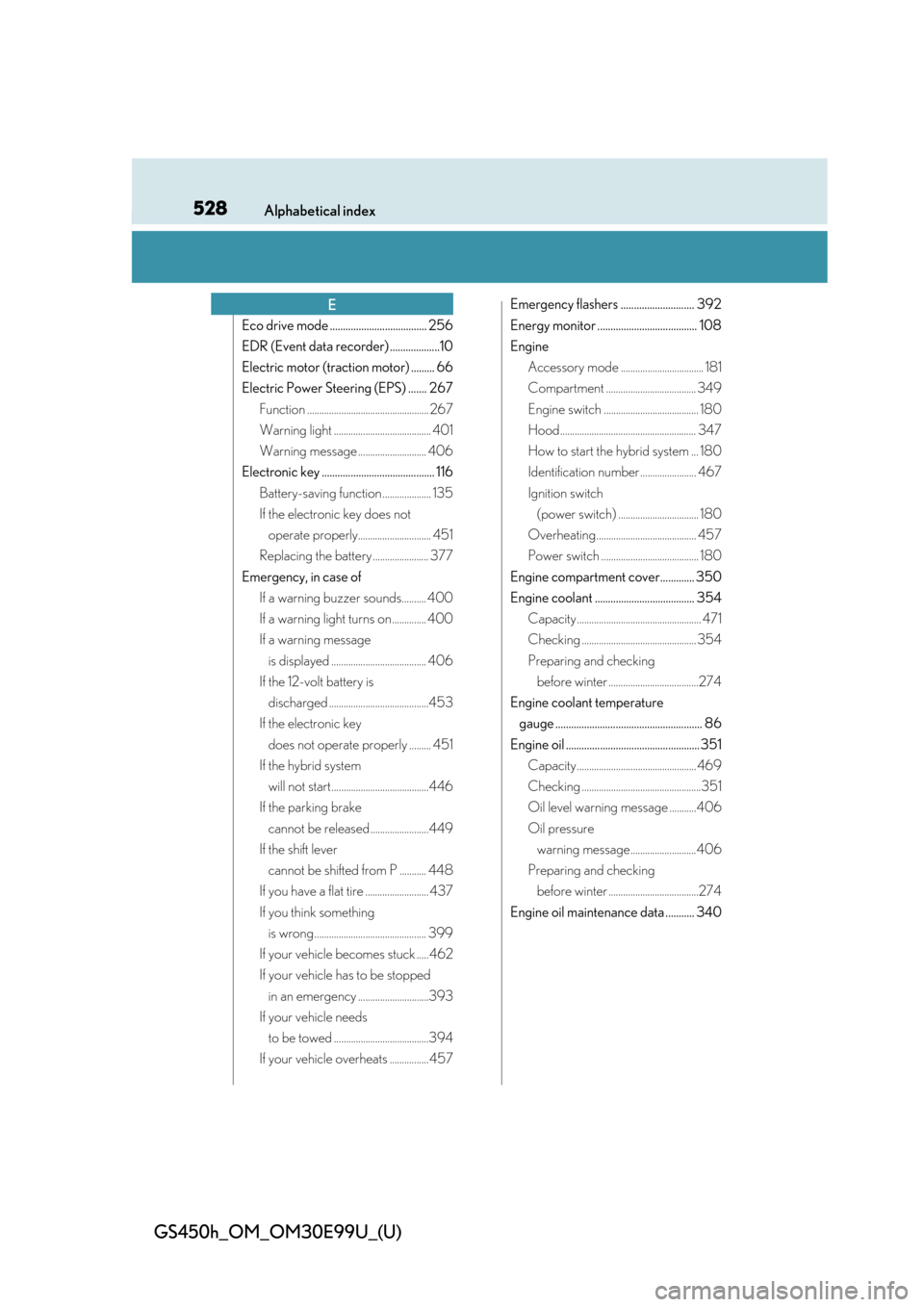

528Alphabetical index
GS450h_OM_OM30E99U_(U)
Eco drive mode ..................................... 256
EDR (Event data recorder) ...................10
Electric motor (traction motor) ......... 66
Electric Power Steering (EPS) ....... 267Function .................................................. 267
Warning light ........................................ 401
Warning message ............................ 406
Electronic key ........................................... 116 Battery-saving function .................... 135
If the electronic key does not operate properly.............................. 451
Replacing the battery ....................... 377
Emergency, in case of If a warning buzzer sounds.......... 400
If a warning light turns on.............. 400
If a warning message is displayed ....................................... 406
If the 12-volt battery is discharged .........................................453
If the electronic key does not operate properly ......... 451
If the hybrid system will not start........................................446
If the parking brake cannot be released........................449
If the shift lever cannot be shifted from P ........... 448
If you have a flat tire .......................... 437
If you think something is wrong.............................................. 399
If your vehicle becomes stuck ..... 462
If your vehicle has to be stopped in an emergency .............................393
If your vehicle needs to be towed .......................................394
If your vehicle overheats ................ 457 Emergency flashers ............................ 392
Energy monitor ...................................... 108
Engine
Accessory mode .................................. 181
Compartment ..................................... 349
Engine switch ....................................... 180
Hood........................................................ 347
How to start the hy brid system ... 180
Identification number ....................... 467
Ignition switch (power switch) ................................. 180
Overheating......................................... 457
Power switch ........................................ 180
Engine compartment cover............. 350
Engine coolant ...................................... 354 Capacity ................................................... 471
Checking ............................................... 354
Preparing and checking before winter .....................................274
Engine coolant temperature gauge ........................................................ 86
Engine oil ................................................... 351 Capacity ................................................. 469
Checking .................................................351
Oil level warning message ...........406
Oil pressure warning message...........................406
Preparing and checking before winter .....................................274
Engine oil maintenance data ........... 340
E

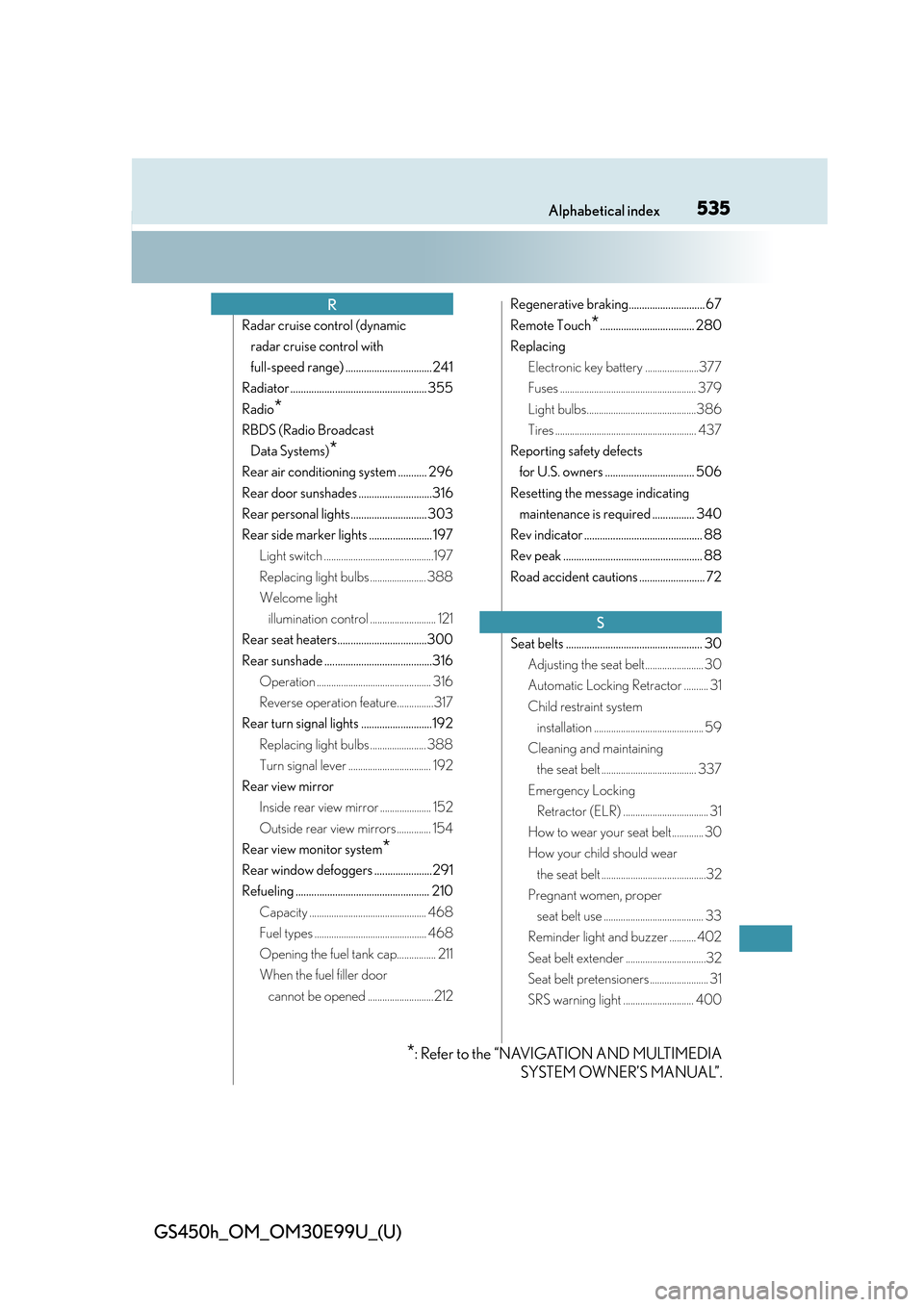

535Alphabetical index
GS450h_OM_OM30E99U_(U)
Radar cruise control (dynamic radar cruise control with
full-speed range) .................................241
Radiator .................................................... 355
Radio
*
RBDS (Radio Broadcast Data Systems)
*
Rear air conditioning system ........... 296
Rear door sunshades ............................316
Rear personal lights............................. 303
Rear side marker lights ........................ 197 Light switch .............................................197
Replacing light bulbs ....................... 388
Welcome light illumination control ........................... 121
Rear seat heaters..................................300
Rear sunshade .........................................316 Operation ............................................... 316
Reverse operation feature...............317
Rear turn signal lights ...........................192 Replacing light bulbs ....................... 388
Turn signal lever .................................. 192
Rear view mirror Inside rear view mirror ..................... 152
Outside rear view mirrors .............. 154
Rear view monitor system
*
Rear window defoggers ......................291
Refueling ................................................... 210 Capacity ................................................ 468
Fuel types .............................................. 468
Opening the fuel tank cap................ 211
When the fuel filler door cannot be opened ........................... 212 Regenerative braking............................. 67
Remote Touch
*.................................... 280
Replacing Electronic key battery ......................377
Fuses ........................................................ 379
Light bulbs.............................................386
Tires .......................................................... 437
Reporting safety defects for U.S. owners .................................. 506
Resetting the message indicating maintenance is required ................ 340
Rev indicator ............................................. 88
Rev peak ..................................................... 88
Road accident cautions ......................... 72
Seat belts .................................................... 30 Adjusting the seat belt........................ 30
Automatic Locking Retractor .......... 31
Child restraint system installation ............................................. 59
Cleaning and maintaining the seat belt ....................................... 337
Emergency Locking Retractor (ELR) ................................... 31
How to wear your seat belt............. 30
How your child should wear the seat belt ...........................................32
Pregnant women, proper seat belt use ......................................... 33
Reminder light and buzzer ........... 402
Seat belt extender .................................32
Seat belt pretensioners ........................ 31
SRS warning light ............................. 400
R
S
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

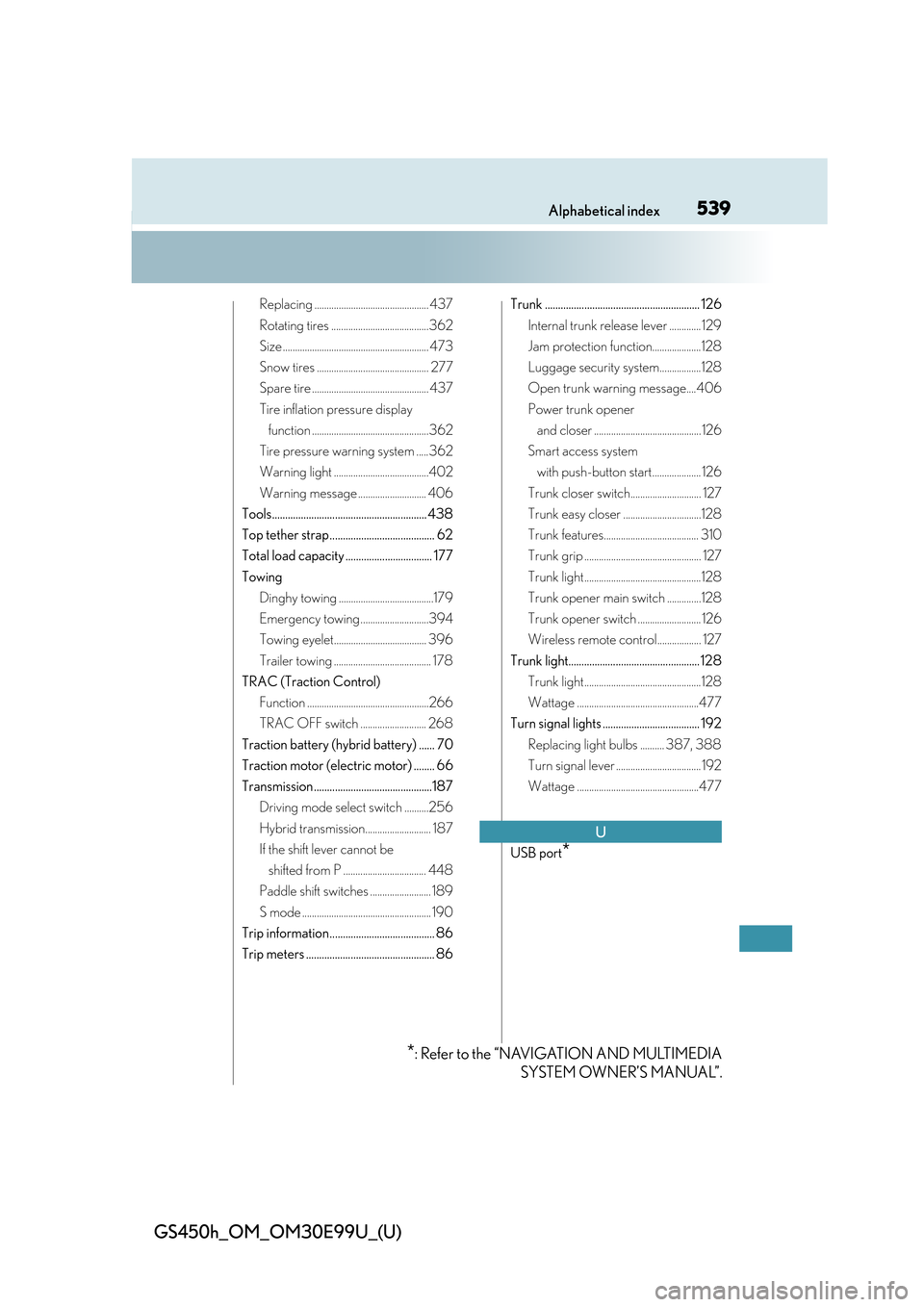

539Alphabetical index
GS450h_OM_OM30E99U_(U)
Replacing ............................................... 437
Rotating tires ........................................362
Size ............................................................ 473
Snow tires .............................................. 277
Spare tire ................................................ 437
Tire inflation pressure display function ................................................362
Tire pressure warning system .....362
Warning light .......................................402
Warning message ............................ 406
Tools........................................................... 438
Top tether strap........................................ 62
Total load capacity ................................. 177
Towing Dinghy towing .......................................179
Emergency towing ............................394
Towing eyelet...................................... 396
Trailer towing ........................................ 178
TRAC (Traction Control) Function ..................................................266
TRAC OFF switch ........................... 268
Traction battery (hybrid battery) ...... 70
Traction motor (electric motor) ........ 66
Transmission .............................................187 Driving mode select switch ..........256
Hybrid transmission........................... 187
If the shift lever cannot be shifted from P .................................. 448
Paddle shift switches ......................... 189
S mode ..................................................... 190
Trip information........................................ 86
Trip meters ................................................. 86 Trunk ........................................................... 126
Internal trunk release lever ............. 129
Jam protection function....................128
Luggage security system.................128
Open trunk warning message....406
Power trunk opener and closer ............................................ 126
Smart access system with push-button start.................... 126
Trunk closer switch............................. 127
Trunk easy closer ................................128
Trunk features....................................... 310
Trunk grip ................................................ 127
Trunk light................................................128
Trunk opener main switch ..............128
Trunk opener switch .......................... 126
Wireless remote control.................. 127
Trunk light.................................................. 128 Trunk light................................................128
Wattage ..................................................477
Turn signal lights ..................................... 192 Replacing light bulbs .......... 387, 388
Turn signal lever ................................... 192
Wattage ..................................................477
USB port
*
U
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
