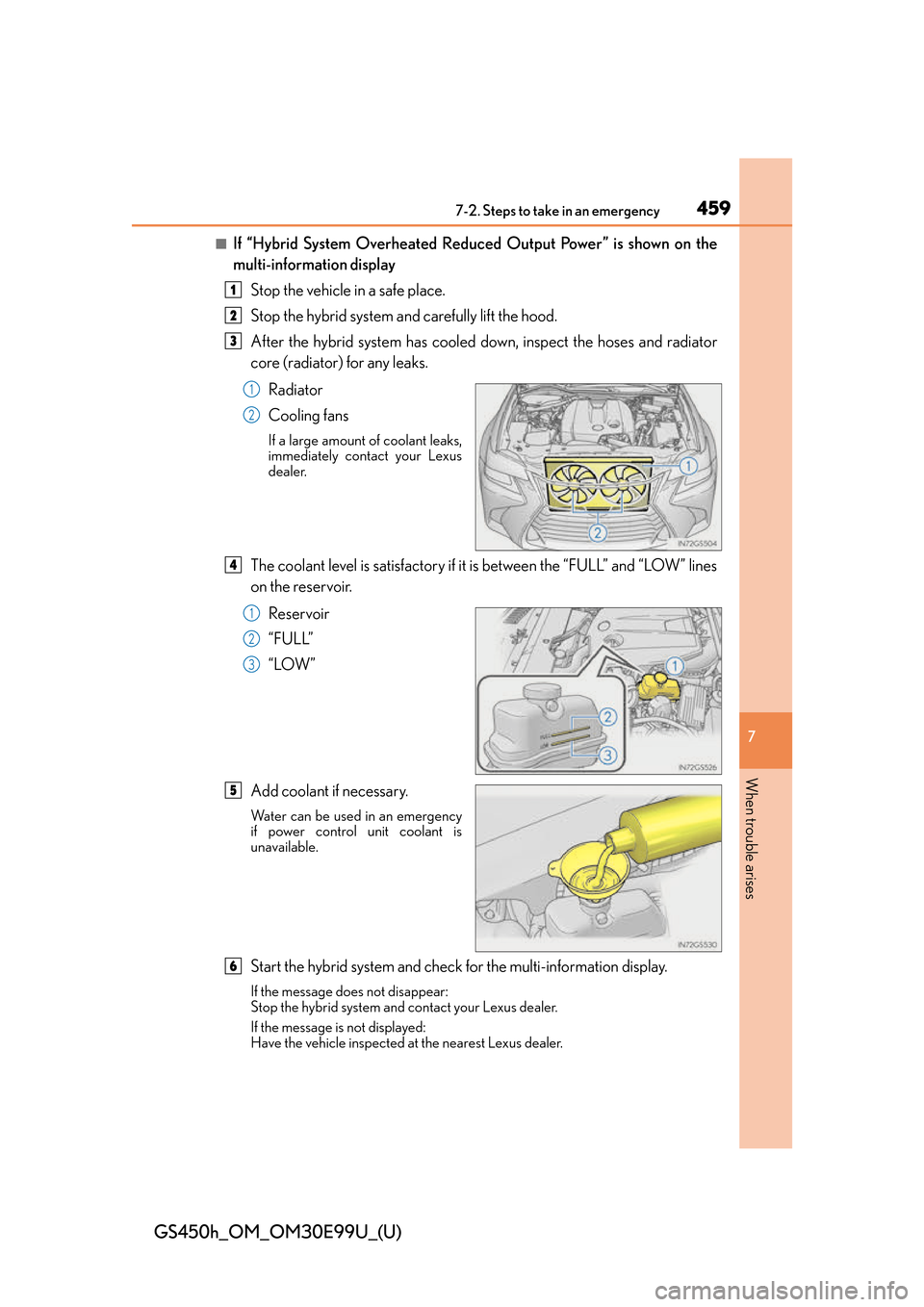

4597-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises
■If “Hybrid System Overheated Reduced Output Power” is shown on the
multi-information displayStop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.Reservoir
“FULL”
“LOW”
Add coolant if necessary.
Water can be used in an emergency
if power control unit coolant is
unavailable.
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
1
2
3
1
2
4
1
2
3
5
6

4617-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises
WA R N I N G
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned of f, check that the indicator on the power
switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically start, or
the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the fa n, which may lead to fingers or clothing
(especially a tie, a scarf or a muffler) ge tting caught, resulting in serious injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
●Do not loosen the coolant inlet cap or the
coolant reservoir cap while the hybrid system
and radiator are hot.
High temperature steam or coolant could
spray out.

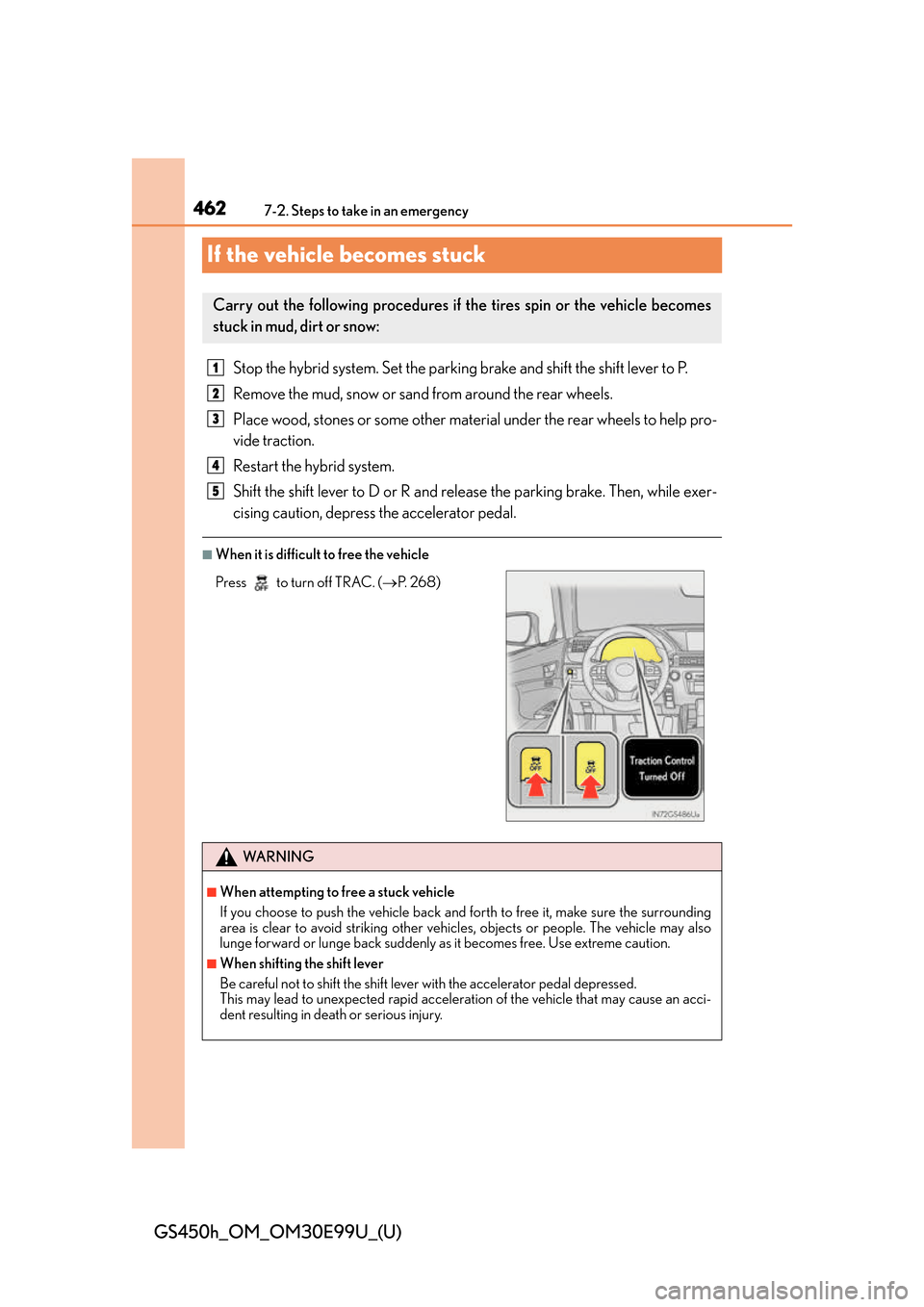

462
GS450h_OM_OM30E99U_(U)
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the hybrid system. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC. ( P. 2 6 8 )
WA R N I N G
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicl es, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid accelerati on of the vehicle that may cause an acci-
dent resulting in death or serious injury.
1
2
3
4
5

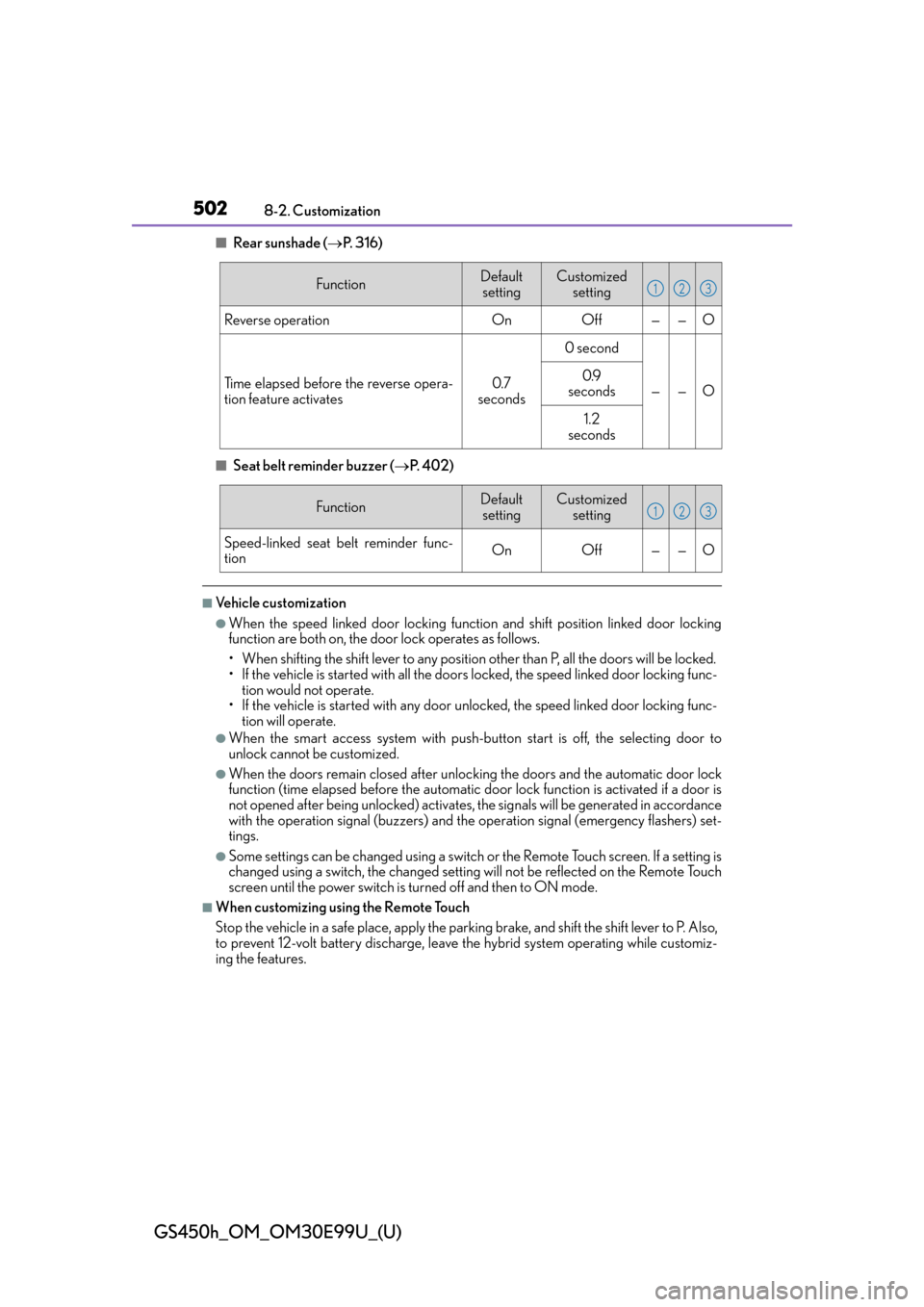

502
GS450h_OM_OM30E99U_(U)
8-2. Customization
■Rear sunshade (P. 3 1 6 )
■Seat belt reminder buzzer ( P. 4 0 2 )
■Vehicle customization
●When the speed linked door locking functi on and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all th e doors will be locked.
• If the vehicle is started with all the door s locked, the speed linked door locking func-
tion would not operate.
• If the vehicle is started with any door un locked, the speed linked door locking func-
tion will operate.
●When the smart access system with push-but ton start is off, the selecting door to
unlock cannot be customized.
●When the doors remain closed after unloc king the doors and the automatic door lock
function (time elapsed before the automatic d oor lock function is activated if a door is
not opened after being unlocked) activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency flashers) set-
tings.
●Some settings can be changed using a switch or the Remote Touch screen. If a setting is
changed using a switch, the ch anged setting will not be reflected on the Remote Touch
screen until the power switch is turned off and then to ON mode.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent 12-volt battery discharge, leave the hybrid system operating while customiz-
ing the features.
FunctionDefault settingCustomized setting
Reverse operationOnOff——O
Time elapsed before the reverse opera-
tion feature activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
123
FunctionDefault
settingCustomized setting
Speed-linked seat belt reminder func-
tionOnOff——O
123

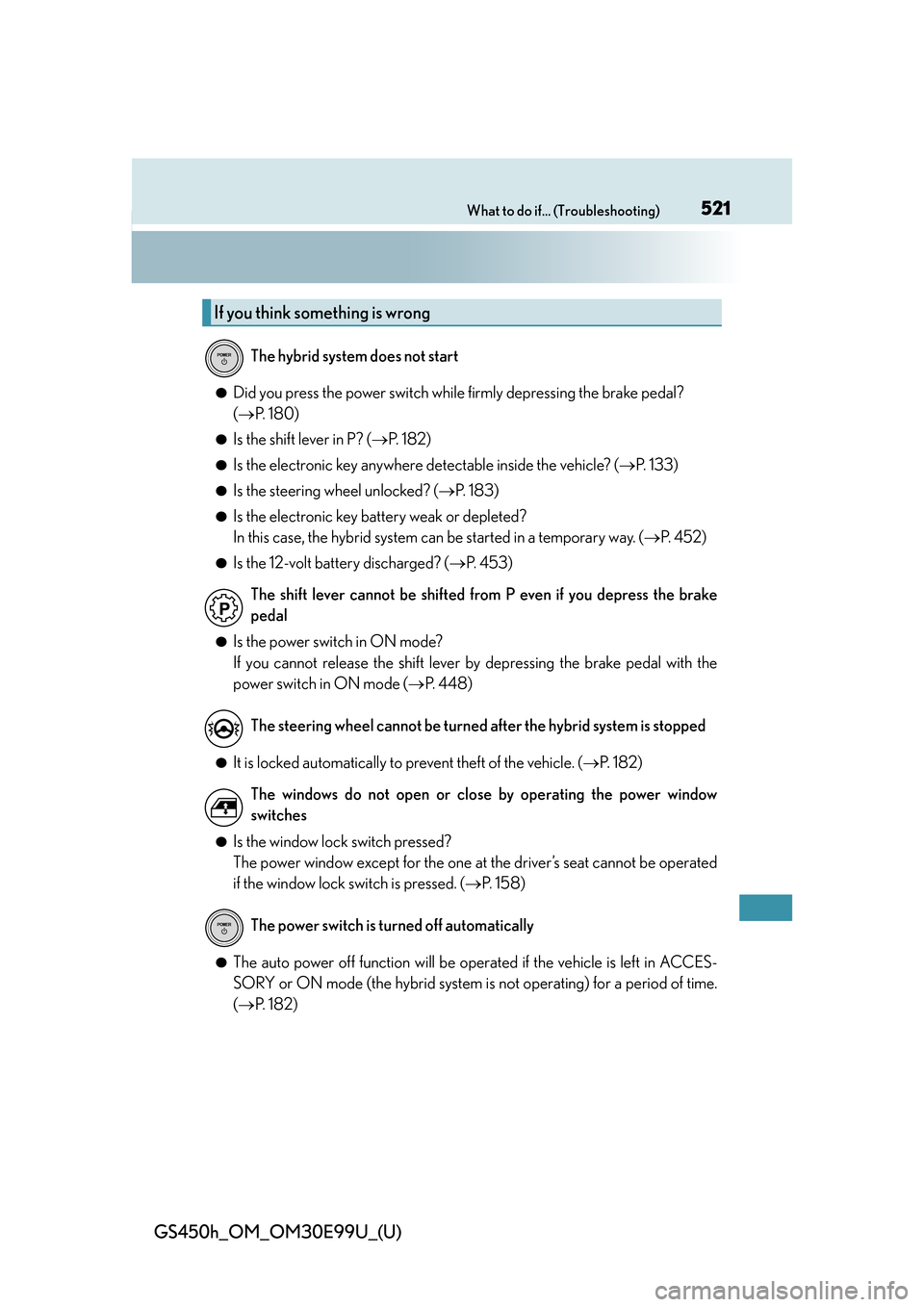

521What to do if... (Troubleshooting)
GS450h_OM_OM30E99U_(U)
●Did you press the power switch while firmly depressing the brake pedal?
(P. 1 8 0 )
●Is the shift lever in P? ( P. 1 8 2 )
●Is the electronic key anywhere detectable inside the vehicle? ( P. 1 3 3 )
●Is the steering wheel unlocked? ( P. 1 8 3 )
●Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way. ( P. 4 5 2 )
●Is the 12-volt battery discharged? ( P. 4 5 3 )
●Is the power switch in ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in ON mode ( P. 4 4 8 )
●It is locked automatically to prevent theft of the vehicle. ( P. 1 8 2 )
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 1 5 8 )
●The auto power off function will be oper ated if the vehicle is left in ACCES-
SORY or ON mode (the hybrid system is not operating) for a period of time.
( P. 1 8 2 )
If you think something is wrong
The hybrid system does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the hybrid system is stopped
The windows do not open or close by operating the power window
switches
The power switch is turned off automatically

522What to do if... (Troubleshooting)
GS450h_OM_OM30E99U_(U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 4 0 2 )
●The parking brake indicator is on
Is the parking brake released? ( P. 1 9 3 )
Depending on the situation, other type s of warning buzzer may also sound.
( P. 4 0 0 , 4 0 6 )
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 7 7 )
To stop the alarm, turn the power switch to ON mode or start the hybrid system.
●Is the electronic key left inside the vehicle or the moon roof opened?
Check the message on the multi-information display. ( P. 4 0 6 )
●When a warning light turns on or a warning message is displayed, refer to
P. 4 0 0 , 4 0 6 . A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

528Alphabetical index
GS450h_OM_OM30E99U_(U)
Eco drive mode ..................................... 256
EDR (Event data recorder) ...................10
Electric motor (traction motor) ......... 66
Electric Power Steering (EPS) ....... 267Function .................................................. 267
Warning light ........................................ 401
Warning message ............................ 406
Electronic key ........................................... 116 Battery-saving function .................... 135
If the electronic key does not operate properly.............................. 451
Replacing the battery ....................... 377
Emergency, in case of If a warning buzzer sounds.......... 400
If a warning light turns on.............. 400
If a warning message is displayed ....................................... 406
If the 12-volt battery is discharged .........................................453
If the electronic key does not operate properly ......... 451
If the hybrid system will not start........................................446
If the parking brake cannot be released........................449
If the shift lever cannot be shifted from P ........... 448
If you have a flat tire .......................... 437
If you think something is wrong.............................................. 399
If your vehicle becomes stuck ..... 462
If your vehicle has to be stopped in an emergency .............................393
If your vehicle needs to be towed .......................................394
If your vehicle overheats ................ 457 Emergency flashers ............................ 392
Energy monitor ...................................... 108
Engine
Accessory mode .................................. 181
Compartment ..................................... 349
Engine switch ....................................... 180
Hood........................................................ 347
How to start the hy brid system ... 180
Identification number ....................... 467
Ignition switch (power switch) ................................. 180
Overheating......................................... 457
Power switch ........................................ 180
Engine compartment cover............. 350
Engine coolant ...................................... 354 Capacity ................................................... 471
Checking ............................................... 354
Preparing and checking before winter .....................................274
Engine coolant temperature gauge ........................................................ 86
Engine oil ................................................... 351 Capacity ................................................. 469
Checking .................................................351
Oil level warning message ...........406
Oil pressure warning message...........................406
Preparing and checking before winter .....................................274
Engine oil maintenance data ........... 340
E

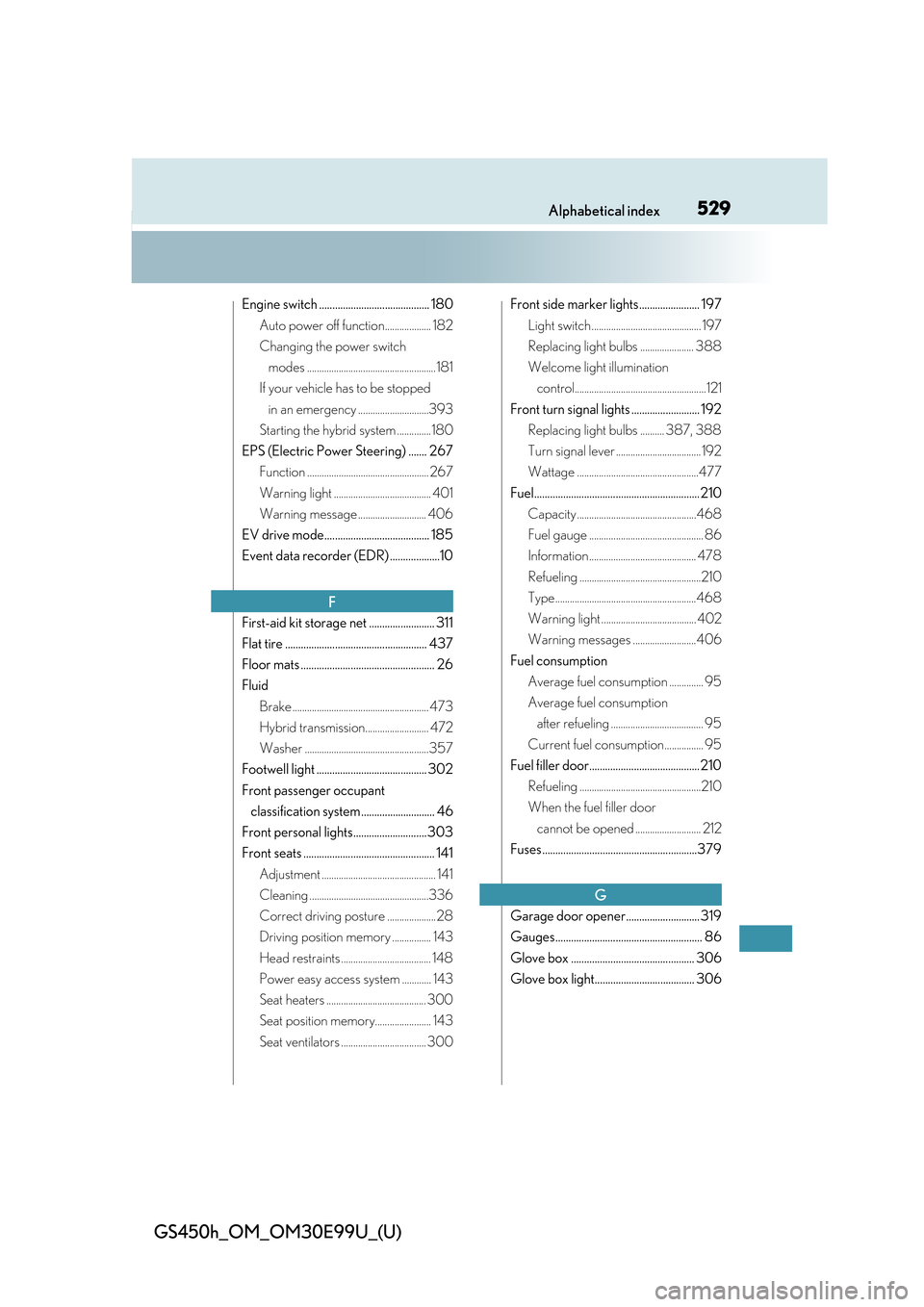

529Alphabetical index
GS450h_OM_OM30E99U_(U)
Engine switch .......................................... 180Auto power off function................... 182
Changing the power switch modes ..................................................... 181
If your vehicle has to be stopped in an emergency .............................393
Starting the hybrid system ..............180
EPS (Electric Power Steering) ....... 267 Function .................................................. 267
Warning light ........................................ 401
Warning message ............................ 406
EV drive mode........................................ 185
Event data recorder (EDR) ...................10
First-aid kit storage net ......................... 311
Flat tire ...................................................... 437
Floor mats ................................................... 26
Fluid Brake ........................................................ 473
Hybrid transmission.......................... 472
Washer ...................................................357
Footwell light .......................................... 302
Front passenger occupant classification system ............................ 46
Front personal lights............................ 303
Front seats .................................................. 141 Adjustment ............................................... 141
Cleaning .................................................336
Correct driving posture .................... 28
Driving position memory ................ 143
Head restraints ..................................... 148
Power easy access system ............ 143
Seat heaters ......................................... 300
Seat position memory....................... 143
Seat ventilators ................................... 300 Front side marker lights....................... 197
Light switch............................................. 197
Replacing light bulbs ...................... 388
Welcome light illumination control......................................................121
Front turn signal lights .......................... 192 Replacing light bulbs .......... 387, 388
Turn signal lever ................................... 192
Wattage ..................................................477
Fuel............................................................... 210 Capacity .................................................468
Fuel gauge ............................................... 86
Information............................................ 478
Refueling ..................................................210
Type..........................................................468
Warning light ....................................... 402
Warning messages ..........................406
Fuel consumption Average fuel consumption .............. 95
Average fuel consumption after refueling ...................................... 95
Current fuel consumption................ 95
Fuel filler door.......................................... 210 Refueling ..................................................210
When the fuel filler door cannot be opened ........................... 212
Fuses...........................................................379
Garage door opener............................ 319
Gauges........................................................ 86
Glove box ............................................... 306
Glove box light...................................... 306
F
G
