2016 Lexus GS450h navigation system

2825-1. Remote Touch screen
GS450h_OM_OM30E99U_(U)

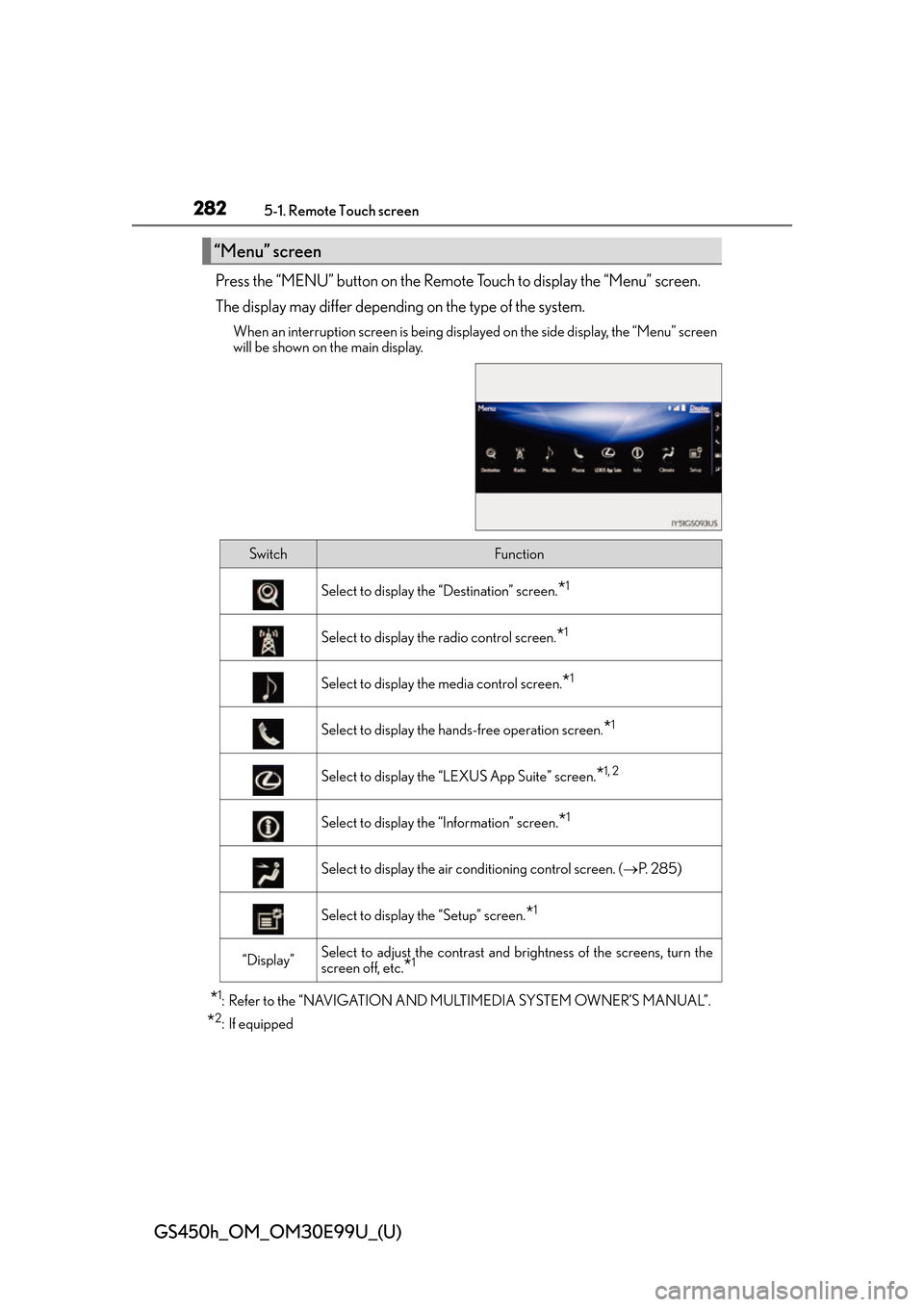

Press the “MENU” button on the Remote Touch to display the “Menu” screen.
The display may differ depending on the type of the system.
When an interruption screen is being displayed on the side display, the “Menu” screen
will be shown on the main display.
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
“Menu” screen
SwitchFunction
Select to display the “Destination” screen.*1
Select to display the radio control screen.*1
Select to display the media control screen.*1
Select to display the hands-free operation screen.*1
Select to display the “LEXUS App Suite” screen.*1, 2
Select to display the “Information” screen.*1
Select to display the air conditioning control screen. ( P. 2 8 5 )
Select to display the “Setup” screen.*1
“Display”Select to adjust the contrast and br ightness of the screens, turn the
screen off, etc.
*1

GS450h_OM_OM30E99U_(U)
2835-1. Remote Touch screen
5
Interior features

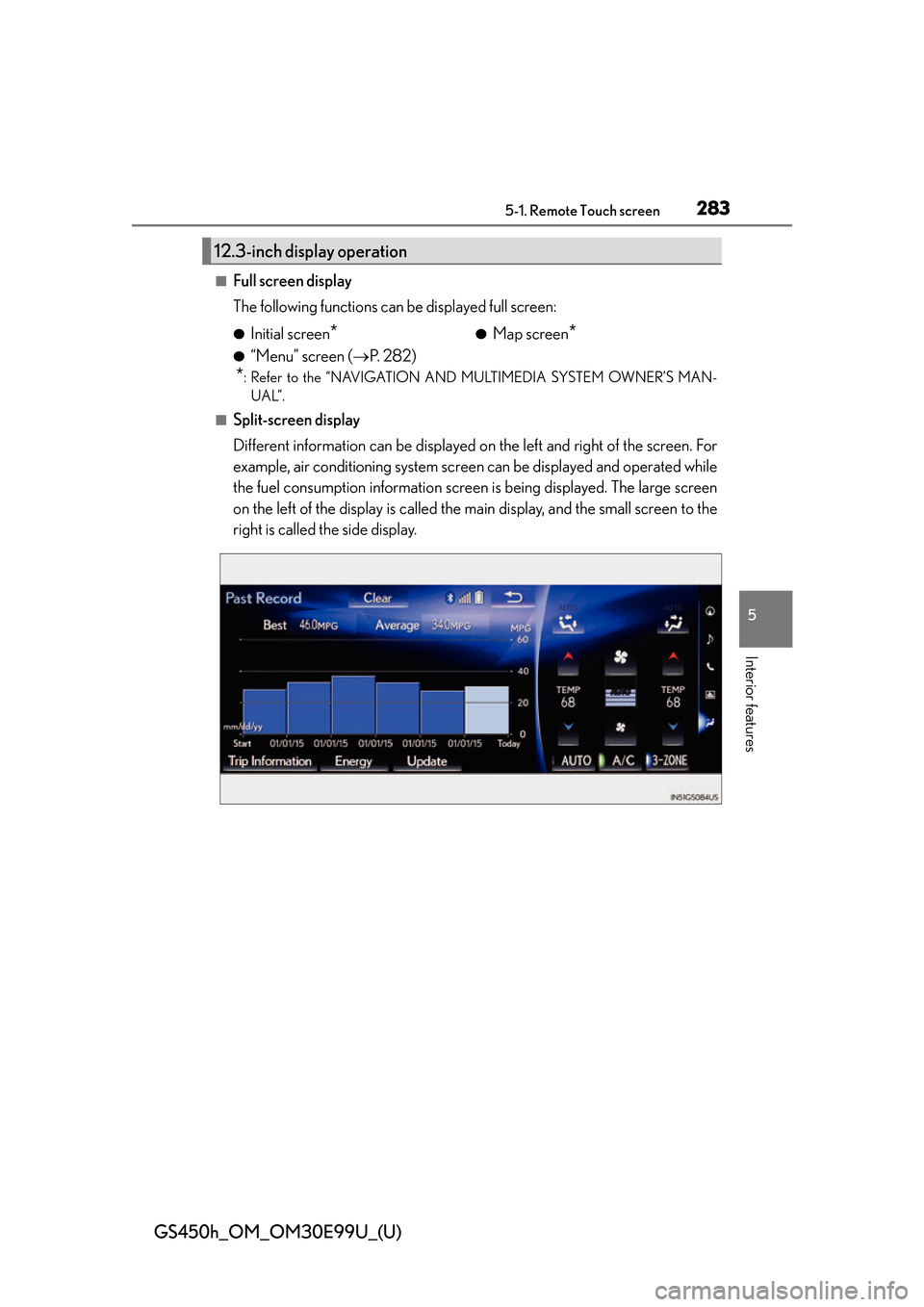

■Full screen display
The following functions can be displayed full screen:
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-UAL”.
■Split-screen display
Different information can be displayed on the left and right of the screen. For
example, air conditioning system scr een can be displayed and operated while
the fuel consumption information screen is being displayed. The large screen
on the left of the display is called the main display, and the small screen to the
right is called the side display.
12.3-inch display operation
●Initial screen*
●“Menu” screen ( P. 2 8 2 )
●Map screen*

2845-1. Remote Touch screen
GS450h_OM_OM30E99U_(U)

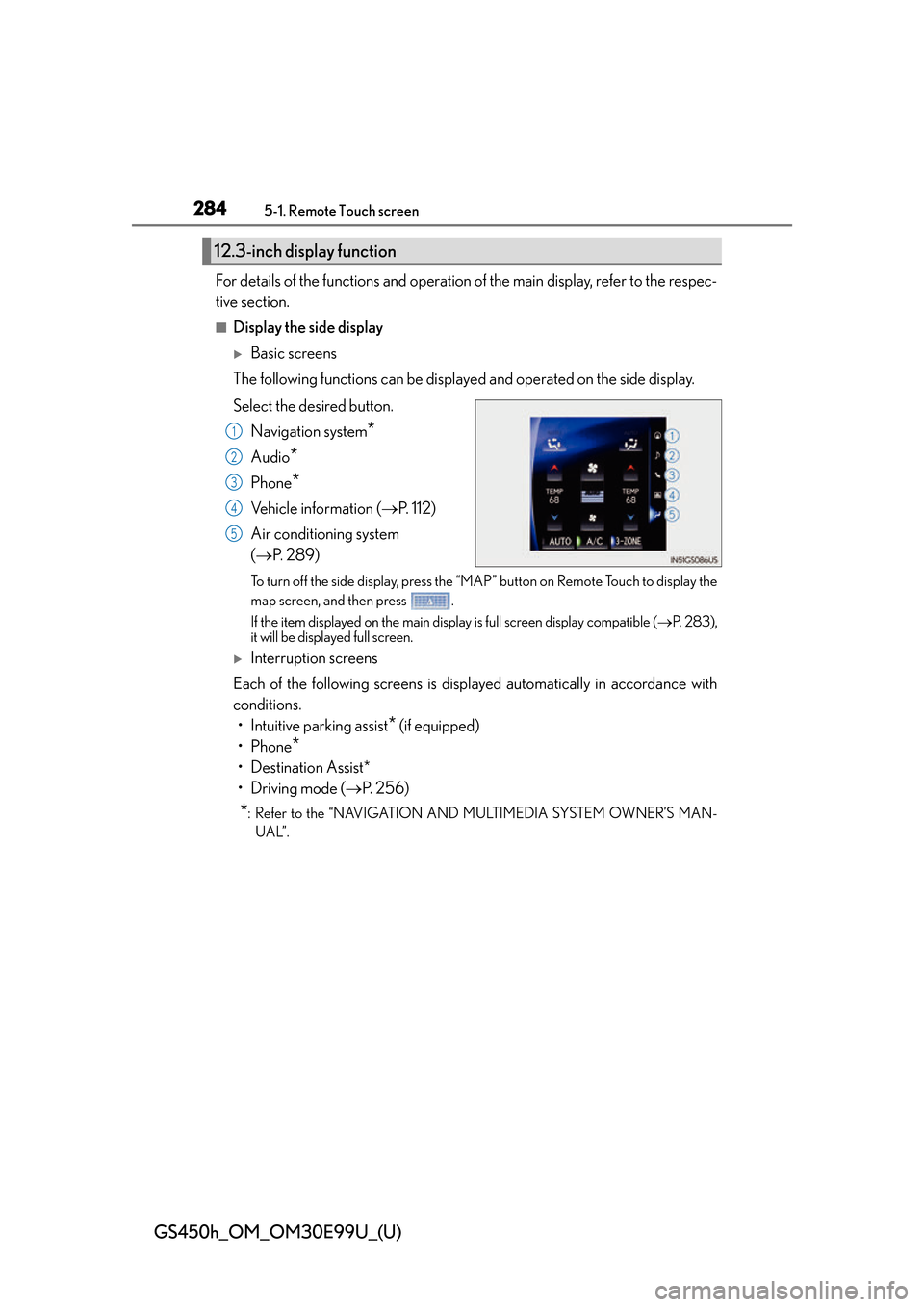

For details of the functions and operation of the main display, refer to the respec-
tive section.
■Display the side display
Basic screens
The following functions can be displaye d and operated on the side display.
Select the desired button. Navigation system
*
Audio*
Phone*
Vehicle information ( P. 112)
Air conditioning system
( P. 2 8 9 )
To turn off the side display, press the “MAP” button on Remote Touch to display the
map screen, and then press .
If the item displayed on the main display is full screen display compatible ( P. 2 8 3 ) ,
it will be displayed full screen.
Interruption screens
Each of the following screens is displayed automatically in accordance with
conditions. • Intuitive parking assist
* (if equipped)
•Phone
*
• Destination Assist*
•Driving mode ( P. 2 5 6 )
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
12.3-inch display function
1
2
3
4
5

GS450h_OM_OM30E99U_(U)
3135-5. Using the other interior features
5
Interior features

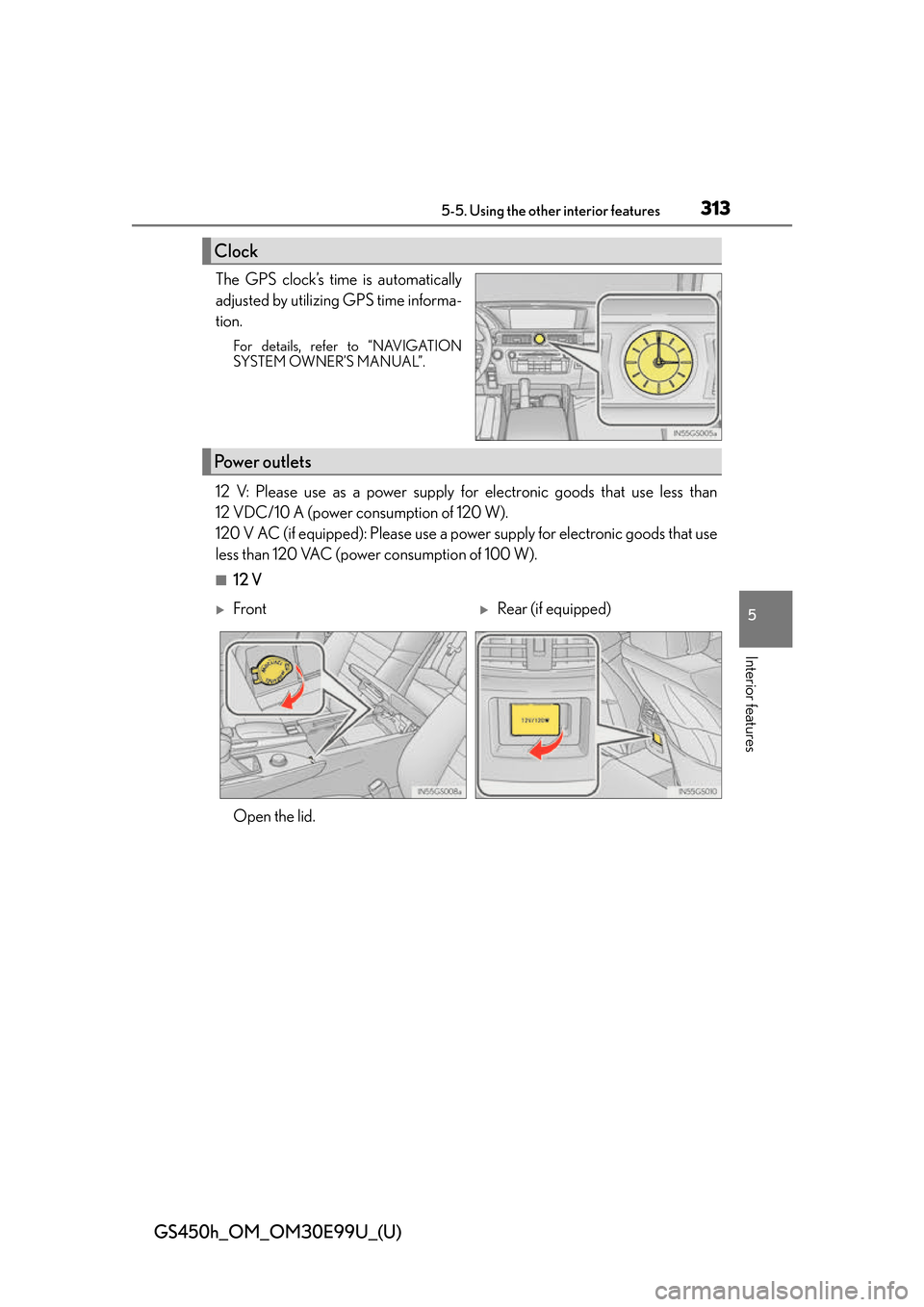

The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”.
12 V: Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
120 V AC (if equipped): Please use a power supply for electronic goods that use
less than 120 VAC (power consumption of 100 W).
■12 V
Clock
Power outlets
FrontRear (if equipped)
Open the lid.

4457-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises

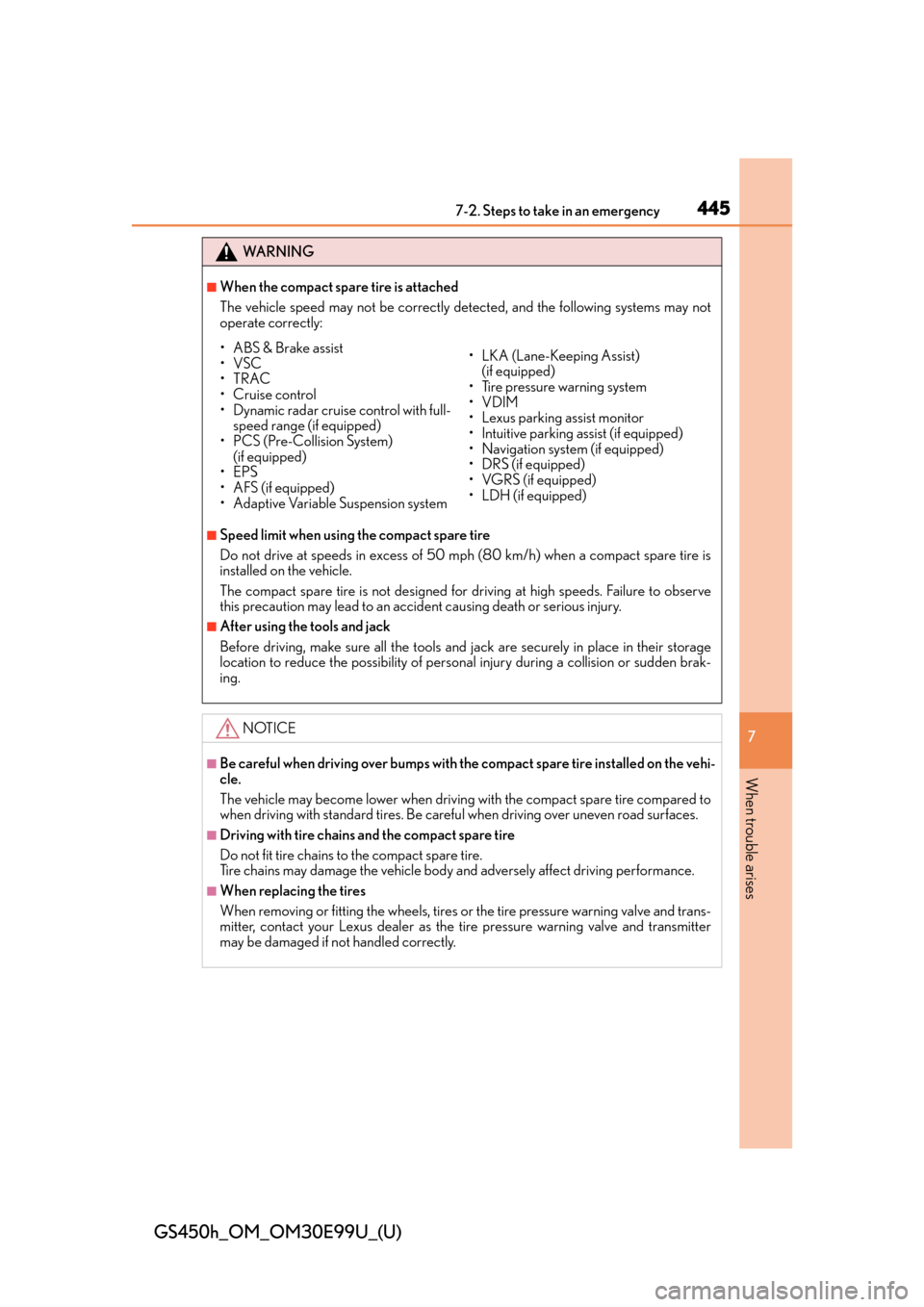

WA R N I N G
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
NOTICE
■Be careful when driving over bumps with the compact spare tire installed on the vehi-
cle.
The vehicle may become lower when driving with the compact spare tire compared to
when driving with standard ti res. Be careful when driving over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and trans-
mitter, contact your Lexus dealer as the tire pressure warning valve and transmitter
may be damaged if not handled correctly.
• ABS & Brake assist
•VSC
•TRAC
•Cruise control
• Dynamic radar cruise control with full-
speed range (if equipped)
• PCS (Pre-Collision System)
(if equipped)
•EPS
•AFS (if equipped)
• Adaptive Variable Suspension system • LKA (Lane-Keeping Assist)
(if equipped)
• Tire pressure warning system
•VDIM
• Lexus parking assist monitor
• Intuitive parking assist (if equipped)
• Navigation system (if equipped)
• DRS (if equipped)
• VGRS (if equipped)
• LDH (if equipped)

GS450h_OM_OM30E99U_(U)
4998-2. Customization
8
Vehicle specifications
■Intuitive parking assist*1, 2
*1:If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
■Driving mode select switch (P. 256)
FunctionDefault
settingCustomized setting
Detection distance of the front center
sensorFarNearO—O
Detection distance of the rear center
sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when intuitive parking assist is operat-
ing)All sensors displayedDisplay offO—O
123
FunctionDefault
settingCustomized setting
Power train controlNormalPo w e rO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

519
GS450h_OM_OM30E99U_(U)

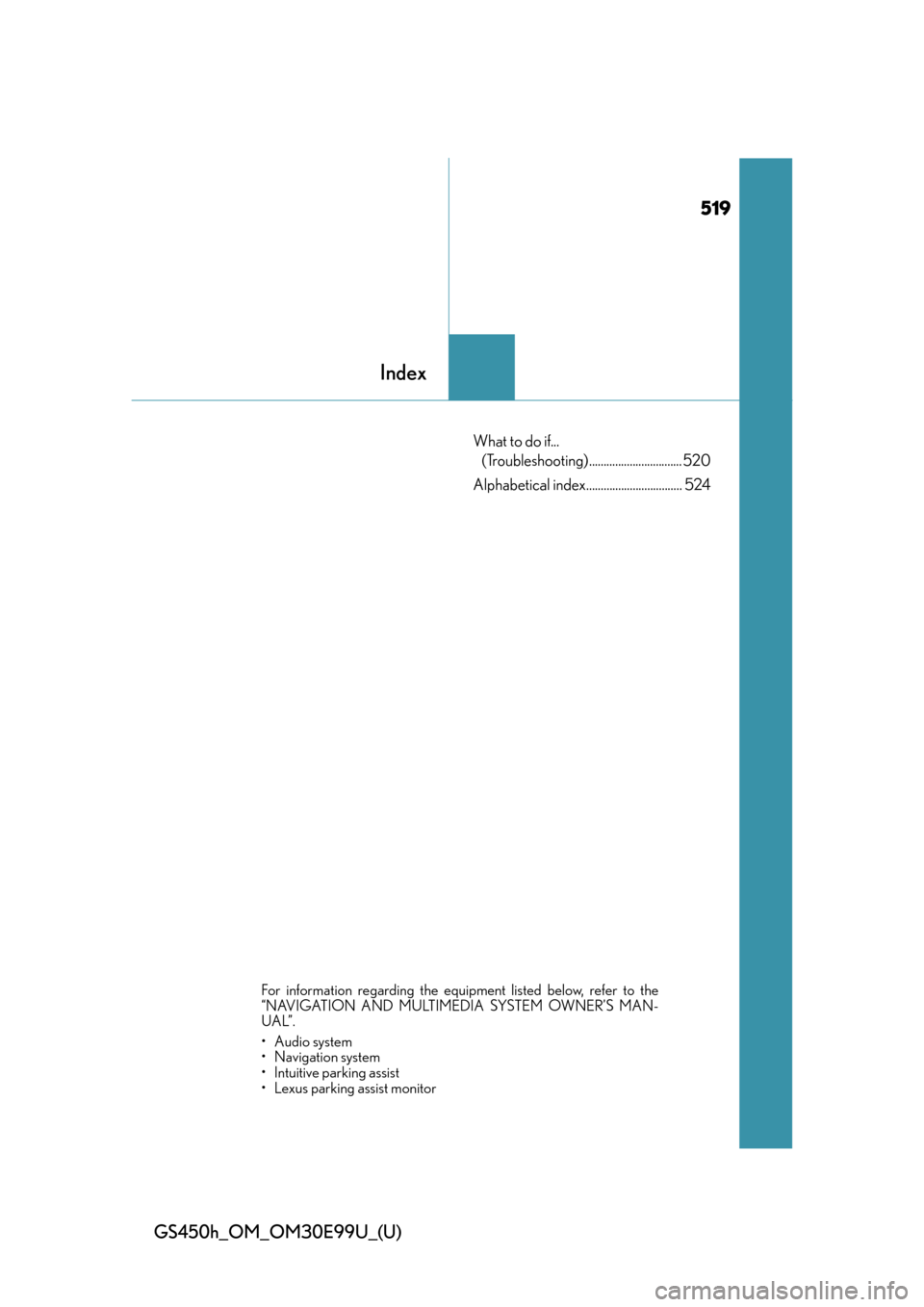

Index
What to do if... (Troubleshooting)................................ 520
Alphabetical index................................. 524
For information regarding the equipm ent listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
•Audio system
• Navigation system
• Intuitive parking assist
• Lexus parking assist monitor

525Alphabetical index
GS450h_OM_OM30E99U_(U)
Approach warning............................... 248
Armrest ..................................................... 315
Assist grips ............................................... 318
Audio input
*
Audio system*
Automatic headlight leveling system ......................................................199
Automatic light control system......... 197
AUX port
*
Auxiliary boxes ...................................... 309
AVS (Adaptive Variable Suspension system).......................... 267
Back-up lights Replacing light bulbs ....................... 388
Battery (12-volt battery) ....................358 If the 12-volt battery is discharged .........................................453
Preparing and checking before winter .................................................... 274
Warning light ...................................... 400
Battery (traction battery) ..................... 70
Blind Spot Monitor (BSM)................ 258 Blind Spot Monitor function .......... 261
Rear Cross Traffic Alert function ................................................263
Bluetooth
®*
Brake Brake Hold .............................................195
Fluid ..........................................................356
Parking brake ........................................193
Regenerative braking ..........................67
Warning light .......................... 400, 402
Warning message.............................406
Brake assist ..............................................266
Brake Hold................................................ 195
Break-in tips ............................................. 167
Brightness control Instrument panel light control ........ 89
BSM (Blind Spot Monitor) ............... 258 Blind Spot Monitor function........... 261
Rear Cross Traffic Alert function................................................ 263
Care................................................ 332, 336 Aluminum wheels .............................. 333
Exterior ................................................... 332
Interior ..................................................... 336
Seat belts................................................ 337
Cargo capacity ....................................... 177
Cargo hooks ............................................310
Caution label..............................................70
CD player
*
Chains ........................................................275
B
C
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
