2016 Lexus GS350 parking sensors

GS350_200t_GS F_OM_OM30E86U_(U)
3054-5. Using the driving support systems
4
Driving

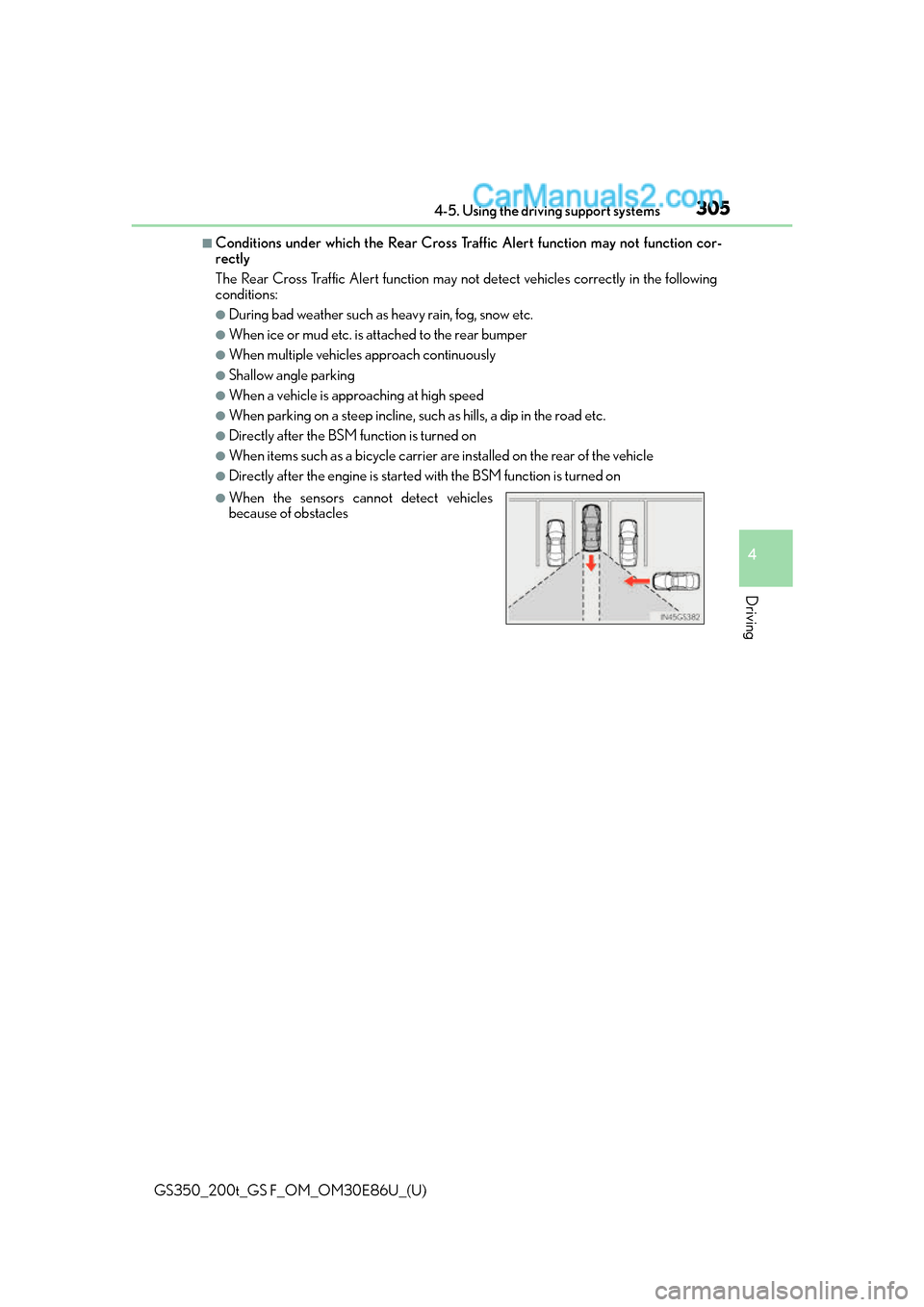

■Conditions under which the Rear Cross Traffic Alert function may not function cor-
rectly
The Rear Cross Traffic Alert function may not detect vehicles correctly in the following
conditions:
●During bad weather such as heavy rain, fog, snow etc.
●When ice or mud etc. is attached to the rear bumper
●When multiple vehicles approach continuously
●Shallow angle parking
●When a vehicle is approaching at high speed
●When parking on a steep incline, su ch as hills, a dip in the road etc.
●Directly after the BSM function is turned on
●When items such as a bicycle carrier are installed on the rear of the vehicle
●Directly after the engine is started with the BSM function is turned on
●When the sensors cannot detect vehicles
because of obstacles

4617-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Indicates that hood or one or more of the doors or trunk
are not fully closed The system also indicate s which hood or doors or
trunk are not fully closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the hood or door(s) or trunk are not yet fully closed.
 Make sure that hood or all doors or trunk are
closed.
(If equipped)
Indicates a malfunction in the intuitive parking assist
All assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that intuitive parkin g assist sensor is dirty or
covered with ice
A buzzer also sounds.
 Clean the sensor.
Wa r n i n g m e s s a g eDetails/Actions
(GS350/GS200t) (GS F)
(GS350/GS200t) (GS F)

578
GS350_200t_GS F_OM_OM30E86U_(U)8-2. Customization

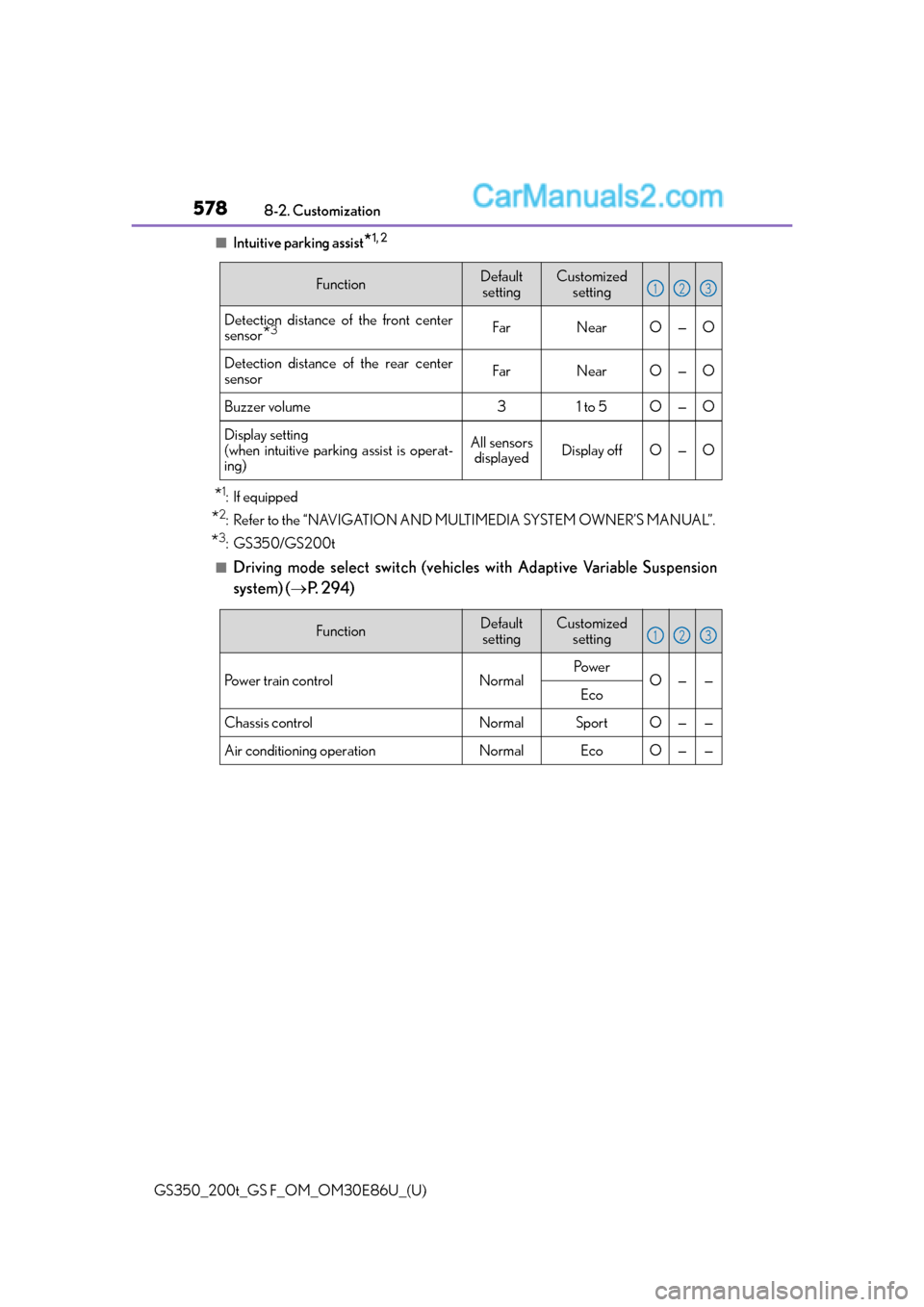

■Intuitive parking assist*1, 2
*1:If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*3:GS350/GS200t
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) (
P. 2 9 4 )
FunctionDefault
settingCustomized setting
Detection distance of the front center
sensor
*3FarNearO—O
Detection distance of the rear center
sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when intuitive parking assist is operat-
ing)All sensors displayedDisplay offO—O
123
FunctionDefault
settingCustomized setting
Power train controlNormalPo w e rO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

614Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)
Outer foot lightsOuter foot lights ................................. 347
Replacing light bulbs ........................439
Wattage ................................................. 554
Outside rear view mirrors ................... 171 Adjusting and folding.......................... 171
Blind Spot Monitor........................... 298
Linked mirror function when reversing ..................................173
Mirror position memory .................. 160
Outside rear view mirror defoggers ............................334
Outside temperature display ..... 87, 94
Overheating, Engine .......................... 528
Paddle shift switches ........................... 204
Parking assist sensors (intuitive parking assist)
*
Parking brake.......................................... 210 If the parking brake cannot be released......................... 518
Operation ............................................... 210
Parking brake engaged warning buzzer .............................. 459
Parking brake engaged warning message .......................... 459
Parking lights ............................................215 Light switch ............................................ 215
Replacing light bulbs ........................439
Welcome light illumination control ......................... 138 PCS (Pre-Collision System)............. 237
Function ...................................................237
Warning light ....................................... 453
Warning message............................. 459
Personal lights ....................................... 348
Power easy access system .................160
Pop-up display ............................... 105, 117
Power outlets ......................................... 360
Power steering (Electric Power Steering system)................................ 309Warning light ....................................... 453
Warning message............................. 459
Power trunk opener and closer ....... 143
Power windows....................................... 175 Door lock linked window operation ........................... 176
Jam protection function.................... 175
Operation................................................ 175
Window lock switch .......................... 175
Pre-Collision System (PCS)............. 237 Function ...................................................237
Warning light ....................................... 453
Warning message............................. 459
P
