GS350_200t_GS F_OM_OM30E86U_(U)6-3. Do-it-yourself maintenance
■Front turn signal light (vehicles with single-beam headlights)
For the left side only: Remove the
bolt and move the washer fluid
filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Replacing light bulbs
1
2
3

GS350_200t_GS F_OM_OM30E86U_(U)
4396-3. Do-it-yourself maintenance
6
Maintenance and care
When installing, reverse the steps listed.
After installing the bulb base, secure the cord with the clips and if replacing the left
side bulb, make sure to install the bolt for the washer fluid filler opening in its origi-
nal position.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.
●Headlights
●Parking lights/daytime running lights
●Front side marker lights
●Front turn signal lights (vehic les with triple-beam headlights)
●Side turn signal lights
●Stop/tail lights
●Stop lights
●Rear side marker lights
●Rear turn signal lights
●Back-up lights
●High mounted stoplight
●License plate lights
●Outer foot lights
4
Right sideLeft side

440
GS350_200t_GS F_OM_OM30E86U_(U)6-3. Do-it-yourself maintenance
■LED Lights
The lights other than the front turn signal light (vehicles with single-beam headlights) and
outer foot lights each consist of a number of
LEDs. If any of the LEDs burn out, take your
vehicle to your Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for mo re information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Wa t e r h a s b u i l t u p i nside the headlight.
■When replacing light bulbs
P. 4 3 4
WA R N I N G
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the
lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-
able to hold the glass portion, use and ho ld with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering the headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installin g to prevent heat damage.

442
GS350_200t_GS F_OM_OM30E86U_(U)7-1. Essential information

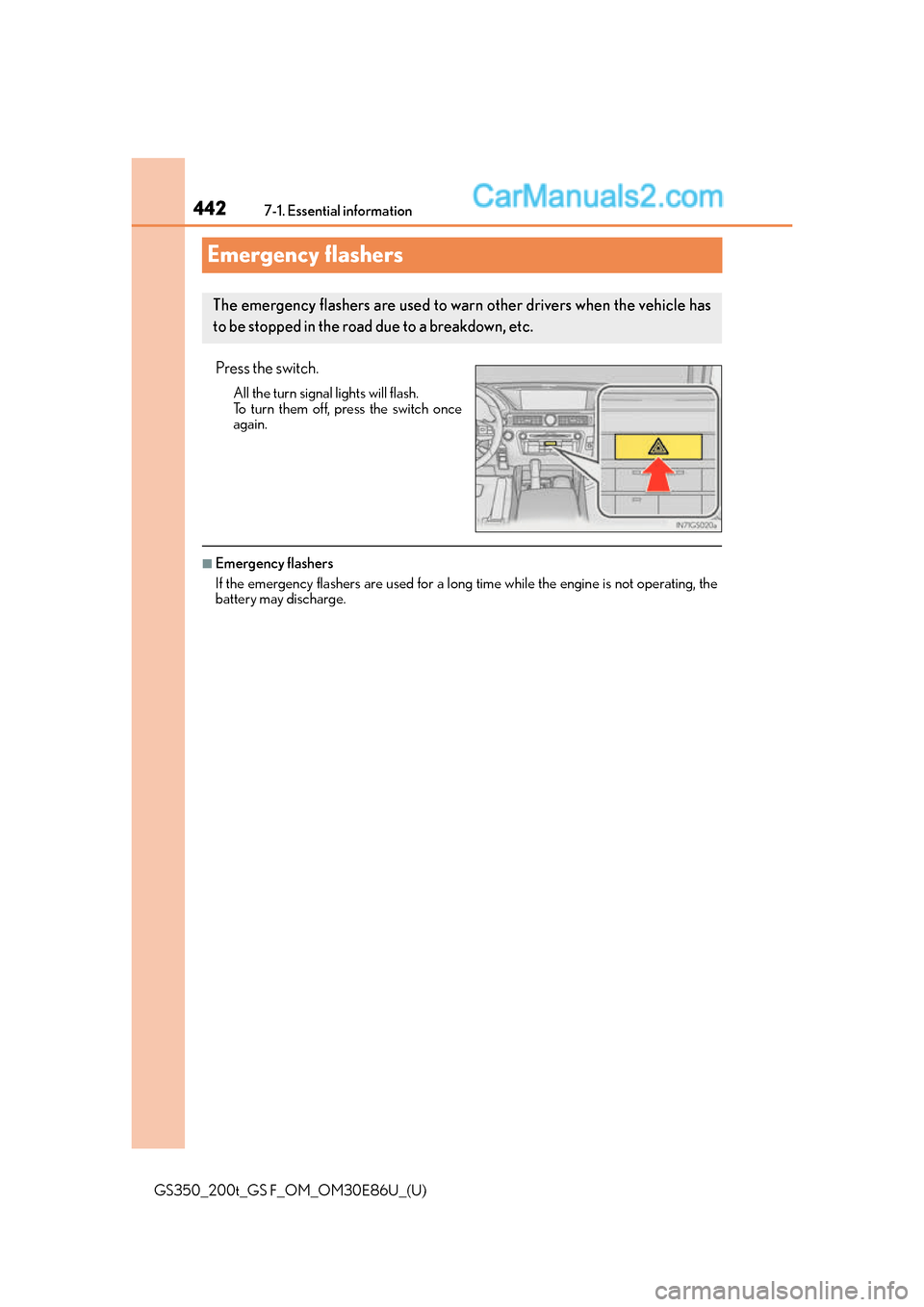

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the
battery may discharge.
The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

554
GS350_200t_GS F_OM_OM30E86U_(U)8-1. Specifications
GS F (type B)
Ti r e s i z e
Front tires: 255/ 35ZR19 (92Y)
Rear tires: 275/35ZR19 (96Y)
Spare tire: 225/40ZR19 (93Y) XL
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Driving under normal conditions
Front: 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Spare: 42 psi (290 kPa, 2.9 kgf/cm2 or bar)
Driving at high speeds (above 137 mph [220 km/h]) (in
countries where such speeds are permitted by law)
Add 8 psi (50 kPa, 0.5 kgf/cm
2 or bar) to the front tires
and rear tires. Never exceed the maximum cold tire infla-
tion pressure indicated on the tire sidewall.
Wheel sizeFront wheels: 19  9J
Rear wheels: 19  10J
Spare wheel: 19  8 1 /2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Light bulbs
Light bulbsBulb No.WTy p e
ExteriorFront turn signal lights*7444NA28A
Outer foot lightsW5W5B
InteriorVanity lights8B
Trunk light3.8B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: Vehicles with single-beam headlights

GS350_200t_GS F_OM_OM30E86U_(U)
5818-2. Customization
8
Vehicle specifications
■Rear sunshade* ( P. 3 6 1 )
*:If equipped
■Seat belt reminder buzzer ( P. 4 5 4 )
■Vehicle customization
●When the speed linked door locking functi on and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all th e doors will be locked.
• If the vehicle is started with all the door s locked, the speed linked door locking func-
tion would not operate.
• If the vehicle is started with any door un locked, the speed linked door locking func-
tion will operate.
●When the smart access system with push-but ton start is off, the selecting door to
unlock cannot be customized.
●When the doors remain closed after unloc king the doors and the automatic door lock
function (time elapsed before the automatic d oor lock function is activated if a door is
not opened after being unlocked) activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency flashers) set-
tings.
●Some settings can be changed using a switch or the Remote Touch screen. If a setting is
changed using a switch, the ch anged setting will not be reflected on the Remote Touch
screen until the engine switch is turn ed off and then to IGNITION ON mode.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engi ne running while customizing the features.
FunctionDefault
settingCustomized setting
Reverse operationOnOff——O
Time elapsed before the reverse opera-
tion feature activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
123
FunctionDefault
settingCustomized setting
Speed-linked seat belt reminder func-
tionOnOff——O
123

609Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)
Engine oil maintenance data ........... 386
Engine switch ........................................... 197Auto power off function................... 199
Changing the engine switch modes ................................................... 198
If your vehicle has to be stopped in an emergency ..........443
Starting the engine ..............................197
EPS (Electric Power Steering) ....... 309 Function ................................................. 309
Warning light .......................................453
Warning message ............................ 459
Event data recorder (EDR) ...................10
Expert mode .............................................312
First-aid kit storage net ...................... 355
Flat tire Vehicles with spare tire ................... 491
Vehicles without spare tire .......... 502
Floor mats ................................................... 32
Fluid Automatic transmission ................. 548
Brake ....................................................... 549
Washer .....................................................412
Footwell light .......................................... 347
Front passenger occupant classification system ............................ 52
Front personal lights............................ 348 Front seats .................................................158
Adjustment............................................. 158
Cleaning................................................. 382
Correct driving posture .................... 34
Driving position memory................ 160
Head restraints .....................................165
Power easy access system ............ 160
Seat heaters .......................................... 343
Seat position memory ...................... 160
Seat ventilators.................................... 343
Front side marker lights....................... 215 Light switch............................................. 215
Replacing light bulbs ....................... 439
Welcome light illumination control................................................... 138
Front turn signal lights ........................ 209 Replacing light bulbs ...........438, 439
Turn signal lever ................................. 209
Wattage .................................................554
Fuel Capacity ...................................................541
Fuel gauge ...................................... 87, 94
Fuel pump shut off system ..............451
Information............................................555
Type............................................................541
Warning light ....................................... 454
Warning messages .......................... 459
Fuel consumption Average fuel consumption............................ 102, 109
Average fuel consumption after refueling .......................... 102, 109
Current fuel consumption.... 102, 109
F

612Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)
Language (multi-information display)......................................... 569, 571
LATCH anchors ...................................... 64
LDH (Lexus Dynamic Handling system) .............................. 309
Lever Auxiliary catch lever .........................393
Hood lock release lever .................393
Internal trunk release lever............. 146
Shift lever ................................................202
Turn signal lever ................................ 209
Wiper lever ........................................... 222
Lexus Dynamic Handling system (LDH)...................................... 309
Lexus Enform
*
Lexus Enform Safety Connect........ 372
Lexus parking assist monitor
*
Lexus Safety System+...........................231 Automatic High Beam ..................... 218
Dynamic radar cruise control......278
Dynamic radar cruise control with full-speed range ....................266
LDA (Lane Departure Alert with steering control) .................. 258
LKA (Lane-Keeping Assist) .........249
PCS (Pre-Collision System) ........ 237
License plate lights.................................215 Light switch ............................................ 215
Replacing light bulbs ........................439
Welcome light illumination control ......................... 138 Light bulbs
Replacing ............................................... 438
Wattage .................................................554
Lights Automatic High Beam system .....218
Headlight switch .................................. 215
Illuminated entry system................. 349
Interior light...........................................348
Interior lights list.................................. 347
Personal lights ..................................... 348
Replacing light bulbs ...........438, 439
Trunk light................................................145
Turn signal lever ................................. 209
Vanity lights ..........................................358
Wattage .................................................554
Welcome light illumination control................................................... 138
LDA (Lane Departure Alert with steering control)................................ 258Operation................................................ 261
Warning messages .......................... 459
LKA (Lane-Keeping Assist) .............249 Operation.............................................. 253
Warning messages .......................... 459
Lock steering column........................... 199
Low profile tire ........................................ 416
Luggage hook ....................................... 354
Luggage security system .................... 145
