811-2. Hybrid system
1
GS450h_300h_OM_OM30F00E_(EE)
For safety and security
■If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-
connected
The hybrid system may not start. In this case, try to start the system again. If the “READY”
indicator does not come on, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light (→P. 4 7 8 )
go off. If there is only a small amount of fu el, the hybrid system may not be able to start.
(The standard amount of fuel is about 9.9 L [2.6 gal., 2.2 Imp.gal.], when the vehicle is on
a level surface. This value may vary when the vehicle is on a slope. Add extra fuel when
the vehicle is inclined.)
■Electromagnetic waves
●High voltage parts and cables on hybrid vehicles incorporate electromagnetic shield-
ing, and therefore emit approximately the same amount of electromagnetic waves as
conventional gasoline powered vehicles or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a lim ited service life. The lifespan of the hybrid
battery (traction battery) can change in accordance with driving style and driving condi-
tions.
■Declaration of conformity
This model conforms to hydrogen emissions according to regulation ECE100 (Battery
electric vehicle safety).
WA R N I N G
■High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and
AC high voltage is very dangerous and can cause severe burns and electric shock that
may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables or their
connectors.
●The hybrid system will become hot after starting as the system uses high voltage. Be
careful of both the high voltage and the high temperature, and always obey the warn-
ing labels attached to the vehicle.
●Never try to open the service plug access
hole located behind the rear seats. The ser-
vice plug is used only when the vehicle is ser-
viced and is subject to high voltage.

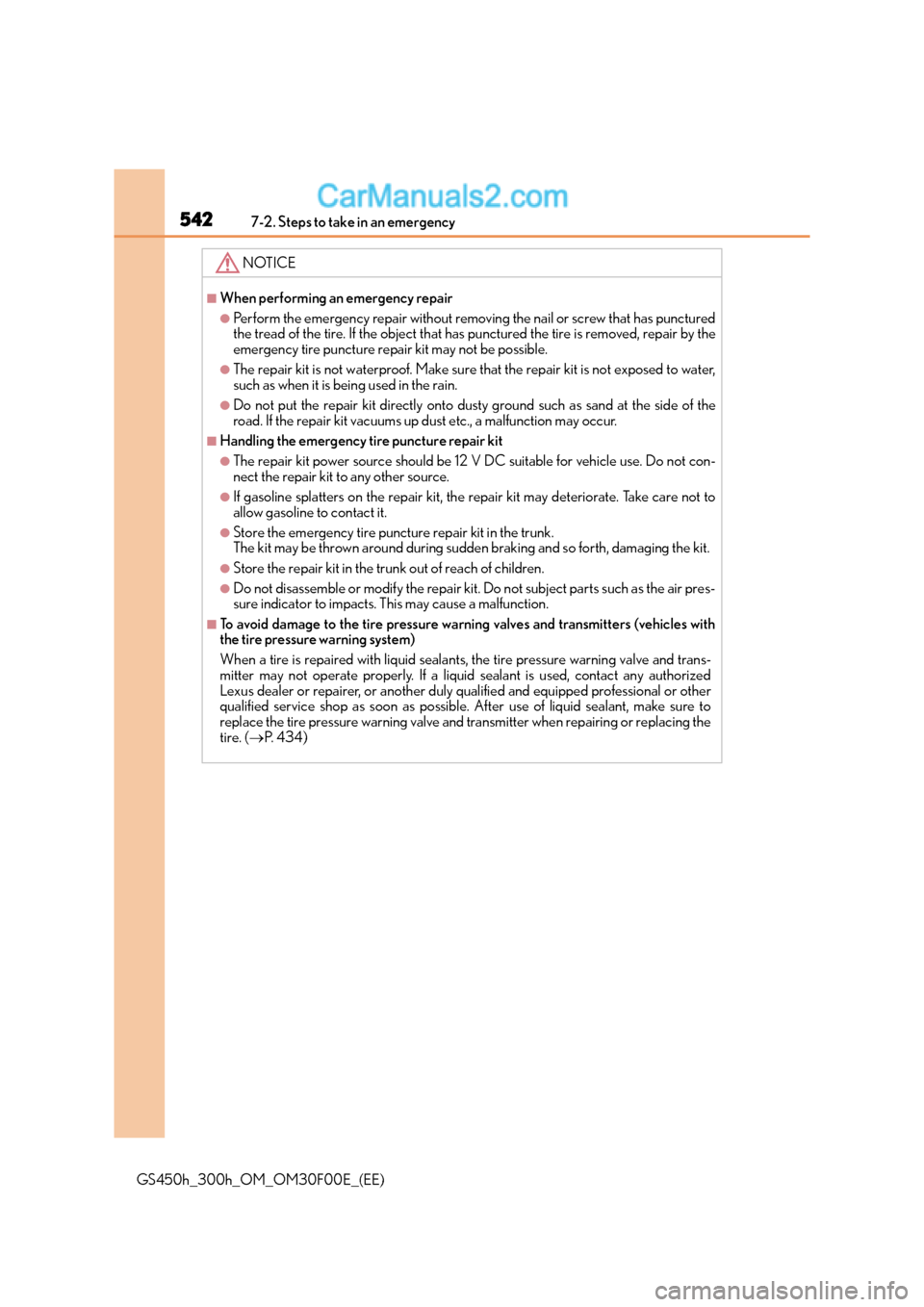

5427-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
NOTICE
■When performing an emergency repair
●Perform the emergency repair without removing the nail or screw that has punctured
the tread of the tire. If the object that has punctured the tire is removed, repair by the
emergency tire puncture repair kit may not be possible.
●The repair kit is not waterproof. Make sure that the repair kit is not exposed to water,
such as when it is being used in the rain.
●Do not put the repair kit directly onto dusty ground such as sand at the side of the
road. If the repair kit vacuums up dust etc., a malfunction may occur.
■Handling the emergency tire puncture repair kit
●The repair kit power source should be 12 V DC suitable for vehicle use. Do not con-
nect the repair kit to any other source.
●If gasoline splatters on the repair kit, the repair kit may deteriorate. Take care not to
allow gasoline to contact it.
●Store the emergency tire puncture repair kit in the trunk.
The kit may be thrown around during sudden braking and so forth, damaging the kit.
●Store the repair kit in the trunk out of reach of children.
●Do not disassemble or modify the repair kit. Do not subject parts such as the air pres-
sure indicator to impacts. This may cause a malfunction.
■To avoid damage to the tire pressure warning valves and transmitters (vehicles with
the tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve and trans-
mitter may not operate properly. If a liquid sealant is used, contact any authorized
Lexus dealer or repairer, or another duly qu alified and equipped professional or other
qualified service shop as soon as possible. After use of liquid sealant, make sure to
replace the tire pressure warning valve and transmitter when repairing or replacing the
tire. ( →P. 4 3 4 )

614Alphabetical index
GS450h_300h_OM_OM30F00E_(EE)
Refueling .................................................. 256Capacity ................................................ 569
Fuel types .............................................. 569
Opening the fuel tank cap ............258
When the fuel filler door cannot be opened .........................258
Regenerative braking ............................ 76
Remote Touch
*
Replacing Electronic key battery........................451
Fuses ........................................................453
Light bulbs ............................................ 458
Tires ............................................................517
Rev indicator............................................ 106
Rev peak .................................................... 106
Road accident cautions.........................82
Seat belt reminder light ...................... 478
Seat belts .....................................................38
Adjusting the seat belt ........................ 39
Child restraint system installation.............................................. 66
Cleaning and maintaining
the seat belt .......................................... 411
Emergency Locking
Retractor (ELR).................................. 40
How to wear your seat belt ............. 38
How your child should wear the seat belt .......................................... 40
Pregnant women, proper seat belt use ........................................... 41
Reminder light and buzzer ........... 478
Seat belt pretensioners ...................... 39
SRS warning light............................... 476 Seat heaters ............................................ 382
Seat position memory...........................178
Seat ventilators ...................................... 382
Seats............................................................. 175
Adjustment ............................................. 175
Adjustment precautions................... 176
Child seats/child restraint system installation ............................. 65
Cleaning .................................................. 410
Driving position memory ................ 178
Head restraints .....................................183
Power easy access system............. 178
Properly sitting in the seat................ 36
Seat heaters.......................................... 382
Seat position memory ....................... 178
Seat ventilators ................................... 382
Sensor Automatic headlight system ........ 239
Automatic High Beam system ... 245
Inside rear view mirror .....................189
Intrusion sensor and tilt sensor...... 93
Lexus parking assist-sensor
*
LDA (Lane Departure Alert with steering control)................... 290
LKA (Lane-Keeping Assist) .......... 281
Radar sensor ........................... 262, 338
Rain-sensing windshield wipers .................................................. 254
Service plug ................................................79
Service reminder indicators ............... 98
S-FLOW mode ..................................... 367
