1152. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
■Display off
A blank screen is displayed
*1: Displayed when the item is set in “Drive Info 1”, “Drive Info 2” or “Drive Info 3”.
( → P. 5 8 2 )
*2: The function can be reset by pressing the of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.
The settings of the following items can be changed, refer to P. 581
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■ (Lane Departure Alert with steering control) (if equipped)
(→ P. 2 9 0 )
■ (Lane-Keeping Assi st) (if equipped) ( →P. 281)
■ (Pre-Crash Safety system) (if equipped) ( →P. 2 6 9 )
■ (Adaptive Front-lighting System) ( →P. 238)
■ BSM (Blind Spot Monitor) (if equipped) ( →P. 333)
■
Select to turn the speed warning on and off, or to change the speed at which
the speed warning is displayed.
■ (Road Sign Assi st) (if equipped) ( →P. 2 9 8 )
■
Select to set the display mode of the clock.
■
●
Oil Maintenance ( →P. 4 2 4 )
●TPMS (Tire pressure warning system) (if equipped) ( →P. 4 3 4 )
Settings display

1162. Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
■●
Language
Select to change the language on the display.
●Units
Select to change the unit of measure.
●EV indicator
Select to activate/deactivate the EV indicator.
● switch
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut, which can be displayed by pressing .
●Drive information 1 /2 /3
Select to select up to 2 items that will be displayed on a Drive information screen,
up to 3 Drive information screens can be set.
●Po p - u p d i s p l a y
Select to set the following pop-up displa ys, which may appear in some situations,
on/off. • Route guidance of the navigation system-linked display (if equipped)
• Incoming call display of the hands-free phone system
• Instrument panel brightness adjustment display
●Accent color (except F SPORT models)
Select to change the accent colors on the screen, such as the cursor color.
●Needle (F SPORT models)
Select to change the needle color for the tachometer.
●Rev indicator (F SPORT models)
Select to set the rev indicator on/off.
When set to on, proceed to set the engine speed at which the rev indicator will be
displayed.
Selectable engine speed range:
2000 r/min. to 6000 r/min.
●Rev peak (F SPORT models)
Select to set the rev peak on/off.
●Tachometer
Select to set the tachometer or Hybrid System Indicator to always be displayed or
be changed to automatically according to the driving mode.
●Default settings
Registered or changed meter settings will be deleted or returned to their default
setting.

1172. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)

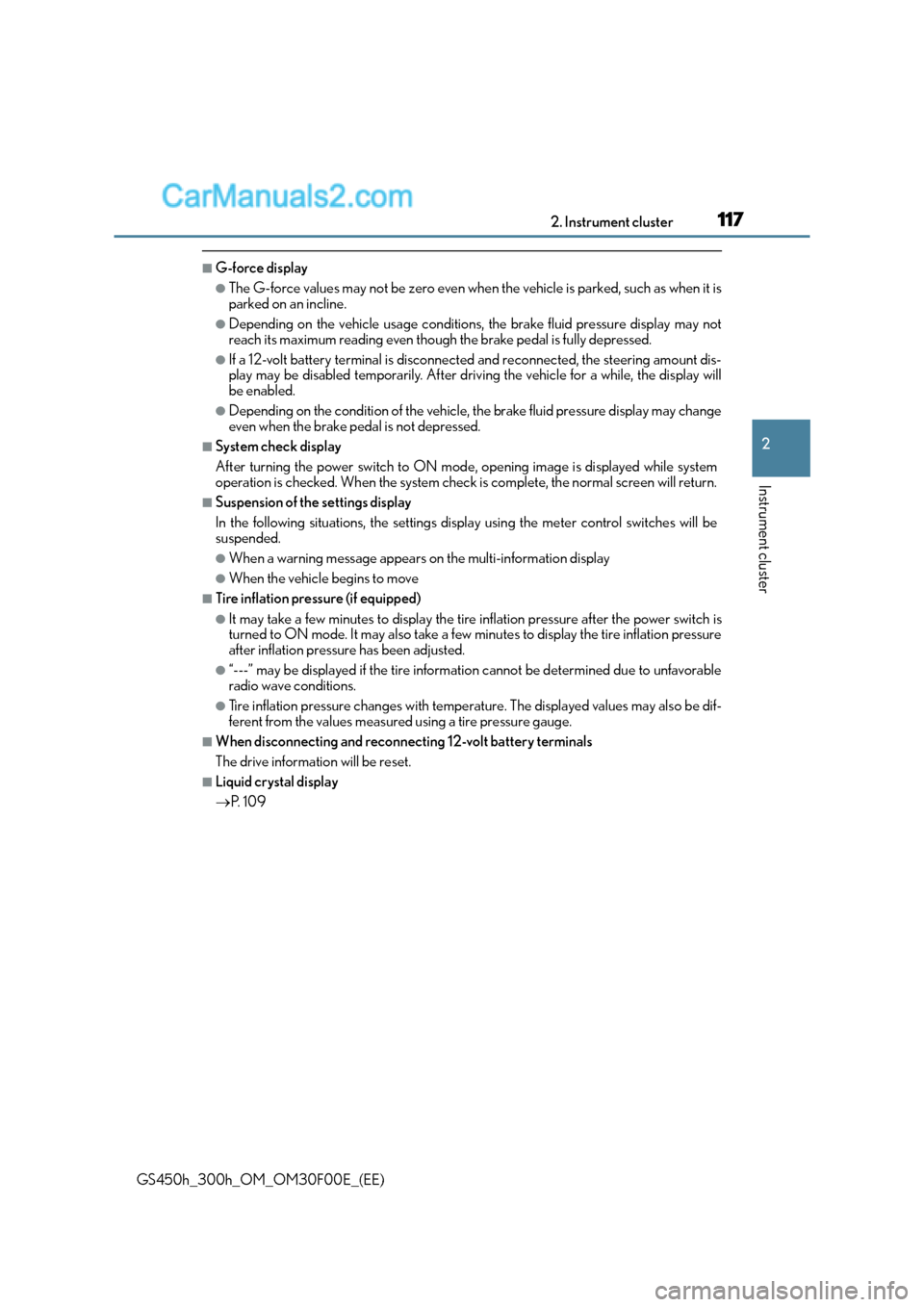

■G-force display
●The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline.
●Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.
●If a 12-volt battery terminal is disconnected and reconnected, the steering amount dis-
play may be disabled temporarily. After driving the vehicle for a while, the display will
be enabled.
●Depending on the condition of the vehicle, the brake fluid pressure display may change
even when the brake pedal is not depressed.
■System check display
After turning the power switch to ON mode, opening image is displayed while system
operation is checked. When the system check is complete, the normal screen will return.
■Suspension of the settings display
In the following situations, the settings di splay using the meter control switches will be
suspended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Tire inflation pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the power switch is
turned to ON mode. It may also take a few minutes to display the tire inflation pressure
after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting 12-volt battery terminals
The drive information will be reset.
■Liquid crystal display
→P. 1 0 9

1182. Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
WA R N I N G
■Caution for use while driving
●When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.
●Do not look continuously at the multi-info rmation display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

119
2
2. Instrument cluster
Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
Head-up display∗
The head-up display can be used to project vehicle speed and other information
onto the windshield.
Head-up display
Display brightness will change automat-
ically according to the brightness of the
surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted to
the desired level.
Display position adjustment switch
“DISP” button
∗: If equipped
Summary of functions
1
2
3
4
5

1202. Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
●Vehicle speed
●Hybrid System Indicator (→P. 1 2 3 )
●Tachometer
●Shift position and shift range
Displays the selected shift posi tion or selected shift range ( →P. 2 2 4 )
●Road signs recognized by the RS A (Road Sign Assist) (if equipped)
(→ P. 2 9 8 )
●Audio display*
Displays audio information for approximately 3 seconds when the audio system is
operated
●Route guidance display (vehicles with navigation system) ( →P. 1 2 3 )
When approaching an intersection while the navigation system is giving route guid-
ance, an arrow will automatically be displayed to indicate the direction of travel.
●Lane departure warning display (LDA [Lane Departure Alert with steering
control], LKA [Lane-Keeping Assist]) (if equipped) ( →P. 4 8 3 )
●Approach warning display (dynamic radar cruise control, dynamic radar
cruise control with full-speed range) (if equipped) ( →P. 4 8 3 )
●Pre-crash warning message (PCS [Pre-Crash Safety system])
(if equipped) ( →P. 4 8 2 )
*: The default setting is off
Head-up display contents

1212. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
■“HUD” button
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows:
XTy p e A
OFF → ON (km/h) → OFF
XTy p e B
OFF → ON (mph) →
ON (km/h) → OFF
■“DISP” button
Pressing the button changes the dis-
play items (except vehicle speed).
Off
Hybrid System Indicator
Tachometer
Switching the head-up display
1
2
3

1222. Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
■Adjusting the display positionHigher
Lower
■Setting the brightness
The brightness of the display is automatically adjusted in accordance with the
brightness of the surrounding environmen t. However, the brightness can also
be manually adjusted in 9 stages.
Brighter
Darker
Making the display easier to see
1
2
1
2
