2016 Lexus GS300h specifications

577
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
XTy p e D
XCompact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation pressure and
drive at speeds below 100 km/h (62 mph).
Ti r e s i z e235/40R19 96Y XL (front) and 265/35R19 94Y (rear)
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front tire
kPa (kgf/cm2 or
bar, psi)
Rear tire
kPa (kgf/cm2 or
bar, psi)
More than 220 km/h
(137 mph)300 (3.0, 44)300 (3.0, 44)
220 km/h (137 mph)
or less240 (2.4, 35)250 (2.5, 36)
Wheel size19 × 8J (235/40R19), 19 × 9J (265/35R19)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Ti r e s i z eT155/70D17 110M, T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17 × 4T (T155/70D17), 18 × 4T (T145/70D18)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

5788-1. Specifications
GS450h_300h_OM_OM30F00E_(EE)
Light bulbs
Light bulbsWTy p e
ExteriorFront turn signal lights*21A
Outer foot lights5B
InteriorVanity lights8B
Trunk light3.8B
A: Wedge base bulbs (amber) B: Wedge base bulbs (clear)
*: Vehicles with single-beam headlights

579
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to 10%.
Make sure that the ethanol blended gasoline to be used has a Research Octane Number
that follows the above.
■If your engine knocks
●Consult any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●You may occasionally notice light knocking fo
r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
XGS450h
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Research Octane Number of 95 or higher
for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or higher.
XGS300h
EU area:
You must only use unleaded gasoline conforming to European standard
EN228.
Select unleaded gasoline with a Research Octane Number of 91 or higher for
optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 91 or higher for
optimum engine performance.

5808-1. Specifications
GS450h_300h_OM_OM30F00E_(EE)
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its effectiveness
and the emission control system to function improperly.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel contain-
ing a large amount of ethanol should not be used. The use of these fuels will damage
the vehicle’s fuel system. In case of any doubt, ask any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
●Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel
containing a large amount of ethanol should not be used. Your vehicle can use gaso-
line mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content
(E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried
out only from a source where fuel specification and quality can be guaranteed. In case
of any doubt, ask any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gas-
oline containing methanol may cause engine damage or failure.

581
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
Customizable features
■Changing by using the Remote Touch
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
Press or of the meter control switches, select .
Press or of the meter control switches, select the item or the
desired setting, and then press .
To go back to the previous screen, press .
Your vehicle includes a variety of electr onic features that can be personalized
to your preferences. These preferences can be changed by using the meter
control switches, by using the Remote Touch, or at any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Customizing vehicle features
1
2
1
2

583
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
*1: The default setting varies according to countries.
*2: Some status screens cannot be
registered (indicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
*4:Except F SPORT models
*5:F SPORT models
Drive information screen dis-
played on the third screen of (Drive information 3)
Average fuel economy
(after refuel)
*3—O—
Elapsed time (after start)
Pop-up displayOnOff—O—
Accent color*4Color 1Color 2OO—
Changeover to tachometer
when sport mode is selected Auto
Hybrid system
indicator (always)
—O—Tachometer
(always)
Clock 24-hour display 12-hour display
—O—
Needle
*5Blue Red
—O—
White
Rev indicator
*54000 r/min. 2000 to
6000 r/min. —O—
OFF
Rev peak
*5ON OFF—O—
FunctionDefault settingCustomized setting123

585
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)

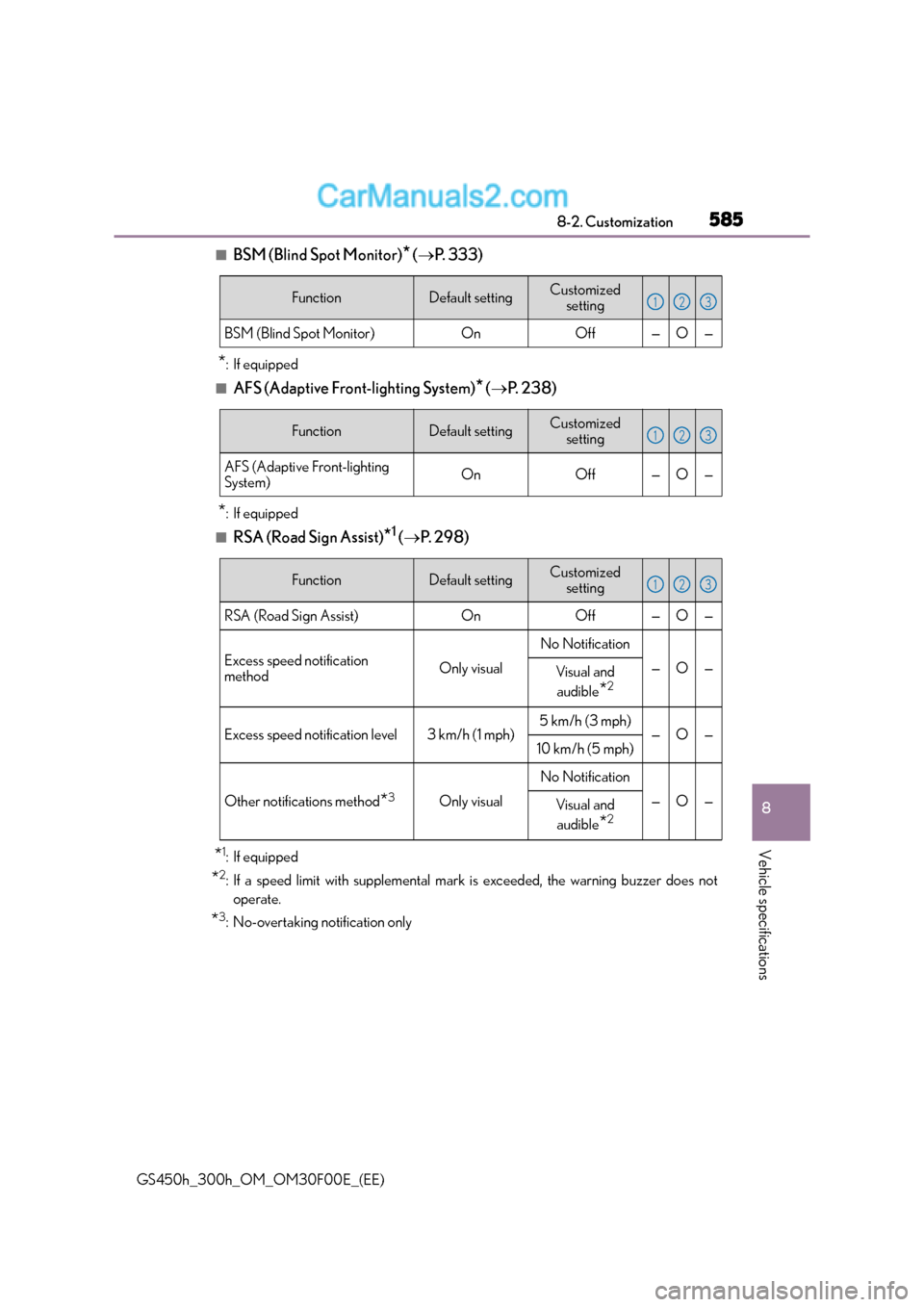

■BSM (Blind Spot Monitor)* (
→ P. 333)
*: If equipped
■AFS (Adaptive Front-lighting System)* (→ P. 238)
*: If equipped
■RSA (Road Sign Assist)*1 (→ P. 2 9 8 )
*1: If equipped
*2: If a speed limit with supplemental mark is exceeded, the warning buzzer does not
operate.
*3: No-overtaking notification only
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
123
FunctionDefault settingCustomized setting
AFS (Adaptive Front-lighting
System)OnOff—O—
123
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)OnOff—O—
Excess speed notification
methodOnly visual
No Notification
—O—Visual and
audible
*2
Excess speed notification level3 km/h (1 mph)5 km/h (3 mph)—O—10 km/h (5 mph)
Other notifications method*3Only visual
No Notification
—O—Visual and audible
*2
123

587
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F00E_(EE)
■Entry function* (
→ P. 1 5 3 )
*: If equipped
■Wireless remote control ( →P. 1 3 4 )
■Front seats ( →P. 1 7 5 )
FunctionDefault
settingCustomized setting
Smart entry & start systemOnOffO—O
Unlocking operationAll the doorsDriver’s doorO—O
Number of consecutive door
lock operationsAs many as desired2 times——O
123
FunctionDefault
settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Off
(All doors
unlocked in one step)On (Driver’s door unlocked in one step, all doors
unlocked in two steps)
O—O
Trunk unlocking operationPress and hold
(short)
One short press
——O
Push twice
Press and hold (long)
Off
123
FunctionDefaultsettingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffO—OPar t i a l
Selecting the door linking driv-
ing position memory with door
unlock operation
Driver’s doorAll doors——O
123
