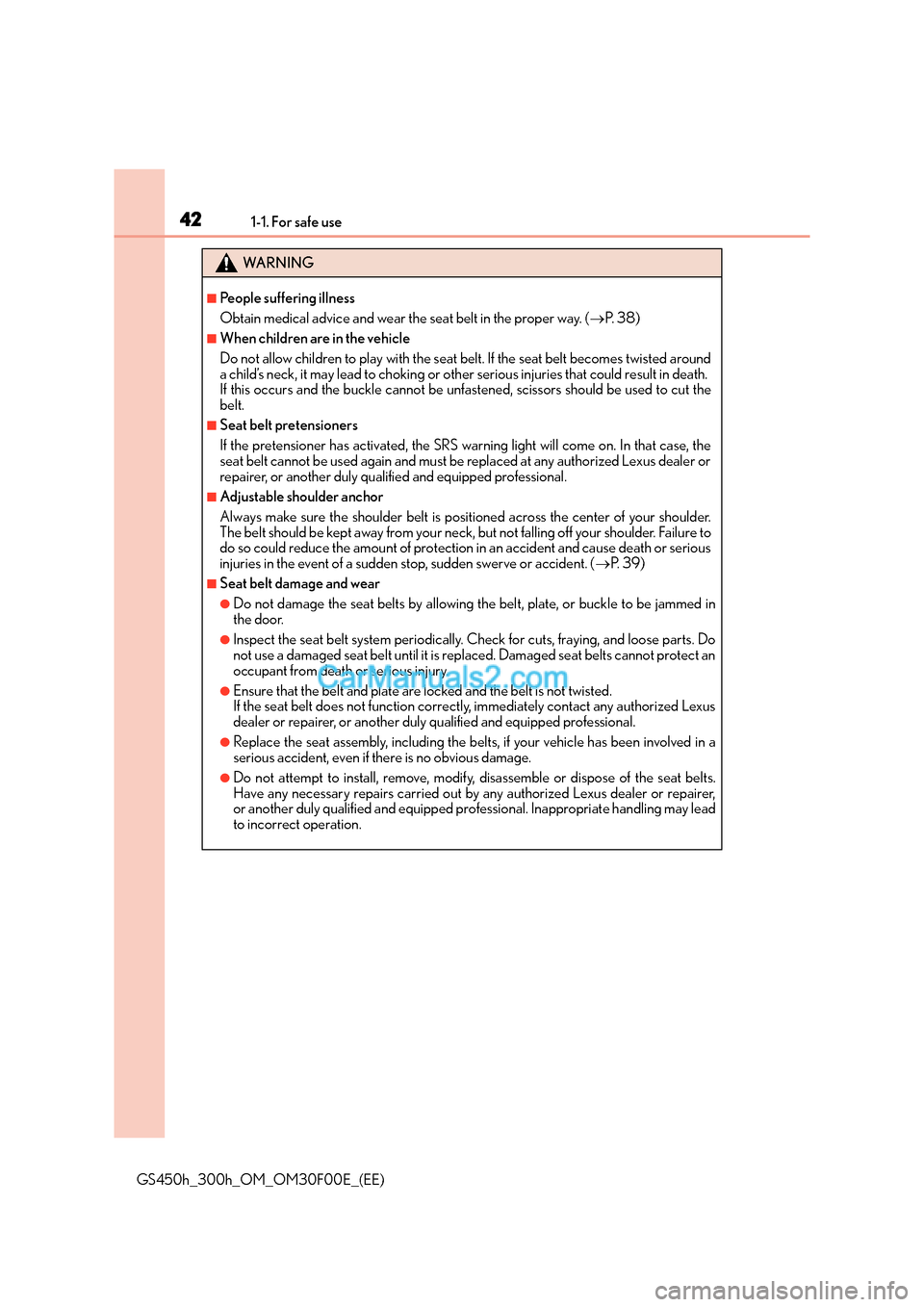

421-1. For safe use
GS450h_300h_OM_OM30F00E_(EE)
WA R N I N G
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (→P. 3 8 )
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or othe r serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case, the
seat belt cannot be used again and must be replaced at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoulder.
The belt should be kept away from your ne ck, but not falling off your shoulder. Failure to
do so could reduce the amount of protection in an accident and cause death or serious
injuries in the event of a sudden stop, sudden swerve or accident. ( →P. 3 9 )
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in
the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an
occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●Replace the seat assembly, including the belts, if your vehicle has been involved in a
serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by any authorized Lexus dealer or repairer,
or another duly qualified and equipped pr ofessional. Inappropriate handling may lead
to incorrect operation.

441-1. For safe use
GS450h_300h_OM_OM30F00E_(EE)
The main SRS airbag system components are shown above. The SRS airbag sys-
tem is controlled by the airbag sensor assembly. As the airbags deploy, a chemi-
cal reaction in the inflators quickly fills the airbags with non-toxic gas to help
restrain the motion of the occupants.
SRS airbag system components
Knee airbags
Airbag manual on-off switch
Front passenger airbag
Curtain shield airbags
“PASSENGER AIR BAG” indica-
tor lights
Seat belt pretensioners
Side impact sensors (front)
Front side airbagsSRS warning light
Driver airbag
Rear side airbags
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front impact sensors1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

811-2. Hybrid system
1
GS450h_300h_OM_OM30F00E_(EE)
For safety and security
■If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-
connected
The hybrid system may not start. In this case, try to start the system again. If the “READY”
indicator does not come on, contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light (→P. 4 7 8 )
go off. If there is only a small amount of fu el, the hybrid system may not be able to start.
(The standard amount of fuel is about 9.9 L [2.6 gal., 2.2 Imp.gal.], when the vehicle is on
a level surface. This value may vary when the vehicle is on a slope. Add extra fuel when
the vehicle is inclined.)
■Electromagnetic waves
●High voltage parts and cables on hybrid vehicles incorporate electromagnetic shield-
ing, and therefore emit approximately the same amount of electromagnetic waves as
conventional gasoline powered vehicles or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a lim ited service life. The lifespan of the hybrid
battery (traction battery) can change in accordance with driving style and driving condi-
tions.
■Declaration of conformity
This model conforms to hydrogen emissions according to regulation ECE100 (Battery
electric vehicle safety).
WA R N I N G
■High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and
AC high voltage is very dangerous and can cause severe burns and electric shock that
may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables or their
connectors.
●The hybrid system will become hot after starting as the system uses high voltage. Be
careful of both the high voltage and the high temperature, and always obey the warn-
ing labels attached to the vehicle.
●Never try to open the service plug access
hole located behind the rear seats. The ser-
vice plug is used only when the vehicle is ser-
viced and is subject to high voltage.

97
2Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
2. Instrument clusterWarning lights and indicators .............................. 98
Gauges and meters ................... 104
Multi-information display ........... 111
Head-up display ............................ 119
Energy monitor/ consumption screen ................126

982. Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
Warning lights and indicators
XExcept F SPORT models
XF SPORT models
The units used on the speedometer may differ depending on the target region.
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration displays all warning
lights and indicators illuminated.

992. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
Warning lights inform the driver of malfunctions in the indicated vehicle’s sys-
tems.
Wa r n i n g l i g h t s
*1
Brake system warning light
(→ P. 4 76 )
*2, 3
(If equipped)
“AFS OFF” indicator
(→ P. 4 7 8 )
*2, 4Charging system warning
light ( →P. 4 76 )*1, 3Brake hold operated
indicator ( →P. 4 7 8 )
*2Malfunction indicator
lamp ( →P. 4 76 )*3Parking brake indicator
(→ P. 4 7 8 )
*2SRS warning light
(→ P. 4 76 )*1Brake system warning light
(→ P. 4 7 8 )
*1ABS warning light
(→ P. 477)Low fuel level warning light
(→ P. 4 7 8 )
*2Electric power steering
system warning light
(→ P. 477)Seat belt reminder light
(→ P. 4 7 8 )
*2, 3
(If equipped)
PCS (Pre-Crash Safety
system) warning light
(→ P. 477)*2
Master warning light
(→ P. 4 7 8 )
*1
Slip indicator ( →P. 477)
*2
(If equipped)
Tire pressure warning light
(→ P. 4 7 9 )

1012. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
(→ P. 2 3 0 ) Rear fog light indicator
(
→ P. 2 4 9 )
Tail light indicator
( → P. 2 3 6 ) Cruise control indicator
(
→ P. 311, 323, 327)
Headlight high beam
indicator ( →P. 2 3 7 )
(If equipped)
Dynamic radar cruise
control indicator
(→ P. 303, 315)
(If equipped)
Automatic High Beam
indicator ( →P. 2 4 5 ) /
Adaptive High-beam
System indicator
( → P. 2 4 1 ) Cruise control “SET”
indicator
(
→ P. 303, 315, 327)
Front fog light indicator
( → P. 2 4 9 )
(If equipped)
LDA indicator ( →P. 2 9 3 ) /
LKA indicator ( →P. 2 8 5 )
*1
(If equipped)
Lexus parking assist-sensor
indicator*2
Brake hold operated
indicator ( →P. 2 3 4 )
*3
(If equipped)
“AFS OFF” indicator
(→ P. 2 3 8 ) *4Security indicator
(→ P. 8 4 , 9 0 )
*2, 5
Slip indicator ( →P. 3 4 6 )*6Low outside temperature
indicator ( →P. 1 0 4 )
*2VSC OFF indicator
(→ P. 3 4 7 )“READY” indicator
(→ P. 2 1 7 )
*3, 7
(If equipped)
PCS (Pre-Crash Safety
system) warning light
(→ P. 2 7 2 ) EV indicator ( →P. 76 )

1032. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30F00E_(EE)
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
*2: These lights turn on when the power switch is turned to ON mode to indicate that asystem check is being performed. They will turn off after the “READY” indicator turns
on. There may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
*3: These lights turn on when the power switch is turned to ON mode to indicate that a system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if the lights do not come
on, or turn off. Have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
*4: This light illuminates on the Center panel.
*5: The light flashes to indicate that the system is operating.
*6: When the outside temperature is approximately 3 °C (37 °F) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*7: The light turns on when the system is turned off.
*8: In order to confirm operation, the BSM outside rear view mirror indicators illuminate in the following situations:
• When the power switch is in ON mode, the BSM function is enabled on of the multi-information display.
• When the BSM function is enabled on of the multi-information display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
*9: This light illuminates on the outside rear view mirrors.
WA R N I N G
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the hybrid system, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehi-
cle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional immediately if this occurs.
