1092. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°C (-40 °F) to 50 °C
(122 °F). Low outside temperature indicator comes on when the ambient temperature
is 3 °C (37 °F) or lower.
Clock
Time displayed is linked to the analog clock on the instrument panel. (→P. 4 2 7 )
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data ( →P. 1 2 1 )
Displays warning messages in case of a malfunction ( →P. 5 1 8 )
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances indepen-
dently.
Maintenance required information: • Displays the maintenance required informat ion when the engine switch is in IGNI-
TION ON mode.
• It can be reset from of the multi-information display. ( →P. 1 2 1 )
Speed warning:
Displays a warning when the speed set in of the multi-information display is
exceeded. ( →P. 6 2 9 )
Shift position and shift range
Displays the selected shift posi tion or selected shift range (→P. 2 4 5 )
1
2
3
4
5
6
7
8
9

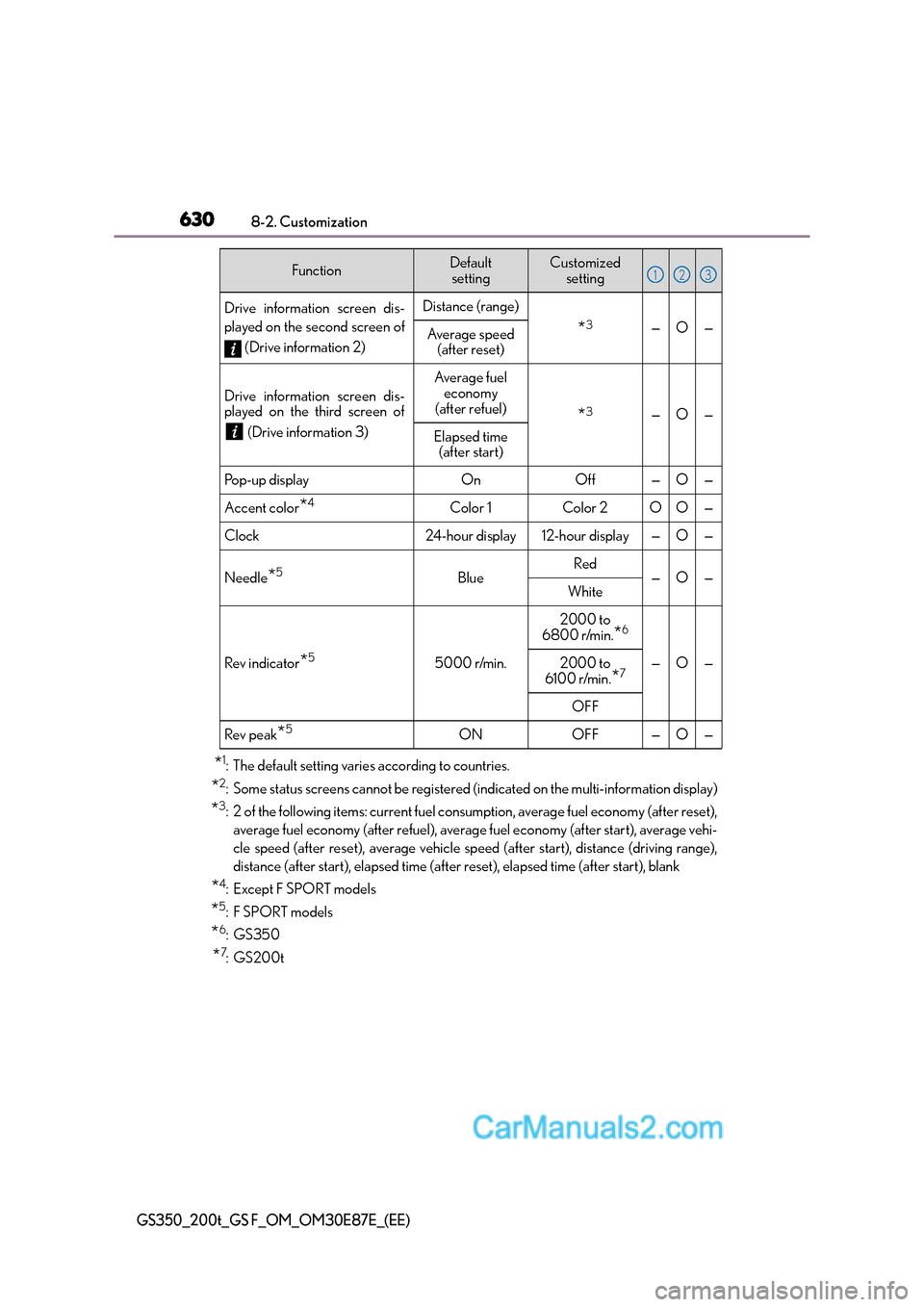

6308-2. Customization
GS350_200t_GS F_OM_OM30E87E_(EE)
*1: The default setting varies according to countries.
*2: Some status screens cannot be registered (indicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
*4:Except F SPORT models
*5:F SPORT models
*6:GS350
*7:GS200t
Drive information screen dis-
played on the second screen of
(Drive information 2)Distance (range)
*3—O—Average speed (after reset)
Drive information screen dis-
played on the third screen of
(Drive information 3)
Average fuel economy
(after refuel)
*3—O—
Elapsed time (after start)
Pop-up displayOnOff—O—
Accent color*4Color 1Color 2OO—
Clock24-h our display12-hour display—O—
Needle*5BlueRed—O—White
Rev indicator*55000 r/min.
2000 to
6800 r/min.
*6
—O—2000 to
6100 r/min.*7
OFF
Rev peak*5ONOFF—O—
FunctionDefault settingCustomized setting123
