3635-5. Using the other interior features
5
Interior features
Long objects can be loaded into the vehicle by utilizing the trunk space and rear
seat area.Fold down the armrest.
Fold down the handle and open the
armrest door.
The armrest door can be locked and
unlocked using the mechanical key.Unlock
Lock
Trunk storage extension
1
2
1
2
WA R N I N G
Ensure that the armrest door is closed when not in use.
In the event of sudden braking, items stored in the trunk may be thrown forward into
the cabin, resulting in injury.

377
GS350_200t_GS F_OM_OM30E86U_(U)
6Maintenance and care
6-1. Maintenance and careCleaning and protecting the vehicle exterior................. 378
Cleaning and protecting the vehicle interior .................. 382
6-2. Maintenance Maintenance requirements ...385
General maintenance .............. 387
Emission inspection and maintenance (I/M)
programs ....................................390
6-3. Do-it-yourself maintenance Do-it-yourself service precautions................................. 391
Hood ............................................... 393
Positioning a floor jack ............. 394
Engine compartment ............... 396
Tires................................................... 413
Tire inflation pressure ............... 422
Wheels ........................................... 425
Air conditioning filter ................427
Electronic key battery .............. 429
Checking and replacing fuses............................................... 431
Headlight aim (vehicles with single-beam headlights)....... 435
Light bulbs..................................... 437

378
GS350_200t_GS F_OM_OM30E86U_(U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally
apply water to the vehicle body, wheel
wells and underside of the vehicl e to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly with
water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is cool.
■CFRP (Carbon Fiber Reinforced Plastic) part (GS F)
CFRP is used for the parts shown in the illustration.
■Self-restoring coat*
The vehicle body has a self-restoring coating that is resistant to small surface scratches
caused in a car wash etc.
●The coating lasts for 5 to 8 years from when the vehicle is delivered from the plant.
●The restoration time differs depending on the depth of the scratch and outside temper-
ature. The restoration time may become shor ter when the coating is warmed by apply-
ing warm water.
●Deep scratches caused by keys, coins, etc. cannot be restored.
●Do not use wax that contain abrasives.
*: CFRP parts (GS F) do not have a self-restoring coat.
Perform the following to protect the vehicle and maintain it in prime condi-
tion:
●As the CFRP parts may change color if they
are exposed to ultraviolet rays for extended
periods of time, Lexus recommends that your
vehicle be stored in a place where it will not be
exposed to direct sunlight.
●Do not use wax that contains abrasives.
●CFRP parts may get scratched when using an
automatic car wash.

GS350_200t_GS F_OM_OM30E86U_(U)
3796-1. Maintenance and care
6
Maintenance and care
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of the vehicle.
Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm your
vehicle’s paint.
●Rear spoiler (if equipped) may not be washable in some automatic car washes. There
may also be an increased risk of damage to vehicle.
■High-pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the windows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed prop-
erly.
■Notes for a smart access system with push-button start
If the door handle becomes wet while the electronic key is within the effective range, the
door may lock and unlock repeatedly. In that case, follow the following correction proce-
dures to wash the vehicle:
●Place the key in a position 6 ft. (2 m) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-saving mode to disable the smart access system with
push-button start. ( →P. 1 5 2 )
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard brushes or
abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving for
long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Brake caliper coating (GS350/GS200t with orange brake calipers for F SPORT
models, and GS F)
●When using detergent, use neutral detergent.
Do not use hard brushes or abrasive cl eaners, as they will damage the coating.
●Do not use detergent on the brake calipers when they are hot.
●Wash detergent off immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repellent coating (if equipped)
●The following precautions can extend the effectiveness of the water-repellent coating.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the windows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can be
repaired. Contact your Lexus dealer.

410
GS350_200t_GS F_OM_OM30E86U_(U)6-3. Do-it-yourself maintenance
Check the battery as follows.
■Battery exterior
Make sure that the battery terminals are not corroded and that there are no
loose connections, cracks, or loose clamps.
Te r m i n a l s
Hold-down clamp
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and explosive.
Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the ground
cable.
●Make sure the power switch on the charger is off when connecting and disconnecting
the charger cables to the battery.
■After recharging/reconnecting the battery
The engine may not start. Follow the pr ocedure below to initialize the system.
Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.
●Unlocking the doors using the smart access system with push-button start may not be
possible immediately after reconnecting the battery. If this happens, use the wireless
remote control or the mechanical key to lock/unlock the doors.
●Start the engine with the engine switch in ACCESSORY mode. The engine may not
start with the engine switch turned off. However, the engine will operate normally from
the second attempt.
●The engine switch mode is recorded by the vehicle. If the battery is reconnected, the
vehicle will return the engine switch mode to the status it was in before the battery was
disconnected. Make sure to turn off the engine before disconnect the battery. Take
extra care when connecting the battery if the engine switch mode prior to discharge is
unknown.
If the engine will not start even after multip le attempts at both methods, contact your
Lexus dealer.
Battery
1
2
1
2
3

429
GS350_200t_GS F_OM_OM30E86U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

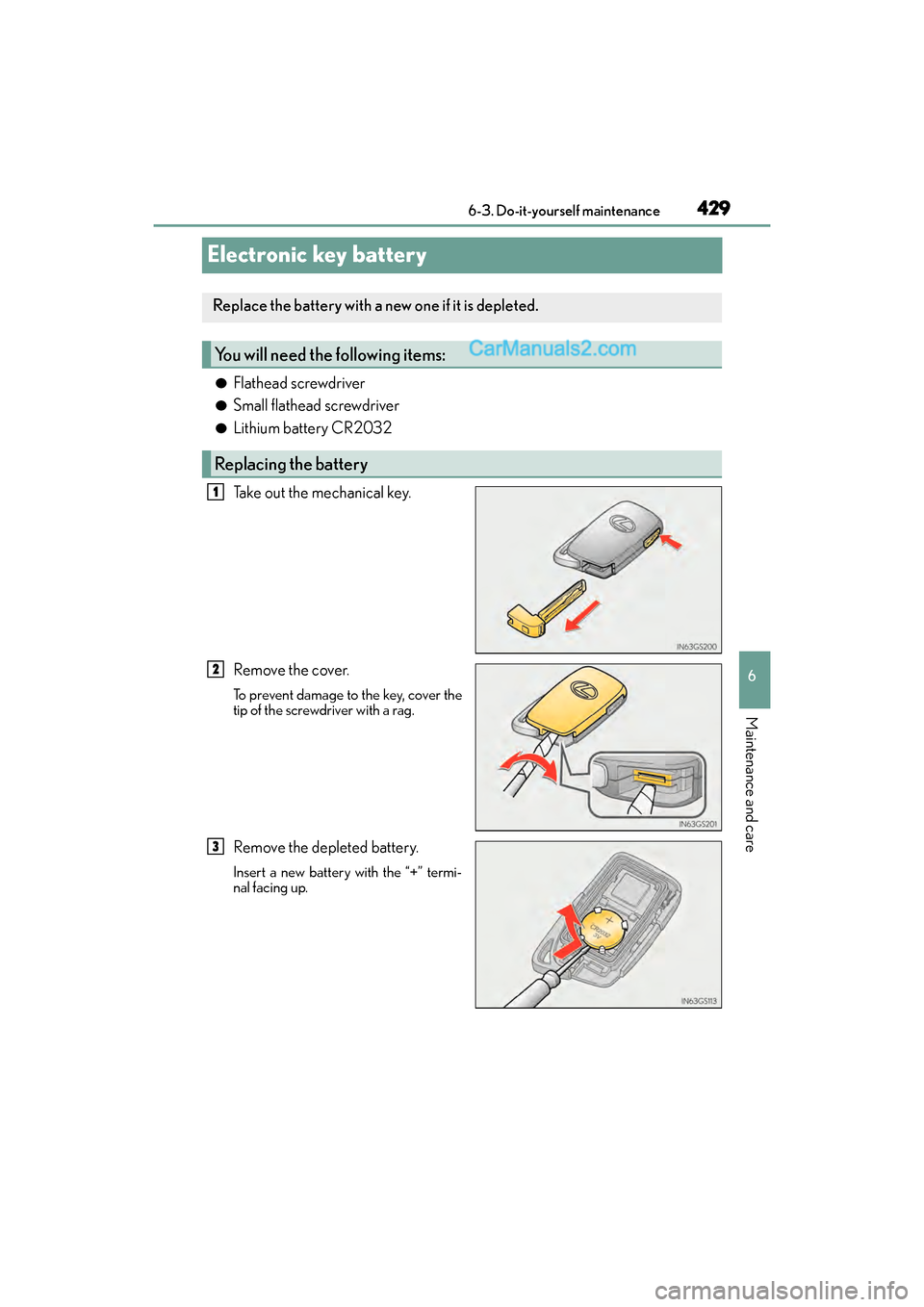

Electronic key battery
●Flathead screwdriver
●Small flathead screwdriver
●Lithium battery CR2032
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover the
tip of the screwdriver with a rag.
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
Replace the battery with a new one if it is depleted.
You will need th
e following items:
Replacing the battery
1
2
3

430
GS350_200t_GS F_OM_OM30E86U_(U)6-3. Do-it-yourself maintenance
■Use a CR2032 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops or
camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can
replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will not
function properly.
●The operational range will be reduced.
WA R N I N G
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

441
GS350_200t_GS F_OM_OM30E86U_(U)
7When trouble arises
7-1. Essential informationEmergency flashers................... 442
If your vehicle has to be stopped in an
emergency .................................443 7-2. Steps to take in an
emergency
If your vehicle needs to be towed ................................ 444
If you think something is wrong ................ 450
Fuel pump shut off system ........451
If a warning light turns on or a warning buzzer
sounds.......................................... 452
If a warning message is displayed..................................... 459
If you have a flat tire (vehicles with spare tire)........................... 491
If you have a flat tire (vehicles without spare tire) ...................502
If the engine will not start ......... 515
If the shift lever cannot be shifted from P .......................517
If the parking brake cannot be released ................................. 518
If the electronic key does not operate properly ..................... 520
If the vehicle battery is discharged ................................. 523
If your vehicle overheats ......... 528
If the vehicle becomes stuck .............................................534
