Your vehicle at a glance
62
ENGINE COMPARTMENT
OUM074100L
■
■Gasoline Engine (Theta II 2.4L) - GDI
❈ The actual engine room in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-35
2. Engine oil filler cap ...........................7-34
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-40
5. Fuse box ...........................................7-64
6. Negative battery terminal..................7-47
7. Positive battery terminal ...................7-47
8. Radiator cap .....................................7-37
9. Engine oil dipstick .............................7-33
10. Windshield washer fluid reservoir ...7-39
UM CAN (ENG) 2.qxp 12/1/2014 11:51 AM Page 6

27
Your vehicle at a glance
OUM074115L
■
■Gasoline Engine (THETA 2.0L) T-GDI
❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-35
2. Engine oil filler cap ...........................7-34
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-40
5. Fuse box ...........................................7-64
6. Negative battery terminal..................7-47
7. Positive battery terminal ...................7-47
8. Radiator cap .....................................7-37
9. Engine oil dipstick .............................7-33
10. Windshield washer fluid reservoir ...7-39
UM CAN (ENG) 2.qxp 12/1/2014 11:51 AM Page 7

Your vehicle at a glance
82
OUMA074001
■
■Gasoline Engine (Lambda 3.3L) - GDI
❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-35
2. Engine oil filler cap ...........................7-34
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-40
5. Fuse box ...........................................7-64
6. Negative battery terminal..................7-47
7. Positive battery terminal ...................7-47
8. Radiator cap .....................................7-37
9. Engine oil dipstick .............................7-33
10. Windshield washer fluid reservoir ...7-39
UM CAN (ENG) 2.qxp 12/1/2014 11:51 AM Page 8

Features of your vehicle
94
4

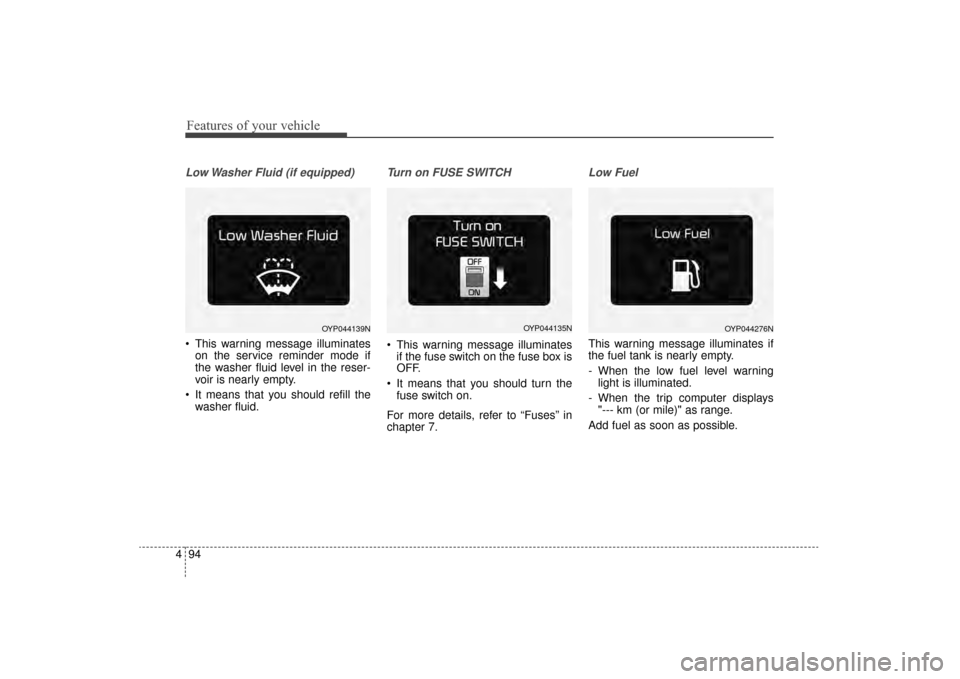

Low Washer Fluid (if equipped)
This warning message illuminates
on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
It means that you should refill the washer fluid.
Turn on FUSE SWITCH
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
For more details, refer to “Fuses” in
chapter 7.
Low Fuel
This warning message illuminates if
the fuel tank is nearly empty.
- When the low fuel level warning light is illuminated.
- When the trip computer displays "--- km (or mile)" as range.
Add fuel as soon as possible.
OYP044139NOYP044135NOYP044276N
UM CAN (ENG) 4.qxp 12/1/2014 12:54 PM Page 94

73
Maintenance
ENGINE COMPARTMENT
OUM074100L
■
■Gasoline Engine (Theta II 2.4L) - GDI
❈The actual engine room in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
UM CAN (ENG) 7.qxp 12/1/2014 1:16 PM Page 3

Maintenance
47
OUM074115L
■
■Gasoline Engine (Theta II 2.0L) – T-GDI❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Engine oil dipstick
9. Radiator cap
10. Windshield washer fluid reservoir
UM CAN (ENG) 7.qxp 12/1/2014 1:17 PM Page 4

75
Maintenance

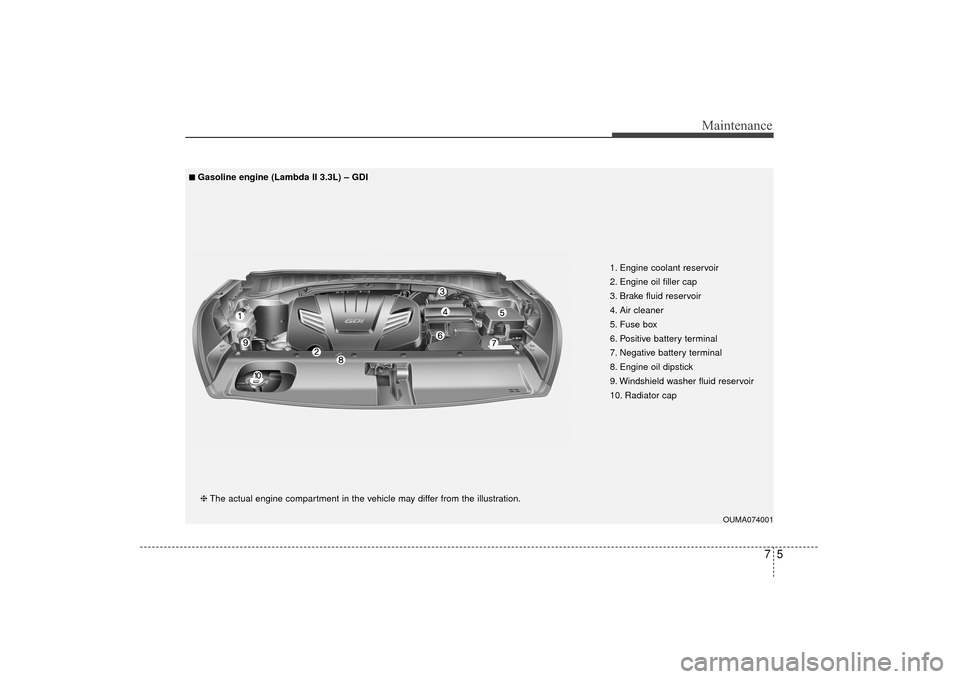

OUMA074001
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Engine oil dipstick
9. Windshield washer fluid reservoir
10. Radiator cap
■ ■Gasoline engine (Lambda II 3.3L) – GDI❈ The actual engine compartment in the vehicle may differ from the illustration.
UM CAN (ENG) 7.qxp 12/1/2014 1:17 PM Page 5

Maintenance
68
7
✽
✽
NOTICE
Do not disassemble nor assemble the
multi fuse when it is secured with
nuts and bolts. Incorrect or partial
assembly torque may cause a fire.
Have the vehicle checked by an
authorized Kia dealer.
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Remove the nuts shown in the pic- ture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
✽ ✽NOTICE
The electronic system may not func-
tion correctly even when the engine
room and internal fuse box’s indi-
vidual fuses are not disconnected. In
such case the cause of the problem
may be disconnection of the main
fuse (BFT type), which is located
inside the positive battery terminal
(+) cap.
Since the main fuse is designed more
intricately than other parts, have the
vehicle checked by an authorized
Kia dealer.
Make sure the battery cap is secure-
ly tightened. Insecure locking of the
battery cap will lead to influx of
moisture. This may cause the elec-
tronic system to malfunction.
OUMA074044
UM CAN (ENG) 7.qxp 12/1/2014 1:18 PM Page 68
