2
Controls and Functions
NameDescription
RADIOConverts to FM/AM/SiriusXM™ mode
•
Each time the key is pressed, the mode is changed in order of
FM →
AM →
SiriusXM™ →
FM
MEDIA
Converts to MEDIA mode
•
If the media is not connected or the CD player is not available
for Model, MEDIA mode will not be activated.
•
Press this key to move to the last mode that you accessed in
MEDIA Mode. Press it once again to display the screen where
you can select a MEDIA mode.
UVO Displays the UVO mode
When key is pressed shortly. (under 0.8 seconds)
•
FM/AM mode : plays previous/next frequency
•
SiriusXM™ mode : plays the previous/next channel
•
MEDIA ( Disc/USB/iPod/My Music) mode : changes the track, file
or chapter (e
xcept USB Image and AUX)
When key is pressed and held. (over 0.8 seconds)
•
FM/AM mode :
continuously changes the frequency until the key
is released
•
SiriusXM™ mode : continuously changes the channel until the
key is released and plays the current channel
•
MEDIA (Disc/USB/iPod/My Music) mode : rewinds or fastforwards
the track or file (except USB Image, Bluetooth Audio and AUX)
Press to insert or eject disc
Head Unit
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 7 of 92
4
Steering Wheel Remote Controller
Controls and Functions
NameDescription
When pressed shortly. (under 0.8 seconds)
Activates voice recognition
When pressed and held. (over 0.8 seconds)
Ends voice recognition
Activates Siri Eyes Free
MODE
Each time this key is pressed, mode is changed in order of FM
ª AM ª
SiriusXM™ ª
Disc ª
USB Music or iPod ª
AUX ª
Bluetooth Audio ª
My Music
If the media is not connected, corresponding modes will be dis-
abled
Press and hold the key (over 0.8 seconds) to turn the Audio
system on/off
When power is off, press the key to turn power back on
+ , -Controls the volume
When keys are pressed shortly. (under 0.8 seconds)
FM/AM mode : searches broadcast frequencies saved to
Presets
SiriusXM™ mode : searches broadcast channels saved to
Presets
MEDIA(Disc/USB/iPod/My Music) mode : changes the track, file
or chapter (except USB Image, AUX)
When keys are pressed and held. (over 0.8 seconds)
FM/AM Mode : Automatically searches broadcast frequencies
SiriusXM™ mode : automatically searches broadcast channels
MEDIA mode : Quickly looks up songs (excluding USB images,
AUX, and Bluetooth audio files)
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 11 of 92
8
Setup
Setup is the screen to control sys-
tem settings of the AVN.
To enter the screen, select the
SETUP key of the device or the
Setup button in All menus.
Features Description
NavigationProvides Normal/
Screen/Guidance/
Route/Safety Setting.
SoundProvides the sound
control options for
Position, Bass, Mid,
Treble, Volume, Ratio
and Advanced settings.
Display
Provides the Adjust/
Mode settings.
PhoneProvides the Bluetooth
Connection/Auto
Connection Priority/
Ringtone/System
Bluetooth Information
settings.
UVO
eServices Provides the 911
Connect/
Parking Minder/My Car
Zone/ Scheduled
Diagnostics/Trip
Info Sync Reminder
Settings.
Features Description
Voice
Recognition Provides the
Guidance and Priority
settings.
Clock
Provides the Time
and View settings.
Wi-FiProvides the Wi-Fi
On and Network
Connection settings.
Language
Provides the Change
Language settings.
KeyboardProvides settings to
switch keyboard lay-
outs.
Downloaded
Apps Provides the removal
settings for down-
loaded and installed
apps.
Screen Saver
Provides the Clock/
None settings.
System InfoProvides software
and storage space
information.
Display OffProvides the Display
Off (touch activation)
function.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E
< & / > " 7 / 2 3 ( J O E E ß
y
Page 14 of 92
11
FM/AM
Accessing FM/AM Mode
You can access the radio player either by pressing the RADIO hard key or by
selecting the Radio menu option from All Menus on the Home screen.
i Information
If you press the RADIO hard key when the power is off, then the power will turn on
and a radio broadcast will be tuned up.
If you are in the FM/AM mode, select the FM/AM radio widget from the Home screen to access the radio player.
Features Description
Mode Display
Displays currently operating mode
If select wanted mode tap, it will change to selected mode in
Radio.
Preset
Shows saved presets for user selection
After selecting frequency →
press and hold (over 0.8 sec-
onds) the preset button. A 'beep' will sound and the fre-
quency is saved to the selected preset button.
A total of 24 frequencies with 12 preset frequencies each
for FM/AM modes can be saved.
Frequency Bar
Flick the frequency bar left/right to search for available radio
channels to the left or right of the current channel.
Dragging: Drag the frequency bar to the left/right to find the
radio channel that you want.
Frequency Displays the current frequency
Broadcast
station Displays the current broadcast station name.
Scan
Plays frequencies with superior reception for 5 seconds each
HD RadioUsed to set whether to turn HD Radio™ reception On/Off.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 18 of 92
15
SiriusXM™ Mode Hard Key Controls
You can access the radio player either by pressing the RADIO hard key or by
selecting the Radio menu option from All Menus on the Home screen. Select
the SiriusXM™ tab from the radio player.
i Information
If you press the RADIO hard key when the power is off, then the power will turn on and a
radio broadcast will be tuned up.
If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home screen to access the radio player.
When the power is off, pressing the
RADIO key will turn the power on and play a
SiriusXM™ Radio broadcast.
SiriusXM™ Mode
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 20 of 92
17

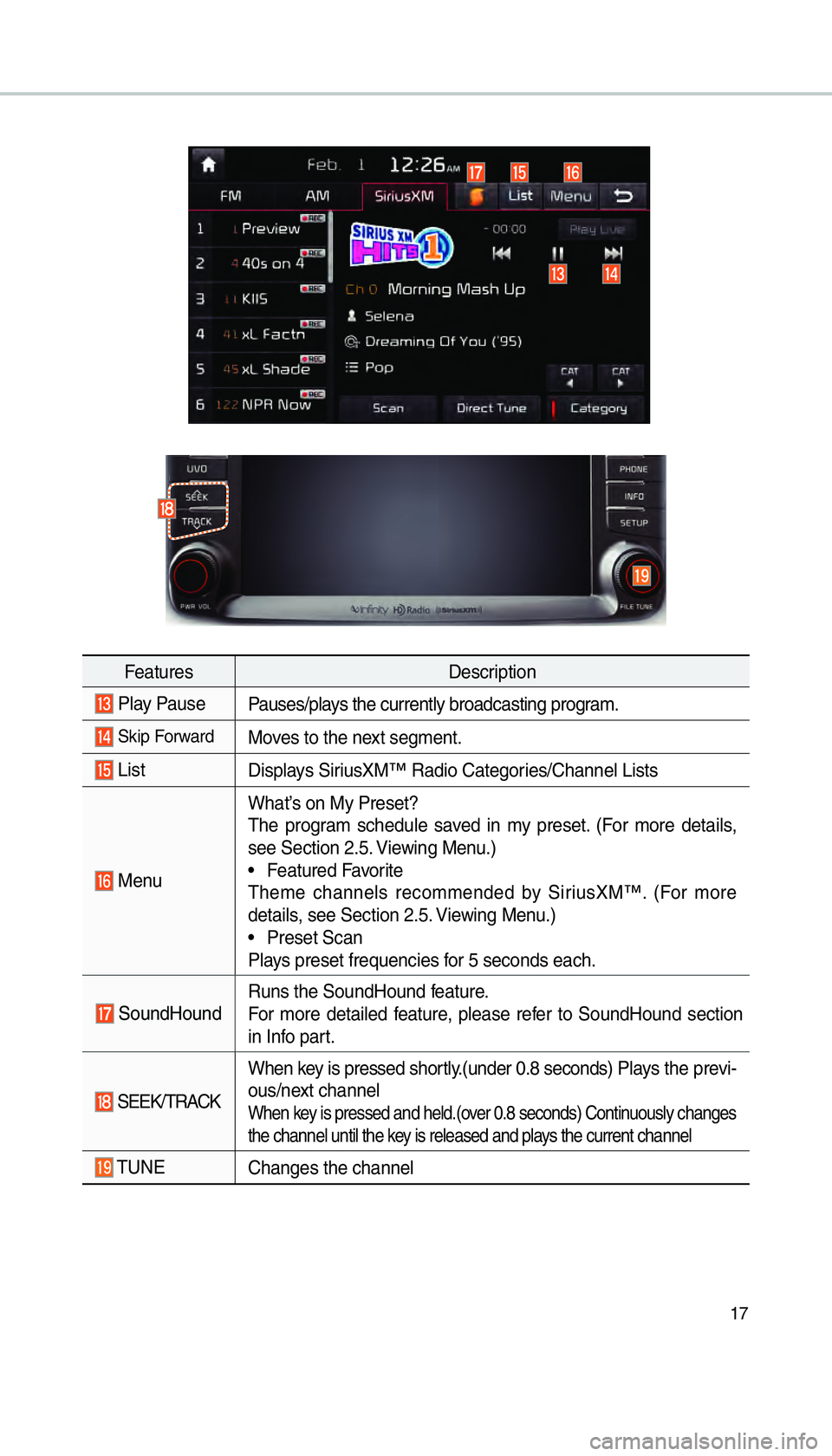

FeaturesDescription
Play Pause
Pauses/plays the currently broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For more details,
see Section 2.5. Viewing Menu.)
Featured Favorite
Theme channels recommended by SiriusXM™. (For more
details, see Section 2.5. Viewing Menu.)
Preset Scan
Plays preset frequencies for 5 seconds each.
SoundHound Runs the SoundHound feature.
F
or more detailed feature, please refer to SoundHound section
in Info part.
SEEK/TRACK When key is pressed shortly.(under 0.8 seconds) Plays
the previ-
ous/next channelWhen key is pressed and held.(over 0.8 seconds) Continuously changes
the channel until the key is released and plays the current channel
TUNE Changes the channel
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 34 of 92
31
Using Bluetooth®
Bluetooth®
Connection
Pairing a New Device
Before you can use the Bluetooth
feature, you must first pair/connect
your mobile phone to your car.
Up to 5 Bluetooth devices can be
paired.
Only one Bluetooth device can be
connected at a time.
Pairing a New Device by Selecting
Phone/Call
Select PHONE key in the head unit
or
key in the steering wheel
remote control. ▶
Select
Ye s. ▶
Pair your car after your mobile phone
detects the Bluetooth device. ▶
Enter the passkey or accept the
authorization popup. ▶
Connect
Bluetooth.
Pairing a New Device Through the
Phone Settings
Select SETUP key in the head
unit. ▶
Select
Phone. ▶
Select
Bluetooth Connection. ▶
Select Add New.
▶ Pair your car after your mobile
phone detects the Bluetooth device.
▶ Enter the passkey or accept the
authorization popup. ▶
Connect
Bluetooth.
The default passkey is 0000.
The device name above is an exam-
ple. Check the actual information on
the product.
Connecting
Bluetooth® Devices
Connects the Bluetooth devices that
you add.
Connecting Devices by Selecting
Phone/Call
Select PHONE key in the head unit
or
key in the steering wheel
remote control. ▶
Select the name
of the device to connect. ▶
Connect
Bluetooth.
, @ 6 . @ ( < & / > " 7 / 2 3 ( J O E E < & / > " 7 / 2 3 ( J O E E ß
y
Page 35 of 92
32
Connecting Devices Through the
Phone Settings
Select SETUP key in the head unit.
▶ Select
Phone. ▶
Select
Bluetooth Connection. ▶
Select the
name of the device to connect. ▶
Connect Bluetooth.
Bluetooth® Phone
Dial
Dials a call after the Bluetooth
devices are connected.
Select
PHONE key in the head unit
or
key in the steering
wheel remote control.
You can also select
All Menus from
the full screen display ▶
Phone.
Name Description
Keypad Use the keypad to
enter the phone
number that you
want to call. Press
and hold the last
number of a speed
dial to dial a number
that you added to the
Speed Dial list in the
phone
Delete
Delete the numbers
that you entered.
Settings
Moves to a screen of
Phone Settings.
CallMakes a call after
you dial a number
and select CALL. If
the number is listed
in Dialed Calls, you
can select the num-
ber and press CALL
to automatically dial
that number again.
Information
Some types of mobile phones may not
support the Speed Dial function.
Using Bluetooth®
