2016 KIA Sedona sunroof

Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood ......................................................4-56
2. Head lamp..................................4-132, 7-75
3. Fog lamp ....................................4-137, 7-78
4. Wheel and tire ................................7-49, 8-4
5. Outside rearview mirror .........................4-77
6. Sunroof ..................................................4-62
7. Front windshield wiper blades....4-139, 7-43
8. Windows ................................................4-51
9. Parking assist system .........................4-125
OYP014001K
■Front view
❈The actual shape may differ from the illustration.

Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ...................................4-27
2. Power window switch...............................4-51
3. Central door lock switch ..........................4-28
4. Power window and rear sunrooflock button................................................4-54
5. Outside rearview mirror control ...............4-78
6. Outside rearview mirror folding switch ....4-79
7. Fuel filler lid open switch .........................4-58
8. Instrument panel illumination control switch ...........................................4-83
9. BSD ON/OFF button ...............................5-56
10. LDWS ON/OFF button ..........................5-64
11. AC inverter button ................................4-193
12. ESC OFF button ....................................5-25
13. Steering wheel .......................................4-67
14. Tilt and telescopic steering control lever ...........................................4-68
15. Inner panel fuse panel. ..........................7-68
16. Brake pedal............................................5-19
17. Parking brake pedal...............................5-21
18. Hood release lever.................................4-56
19. Seat..........................................................3-2
OYP014003N❈ The actual interior in the vehicle may differ from the illustration

Features of your vehicle
Folding key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-8
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
• Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
• Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-14
• Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
• Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
• Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-19
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
• Smart key immobilizer system . . . . . . . . . . . . . . . . . . 4-21
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-22
• Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
• Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
• Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
• Operating door locks from outside the vehicle . . . . 4-25
• Operating door locks from inside the vehicle . . . . . . 4-27
• Impact sensing door unlock system . . . . . . . . . . . . . . 4-30
• Automatic door lock system . . . . . . . . . . . . . . . . . . . . 4-30
• Child-protector rear door lock. . . . . . . . . . . . . . . . . . 4-30
Tailgate (for manual tailgate) . . . . . . . . . . . . . . . . 4-31
• Opening the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31• Closing the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
• Emergency tailgate safety release . . . . . . . . . . . . . . . 4-33
Power sliding door and power tailgate. . . . . . . . . 4-34
• Automatic stop and reversal. . . . . . . . . . . . . . . . . . . . 4-36
• How to reset the power sliding door and
power tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
• Power door ON/OFF button. . . . . . . . . . . . . . . . . . . . 4-37
• Power sliding door operation . . . . . . . . . . . . . . . . . . . 4-38
• Power tailgate operation . . . . . . . . . . . . . . . . . . . . . . . 4-42
• Power tailgate non-opening conditions . . . . . . . . . . . 4-44
• Power tailgate opening height user setting . . . . . . . . 4-44
• Emergency tailgate safety release . . . . . . . . . . . . . . . 4-45
• Smart Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
• Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-56
• Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-56
• Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
• Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-58
• Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-58
• Emergency fuel filler lid release . . . . . . . . . . . . . . . . 4-61
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62\
• Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-63
• Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
4

• Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
65
• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
• Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
• Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
• Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
• Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . 4-67
• Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . 4-68
• Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-70
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71\
• Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-71
• Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-77
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
• Instrument cluster control . . . . . . . . . . . . . . . . . . . . . 4-83
• LCD display control . . . . . . . . . . . . . . . . . . . . . . . . . . 4-83
• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-84
• Transaxle shift indicator . . . . . . . . . . . . . . . . . . . . . . . 4-88
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
• LCD modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
4-89
• Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
• User settings mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92
• Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
• SCC/LDWS mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
• A/V mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
96• Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10\
3
• Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
104
• Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
• Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
• One time driving information mode . . . . . . . . . . . . 4-107
Warning and indicator lights . . . . . . . . . . . . . . . 4-108
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
• Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Rear parking assist system . . . . . . . . . . . . . . . . . 4-121
• Operation of the rear parking assist system . . . . . . 4-121
• Non-operational conditions of
rear parking assist system . . . . . . . . . . . . . . . . . . . 4-122
• Rear parking assist system precautions . . . . . . . . . 4-123
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Parking assist system . . . . . . . . . . . . . . . . . . . . . . 4-125
• Operation of the parking assist system . . . . . . . . . . 4-125
• Non-operational conditions of parking assist system . 4-127
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Rearview camera . . . . . . . . . . . . . . . . . . . . . . . . . 4-129
360° camera monitoring system . . . . . . . . . . . . . 4-130
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . 4-131
• Headlight escort function . . . . . . . . . . . . . . . . . . . . . 4-131
4

451
Features of your vehicle
(1) Driver’s door power windowswitch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up/down* (Driver's and
Passenger's window)
(7) Power window and rear sunroof* lock switch
* if equipped
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
WINDOWS
OYP044032K

Features of your vehicle
52
4

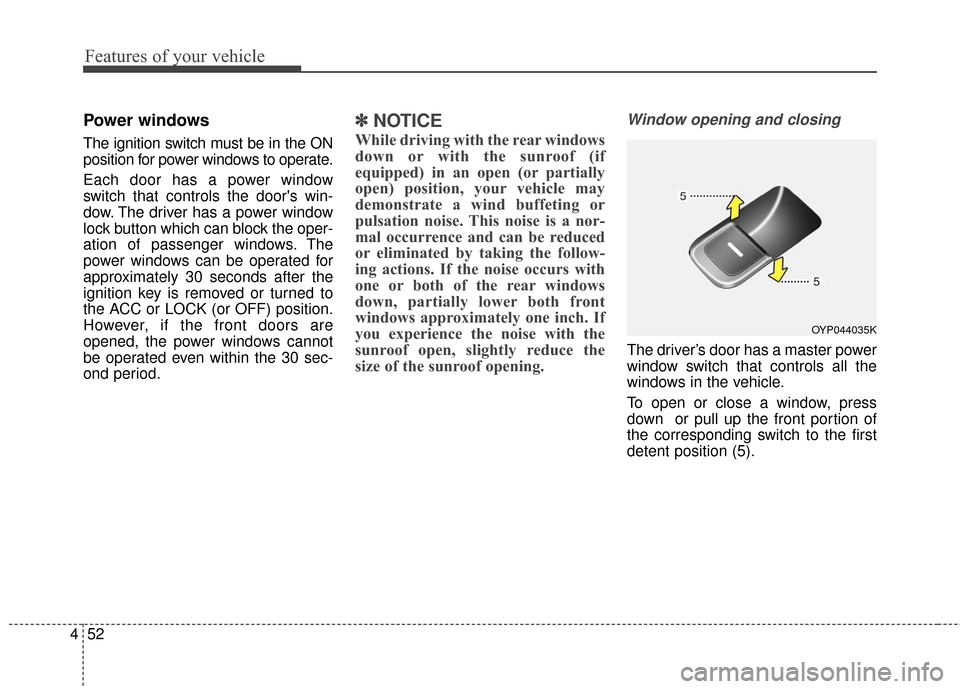

Power windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock button which can block the oper-
ation of passenger windows. The
power windows can be operated for
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK (or OFF) position.
However, if the front doors are
opened, the power windows cannot
be operated even within the 30 sec-
ond period.
✽ ✽
NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open) position, your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch. If
you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening.
Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle.
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the first
detent position (5).
OYP044035K

Features of your vehicle
54
4

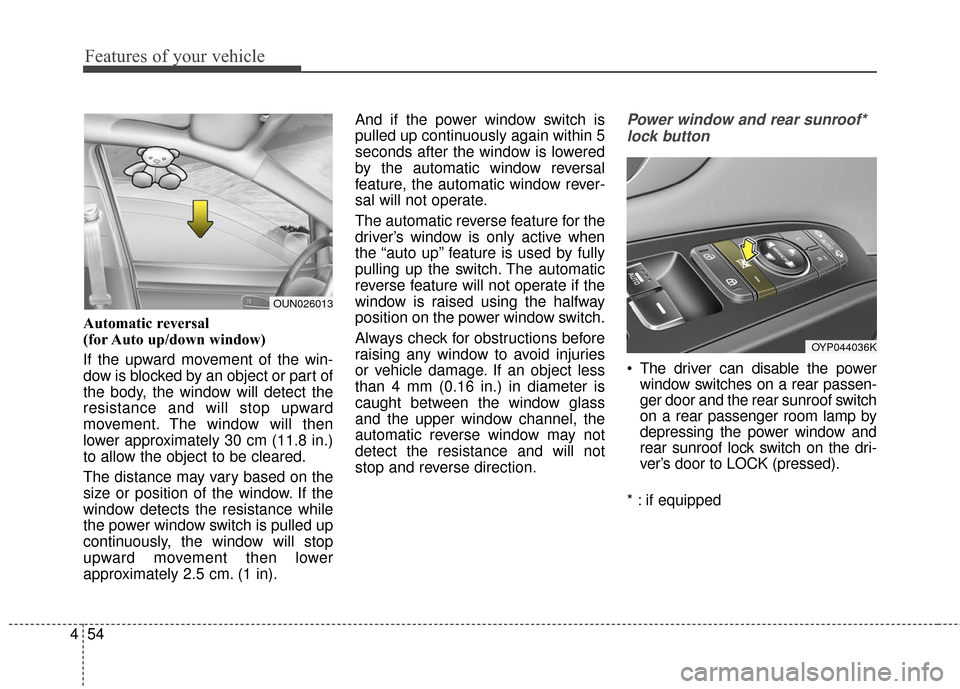

Automatic reversal
(for Auto up/down window)
If the upward movement of the win-
dow is blocked by an object or part of
the body, the window will detect the
resistance and will stop upward
movement. The window will then
lower approximately 30 cm (11.8 in.)
to allow the object to be cleared.
The distance may vary based on the
size or position of the window. If the
window detects the resistance while
the power window switch is pulled up
continuously, the window will stop
upward movement then lower
approximately 2.5 cm. (1 in). And if the power window switch is
pulled up continuously again within 5
seconds after the window is lowered
by the automatic window reversal
feature, the automatic window rever-
sal will not operate.
The automatic reverse feature for the
driver’s window is only active when
the “auto up” feature is used by fully
pulling up the switch. The automatic
reverse feature will not operate if the
window is raised using the halfway
position on the power window switch.
Always check for obstructions before
raising any window to avoid injuries
or vehicle damage. If an object less
than 4 mm (0.16 in.) in diameter is
caught between the window glass
and the upper window channel, the
automatic reverse window may not
detect the resistance and will not
stop and reverse direction.
Power window and rear sunroof*
lock button
The driver can disable the power window switches on a rear passen-
ger door and the rear sunroof switch
on a rear passenger room lamp by
depressing the power window and
rear sunroof lock switch on the dri-
ver’s door to LOCK (pressed).
* : if equipped
OUN026013
OYP044036K

455
Features of your vehicle
When the power window and rear
sunroof lock switch is pressed :
• The driver's master control canoperate all the power windows.
The front passenger's control can operate the front passen-
ger's power window.
The rear passenger's control cannot operate the rear passen-
ger's power window.
The rear sunroof control cannot operate the rear sunroof. But
The front master sunroof control
can operate both front and rear
sunroofs (if equipped). Always double check to make sure
all arms, hands, head and other
obstructions are safely out of the way
before closing a window.CAUTION- Opening/clos-
ing Window
To prevent possible damage tothe power window system, donot open or close two windowsor more at the same time. Thiswill also ensure the longevity ofthe fuse.
WARNING- Power win-
dows
Do not allow children to play
with the power windows. Keep
the power window lock switch
(on the driver's door) in the
LOCK (pressed) position.
