2016 KIA RIO HATCHBACK glove box

4115
Features of your vehicle

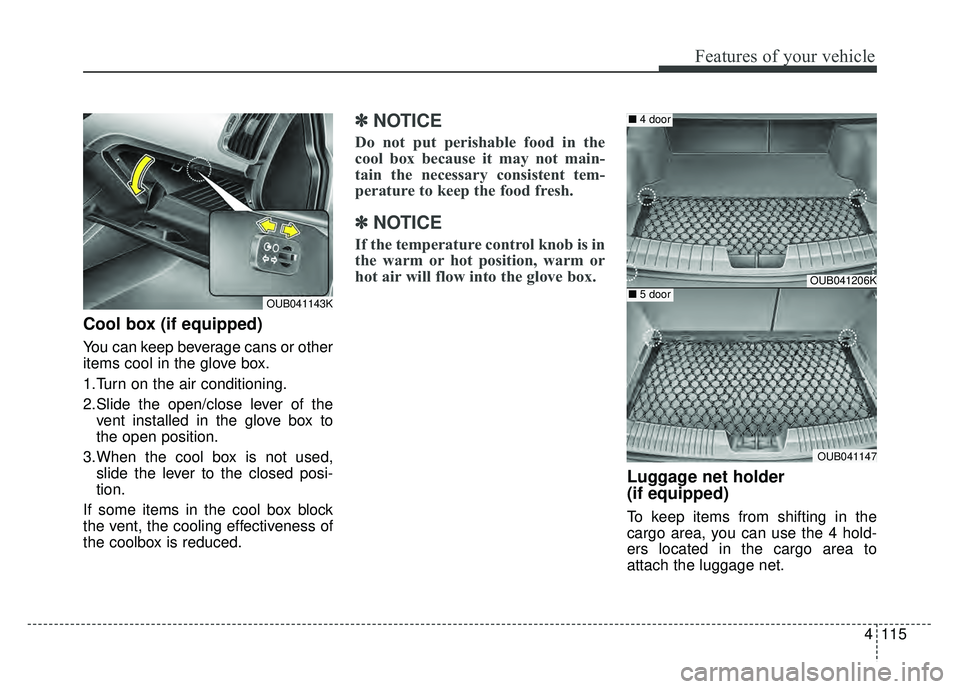

Cool box (if equipped)
You can keep beverage cans or other
items cool in the glove box.
1.Turn on the air conditioning.
2.Slide the open/close lever of thevent installed in the glove box to
the open position.
3.When the cool box is not used, slide the lever to the closed posi-
tion.
If some items in the cool box block
the vent, the cooling effectiveness of
the coolbox is reduced.
✽ ✽

NOTICE
Do not put perishable food in the
cool box because it may not main-
tain the necessary consistent tem-
perature to keep the food fresh.
✽ ✽

NOTICE
If the temperature control knob is in
the warm or hot position, warm or
hot air will flow into the glove box.
Luggage net holder
(if equipped)
To keep items from shifting in the
cargo area, you can use the 4 hold-
ers located in the cargo area to
attach the luggage net.
OUB041143K
OUB041206K
OUB041147
■ 4 door
■5 door

743
Maintenance

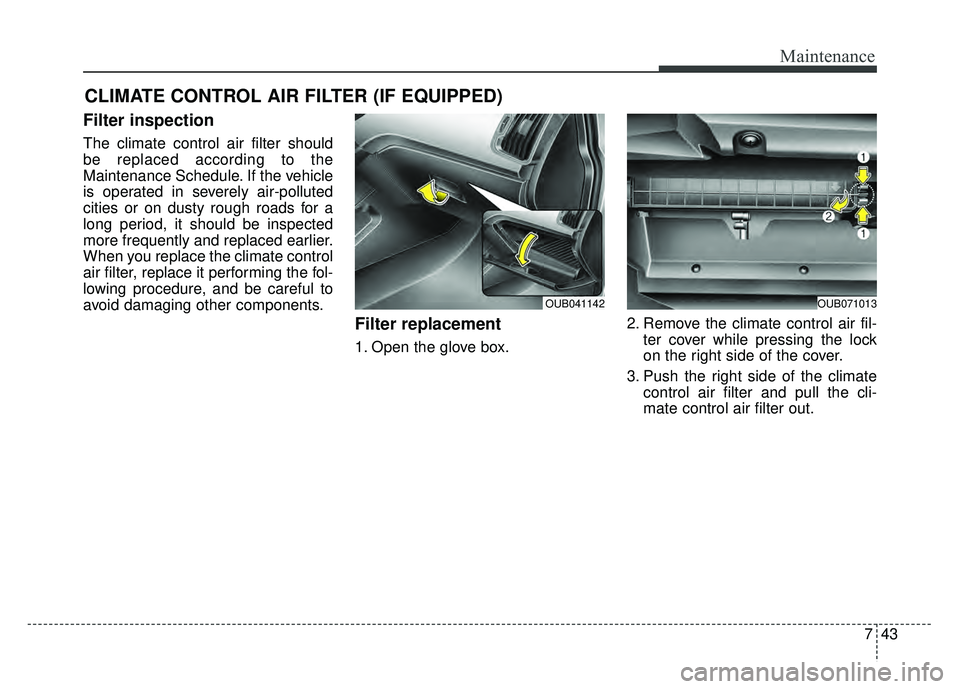

CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
Filter inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
Filter replacement
1. Open the glove box.2. Remove the climate control air fil-
ter cover while pressing the lock
on the right side of the cover.
3. Push the right side of the climate control air filter and pull the cli-
mate control air filter out.
OUB071013OUB041142

Maintenance
90
7

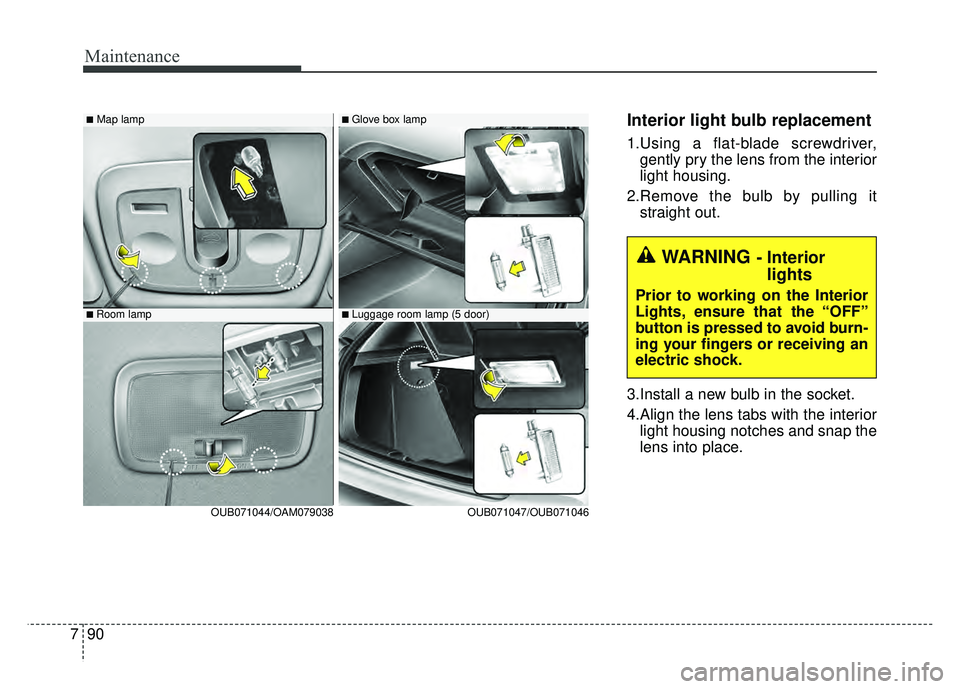

Interior light bulb replacement
1.Using a flat-blade screwdriver,
gently pry the lens from the interior
light housing.
2.Remove the bulb by pulling it straight out.
3.Install a new bulb in the socket.
4.Align the lens tabs with the interior light housing notches and snap the
lens into place.
WARNING - Interiorlights
Prior to working on the Interior
Lights, ensure that the “OFF”
button is pressed to avoid burn-
ing your fingers or receiving an
electric shock.
■Map lamp
■ Room lamp
OUB071044/OAM079038
■ Glove box lamp
■ Luggage room lamp (5 door) OUB071047/OUB071046

83
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattageBulb type
Front
Head lamp Low55WH11B
High55WH1
Position lamp5W or LEDP21/5W or LED
Turn signal lamp21WPY21W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside5W or LEDW5W or LED
Outside8W or LEDP28/8W or LED
Stop lampInsideLEDLED
Outside28W or LEDP28/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lampLEDLED
License plate lamp5W X 2EAW5W
Side marker light*as tail bulb
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped■
■
5 door

Specifications, Consumer information, Reporting safety defects
48
Light BulbWattageBulb type
Front
Head lamp Low55WHB2
High60WHB2
Position lamp5W or LEDW5W or LED
Turn signal lamp28WPY28/8W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside8W or LEDP27/8W or LED
Outside8W or LEDP27/8W or LED
Stop lampInsideLEDLED
Outside27W or LEDP27/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lamp16WW16W
License plate lamp5W X 2EAW5W
Side marker light*as tail bulb
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped■
■
4 door

I5
Index
Fuel filler lid ··················\
··················\
··················\
············4-33
Fuel gauge··················\
··················\
··················\
················4-48
Fuel requirements ··················\
··················\
··················\
······1-3
Fuses ··················\
··················\
··················\
··················\
······7-65Engine compartment panel fuse ··················\
················7-68
Fuse/relay panel description ··················\
··················\
····7-69
Instrument panel fuse ··················\
··················\
··············7-66
Memory fuse··················\
··················\
··················\
··········7-67
Multi fuse ··················\
··················\
··················\
··············7-68
Gauge Engine coolant temperature gauge ··················\
············4-48
Fuel gauge ··················\
··················\
··················\
·············4-48
GAW (Gross axle weight) ··················\
··················\
·········5-61
GAWR (Gross axle weight rating) ··················\
··············5-61
Glove box··················\
··················\
··················\
···············4-114
GVW (Gross vehicle weight) ··················\
··················\
····5-61
GVWR (Gross vehicle weight rating) ··················\
·········5-61
Hazard warning flasher ··················\
··················\
··············4-77
Hazardous driving conditions ··················\
··················\
····5-48
Headrest(front) ··················\
··················\
··················\
···········3-5
Headrest(rear) ··················\
··················\
··················\
············3-9
Hight adjustment··················\
··················\
··················\
······3-16 Highway driving ··················\
··················\
··················\
······5-51
Hill-start assist control (HAC) ··················\
··················\
···5-31
Hood··················\
··················\
··················\
··················\
·······4-31
Horn ··················\
··················\
··················\
··················\
·······4-42
How to use this manual ··················\
··················\
···············1-2
Idle stop and go system (ISG) ··················\
··················\
···5-40
Immobilizer system ··················\
··················\
··················\
·4-12
Indicators and warnings ··················\
··················\
·············4-59
Inside rearview mirror ··················\
··················\
···············4-43
Instrument cluster ··················\
··················\
··················\
····4-46
Engine coolant temperature gauge ··················\
············4-48
Fuel gauge ··················\
··················\
··················\
·············4-48
Instrument panel illumination ··················\
··················\
·4-47
LCD display warning ··················\
··················\
··············4-70
Maintenance ··················\
··················\
··················\
··········4-57
Odometer ··················\
··················\
··················\
···············4-49
Speedometer ··················\
··················\
··················\
··········4-47
Tachometer ··················\
··················\
··················\
············4-47
Trip computer ··················\
··················\
··················\
········4-50
User settings ··················\
··················\
··················\
··········4-55
Warning and indicators ··················\
··················\
············4-59
Instrument panel fuse··················\
··················\
·················7-66\
Instrument panel illumination··················\
··················\
····4-47
Instrument panel overview··················\
··················\
···········2-5
G
H
I

I9
Index
Storage compartment ··················\
··················\
···············4-114Center console storage·············\
··················\
················4-114
Cool box ··················\
··················\
··················\
··············4-115
Glove box ··················\
··················\
··················\
············4-114
Luggage net ··················\
··················\
··················\
·········4-115
Luggage tray ··················\
··················\
··················\
········4-116
Sunroof··················\
··················\
··················\
··················\
···4-36
Sunvisor ··················\
··················\
··················\
·················4-12\
0
Tachometer··················\
··················\
··················\
···············4-47
Tailgate··················\
··················\
··················\
··················\
···4-24 Emergency safety release ··················\
··················\
········4-25
Telescoping steering ··················\
··················\
··················\
4-41
Tether anchor system ··················\
··················\
·················3-28\
Theft-alarm system ··················\
··················\
··················\
··4-14
Tilt steering ··················\
··················\
··················\
··············4-41
Tire and loading information label ··················\
··············5-56
Tire chains··················\
··················\
··················\
················5-53
Tire mobility kit ··················\
··················\
··················\
·6-23, 29
Tire pressure monitoring system (TPMS) ··················\
·····6-9
Tire specification and pressure label ··················\
···········8-10
Tires and wheels ··················\
··················\
·················7-51\
, 8-5 Checking tire inflation pressure ··················\
················7-52
Compact spare tire replacement ··················\
················7-55
Recommended cold tire inflation pressures ················7-53 Tire care ··················\
··················\
··················\
·················7-53\
Tire maintenance ··················\
··················\
··················\
···7-56
Tire replacement ··················\
··················\
··················\
····7-55
Tire rotation ··················\
··················\
··················\
···········7-53
Tire sidewall labeling ··················\
··················\
··············7-56
Tire traction ··················\
··················\
··················\
···········7-56
Wheel alignment and tire balance ··················\
·············7-53
Wheel replacement ··················\
··················\
··················\
7-56
Towing ··················\
··················\
··················\
··················\
···6-36
Towing capacity ··················\
··················\
··················\
·······5-57
Transaxle Automatic transaxle ··················\
··················\
·················5-16\
Manual transaxle ··················\
··················\
··················\
···5-13
Trip computer ··················\
··················\
··················\
··········4-50
Trunk ··················\
··················\
··················\
··················\
······4-22
User settings··················\
··················\
··················\
·············4-55
Vehicle break-in process ··················\
··················\
··············1-5
Vehicle capacity weight ··················\
··················\
·············5-56
Vehicle certification label ··················\
··················\
············8-9
Vehicle curb weight ··················\
··················\
··················\
·5-61
Vehicle data collection and event data recorders
Vehicle identification number (VIN) ··················\
·············8-9
T
U
V
