Air Conditioning / Climate Control . . . . . . . . . . . . . . . . . .23
Active ECO System* . . . . . . . . . . . . . . . . . . . . . . . . . . . .08
Audio System - Standard Audio System ( Type A)* . . . . . .19
Audio System - Standard Audio System ( Type B)* . . . . . .20
Audio System - UVO eServices System* . . . . . . . . . . . . .21
Audio System - UVO eServices / Premium Navigation* . .22
Aux/USB/iPod® Port & Power Outlets* . . . . . . . . . . . . . . .23
Bluetooth® Wireless Technology* . . . . . . . . . . . . . . . . . . .16
Cruise Control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Folding Rear Seatback . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Idle, Stop and Go (ISG) System* . . . . . . . . . . . . . . . . . . . .09
Manual Gear Shift* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Passenger Airbag Off Indicator . . . . . . . . . . . . . . . . . . . .35
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . . .05
Windshield/Rear Wipers & Washers* . . . . . . . . . . . . . . . .14
VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . . . . . .02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . . . . . . . . .03
Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . . . . . .04
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . . . . .05
Trip Computer / Tripmeter . . . . . . . . . . . . . . . . . . . . . . . . . .06
Instant Fuel Consumption Mode . . . . . . . . . . . . . . . . . . . . .06
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .06
User Settings* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .07
Service Mode (Maintenance)* . . . . . . . . . . . . . . . . . . . . . .07
Active ECO System* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .08
DRIVER’S PANEL
Idle, Stop and Go (ISG) System* . . . . . . . . . . . . . . . . . . . . .09
Instrument Panel Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . .10
Electronic Stability Control (ESC) . . . . . . . . . . . . . . . . . . . .10
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . . . . . . . .10
Power Windows, Window Lock & Central Door Lock* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Power/Heated Outside Mirrors*
. . . . . . . . . . . . . . . . . . . . . .11
Power Folding Outside Mirrors* . . . . . . . . . . . . . . . . . . . . .11
Engine Start/Stop Button* . . . . . . . . . . . . . . . . . . . . . . . . . .12
STEERING WHEEL CONTROLS
Headlights & High Beams . . . . . . . . . . . . . . . . . . . . . . . . . .13
Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . . . . .13
Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . .14
Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Tilt/ Telescoping Steering Wheel* . . . . . . . . . . . . . . . . . . . .15
Bluetooth® Wireless Technology* . . . . . . . . . . . . . . . . . . . .16
Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Cruise Control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
AUDIO SYSTEMS
Standard Audio System ( Type A)* . . . . . . . . . . . . . . . . . . . .19
Standard Audio System ( Type B)* . . . . . . . . . . . . . . . . . . . .20
UVO eServices System* . . . . . . . . . . . . . . . . . . . . . . . . . . .21
UVO eServices with Premium Navigation* . . . . . . . . . . . . . .22
CENTER PANEL
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Aux/USB/iPod® Port & Power Outlets . . . . . . . . . . . . . . . . .23
Manual Climate Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Automatic Gear Shift / Sportmatic® Shifting* . . . . . . . . . . . . .25
Manual Gear Shift* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
S E AT I N G
Seat Warmers* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
6-Way Adjustable Driver’s Seat . . . . . . . . . . . . . . . . . . . . . .27
Front Seat Headrest Adjustment . . . . . . . . . . . . . . . . . . . . .27
Folding Rear Seatback . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
OTHER KEY FEATURES
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Remote Keyless Entry (Folding Key)* . . . . . . . . . . . . . . . . .30
Double-Turn Lock /Unlock All* . . . . . . . . . . . . . . . . . . . . . . .30
Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . . . . . . .30
Hood Release Lever and Latch . . . . . . . . . . . . . . . . . . . . . .31
Fuel Door Release Lever . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Trunk Release Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Map/Room Lamps* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Sunroof Operation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Rear-Camera Display* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
SAFETY FEATURES
Occupant Detection System (ODS)/ Passenger Airbag Off Indicator . . . . . . . . . . . . . . . . . . . . . .36
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Seat Belt Retractor Locks . . . . . . . . . . . . . . . . . . . . . . . . . .36
NORMAL MAINTENANCE SCHEDULE . . . . .37
LEGAL DISCLAIMERS (See Back Inside Cover Page)
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
RIO FE ATURES & FUNCTIONS GUIDE*IF EQUIPPED
ESSENTIAL FEATURES

8
To help improve your fuel economy: •Drive at a moderate speed, accelerating smoothly and at a moderate rate •Keep tires inflated to the recommended pressure •Be sure the wheels are properly aligned
For more information on Active ECO, refer to your Owner’s Manual or contact your local dealership.
QUICK TIPS
Active ECO System Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.KuTechVideos.com/ub13/2016
QR CODE
(Type B Cluster)
(Buttons located on left side of Driver’s Panel)
A
B
Active ECO System*
Active ECO helps improve fuel economy by controlling
several vehicle components . When activated, it optimizes
drivetrain operations such as engine power and transmission
to help improve fuel economy .
To turn ON, press the ACTIVE ECO button A . The green ECO
Indicator light B in the instrument cluster will illuminate,
indicating that the Active ECO is operating . The Active ECO
System will remain on even when the ignition is cycled .
To turn the Active ECO System OFF, press the ACTIVE ECO
button A again .
RIO FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
INSTRUMENT CLUSTER

9
The ISG system is disabled when: •A seat belt is unfastened •The hood or a door is opened •Battery condition is poor •The front or rear defroster is turned on •Engine coolant temperature is low
•The outside ambient temperature is too low/high •Emission control devices activate •The vehicle is on a steep slope
QUICK TIPS
Idle, Stop and Go System Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.KuTechVideos.com/ub13/2016
QR CODE
B
(Buttons located on left side of Driver’s Panel)
(Type B Cluster)
A
Idle, Stop and Go (ISG) System*
The ISG system helps reduce fuel consumption by automatically shutting down
the engine when the vehicle is at a standstill .
When the ISG system is ON and the vehicle is at a standstill the engine will
stop, and the green AUTO STOP indicator on the instrument cluster A will
illuminate and the message Auto Stop will appear in the LCD screen* .
The engine will restart when the brake pedal is released or the shift lever is
moved from D (Drive) to the R (Reverse) position or to Sport mode . When engine
restarts, the green AUTO STOP indicator on the instrument cluster will turn off .
To deactivate the ISG System, press the ISG OFF button B . If you press again,
the system will be activated .
REMINDERS:
•ISG is active by default at vehicle start-up . When ignition is cycled, ISG will turn ON again
•Under certain conditions, the engine will restart automatically
• If the AUTO STOP indicator is illuminated yellow, please contact an authorized Kia dealer
For more information on Idle, Stop and Go System, refer to your Owner’s Manual or contact your local dealership.
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
DRIVER'S PANEL

10
Hill-Start Assist Control (HAC)
HAC helps prevent the vehicle from rolling backwards when accelerating
from a stop while on a steep incline .
The HAC automatically activates whether the ESC is OFF or ON but does NOT
activate when the ESC has malfunctioned .
REMINDER: The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .
•
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation •HAC provides a 2-second delay before the vehicle may start rolling backwards
QUICK TIPS
(Buttons located on left side of Driver’s Panel)
AB

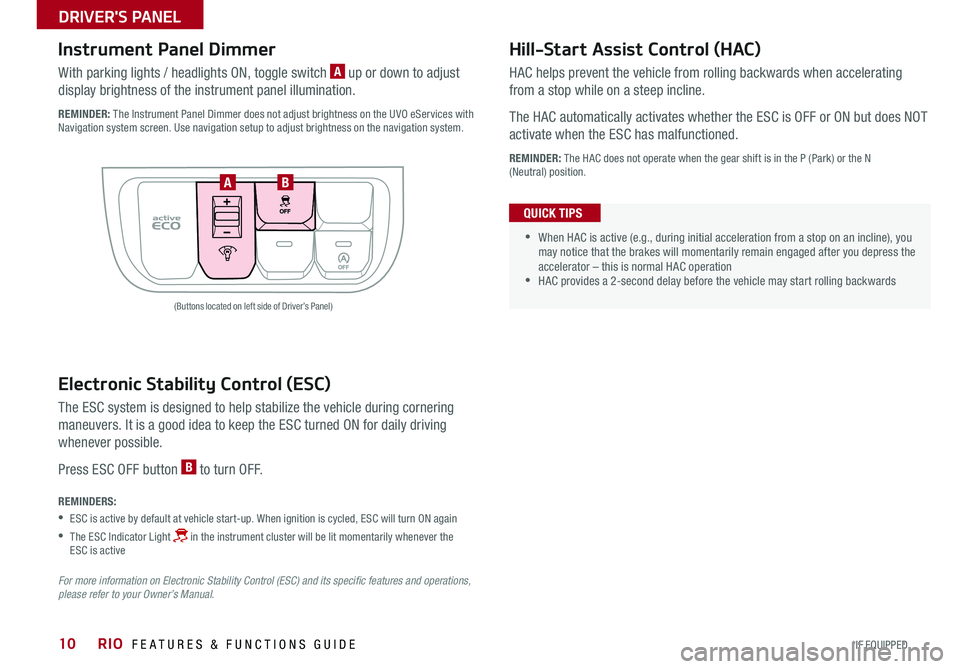

Instrument Panel Dimmer
With parking lights / headlights ON, toggle switch A up or down to adjust
display brightness of the instrument panel illumination .
REMINDER: The Instrument Panel Dimmer does not adjust brightness on the UVO eServices with Navigation system screen . Use navigation setup to adjust brightness on the navigation system .
Electronic Stability Control (ESC)
The ESC system is designed to help stabilize the vehicle during cornering
maneuvers . It is a good idea to keep the ESC turned ON for daily driving
whenever possible .
Press ESC OFF button B to turn OFF .
REMINDERS:
•ESC is active by default at vehicle start-up . When ignition is cycled, ESC will turn ON again
• The ESC Indicator Light in the instrument cluster will be lit momentarily whenever the ESC is active
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to your Owner’s Manual.
RIO FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL
