2016 KIA Optima Bluetooth

Audio system
90
5
Bluetooth®Wireless Technology
When No Devices have been
Paired
➀ Press the [PHONE] button or the
[CALL] button on the steering
wheel controls. The following
screen is displayed.
➁ Press the [OK] button to enter the
Pair Phone screen. Vehicle Name : Name of device as
shown when searching from your
Bluetooth®Wireless Technology
device
Passkey : Passkey used to pair the device
➂ From your
Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select your
car audio system.
\b SSP: Secure Simple Pairing
Non SSP supported device :
➃ After a few moments, a screen is
displayed where the passkey is
entered.
Enter the passkey “0000” to pair your
Bluetooth®Wireless Technology
device with the car audio system. SSP supported device :
➃
After a few moments, a screen is
displayed 6 digits passkey.
Check the passkey on your
Bluetooth®Wireless Technology
device and confirm.
➄ Once pairing is complete, the fol-
lowing screen is displayed.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 90

Audio system
591
✽
✽NOTICE
If Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the
[PHONE] button or the [CALL]
but-
ton
on the steering wheel controls dis-
plays the following screen. Press the
[Pair] button to pair a new device or
press the [Connect]
to connect a previ-
ously paired device.
Pairing through [PHONE] Setup
Press the [SETUP] button
Select
[Pair]
Pair Phone
The following steps are the same as
those described in the section “When
No Devices have been Paired” on the
previous page.
Paired Phone List
Press the [SETUP] button
Select
[Phone] Select [Pair Phone List]
Connected Phone : Device that is currently connected
Paired Phone : Device that is paired but not connected
Connecting a Device
From the paired phone list, select the
device you want to connect and
press the [Connect](1) button.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 91

Audio system
92
5 Disconnecting a Device
From the paired phone list, select the
currently connected device and
press the [Disconnect](2) button.
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete](3) button.
✽ ✽
NOTICE
• When deleting the currently con-
nected device, the device will auto-
matically be disconnected to pro-
ceed with the deleting process.
• If a paired Bluetooth
®Wireless
Technology device is deleted, the
device’s call history and contacts
data will also be deleted.
• To re-use a deleted device, you must pair the device again.
Changing Priority
It is possible to pair up to five
Bluetooth®
Wireless Technology devices with the
car audio system. The “Change
Priority” feature is used to set the
connection priority of paired phones.
From the paired phone list, select
the phone you want to switch to the
highest priority, then press the
[Change priority](4) button from the
Menu. The selected device will be
changed to the highest priority.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 92

Audio system
593
Phone Menu Screen
Phone Menus
With a
Bluetooth®Wireless Technology
device connected, press the
[PHONE] button to display the
Phone menu screen.
Favorites : Up to 20 frequently used contacts can be saved for
easy access
Call History : Displays the call his- tory list screen
Contacts : Displays the Contacts list screen
Dial Number : Displays the dial screen where numbers can be
dialed to make calls
Setup : Displays Phone related set- tings.
✽ ✽ NOTICE
• If you press the [Call History] button
but there is no call history data, a
prompt is displayed which asks to
download call history data.
• If you press the [Contacts] button but there is no contact data stored, a
prompt is displayed which asks to
download contacts data.
• This feature may not be supported in some mobile phones. For more infor-
mation on download support, refer
to your mobile phone user’s manual. Favorites
Saved favorite contact : Connects
call upon selection
To add favorite : Downloaded con- tacts be saved as favorite.
Delete All : Deletes all stored favorite contacts
✽ ✽ NOTICE
• To save Favorite, contacts should
be downloaded.
• Contact saved in Favorites will not be automatically updated if the
contact has been updated in the
phone. To update Favorites, delete
the Favorite and create a new
Favorite.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 93

Audio system
94
5 Call History
A list of incoming, outgoing and
missed calls is displayed.
Press the [Download] button to
download the call history.
Call History :
- Displays recent calls (call histo-ry)
- Connects call upon selection
Download : Download Recent Call History
Call history may not be saved in the call history list in some mobile
phones.
Calls received with hidden caller ID will not be saved in the call history
list. Calling through the call history is
not possible when there is no call
history stored or a
Bluetooth®
Wireless Technology phone is not
connected.
Up to 50 received, dialed and missed calls are stored in Call
History.
Time of received/dialed calls and call time information are not saved.
Contacts
The list of saved phone book entries
is displayed. Press the [Download]
button to download the call history.
Contacts List :- Displays downloaded contactentries.
- Connects call upon selection.
Sort by : Find a contact in alpha- betical order.
Download : Download contact entries.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 94

Audio system
595
✽
✽NOTICE
• Up to 1,000 contacts saved in your
Bluetooth®Wireless Technology
phone can be downloaded into the
car contacts. Contacts that have
been downloaded to the car cannot
be edited or deleted on the phone.
• Mobile phone contacts are man- aged separately for each paired
Bluetooth
®Wireless Technology
device (max 5 devices x 1,000 con-
tacts each). Previously down-
loaded data is maintained even if
the Bluetooth
®Wireless
Technology device has been dis-
connected. (However, the contacts
and call history saved to the phone
will be deleted if a paired phone is
deleted.)
• It is possible to download contacts during Bluetooth
®streaming audio.
• When downloading contacts, the icon will be displayed within the
status bar. (Continued)(Continued)
• It is not possible to begin down-
loading a contact list when the
contact download feature has been
turned off within the Bluetooth
®
Wireless Technology device. In
addition, some devices may
require device authorization upon
attempting to download contacts.
If downloading does not normally
occur, check the Bluetooth
®
Wireless Technology device set-
tings or the screen state.
• The contacts download feature may not be supported in some
mobile phones. For more informa-
tion of supported Bluetooth
®
devices and function support,
refer to your phone’s user manual.
Calling by Dialing a Number
Dial Pad : Used to enter phone
number
Call : If a number has been entered, calls the number, If no
number has been entered, switch-
es to call history screen
End : Deletes the entered phone number
Delete : Deletes entered numbers one digit at a time
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 95

Audio system
96
5 Answering a Call
Answering a call with a
Bluetooth®
Wireless Technology device connect-
ed will display the following screen.
Caller : Displays the other party’s
name when the incoming caller is
saved within your contacts
Incoming Number : Displays the incoming number
Accept : Accepts the incoming call
Reject : Rejects the incoming call
✽ ✽ NOTICE
• When an incoming call pop-up is dis-
played, most Audio and SETUP
mode features are disabled. Only the
call volume will operate.
•The telephone number may not be properly displayed in some mobile
phones.
During a Handsfree Call
Caller : Displays the other party’sname if the incoming caller is
saved within your contacts
Incoming Number : Displays the incoming number
Call time : Displays the call time
End : Ends call
Private : Converts to Private mode
Out Vol. : Sets call volume as heard by the other party
Mute : Turns Mic Mute On/Off
✽ ✽ NOTICE
If the mic is muted, the other party
will not be able to hear your voice.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 96

Audio system
599

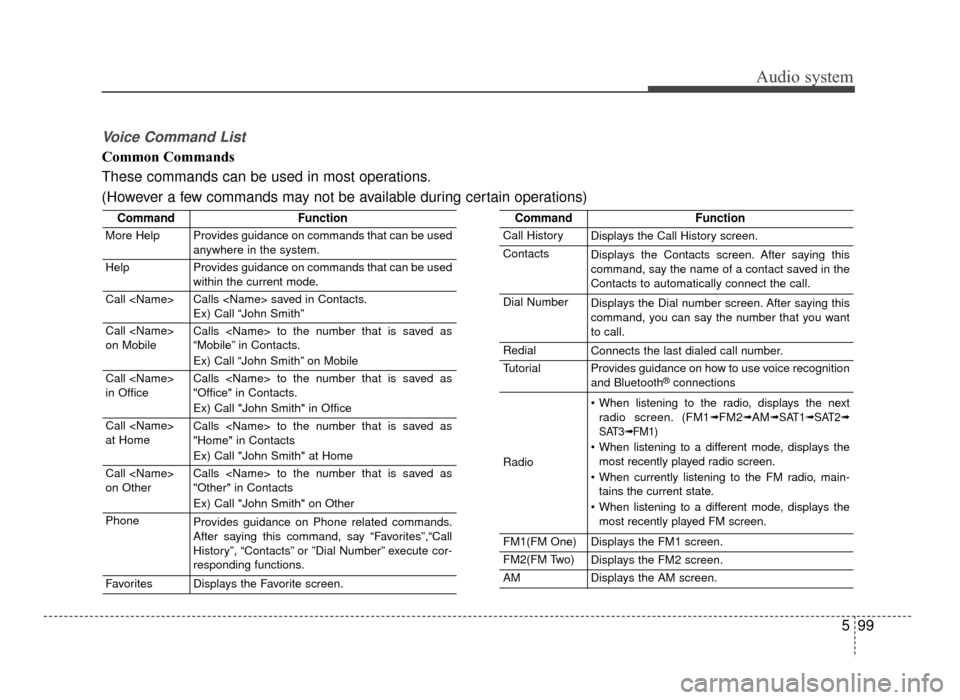

Voice Command List
Common Commands
These commands can be used in most operations.
(However a few commands may not be available during certain operations)
CommandFunction
More HelpProvides guidance on commands that can be used
anywhere in the system.
HelpProvides guidance on commands that can be used
within the current mode.
Call Calls saved in Contacts.
Ex) Call “John Smith”
Call
on MobileCalls to the number that is saved as
“Mobile” in Contacts.
Ex) Call “John Smith” on Mobile
Call
in OfficeCalls to the number that is saved as
"Office" in Contacts.
Ex) Call "John Smith" in Office
Call
at HomeCalls to the number that is saved as
"Home" in Contacts
Ex) Call "John Smith" at Home
Call
on OtherCalls to the number that is saved as
"Other" in Contacts
Ex) Call "John Smith" on Other
PhoneProvides guidance on Phone related commands.
After saying this command, say “Favorites”,“Call
History”, “Contacts” or ”Dial Number” execute cor-
responding functions.
FavoritesDisplays the Favorite screen.
CommandFunction
Call HistoryDisplays the Call History screen.
ContactsDisplays the Contacts screen. After saying this
command, say the name of a contact saved in the
Contacts to automatically connect the call.
Dial NumberDisplays the Dial number screen. After saying this
command, you can say the number that you want
to call.
RedialConnects the last dialed call number.
TutorialProvides guidance on how to use voice recognition
and Bluetooth®connections
Radio
When listening to the radio, displays the nextradio screen. (FM1➟FM2➟AM➟ SAT1➟ SAT2➟
SAT3➟ FM1)
When listening to a different mode, displays the most recently played radio screen.
When currently listening to the FM radio, main- tains the current state.
When listening to a different mode, displays the most recently played FM screen.
FM1(FM One)Displays the FM1 screen.
FM2(FM Two)Displays the FM2 screen.
AMDisplays the AM screen.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 99
