2016 KIA Optima ESP

Maintenance
54
8
Tread wear
The tread wear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified govern-
ment test course. For example, a tire
graded 150 would wear one-and-a-
half times (1½) as well on the gov-
ernment course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate. Tires degrade over time, even when
they are not being used. Regardless
of the remaining tread, we recom-
mend that tires be replaced after
approximately six (6) years of normal
service. Heat caused by hot climates
or frequent high loading conditions
can accelerate the aging process.
These grades are molded on the
side-walls of passenger vehicle tires.
The tires available as standard or
optional equipment on your vehicles
may vary with respect to grade.
Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tires ability to
stop on wet pavement as measured
under controlled conditions on spec-
ified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction perform-
ance.
The traction grade assigned to this
tire is based on straight-ahead brak-
ing traction tests, and does not
include acceleration, cornering,
hydroplaning, or peak traction char-
acteristics.
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 54

877
Maintenance
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non- genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)
OJFA075134
OJFA075135
■Head lamp - Type A
■Head lamp - Type BOJFA075136
OJFA075137
■Head lamp - Type C
■Head lamp - Type D
(1) Front turn signal lamp
(and position lamp for Type A)
(2) Headlamp (Low)
(3) Headlamp (High) (and DRL for Type A) (4) Headlamp (Low/High)
(5) Day time running lamp
/Position lamp (LED type)
(6) Side marker
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 77

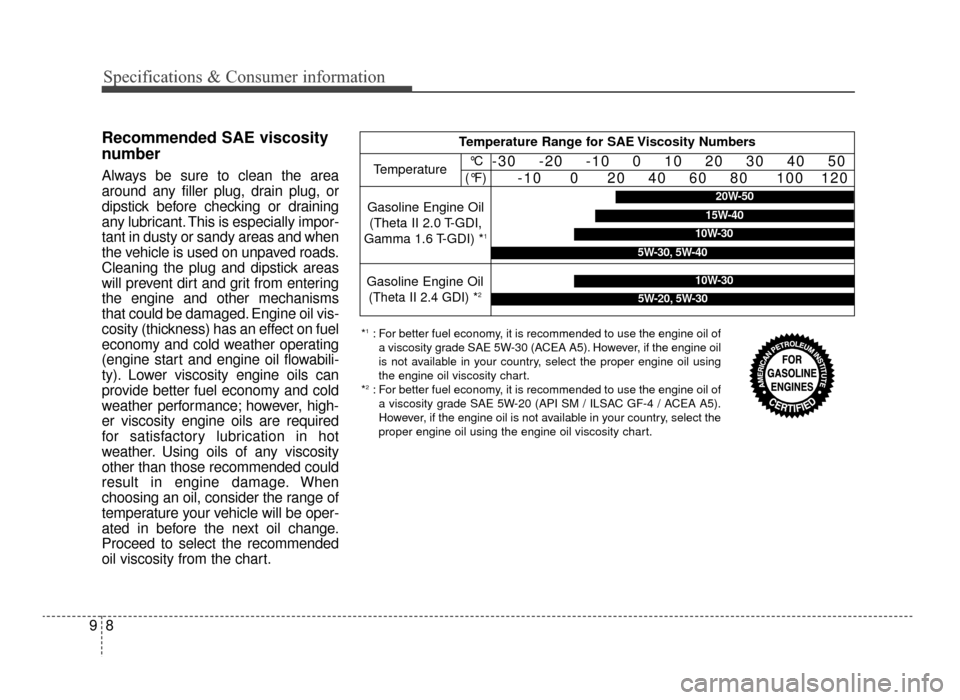

Specifications & Consumer information
89
Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially impor-
tant in dusty or sandy areas and when
the vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms
that could be damaged. Engine oil vis-
cosity (thickness) has an effect on fuel
economy and cold weather operating
(engine start and engine oil flowabili-
ty). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance; however, high-
er viscosity engine oils are required
for satisfactory lubrication in hot
weather. Using oils of any viscosity
other than those recommended could
result in engine damage. When
choosing an oil, consider the range of
temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gasoline Engine Oil
(Theta II 2.0 T-GDI,
Gamma 1.6 T-GDI) *
1
20W-50
10W-30
15W-40
5W-30, 5W-40
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-30 (ACEA A5). However, if the engine oil
is not available in your country, select the proper engine oil using
the engine oil viscosity chart.
*
2: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4 / ACEA A5).
However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
Gasoline Engine Oil(
Theta II 2.4 GDI) *210W-30
5W-20, 5W-30
JF CAN (ENG) 9.qxp 11/5/2015 4:31 PM Page 8

Index
8I
Maintenance services ......................................................8-5Owner maintenance precautions ..................................8-6
Owner’s responsibility ..................................................8-5
Manual climate control system....................................4-118 Checking the amount of air conditioner refrigerant and compressor lubricant ..............................................4-126
Climate control air filter ..........................................4-126
Heating and air conditioning ....................................4-119
System operation ......................................................4-124
Mirrors ........................................................................\
..4-51 Inside rearview mirror ................................................4-51
Outside rearview mirror ..............................................4-53
Owner maintenance ........................................................8-7 Owner maintenance schedule ......................................8-7
Panoramic sunroof ........................................................4-41 Closing the sunroof ....................................................4-45
Resetting the sunroof ..................................................4-46
Sliding the sunroof ....................................................4-43
Sunroof open warning ................................................4-42 Sunshade ....................................................................4-43\
Tilting the sunroof ......................................................4-45
Parking brake ................................................................8-34 Checking the parking brake ........................................8-34
Rear parking assist system ............................................4-97 Non-operational conditions of rear parking assist system ................................................4-98
Operation of the rear parking assist system................4-97
Rear parking assist system precautions ......................4-99
Self-diagnosis............................................................4-100
Rearview camera..........................................................4-101
Recommended lubricants and capacities ........................9-6 Recommended SAE viscosity number ........................9-8
Scheduled maintenance service ......................................8-9
Seat ........................................................................\
..........3-4 Driver position memory system (for power seat) ......3-11
Front seat adjustment - manual ....................................3-7
Front seat adjustment - power ......................................3-8
Headrest (for front seat) ..............................................3-13
Rear seat adjustment ..................................................3-16
Seatback pocket ..........................................................3-16
M
P
O
R
S
JF CAN (ENG) Index.qxp 9/23/2015 4:32 PM Page 8
