2016 KIA K900 key battery

K900 CUSTOMER DELIVERY CHECKLIST
Confirm “Good Battery” with Kia GR8-1299 battery tester
Verify all tire pressures are to spec (see driver’s door label) LF LR RF RR
Verify proper operation of Smart Key* lock /unlock
Ensure floormats are snapped into place (if applicable)
Verify vehicle is clean (interior and exterior), in good condition, free of chips and scratches
Ensure all key documents are in the vehicle (Owner’s Manual, Warranty and Consumer Information booklet, Tire Warranty booklet,
Features & Functions Guide and any supplemental audio/video/navigation user’s guides)
Driver Information System (DIS) Control – pages 22-23 Automatic Transmission (Shift by Wire)
and Sport Mode – page 28
Automatic Climate Control – pages 26-27 Demonstrate Air Flow Modes, Defog and Defrosting Windshield Fan Speed.
UVO Luxury Services with Premium Navigation
System – page 24 For further system operation, refer to the Car Navigation System Owner’s Manual.
Before Delivery
Key Feature Walkthrough
Owner’s Name: ____________________________________ VIN:
_______________________ Mileage: _
_________________
Dealership Name:
______________________Sales Consultant:
_________________________________
Date:
__________
© 2015 Kia Motors America, Inc. All rights reserved. Part Number: UK160-PS-004 29319_COVER_r1.indd 1-3 11/12/15 10:18 AM

DRIVER’S PA NEL
*IF EQUIPPED 14
To start the engine:
1. Depress the brake pedal
2. Press the ENGINE START/STOP button while gear shift is
in P (Park)
To turn the engine O F F, press the ENGINE START/STOP
button while the gear shift is in P (Park).
To use the ENGINE START/STOP button, you must have the
Smart Key on your person or inside the vehicle.
Engine Start/Stop Button
www.KuTechVideos.com/kh13/2016
ENGINE STA RT/STOP
BUTTON AND
SMART KEY VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
REMINDERS:
-
If Smart Key fob battery is dead, you can still start the engine by pressing
the ENGINE START/STOP button with the Lock-button end of the Smart
Key. The Smart Key must contact the ENGINE START/STOP button directly,
at a right angle
- In an emergency situation while the vehicle is in motion, you are able to turn
the engine off and to the ACC position by pressing the ENGINE STA RT/ STOP
button for more than 2 seconds or 3 times successively within 3 seconds
B
CA
Quick Tip\f
To use electrical accessories:
ACC position
- When in the OFF position A and without
depressing the brake pedal, press the ENGINE
START/STOP
button once. The ACC indicator will illuminate (amber) B.
To check warning lights:
ON position
- When already in the ACC position
B and without
depressing the brake pedal, press the ENGINE
START/STOP button again. The ON indicator will
illuminate (red)
C.
- When in the OFF position
A and without
depressing the brake pedal, press the ENGINE
START/STOP button twice. The ON indicator will
illuminate (red)
C.
Keeping the vehicle in ACC or ON position too long
can discharge the vehicle’s battery.
29319_Text.indd 1411/6/15 10:21 AM

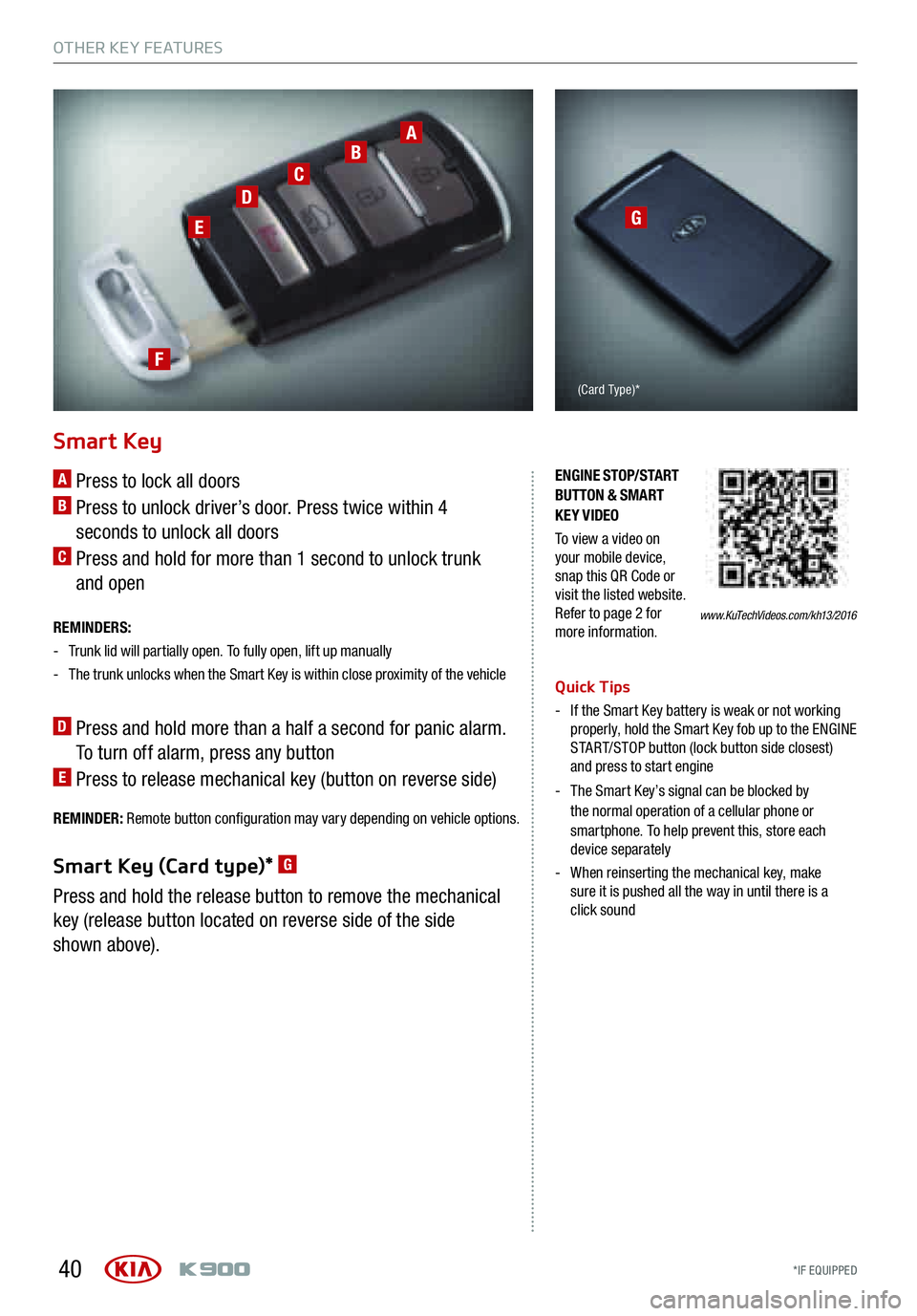

OTHER KEY F E AT U R E S
*IF EQUIPPED 40
Smart Key
A Press to lock all doors
B Press to unlock driver’s door. Press twice within 4
seconds to unlock all doors
C Press and hold for more than 1 second to unlock trunk
and open
REMINDERS:
- Trunk lid will partially open. To fully open, lift up manually
- The trunk unlocks when the Smart Key is within close proximity of the vehicle
D Press and hold more than a half a second for panic alarm.
To turn off alarm, press any button
E Press to release mechanical key (button on reverse side)
Smart Key (Card type)*
G
Press and hold the release button to remove the mechanical
key (release button located on reverse side of the side
shown above).
www.KuTechVideos.com/kh13/2016
ENGINE STOP/START
BUTTON & SMART
KEY VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
Quic\f Tips
- If the Smart Key battery is weak or not working
properly, hold the Smart Key fob up to the ENGINE
START/STOP button (lock button side closest)
and press to start engine
- The Smart Key’s signal can be blocked by
the normal operation of a cellular phone or
smartphone. To help prevent this, store each
device separately
- When reinserting the mechanical key, make
sure it is pushed all the way in until there is a
click sound
REMINDER:
Remote button conguration may vary depending on vehicle options.
ABC
D
E
F
G
(Card Type)*
29319_Text.indd 4011/6/15 10:25 AM

OTHER KEY F E AT U R E S
*IF EQUIPPED 42
Map/Room Lamps
Automatic Tu r n O\f\f Function
The interior lights automatically turn off approximately 20
seconds after the ENGINE START/STOP button is turned O F F.
Map/Room Lamp Operation
Map Lamps – These lights produce spot beams for
convenient use as map lamps or as personal lamps for the
driver or the front passenger. Press the buttons
A to turn the
map lamps ON/OFF.
ROOM button – Press the button
B to turn the front and
rear lamps ON/OFF.
REAR ROOM button – Press the button
C to turn the rear
lamp ON/OFF.
DOOR button – When the DOOR button
D is pressed (LED
lit) the front and rear lamps will turn ON as follows:
§ When a door is opened or doors are unlocked with the
Smart Key, the lamps will turn ON for approximately
30 seconds
§ If the ENGINE START/STOP button is in the ACC/OFF
position and a door is open, the lamps will stay ON for
approximately 20 minutes
§ If the ENGINE START/STOP button is in the ACC/ON
position and a door is open, the lamps will stay ON
The lamps will turn OFF immediately if the ENGINE STA R T/
STOP button is turned ON or all doors are locked.
PRIVACY button – When button
E is pressed (LED lit) and
a door is opened, that door lamp will turn ON.
REMINDER: When room lamp lens is pressed ON it
will remain ON, even when the map lamp switch is in
the OFF position.
Quic\b
Tips
- When doors are unlocked by the Smart Key, the
lamp turns ON for approximately 30 seconds
- If your vehicle is equipped with the theft alarm
system, the interior lights automatically turn off
approximately 3 seconds after the system is in
armed stage
- Using interior lights for an extended period of time
may cause battery discharge
BC
D
E
AA
29319_Text.indd 4211/6/15 10:25 AM

K900 CUSTOMER DELIVERY CHECKLIST
Confirm “Good Battery” with Kia GR8-1299 battery tester
Verify all tire pressures are to spec (see driver’s door label) LF LR RF RR
Verify proper operation of Smart Key* lock /unlock
Ensure floormats are snapped into place (if applicable)
Verify vehicle is clean (interior and exterior), in good condition, free of chips and scratches
Ensure all key documents are in the vehicle (Owner’s Manual, Warranty and Consumer Information booklet, Tire Warranty booklet,
Features & Functions Guide and any supplemental audio/video/navigation user’s guides)
Driver Information System (DIS) Control – pages 22-23 Automatic Transmission (Shift by Wire)
and Sport Mode – page 28
Automatic Climate Control – pages 26-27 Demonstrate Air Flow Modes, Defog and Defrosting Windshield Fan Speed.
UVO Luxury Services with Premium Navigation
System – page 24 For further system operation, refer to the Car Navigation System Owner’s Manual.
Before Delivery
Key Feature Walkthrough
Owner’s Name: ____________________________________ VIN:
_______________________ Mileage: _
_________________
Dealership Name:
______________________Sales Consultant:
_________________________________
Date:
__________
© 2015 Kia Motors America, Inc. All rights reserved. Part Number: UK160-PS-004 29319_COVER_r1.indd 1-3 11/12/15 10:18 AM
