2016 KIA Cadenza fuse

763
Maintenance
Fuse switch
Always, put the fuse switch at the ON
position.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly.
Always place the fuse switch in the
ON position while driving the vehicle.
Engine compartment fuse
replacement
1. Turn the ignition switch and allother switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the
cover up. When the blade type
fuse is disconnected, remove it by
using the clip designed for chang-
ing fuses located in the engine
room fuse box. Upon removal,
securely insert reserve fuse of
equal quantity. 3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized Kia Premium dealer.
OVG073020
OVG073021
CAUTION- Fuse panel
cover
After checking the fuse panel inthe engine compartment,securely install the fuse panelcover. If not, electrical failuresmay occur from water contact.

Maintenance
64
7
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Remove the nuts shown in the pic- ture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Remove the fuse panel in theengine compartment.
2. Remove the nuts shown in the pic- ture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
✽ ✽NOTICE
If the multi fuse is blown, consult an
authorized Kia Premium dealer.
OVG079023LOVG079022
CAUTION- Fuse panel
covers
After checking the fuse panel inthe engine compartment,securely install the fuse panelcover to prevent electrical fail-ures which may occur fromwater leaking in.

765
Maintenance
Instrument fuse panel
✽
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OVG073024
Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
OVG074104N

Maintenance
66
7
Engine compartment fuse
panel
✽ ✽
NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OVG073105N
OVG079025L

767
Maintenance

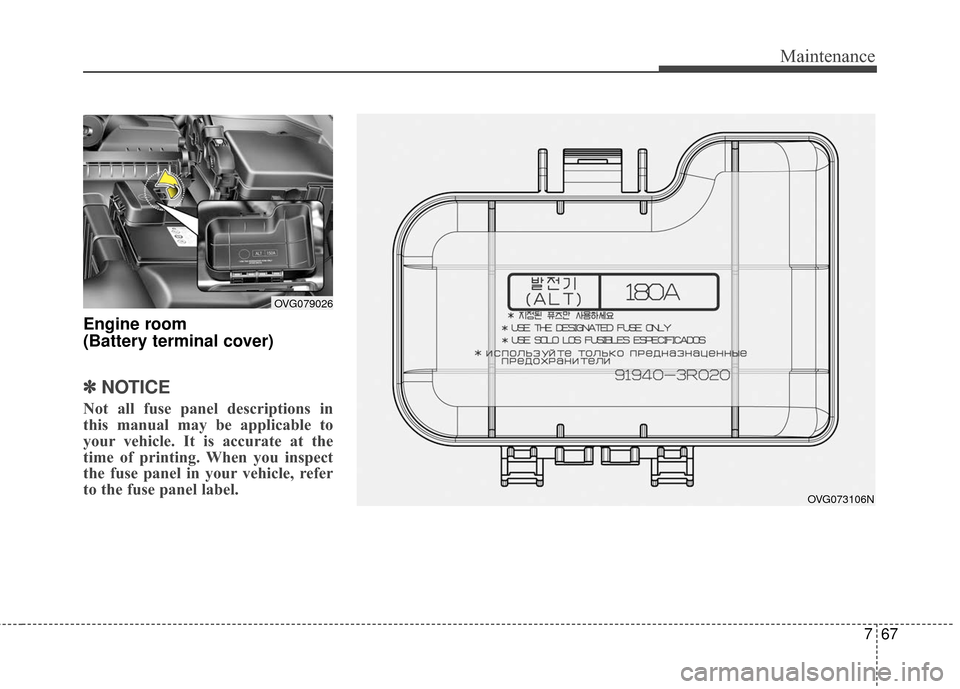

Engine room
(Battery terminal cover)
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OVG073106N
OVG079026

Maintenance
68
7
Instrument panel (Driver’s side fuse panel)
NO.Fuse ratingDescriptionProtected component
MF110AMODULE 2
Tilt & Telescopic Module, Instrument cluster, Driver/Passenger Seat Warmer Module, Rear Seat
Warmer Module LH/RH, IMS Control Module, Rear Parking Assist Sensor LH/RH, Rear Parking
Assist Sensor LH/RH(Center), Driver/Passenger Door Module, LDWS Camera Module, Electro
Chromic Mirror, Room Lamp, MTS Module, Driver/Passenger CCS Control Module, Head Lamp
Leveling Device Switch, Auto Head Lamp Leveling Device Module, Front Parking Assist Sensor
LH/RH, Head Lamp Leveling Device Actuator LH/RH, Console SW, BSD (Blind Spot Detection)
Unit LH/RH Rear P/WDW HEATED Module
MF210APDM 3PDM, Smart Key Control Module
MF310AHTD MRRDriver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module
MF410AMEMORY 1Auto Light & Photo Sensor, Data Link Connector, Driver/Passenger Foot Lamp, Instrument Cluster,
Digital Clock, Rear Curtain Module, A/C Control Module, Room Lamp, Driver/Passenger Door
Module
MF515AMULTI MEDIAMTS Module, Audio, A/V & Navigation Head Unit, Audio Monitor
MF610AMDPSMDPS_SIG
MF710AMEMORY 2RF Receiver
MF815ASPARESPARE
MF910ASPARESPARE
MF1015ASPARESPARE

769
Maintenance
NO.Fuse ratingDescriptionProtected component
MF1120AS/HEATERFRTDriver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module
MF1210AA/BAG INDInstrument Cluster
MF1315AHTD STRGSteering Wheel Heater
MF1410ACURTAINRear Curtain Module, Driver/Passenger Door Module
MF1525AP/SEAT PASSPassenger Manual Switch
MF1625AAMPAMP
MF1725AP/WDW RHPassenger Door Module, Rear Power Window Switch RH
MF1825AP/WDW LHDriver Safety Power Window Switch, Rear Power Window Switch LH
MF1915AA/BAGSRS Control Module
MF2010AA/CONIonizer, Ionizer (IND.), A/C Control Module, E/R Fuse & Relay Box (RLY. 14)
MF2110AAUDIOSmart Key Control Module, Rear Audio Switch, Amp, Audio Monitor, Overhead Console Lamp
Switch, PDM, MTS Module, Audio, A/V & Navigation Head Unit, digital clock
MF2210AINTERIORLAMPGarnish Lamp LH/RH/Conter, Room Lamp, Driver/Passenger Vanity Lamp Switch, Overhead
Console Lamp Switch, Rear Door Mood Lamp LH/RH, Driver/Passenger Door Mood Lamp,
Driver/Passenger Door Scuff Lamp, Driver/Passenger Door Lamp, Trunk Room Lamp
MF2320ASUNROOFPanorama Sunroof

Maintenance
70
7
NO.Fuse ratingDescriptionProtected component
MF2410ATRUNKFuel Filler Door Switch, Trunk Lid Relay
MF2520AS/HEATER RRRear Seat Warmer Module LH/RH
MF2610AMODULE 3ESP Control Module, ABS Control Module, Electric Parking Brake Module, Steering Angle Sensor,
ESP Off Switch, Console Switch
MF2710AMODULE 1PDM, ICM Relay Box (Head Lamp Washer Relay), Panorama Sunroof, Rear Curtain Module, Driver
Active Seat Module, Rain Sensor
MF2815APOWER
OUTLETConsole Power Outlet
MF2925APDMSmart Key Control Module, Fob Holder
MF3015AP/HANDLEKey Solenoid, Tilt & Telescopic Module, Sport Mode Switch
MF3110ABRAKE
SWITCHPDM, Start Stop Button Switch
MF3220ADR/LOCKDriver Door Module
MF3320AIG1E/R Fuse & Relay Box (F12 15A, F11 10A, F10 10A)
MF3425AWIPERE/R Fuse & Relay Box (RLY. 11, RLY.12), Front Wiper Motor, Multifunction Switch
MF3520AC/LighterFront Cigarette Lighter
MF3610ASTARTTransaxle Range Switch, PCM
