2016 JEEP GRAND CHEROKEE weight

INTRODUCTION/WELCOME
WELCOME FROM FCA US LLC...... 3
CONTROLS AT A GLANCE
DRIVER COCKPIT............... 8
INSTRUMENT CLUSTER ......... 10
GETTING STARTED
KEYFOB ................... 12
REMOTE START............... 13
KEYLESS ENTER-N-GO .......... 14
VEHICLE SECURITY ALARM ....... 17
SEAT BELT SYSTEMS ........... 18
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) — AIR BAGS ............ 19
CHILD RESTRAINTS ............ 23
HEAD RESTRAINTS ............. 28
FRONT SEATS ................ 30
REAR SEATS ................ 36
HEATED/VENTILATED SEATS ....... 37
HEATED STEERING WHEEL —
IF EQUIPPED ................ 39
TILT/TELESCOPING STEERING
COLUMN ................... 40
OPERATING YOUR VEHICLE
ENGINE BREAK-IN
RECOMMENDATIONS ........... 42
HEADLIGHT SWITCH ............ 44
TURN SIGNAL/WIPER/WASHER/HIGH
BEAM LEVER ................ 46
AUTOMATIC DIMMING MIRRORS .... 50
ELECTRONIC SPEED CONTROL ..... 50
ADAPTIVE CRUISE CONTROL (ACC) . . . 53
TRANSMISSION GEAR SELECTOR . . . 59
AUTOSTICK ................. 60
FUEL ECONOMY (ECO) MODE ...... 61
STOP/START SYSTEM —
IF EQUIPPED ................ 62
SPORT MODE — IF EQUIPPED ...... 65
AUTOMATIC TEMPERATURE CONTROLS
(ATC) ...................... 66
PARKSENSE FRONT AND REAR PARK
ASSIST .................... 69
PARKVIEW REAR BACK-UP CAMERA.. 70
BLIND SPOT MONITORING ........ 71
POWER SUNROOF ............. 71
WIND BUFFETING ............. 73
ELECTRONICS
YOUR VEHICLE'S SOUND SYSTEM . . . 74
CYBERSECURITY.............. 76 IDENTIFYING YOUR RADIO
........ 77
UCONNECT ACCESS ............ 78
UCONNECT 5.0 ............... 90
UCONNECT 8.4A/8.4AN ......... 100
UCONNECT 8.4A/8.4AN VOICE
RECOGNITION QUICK TIPS ....... 115
UCONNECT PHONE ........... 133
VIDEO ENTERTAINMENT SYSTEM
(VES) ..................... 144
STEERING WHEEL AUDIO
CONTROLS ................. 146
DRIVER INFORMATION DISPLAY
(DID) ..................... 147
PROGRAMMABLE FEATURES ...... 148
UNIVERSAL GARAGE DOOR OPENER
(HomeLink) ................. 150
POWER INVERTER ............ 152
POWER OUTLETS ............. 153
OFF-ROAD CAPABILITIES
(4WD OPERATION)
QUADRA-TRAC I FOUR-WHEEL
DRIVE .................... 155
QUADRA-TRAC II/QUADRA-DRIVE II
FOUR-WHEEL DRIVE .......... 155
SELEC-TERRAIN ............. 157
QUADRA-LIFT ............... 158
HILL START ASSIST/HILL DESCENT
CONTROL/SELEC SPEED CONTROL —
IF EQUIPPED ................ 160
UTILITY
TRAILER TOWING WEIGHTS (MAXIMUM
TRAILER WEIGHT RATINGS) ...... 161
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ........... 167
SRT
FUEL ECONOMY (ECO) MODE ..... 172
SELEC-TRACK ............... 173
SRT PERFORMANCE FEATURES .... 175
SUMMER/THREE-SEASON TIRES . . . 179
DIESEL
DIESEL ENGINE BREAK-IN
RECOMMENDATIONS .......... 180
DIESEL ENGINE STARTING
PROCEDURES ............... 180
DIESEL FUEL FILTERS/WATER
SEPARATOR ................ 182
EXHAUST REGENERATION ....... 183
DIESEL EXHAUST FLUID ........ 184
TABLE OF CONTENTS

LATCH Weight Limit
You may use the LATCH anchorage system until the combined weight of the child and
the child restraint is 65 lbs (29.5 kg). Use the seat belt and tether anchor instead of
the LATCH system once the combined weight is more than 65 lbs (29.5 kg).
Locating LATCH Anchorages
The lower anchorages are round bars that are found at the rear of the seat cushion
where it meets the seatback, below the anchorage symbols
on the seatback.
They are just visible when you lean into the rear seat to install the child restraint. You
will easily feel them if you run your finger along the gap between the seatback and
seat cushion.
Locating Tether Anchorages
In addition, there are tether strap anchorages behind each rear seating position
located on the back of the seat. To access the top tether strap anchorages
behind
the rear seat, pull the carpeted floor panel away from the seat back, this will expose
the top tether strap anchorages. DO NOT USE the cargo tie down loops located on the
load floor as tether anchorages.
Center Seat LATCH
Do not install a child restraint in the center position using the LATCH system. Use the
seat belt and tether anchor to install a child seat in the center seating position.
Tether Strap Anchorages
GETTING STARTED
24

Installing The Child Restraint Using The LATCH Lower Anchors
NOTE:
Never“share” a LATCH anchorage with two or more child restraints.
1. Loosen the adjusters on the lower straps and on the tether strap of the child seat so that you can more easily attach the hooks or connectors to the vehicle
anchorages.
2. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the selected seating position.
3. If the child restraint has a tether strap, connect it to the top tether anchorage. See below for directions to attach a tether anchor.
4. Tighten all of the straps as you push the child restraint rearward and downward into the seat. Remove slack in the straps according to the child restraint
manufacturer’s instructions.
5. Test that the child restraint is installed tightly by pulling back and forth on the child seat at the belt path. It should not move more than 1 inch (25.4 mm) in any
direction.
Installing The Child Restraint Using The Vehicle Seat Belts
The seat belts in the passenger seating positions are equipped with a Switchable
Automatic Locking Retractor (ALR) that is designed to keep the lap portion of the
seat belt tight around the child restraint. Any seat belt system will loosen with time,
so check the belt occasionally, and pull it tight if necessary.
Tether Anchorage Weight Limit
Always use the tether anchor when using the seat belt to install a forward facing child
restraint, up to the recommended weight limit of the child restraint.
To Install A Child Seat Using An ALR
1. Pull enough of the seat belt webbing from the retractor to pass it through the beltpath of the child restraint. Do not twist the belt webbing in the belt path.
2. Slide the latch plate into the buckle until you hear a “click.”
3. Pull on the webbing to make the lap portion tight against the child seat.
4. To lock the seat belt, pull down on the shoulder part of the belt until you have pulled all the seat belt webbing out of the retractor. Then, allow the webbing to
retract back into the retractor. As the webbing retracts, you will hear a clicking
sound. This means the seat belt is now in the Automatic Locking mode.
5. Try to pull the webbing out of the retractor. If it is locked, you should not be able to pull out any webbing. If the retractor is not locked, repeat the last step.
6. Finally, pull up on any extra webbing to tighten the lap portion around the child restraint while you push the child restraint rearward and downward into the
vehicle seat.
GETTING STARTED
26

7. If the child restraint has a top tether strap and the seating position has a top tetheranchorage, connect the tether strap to the anchorage and tighten the tether strap.
See below for directions to attach a tether anchor.
8. Test that the child restraint is installed tightly by pulling back and forth on the child seat at the belt path. It should not move more than 1 inch (25.4 mm) in any
direction.
Installing The Top Tether Strap (With Either Lower Anchors Or Vehicle Seat
Belt)
When installing a forward-facing child restraint, always secure the top tether strap,
up to the tether anchor weight limit, whether the child restraint is installed with the
lower anchors or the vehicle seat belt.
Tether Strap Installation
1. To access the top tether strap anchorages behind the rear seat, pull the carpetedfloor panel away from the seat back, this will expose the top tether strap
anchorages.
2. Route the tether strap to provide the most direct path for the strap between
the anchor and the child seat.
3. If your vehicle is equipped with ad- justable rear head restraints, raise the
head restraint, and where possible,
route the tether strap under the head
restraint and between the two posts. If
not possible, lower the head restraint
and pass the tether strap around the
outboard side of the head restraint.
4. For the center seating position, route the tether strap over the seatback and
headrest.
5. Attach the tether strap hook of the child restraint to the top tether anchorage and remove slack in the tether strap according to the child restraint manufacturer’s
instructions. DO NOT USE the cargo tie down loops located on the load floor as
tether anchorages.
Top Tether Strap Mounting
GETTING STARTED
27

TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS)
Engine/Model Model CoolingFrontal Area Max. GTW (Gross Trailer Wt.) Max. Trailer Tongue Wt.
(See Note)
3.0L- Diesel En- gine 4x2 HD Cooling 55 sq ft (5.11 sq m) 7,400 lbs (3,357 kg) 740 lbs (336 kg)
3.0L- Diesel En- gine 4x4 HD Cooling 55 sq ft (5.11 sq m) 7,200 lbs (3,266 kg) 720 lbs (327 kg)
3.6L- Gasoline Engine 4x2 Std Cooling 55 sq ft (5.11 sq m) 3,500 lbs (1,588 kg) 350 lbs (159 kg)
3.6L- Gasoline Engine 4x2 HD Cooling 55 sq ft (5.11 sq m) 6,200 lbs (2,812kg) 620 lbs (281 kg)
3.6L- Gasoline Engine 4x4 Std Cooling 55 sq ft (5.11 sq m) 3,500 lbs (1,588 kgs) 350 lbs (159 kg)
3.6L- Gasoline Engine 4x4 HD Cooling 55 sq ft (5.11 sq m) 6,200 lbs (2,812kg) 620 lbs (281 kg)
5.7L- Gasoline Engine 4x2 Std Cooling 55 sq ft (5.11 sq m) 5,000 lbs (2,268 kg) 500 lbs (227 kg)
5.7L- Gasoline Engine 4x2 HD Cooling 55 sq ft (5.11 sq m) 7,400 lbs (3 357 kg) 740 lbs (336 kg)
5.7L- Gasoline Engine 4x4 Std Cooling 55 sq ft (5.11 sq m) 5,000 lbs (2,268 kg) 500 lbs (227 kg)
5.7L- Gasoline Engine 4x4 HD Cooling 55 sq ft (5.11 sq m) 7,200 lbs (3,266 kg) 720 lbs (327 kg)
UTILITY
161

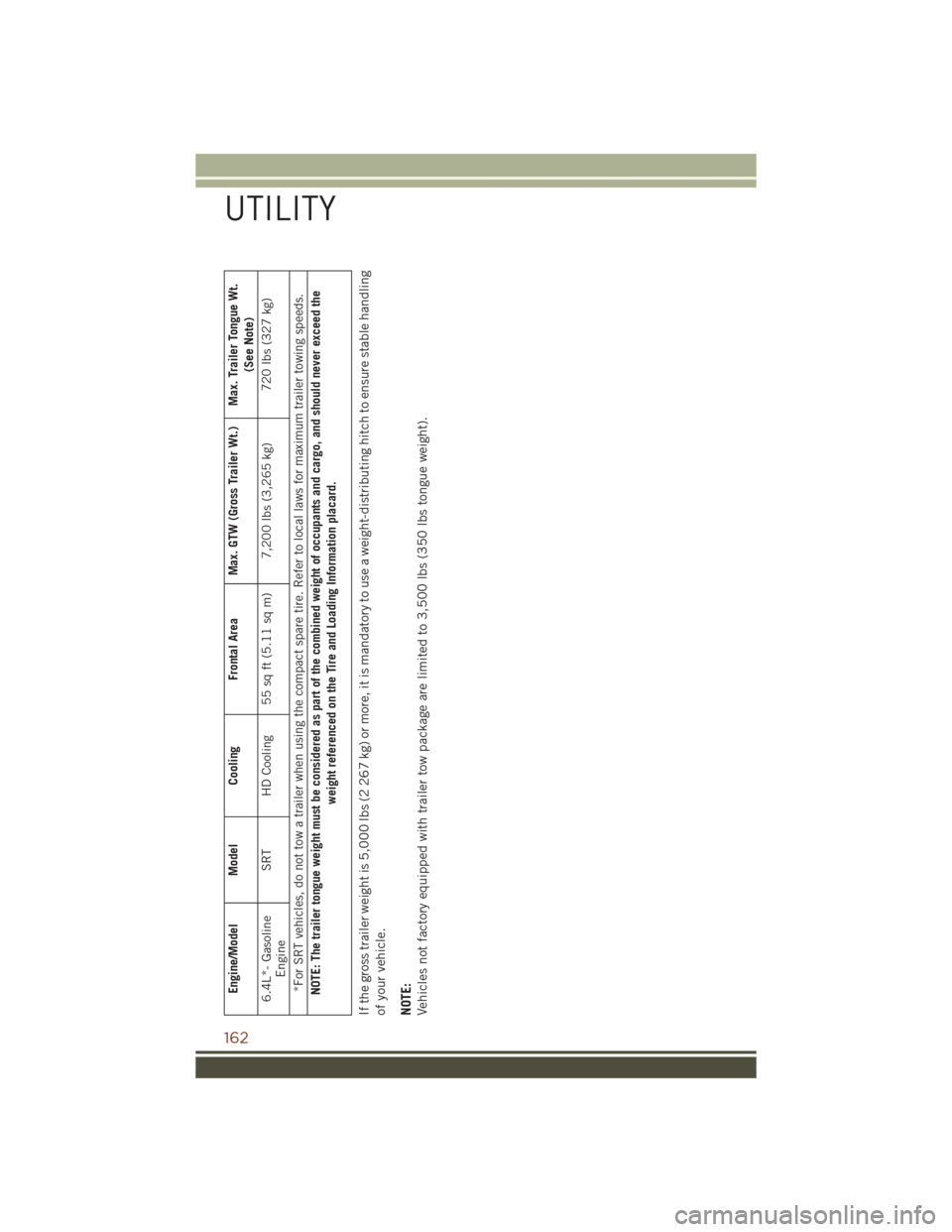

Engine/Model Model CoolingFrontal Area Max. GTW (Gross Trailer Wt.) Max. Trailer Tongue Wt.
(See Note)
6.4L*- Gasoline Engine SRT HD Cooling 55 sq ft (5.11 sq m) 7,200 lbs (3,265 kg) 720 lbs (327 kg)
*For SRT vehicles, do not tow a trailer when using the compact spare tire. Refer to local laws for maximum trailer towing speeds.
NOTE: The trailer tongue weight must be considered as part of the combined weight of occupants and cargo, and should never exceed the weight referenced on the Tire and Loading Information placard.
If the gross trailer weight is 5,000 lbs (2 267 kg) or more, it is mandatory to use a weight-distributing hitch to ensure stable handling
of your vehicle.
NOTE:
Vehicles not factory equipped with trailer tow package are limited to 3,500 lbs (350 lbs tongue weight).
UTILITY
162

DIESEL ENGINE BREAK-IN RECOMMENDATIONS
The diesel engine does not require a break-in period due to its construction. Normal
operation is allowed, providing the following recommendations are followed:
• Warm up the engine before placing it under load.
• Do not operate the engine at idle for prolonged periods.
• Use the appropriate transmission gear to prevent engine lugging.
• Observe vehicle oil pressure and temperature indicators.
• Check the coolant and oil levels frequently.
• Vary throttle position at highway speeds when carrying or towing significantweight.
NOTE:
Light duty operation such as light trailer towing or no load operation will extend the
time before the engine is at full efficiency. Reduced fuel economy and power may be
seen at this time.
The engine oil installed in the engine at the factory is a high-quality energy
conserving type lubricant. Oil changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. NON-DETERGENT OR
STRAIGHT MINERAL OILS MUST NEVER BE USED.
DIESEL ENGINE STARTING PROCEDURES
Normal Starting Procedure
1. Apply the parking brake.
2. Ensure the gear selector is in the PARK position.
3. Press and hold the brake pedal while pushing the ENGINE START/STOP button once and the system will engage the starter to crank the engine.
NOTE: • A delay of the start of up to five seconds is possible under very cold conditions.The “Wait to Start” telltale will be illuminated during the pre-heat process,
When the engine Wait To Start light goes off the engine will automatically crank.
• If you wish to stop the cranking of the engine prior to the engine starting, push the button again.
4. Check that the oil pressure warning light has turned off.
5. Release the parking brake.
DIESEL
180

SpecificationsFuel (Gasoline) ..........229
Oil .................229
Speed Control Accel/Decel ..........51,52
Accel/Decel (ACC Only) ......53
Cancel ...............51
Distance Setting (ACC Only) . . .55
Mode Setting (ACC Only) .....55
Resume ...............51
Set .................51
Speed Control (Cruise Control) ....50
SRT Home ...............176
Timers ...............176
Starting ColdWeather ...........181
Remote ...............13
Starting Procedures (Diesel Engines) ..............180
Steering TiltColumn ..........40,41
Wheel, Heated ...........39
Wheel, Tilt ...........40,41
Steering Wheel Mounted Sound System Controls ..........146
Storage Bin ..............254
Sunroof Closing ...............71
Opening ...............71
Venting ...............71
SunRoof ................71
Supplemental Restraint System - AirBag................19
Telescoping Steering Column . .40, 41
Temperature Control, Automatic (ATC).................66
Tether Anchor, Child Restraint ....26
Text Messaging . .124, 130, 140, 141
Tilt Steering Column .......40,41
Timers.................176 SRT ................176
Tires ............... 179, 255
Air Pressure ...........252
Changing .............205
CompactSpare ..........255
FlatChanging ..........205 General Information
....179, 255
Pressure Warning Light .....191
Replacement ...........205
SpareTire ...... 199, 255, 256
WheelMounting .........205
Tow Hooks, Emergency ........209
Towing.............. 161, 212
Disabled Vehicle .........212
Recreational ...........167
Towing Vehicle Behind A Motorhome .............167
Trailer Towing Trailer And Tongue Weight . . .161
Trailer Weight .............161
Transfer Case Fluid ......... 228, 229, 231
Transmission Fluid ...... 228, 229, 231, 232
Maintenance ...........232
Warning Light ..........190
TurnSignals..............195
Uconnect Access ...........78,80,84
Account ..........80,84,87
Maintaining Your Account .....84
Registration .........80,128
RemoteFeatures ..........87
Using Access ............82
Via Mobile Apps ..........81
Uconnect5.0..............90
Uconnect8.4A......... 100, 127
Helpful Tips For Bluetooth ....142
Mute ................138
P h

onebook.............138
Transfer Ongoing Call Between
HandsetAndVehicle ......138
Voice Recognition Tips ......139
Uconnect 8.4A/8.4AN Voice Recognition
SiriusXM Travel Link .......132
Voice Texting ...........139
Uconnect8.4AN........ 100, 127
Uconnect Access .........78,127
APP .................81
In Vehicle Features .........84
Purchase Apps ........82,129
Yelp ................131
INDEX
268
