CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
Automatic headlight aiming control (if
so equipped)
Your vehicle may be equipped with an automatic
headlight levelling system. The headlight axis is
controlled automatically.
INFINITI recommends that you consult the local
regulations on the use of lights.
For additional information, refer to “Xenon head-
light” in this section.
Manual headlight aiming control (if so
equipped)
Depending on the number of occupants in the
vehicle and the load it is carrying, the headlight
axis may be higher than desired. If the vehicle is
traveling on a hilly road, the headlights may di-
rectly hit the rearview mirror of the vehicle ahead
or the windshield of the oncoming vehicle. The
light axis can be lowered with the operation of the
switch.
The larger the number designated on the switch,
the lower the axis.
When traveling without a heavy load or on a flat
road, select position 0.
WARNING
Xenon headlights are extremely bright
compared to conventional headlights. If
the xenon headlights hit the rearview mir-
ror of the vehicle ahead or the windshield
of oncoming vehicle, the driver of these
vehicles may have difficulty driving be-
cause of the brightness. Use the headlight
aiming control switch to lower the light
axis. For additional information, refer to
“Xenon headlights” in this section.
DAYTIME RUNNING LIGHT SYSTEM
The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights oper-
ate with the headlight switch in the OFF position
or in the
position. Turn the headlight switch
to the
position for full illumination when
driving at night.
If the parking brake is applied before the engine is
started, the daytime running lights do not illumi-
nate. The daytime running lights illuminate when
the parking brake is released. The daytime run-
ning lights will remain on until the ignition switch
is placed in the OFF position.
LIC2230
Instruments and controls2-39
3 Pre-driving checks and adjustments
Keys .............................................3-2
INFINITI Intelligent Key..........................3-2
INFINITI Vehicle Immobilizer System keys..........3-4
Doors............................................3-4
Locking with key................................3-5
Locking with inside lock knob....................3-5
Locking with power door lock switch . . ...........3-6
Automatic door locks...........................3-6
Child safety rear door lock.......................3-6
INFINITI Intelligent Key System......................3-7
Operating range................................3-8
Door locks/unlocks precaution...................3-9
INFINITI Intelligent Key Operation...............3-10
How to use the remote keyless entry
function......................................3-13
Warning signals...............................3-16
Troubleshooting guide.........................3-17
Remote Engine Start (if so equipped)...............3-19
Remote engine start operating range . . ..........3-19
Remote starting the vehicle.....................3-19
Extending engine run time......................3-20
Canceling a remote start.......................3-20Conditions the remote start will not work.........3-20
Hood...........................................3-21
Liftgate..........................................3-22
Operating the power liftgate....................3-22
Power liftgate main switch......................3-25
Liftgate release lever...........................3-26
Liftgate position setting........................3-26
Fuel-filler door...................................3-27
Opening the fuel-filler door.....................3-27
Fuel-filler cap.................................3-27
Steering wheel...................................3-29
Tilt and telescopic operation....................3-30
Sun visors.......................................3-31
Vanity mirrors.................................3-31
Mirrors..........................................3-32
Automatic anti-glare rearview mirror.............3-32
Outside mirrors...............................
3-32
Automatic drive positioner (if so equipped)..........3-34
Memory storage function.......................3-34
Entry/exit function.............................3-35
Setting memory function........................3-36
System operation..............................3-36
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR
The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The automatic
anti-glare feature operates only when the ignition
switch is in the ON position.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature, press
the O button. The indicator light will turn off.To turn on the automatic anti-glare feature, press
the | button again. The indicator light will turn
on.
For information on HomeLink® Universal Trans-
ceiver operation, refer to “HomeLink® Universal
Transceiver” in the “Instruments and controls”
section of this manual.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the left or right
mirror. Adjust each mirror to the desired position
using the large switch
2.
LPD0469LPD2269
MIRRORS
3-32Pre-driving checks and adjustments
WARNING
●Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
●Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Power folding outside mirrors
CAUTION
●Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.
●Do not drive with the mirrors stored.
You will be unable to see behind the
vehicle.
Push the switch
2to open the mirrors or the
switch
1to close the mirrors.If one of the mirrors are manually operated or
bumped, the mirror body can become loose at
the pivot point. To correct electronic mirror op-
eration, cycle the mirrors by pushing the switch
1until completely closed, then push the switch
2until the mirrors are in the open position
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both out-
side mirror surfaces downward to provide better
rear visibility close to the vehicle when the mirror
control switch is in either the L or R position.
The mirrors automatically return to their original
position when you shift out of R (Reverse) .
The outside mirror surfaces will return to their
original position when one of the following con-
ditions has occurred:
●The shift lever is moved to any position other
than R (Reverse) .
●The outside mirror control switch is set to the
neutral or center position.
●The ignition switch is placed in the OFF
position.
LPD2303
Pre-driving checks and adjustments3-33
1. CAMERA button (if so equipped)WARNING
●Failure to follow the warnings and in-
structions for proper use of the Rear-
View Monitor system could result in se-
rious injury or death.●RearView Monitor is a convenience fea-
ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.
LHA3874
REARVIEW MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-23
ADJUSTING THE SCREEN
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
Monitor, press the SETTING button with the
RearView Monitor on and select the “Display”
key. Select one of the items and change the value
by touching the “+” or “-” key or by turning the
INFINITI controller.NOTE:
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving. Make
sure the parking brake is firmly applied.
HOW TO TURN ON AND OFF
PREDICTED COURSE LINES
To toggle ON and OFF the predicted course lines
while in the P (Park) position:
1. Press the SETTING button.
2. Select the Camera key.
3. Select the Predicted Course Lines key to
turn the feature ON or OFF.
To toggle ON and OFF the predicted course lines
while in the R (Reverse) position:
1. Press the SETTING button.
2. Select the Settings key.
3. Select the Predicted Course Lines key to
turn the feature ON or OFF.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
RearView Monitor. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
●The system cannot completely elimi-
nate blind spots and may not show ev-
ery object.
●Underneath the bumper and the corner
areas of the bumper cannot be viewed
on the RearView Monitor because of its
monitoring range limitation. The system
will not show small objects below the
bumper, and may not show objects
close to the bumper or on the ground.
●Objects viewed in the RearView Moni-
tor differ from actual distance because
a wide-angle lens is used.
●Objects in the RearView Monitor will
appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.
LHA3834
4-28Monitor, climate, audio, phone and voice recognition systems
WARNING
●Failure to follow the warnings and in-
structions for the proper use of the
Around View® Monitor system could
result in serious injury or death.
●The Around View® Monitor is a conve-
nience feature and is not a substitute
for proper vehicle operation because it
has areas where objects cannot be
viewed. The four corners of the vehicle
in particular, are areas where objects do
not always appear in the bird’s-eye,
front, or rear views. Always check your
surroundings to be sure that it is safe to
move before operating the vehicle. Al-
ways operate the vehicle slowly.
●The driver is always responsible for
safety during parking and other
maneuvers.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of the
camera.

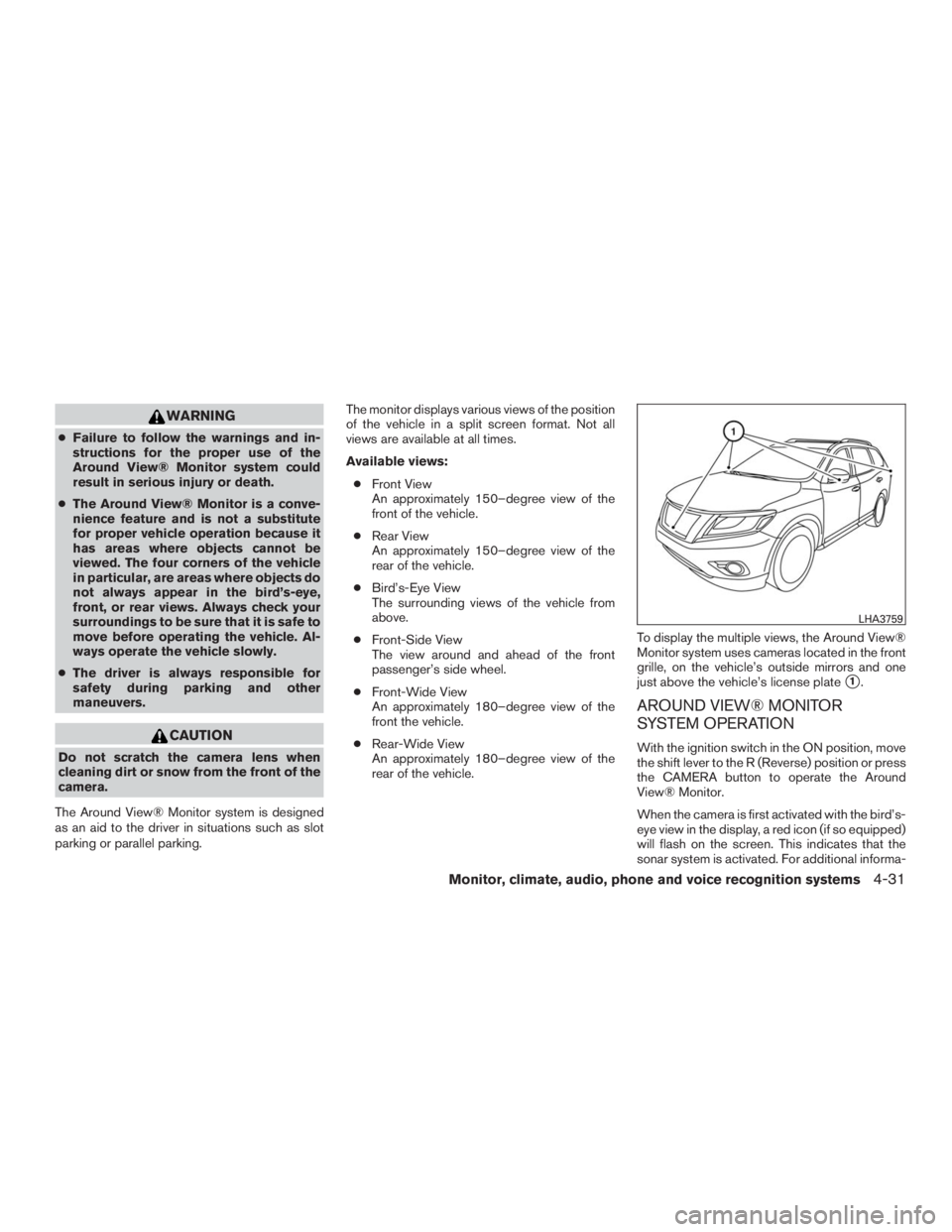

The Around View® Monitor system is designed
as an aid to the driver in situations such as slot
parking or parallel parking.The monitor displays various views of the position
of the vehicle in a split screen format. Not all
views are available at all times.
Available views:
●Front View
An approximately 150–degree view of the
front of the vehicle.
●Rear View
An approximately 150–degree view of the
rear of the vehicle.
●Bird’s-Eye View
The surrounding views of the vehicle from
above.
●Front-Side View
The view around and ahead of the front
passenger’s side wheel.
●Front-Wide View
An approximately 180–degree view of the
front the vehicle.
●Rear-Wide View
An approximately 180–degree view of the
rear of the vehicle.To display the multiple views, the Around View®
Monitor system uses cameras located in the front
grille, on the vehicle’s outside mirrors and one
just above the vehicle’s license plate
1.
AROUND VIEW® MONITOR
SYSTEM OPERATION
With the ignition switch in the ON position, move
the shift lever to the R (Reverse) position or press
the CAMERA button to operate the Around
View® Monitor.
When the camera is first activated with the bird’s-
eye view in the display, a red icon (if so equipped)
will flash on the screen. This indicates that the
sonar system is activated. For additional informa-
LHA3759
Monitor, climate, audio, phone and voice recognition systems4-31
tion on the rear sonar system, refer to “Front and
Rear Sonar System” in the “Starting and driving”
section of this manual.
The screen displayed on the Around View®
Monitor will automatically return to the previous
screen 3 minutes after the CAMERA button has
been pressed with the shift lever in a position
other than the R (Reverse) position.
Available views
WARNING
●The distance guide lines and the vehicle
width lines should be used as a refer-
ence only when the vehicle is on a
paved, level surface. The apparent dis-
tance viewed on the monitor may be
different than the actual distance be-
tween the vehicle and displayed
objects.
●Use the displayed lines and the bird’s-
eye view as a reference. The lines and
the bird’s-eye view are greatly affected
by the number of occupants, cargo, fuel
level, vehicle position, road condition
and road grade.●If the tires are replaced with different
sized tires, the predicted course lines
and the bird’s-eye view may be dis-
played incorrectly.
●When driving the vehicle up a hill, ob-
jects viewed in the monitor are further
than they appear. When driving the ve-
hicle down a hill, objects viewed in the
monitor are closer than they appear.
●Objects in the rear view will appear vi-
sually opposite compared to when
viewed in the monitor and outside
mirrors.
●Use the mirrors or actually look to prop-
erly judge distances to other objects.
●On a snow-covered or slippery road,
there may be a difference between the
predicted course lines and the actual
course line.
●The vehicle width and predicted course
lines are wider than the actual width
and course.
●The displayed lines will appear slightly
off to the right, because the rearview
camera is not installed in the rear center
of the vehicle.Front and rear view
Guiding lines that indicate the approximate ve-
hicle width and distance to objects with refer-
ence to the vehicle body line
Aare displayed on
the monitor.
Distance guide lines
Indicate distances from the vehicle body:
●Red line
1: approximately 1.5 ft (0.5 m)
●Yellow line
2: approximately 3 ft (1 m)
●Green line
3: approximately 7 ft (2 m)
●Green line
4: approximately 10 ft (3 m)
Front view
SAA1840
4-32Monitor, climate, audio, phone and voice recognition systems
