2016 INFINITI QX60 mirror controls

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch
(P. 2-40)
3. Instrument brightness control (P. 2-36)
4. Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49)
Horn (P. 2-41)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-32)
Rear wiper and washer switch
(P. 2-32)
9. Rear window and outside mirror
defroster switch (P. 2-36)
10. Center display (P. 4-4)
Navigation system* (if so equipped)
(P. 4-11)
11. Automatic heater and air conditioning
controls (P. 4-48)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-52)
LII2408
INSTRUMENT PANEL
0-6Illustrated table of contents

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges................................2-4
Speedometer and odometer.....................2-4
Tachometer....................................2-6
Engine coolant temperature gauge...............2-6
Fuel gauge....................................2-7
Warning lights, indicator lights and audible
reminders.........................................2-8
Checking lights................................2-8
Warning lights.................................2-9
Indicator lights................................2-13
Audible reminders.............................2-15
Vehicle Information Display........................2-16
How to use the vehicle information display.......2-16
Startup display................................2-17
Settings......................................2-17
Vehicle information display warnings and
indicators.....................................2-25
Security systems.................................2-30
Vehicle security system.........................2-30
INFINITI vehicle immobilizer system..............2-31
Wiper and washer switch.........................2-32
Switch operation..............................2-32Rain-sensing auto wiper system
(if so equipped)...............................2-34
Rear switch operation..........................2-35
Rear window and outside mirror defroster switch.....2-36
Headlight and turn signal switch....................2-36
Xenon headlights..............................2-36
Headlight control switch........................2-37
Daytime running light system....................2-39
Instrument brightness control...................2-40
Turn signal switch.............................2-40
Fog light switch...............................2-41
Horn............................................2-41
Heated seat switches (if so equipped)..............2-42
Heated 2nd row seat switches (if so equipped)......2-43
Climate controlled seat switches (if so equipped)....2-44
Heated steering wheel switch (if so equipped).......
2-45
Front and rear sonar system off switch
(if so equipped)..................................2-45
Warning systems switch (if so equipped)............2-46
Vehicle Dynamic Control (VDC) off switch...........2-47
Power inverter switch (if so equipped)..............2-47
Power outlets....................................2-48
12v outlets...................................2-48

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch
(P. 2-40)
3. Instrument brightness control (P. 2-36)
4. Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49)
Horn (P. 2-41)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-32)
Rear wiper and washer switch
(P. 2-32)
9. Rear window and outside mirror
defroster switch (P. 2-36)
10. Center display (P. 4-4)
Navigation system* (if so equipped)
(P. 4-11)
11. Automatic heater and air conditioning
controls (P. 4-48)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-52)
LII2408
INSTRUMENT PANEL
2-2Instruments and controls

To defrost the rear window glass and outside
mirrors:
Start the engine and push the rear window de-
froster switch. The rear window defroster indica-
tor light on the display screen comes on. Push the
switch again to turn the defroster off.
The rear window defroster automatically turns off
after approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.
XENON HEADLIGHTS
WARNING
cHIGH VOLTAGE
●When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced by a certified
service technician. It is recommended
you visit an INFINITI retailer for this
service.
●Xenon headlights provide considerably
more light than conventional head-
lights. If they are not correctly aimed,
they might temporarily blind an oncom-
ing driver or the driver ahead of you and
cause a serious accident. If headlights
are not aimed correctly, immediately
take your vehicle to a certified service
technician and have the headlights ad-
justed correctly.
When the xenon headlight is initially turned on, its
brightness or color varies slightly. However, the
color and brightness will soon stabilize.●The life of xenon headlights will be
shortened by frequent on-off opera-
tion. It is generally desirable not to turn
off the headlights for short intervals
(for example, when the vehicle stops at
a traffic signal) .
●If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, it is recommended you
visit an INFINITI retailer.
LIC2923
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCHHEADLIGHT AND TURN SIGNAL
SWITCH
2-36Instruments and controls

CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
Automatic headlight aiming control (if
so equipped)
Your vehicle may be equipped with an automatic
headlight levelling system. The headlight axis is
controlled automatically.
INFINITI recommends that you consult the local
regulations on the use of lights.
For additional information, refer to “Xenon head-
light” in this section.
Manual headlight aiming control (if so
equipped)
Depending on the number of occupants in the
vehicle and the load it is carrying, the headlight
axis may be higher than desired. If the vehicle is
traveling on a hilly road, the headlights may di-
rectly hit the rearview mirror of the vehicle ahead
or the windshield of the oncoming vehicle. The
light axis can be lowered with the operation of the
switch.
The larger the number designated on the switch,
the lower the axis.
When traveling without a heavy load or on a flat
road, select position 0.
WARNING
Xenon headlights are extremely bright
compared to conventional headlights. If
the xenon headlights hit the rearview mir-
ror of the vehicle ahead or the windshield
of oncoming vehicle, the driver of these
vehicles may have difficulty driving be-
cause of the brightness. Use the headlight
aiming control switch to lower the light
axis. For additional information, refer to
“Xenon headlights” in this section.
DAYTIME RUNNING LIGHT SYSTEM
The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights oper-
ate with the headlight switch in the OFF position
or in the
position. Turn the headlight switch
to the
position for full illumination when
driving at night.
If the parking brake is applied before the engine is
started, the daytime running lights do not illumi-
nate. The daytime running lights illuminate when
the parking brake is released. The daytime run-
ning lights will remain on until the ignition switch
is placed in the OFF position.
LIC2230
Instruments and controls2-39

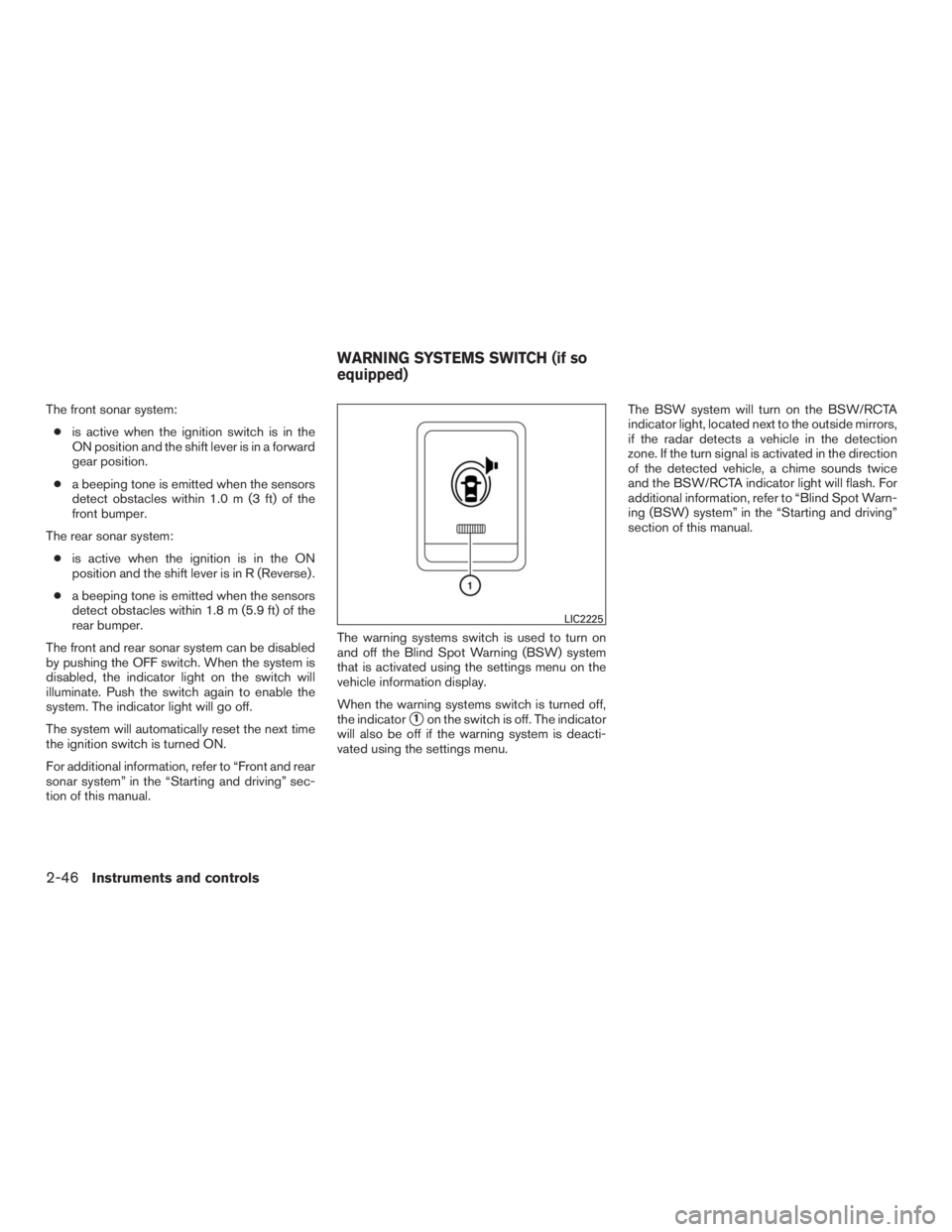

The front sonar system:
●is active when the ignition switch is in the
ON position and the shift lever is in a forward
gear position.
●a beeping tone is emitted when the sensors
detect obstacles within 1.0 m (3 ft) of the
front bumper.
The rear sonar system:
●is active when the ignition is in the ON
position and the shift lever is in R (Reverse) .
●a beeping tone is emitted when the sensors
detect obstacles within 1.8 m (5.9 ft) of the
rear bumper.
The front and rear sonar system can be disabled
by pushing the OFF switch. When the system is
disabled, the indicator light on the switch will
illuminate. Push the switch again to enable the
system. The indicator light will go off.
The system will automatically reset the next time
the ignition switch is turned ON.
For additional information, refer to “Front and rear
sonar system” in the “Starting and driving” sec-
tion of this manual.The warning systems switch is used to turn on
and off the Blind Spot Warning (BSW) system
that is activated using the settings menu on the
vehicle information display.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the warning system is deacti-
vated using the settings menu.The BSW system will turn on the BSW/RCTA
indicator light, located next to the outside mirrors,
if the radar detects a vehicle in the detection
zone. If the turn signal is activated in the direction
of the detected vehicle, a chime sounds twice
and the BSW/RCTA indicator light will flash. For
additional information, refer to “Blind Spot Warn-
ing (BSW) system” in the “Starting and driving”
section of this manual.
LIC2225
WARNING SYSTEMS SWITCH (if so
equipped)
2-46Instruments and controls

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR
The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The automatic
anti-glare feature operates only when the ignition
switch is in the ON position.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature, press
the O button. The indicator light will turn off.To turn on the automatic anti-glare feature, press
the | button again. The indicator light will turn
on.
For information on HomeLink® Universal Trans-
ceiver operation, refer to “HomeLink® Universal
Transceiver” in the “Instruments and controls”
section of this manual.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the left or right
mirror. Adjust each mirror to the desired position
using the large switch
2.
LPD0469LPD2269
MIRRORS
3-32Pre-driving checks and adjustments

NOTE:
If the outside mirror control switch is in the
“center” position, the mirror surface will
NOT turn downward when the shift lever is
moved to R (Reverse) .
For additional information, refer to “Automatic
drive positioner” in this section.
Heated mirrors
The outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, refer to “Rear window and
outside mirror defroster switch” in the “Instru-
ments and controls” section of this manual.The automatic drive positioner system has two
features:
●Memory storage function
●Entry/exit function
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering col-
umn, and outside mirrors can be stored in the
automatic drive positioner memory. Follow these
procedures to use the memory system.
1. Place the ignition in the ON or ACC position
(the vehicle should be stopped while setting
the memory) .
2. Adjust the driver’s seat, steering column,
and outside mirrors to the desired positions
by manually operating each adjusting
switch. For additional information, refer to
“Seats” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
LPD2414
AUTOMATIC DRIVE POSITIONER (if
so equipped)
3-34Pre-driving checks and adjustments
