o Driving on a bumpy road surface,such as an uneven dirt road.
o If dirt, ice, snow or other material is covering the radar sensor area.
o Interference by other radar sources.
o The camera area of windshield is fogged up, or covered with dirt, water
drops, ice, snow, etc.
o Strong light (for example, sunlight or high beams from oncoming vehicles)
enters the front camera. Strong light
causes the area around the pedes-
trian to be cast in a shadow, making
it difficult to see.
o A sudden change in brightness oc- curs. (For example, when the vehicle
enters or exits a tunnel or a shaded
area or lightning flashes.)
o The poor contrast of a person to the background, such as having clothing
color or pattern which is similar to
the background.
o The pedestrian’s profile is partially obscured or unidentifiable due to the
pedestrian transporting luggage,
wearing bulky or very loose-fitting
clothing or accessories. ●
The system performance may degrade
in the following conditions:
o The vehicle is driven on a slippery road.
o The vehicle is driven on a slope.
o Excessively heavy baggage is loaded in the rear seat or the trunk room of
your vehicle.
● The system is designed to automatically
check the sensor (radar and camera)’s
functionality, within certain limitations.
The system may not detect blockage of
sensor areas covered by ice, snow or
stickers, for example. In these cases,
the system may not be able to warn the
driver properly. Be sure that you check,
clean and clear sensor areas regularly.
● In some road and traffic conditions, the
FEB with pedestrian detection system
may unexpectedly apply partial braking.
When acceleration is necessary, de-
press the accelerator pedal to override
the system.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.

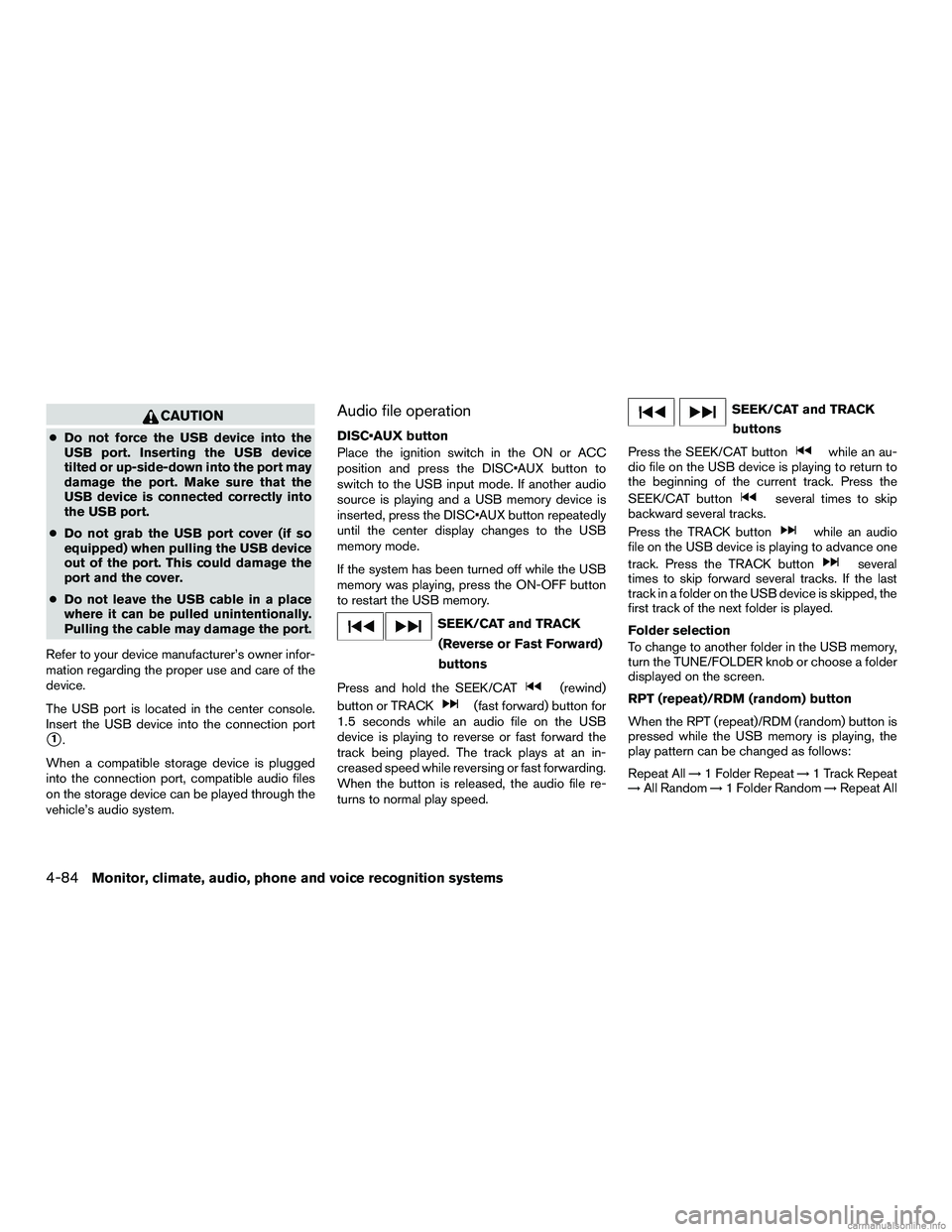

CAUTION
●Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
● Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
The USB port is located in the center console.
Insert the USB device into the connection port
1.
When a compatible storage device is plugged
into the connection port, compatible audio files
on the storage device can be played through the
vehicle’s audio system.
Audio file operation
DISC•AUX button
Place the ignition switch in the ON or ACC
position and press the DISC•AUX button to
switch to the USB input mode. If another audio
source is playing and a USB memory device is
inserted, press the DISC•AUX button repeatedly
until the center display changes to the USB
memory mode.
If the system has been turned off while the USB
memory was playing, press the ON-OFF button
to restart the USB memory.
SEEK/CAT and TRACK (Reverse or Fast Forward)
buttons
Press and hold the SEEK/CAT
(rewind)
button or TRACK
(fast forward) button for
1.5 seconds while an audio file on the USB
device is playing to reverse or fast forward the
track being played. The track plays at an in-
creased speed while reversing or fast forwarding.
When the button is released, the audio file re-
turns to normal play speed.
SEEK/CAT and TRACK
buttons
Press the SEEK/CAT button
while an au-
dio file on the USB device is playing to return to
the beginning of the current track. Press the
SEEK/CAT button
several times to skip
backward several tracks.
Press the TRACK button
while an audio
file on the USB device is playing to advance one
track. Press the TRACK button
several
times to skip forward several tracks. If the last
track in a folder on the USB device is skipped, the
first track of the next folder is played.
Folder selection
To change to another folder in the USB memory,
turn the TUNE/FOLDER knob or choose a folder
displayed on the screen.
RPT (repeat)/RDM (random) button
When the RPT (repeat)/RDM (random) button is
pressed while the USB memory is playing, the
play pattern can be changed as follows:
Repeat All →1 Folder Repeat →1 Track Repeat
→ All Random →1 Folder Random →Repeat All
4-84Monitor, climate, audio, phone and voice recognition systems
