2016 INFINITI QX60 HYBRID ECO mode

WARNING
●Do not use the HomeLink® Universal
Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982) . A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
● During the programming procedure
your garage door or security gate will
open and close (if the transmitter is
within range) . Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.
● Your vehicle’s engine should be turned
off while programming the HomeLink®
Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.
PROGRAMMING HOMELINK®
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink®
for quicker programming and accurate
transmission of the radio frequency.
1. Position the end of your hand-held transmit-ter 1–3 in (2–8 cm) away from the
HomeLink® surface, keeping the
HomeLink® indicator light
1in view.
LIC2365
Instruments and controls2-69

CLEARING THE PROGRAMMED
INFORMATION
The following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed. For additional informa-
tion, refer to “Reprogramming a single
HomeLink® button” in this section.
To clear all programming:1. Press and hold the two outer HomeLink® buttons until the indicator light begins to
flash in approximately 10 seconds. Do not
hold for longer than 20 seconds.
2. Release both buttons.
HomeLink® is now in the programming mode
and can be programmed at any time beginning
with “Programming HomeLink®” - Step 1.
REPROGRAMMING A SINGLE
HOMELINK® BUTTON
To reprogram a HomeLink® Universal Trans-
ceiver button, complete the following: 1. Press and hold the desired HomeLink® but- ton. DO NOT release the button. 2. The indicator light will begin to flash after
20 seconds. Without releasing the
HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.
For questions or comments, contact HomeLink®
at: www.homelink.com or 1–800–355–3515
(except Mexico) .
The HomeLink® Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink®
button that was just programmed. This procedure
will not affect any other programmed HomeLink®
buttons.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink®. Consult the
Owner’s Manual of each device or call the manu-
facturer or dealer of those devices for additional
information.
When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause unde-
sired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
2-72Instruments and controls

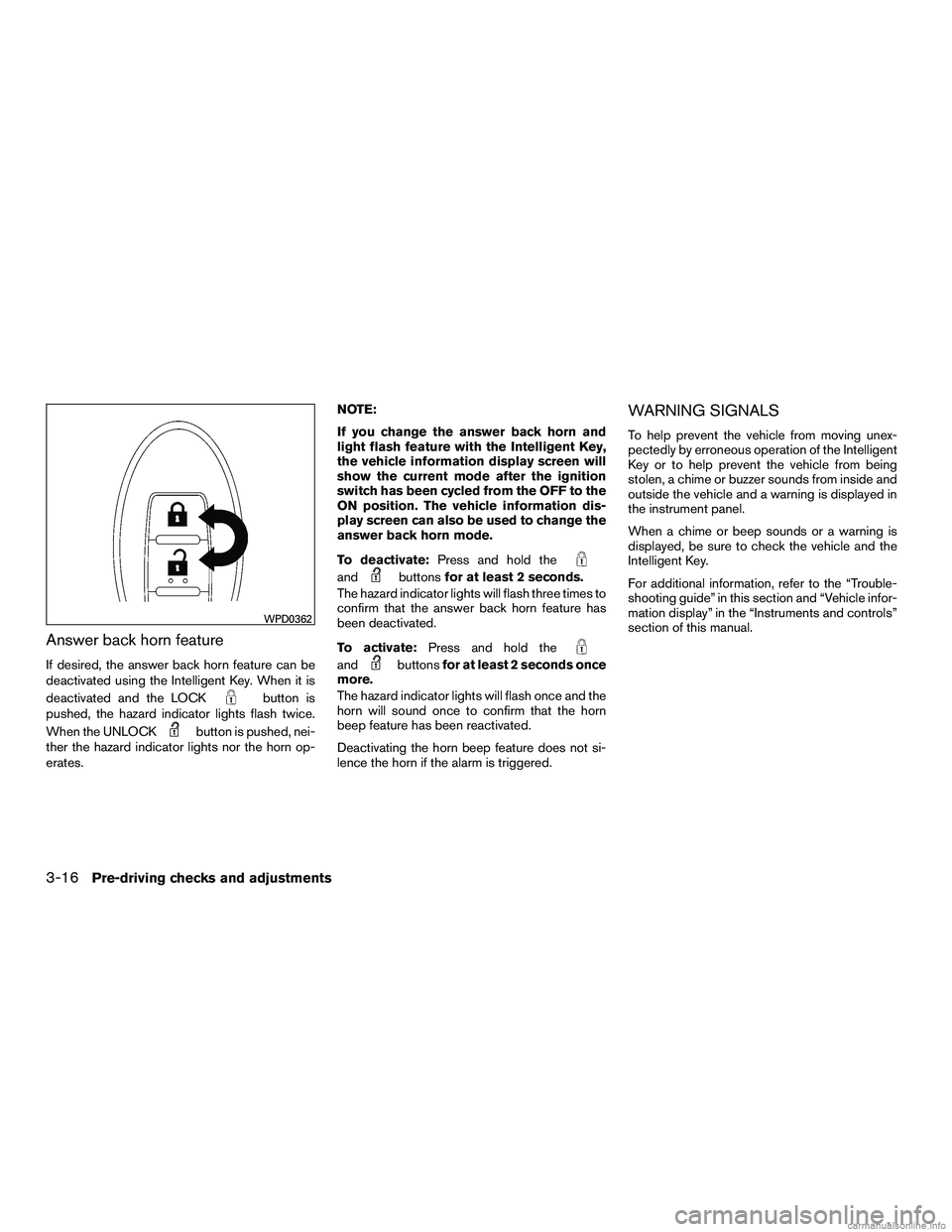

Answer back horn feature
If desired, the answer back horn feature can be
deactivated using the Intelligent Key. When it is
deactivated and the LOCK
button is
pushed, the hazard indicator lights flash twice.
When the UNLOCK
button is pushed, nei-
ther the hazard indicator lights nor the horn op-
erates. NOTE:
If you change the answer back horn and
light flash feature with the Intelligent Key,
the vehicle information display screen will
show the current mode after the ignition
switch has been cycled from the OFF to the
ON position. The vehicle information dis-
play screen can also be used to change the
answer back horn mode.
To deactivate:
Press and hold the
andbuttonsfor at least 2 seconds.
The hazard indicator lights will flash three times to
confirm that the answer back horn feature has
been deactivated.
To activate: Press and hold the
andbuttonsfor at least 2 seconds once
more.
The hazard indicator lights will flash once and the
horn will sound once to confirm that the horn
beep feature has been reactivated.
Deactivating the horn beep feature does not si-
lence the horn if the alarm is triggered.
WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelligent
Key or to help prevent the vehicle from being
stolen, a chime or buzzer sounds from inside and
outside the vehicle and a warning is displayed in
the instrument panel.
When a chime or beep sounds or a warning is
displayed, be sure to check the vehicle and the
Intelligent Key.
For additional information, refer to the “Trouble-
shooting guide” in this section and “Vehicle infor-
mation display” in the “Instruments and controls”
section of this manual.
WPD0362
3-16Pre-driving checks and adjustments

Thebutton will be on the INFINITI Intelli-
gent Key if the vehicle has remote engine start.
This feature allows the engine to start from out-
side the vehicle.
The following features may be affected when the
remote start feature is used:
● Vehicles with an automatic climate control
system will default to either a heating or
cooling mode depending on the outside
temperature.
● Vehicles without automatic climate control
will default to the last used heating or cool-
ing mode. ●
Vehicles equipped with heated seats may
have this feature come on during a remote
start. For additional information, refer to
“Heated front seats” in the “Instruments and
controls” section of this manual.
Laws in some local communities may restrict the
use of remote starters. For example, some laws
require a person using remote start to have the
vehicle in view. Check local regulations for any
requirements.
Other conditions may affect the function of the
Remote Engine Start feature. For additional infor-
mation, refer to “Conditions the remote start will
not work” in this section.
Other conditions can affect the performance of
the Intelligent Key transmitter. For additional in-
formation, refer to “INFINITI Intelligent Key Sys-
tem” in this section.
REMOTE ENGINE START
OPERATING RANGE
The remote engine start function can only be
used when the Intelligent Key is within the speci-
fied operating range from the vehicle.
When the Intelligent Key battery is discharged or
other strong radio waves sources are present
near the operating location, the Intelligent Key operating range becomes narrower, and the In-
telligent Key may not function properly.
The remote engine start operating range is ap-
proximately 197 ft (60 m) from the vehicle.
REMOTE STARTING THE VEHICLE
To use the remote start feature to start the engine
perform the following:
1. Aim the Intelligent Key at the vehicle.
2. Press the
LOCK button to lock all
doors.
3. Within 5 seconds press and hold the
remote start button until the turn signal lights
flash and the tail lamps turn on. If the vehicle
is not within view press and hold the
remote start button for at least 2 seconds.
The following events will occur when the engine
starts:
● The parking lights will turn on and remain on
as long as the engine is running.
● The doors will be locked and the climate
control system may come on.
LPD2272
REMOTE ENGINE START (if so
equipped)
Pre-driving checks and adjustments3-19

Power Open:
The power liftgate automatically moves from the
fully closed position to the fully open position in
approximately 5 to 8 seconds. The power open
feature can be activated by the switch on the
Intelligent Key, the instrument panel switch or the
liftgate open switch. The hazard lights flash and a
chime sounds to indicate the power open se-
quence has been started.● When the vehicle is locked, the liftgate can
be opened by the instrument panel switch,
Intelligent Key and liftgate opener switch
A
(with the Intelligent Key in liftgate range) .
The liftgate will individually unlock and open.
Once the liftgate is closed, the vehicle will
remain in the unlock status.
● The Intelligent Key button must be held for
0.5 second before the liftgate opens.
● The liftgate must be unlocked to open it with
the liftgate opener switch
Aand without the
Intelligent Key in liftgate range.
● The switch on the liftgate
Acan only be
used to open the liftgate if the MAIN switch
(located in the Instrument panel) is in the ON
position.
A warning chime will sound if the shift lever is
moved out of P (Park) during a power open
operation. Power Close:
The power liftgate automatically moves from the
fully open position to the secondary position.
When the liftgate reaches the secondary posi-
tion, the cinching motor engages and pulls the
liftgate to its primary latch position. Power close
takes approximately 7 to 10 seconds. The power
close feature can be activated by the switch on
the Intelligent Key, the instrument panel and the
liftgate close switch
B. The hazard lights flash
and a chime sounds to indicate the power close
sequence has been started. ●
If the liftgate opener switch
Ais activated
while the cinching motor is engaged, the
cinching motor will disengage and release
the latch.
● The Intelligent Key button must be held for
0.5 second before the liftgate closes.
● The switch on the liftgate
Bcan only be
used to close the liftgate if the power liftgate
main switch is in the ON position.
Reverse:
The power liftgate will reverse direction immedi-
ately during power open or power close
Bif the
Intelligent Key, instrument panel or liftgate close
switch is pushed. A chime will sound to an-
nounce the reversal.
Auto Reverse:
If an obstacle is detected during power open or
power close, a warning chime will sound and the
liftgate will reverse direction and return to the full
open or full close position. If a second obstacle is
detected, the liftgate motion will stop and the
liftgate will enter manual mode.
A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch strip
during power close, the liftgate will reverse direc-
tion and return to the full open position.
Liftgate close switch
LPD2275
Pre-driving checks and adjustments3-23

LIFTGATE RELEASE LEVER
WARNING
●Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
● Do not drive with the liftgate open. This
could allow dangerous exhaust gases
to be drawn into the vehicle. For addi-
tional information, refer to “Exhaust
gas (carbon monoxide)” in the “Starting
and driving” section of this manual.
Power liftgate release
If the liftgate cannot be opened with the instru-
ment panel switch, liftgate opener switch or key
fob due to a discharged battery, follow these
steps:
1. Remove the cover
Aon the inside of the
liftgate.
2. Move the lever
Bas illustrated to open the
liftgate.
It is recommended that you visit an INFINITI re-
tailer as soon as possible for repair.
LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific height
(Garage mode) by performing the following:
1. Open the liftgate using the request switch or the Intelligent Key.
2. Pull the liftgate down and move to the de- sired height position (the liftgate will have
some resistance when being manually ad-
justed) .
3. Press and hold the power liftgate close switch
Blocated on the liftgate for more
than 3 seconds or until two beeps are heard.
SPA2778LPD2275
3-26Pre-driving checks and adjustments

Using the system............................. 4-114
Control buttons .............................. 4-116
Getting started ............................... 4-116
List of voice commands ....................... 4-118
Voice Adaptation (VA) mode ...................4-122
Manual control ............................... 4-124
Troubleshooting guide ........................ 4-125
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ................4-126
Regulatory Information ........................ 4-128
Voice commands ............................. 4-128
Connecting procedure ........................ 4-129
Vehicle Phonebook ........................... 4-130
Handset phonebook .......................... 4-132
Making a call ................................. 4-133
Receiving a call .............................. 4-134During a call
................................. 4-135
Ending a call ................................. 4-135
Phone settings ............................... 4-136
Bluetooth® settings .......................... 4-136
Call volume .................................. 4-137
INFINITI Voice Recognition System
(if so equipped) ................................. 4-138
INFINITI Voice Recognition Standard Mode ......4-138
Using the system ............................. 4-141
Before starting . . ............................. 4-141
Giving voice commands ....................... 4-141
INFINITI Voice Recognition Alternate
Command Mode ............................. 4-146
Using the system ............................. 4-151
Speaker Adaptation function ...................4-153
Troubleshooting guide ........................ 4-155

Menu ItemResult
Maintenance Displays maintenance reminders.
Reminder keys (1–4) Select a key to display that maintenance interval. Reset Distance
key Resets the distance for the selected reminder to 0 mi (km) .
Interval key Displays the interval for the selected reminder. Select the “+” or “-” keys to adjust the distance up or down.
Interval Re-
minder key Displays status of the selected interval reminder. Select to toggle on or off. If set to “On”, the maintenance notice screen will be displayed
once the interval is met and the ignition switch is placed in the OFF and then ON position.
HOW TO USE THE DISP BUTTON
Press the DISP button. This screen displays vari-
ous screen settings and functions that are avail-
able for your vehicle. Adjustments can be made
using the INFINITI controller or the touch-screen
display. When the amber indicator next to an item
is illuminated, the feature is enabled.
While the vehicle is in the (P) Park position, the
following settings may be changed:
Menu
Result
Display Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” and a control
panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display back on, press
and hold the
OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.
Brightness Adjusts the brightness of the screen background.
Contrast Adjusts the contrast of the screen background.
Background Color Toggles the display screen between day and night mode.
4-8Monitor, climate, audio, phone and voice recognition systems
