2016 INFINITI QX60 HYBRID battery

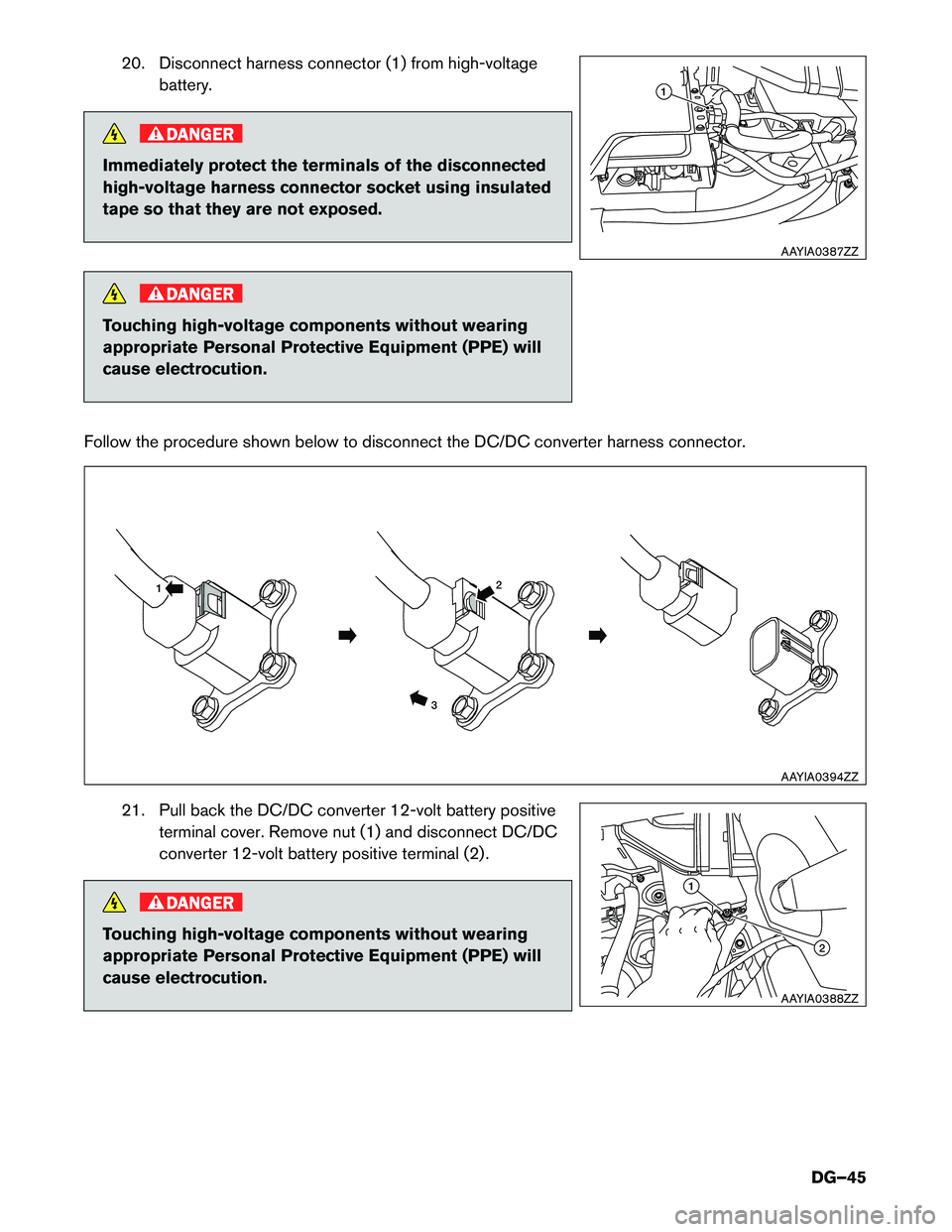

20. Disconnect harness connector (1) from high-voltage
battery . DANGER
Immediately protect the terminals of the disconnected
high-voltage

harness connector socket using insulated
tape so that they are not exposed. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
Follow the procedure shown below to disconnect the DC/DC converter harness connector.
21. Pull back the DC/DC converter 12-volt battery positive terminal cover. Remove nut (1) and disconnect DC/DC
converter 12-volt battery positive terminal (2) . DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. 1
AAYIA0387ZZ 1
32
AAYIA0394ZZ 1
2
AAYIA0388ZZ
DG–45

22. Release clip, then disconnect harness connector (1)
from DC/DC converter. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
23. Remove nuts (1) and battery inlet duct B (2) . DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
24. Release clips (1) and remove DC/DC converter outlet duct (2) . DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
25. Remove the DC/DC converter inlet duct (1) . DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. 1
AAYIA0389ZZ 1 2
AAYIA0390ZZ 1
2
AAYIA0391ZZ 1
AAYIA0392ZZ
DG–46

26. Remove nuts (1) and DC/DC converter.
DANGER
Touching high-voltage components without wearing
appropriate
Personal Protective Equipment (PPE) will
cause electrocution.
27. Disconnect inverter harness connector (1) from high- voltage battery. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
28. Release clip (A) and remove nut (C) , then disconnect main harness connector (B) from high-voltage battery. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
29. Remove gas vent hose (1) from floor panel. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. 1
AAYIA0393ZZ 1
AAYIA0411ZZ B
A C
AAYIA0412ZZ 1
AAYIA0295ZZ
DG–47

30. Remove bolts (A) and high-voltage battery.
DANGER
Touching high-voltage components without wearing
appropriate
Personal Protective Equipment (PPE) will
cause electrocution.
6-3 High-Voltage Battery Recycling
The high-voltage battery is recyclable. For information regarding recycling of the high-voltage battery, it is
recommended you contact the nearest INFINITI retailer or Infiniti Consumer Affairs at: United States:
1-800-662-6200 or in Canada: 1-800-361-4792. A
AAYIA0296ZZ
