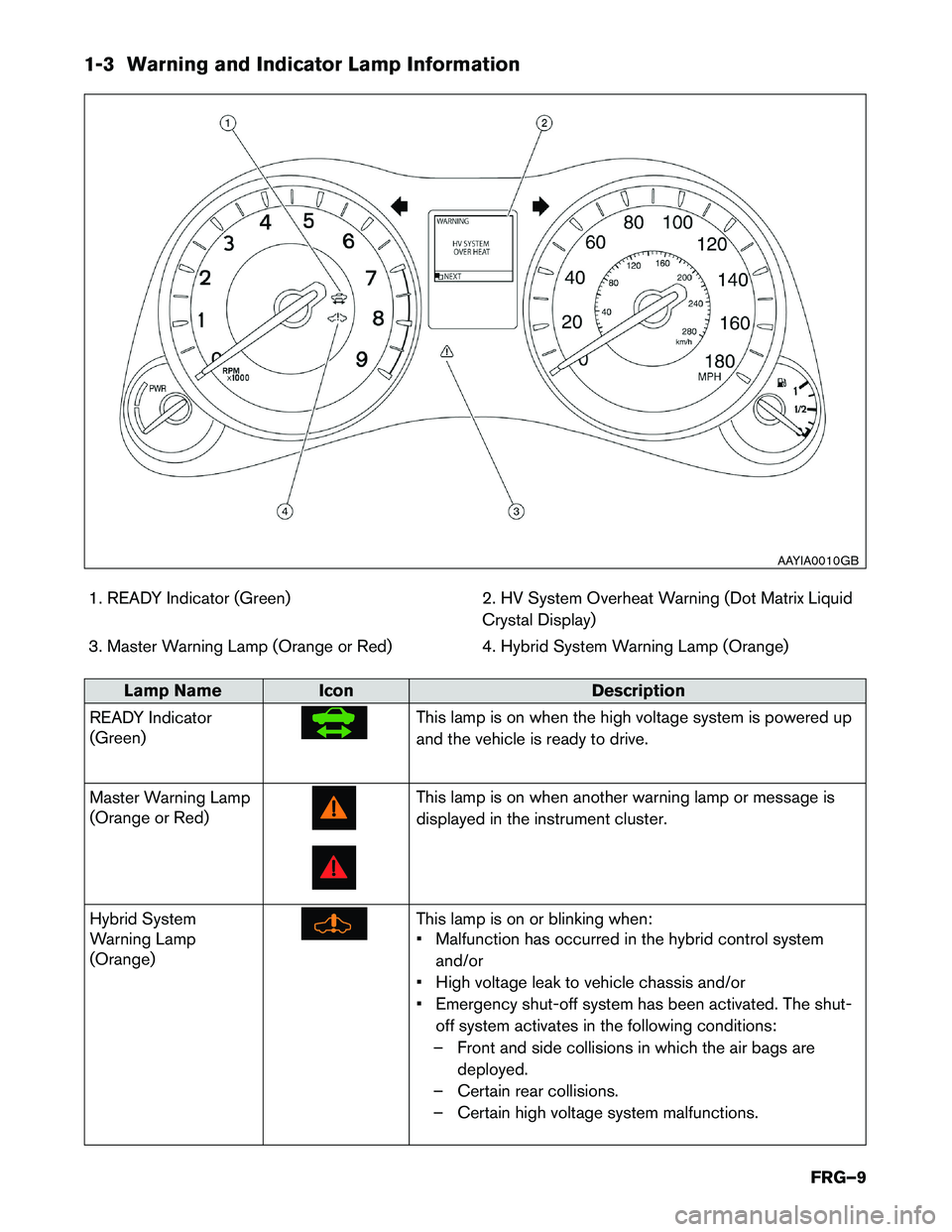

1-3 Warning and Indicator Lamp Information
1. READY Indicator (Green) 2. HV System Overheat Warning (Dot Matrix Liquid
Crystal Display)
3. Master Warning Lamp (Orange or Red) 4. Hybrid System Warning Lamp (Orange)Lamp Name
Icon Description
READ
Y Indicator
(Green) This lamp is on when the high voltage system is powered up
and
the vehicle is ready to drive.
Master Warning Lamp
(Orange or Red) This lamp is on when another warning lamp or message is
displayed
in the instrument cluster.
Hybrid System
Warning Lamp
(Orange) This lamp is on or blinking when:
•
Malfunction has occurred in the hybrid control system
and/or
• High voltage leak to vehicle chassis and/or
• Emergency shut-off system has been activated. The shut- off system activates in the following conditions:
– Front and side collisions in which the air bags are deployed.
– Certain rear collisions.
– Certain high voltage system malfunctions. AAYIA0010GB
FRG–9
