2016 INFINITI Q50 HYBRID trunk release

1-1.2 Interior
Interior
components referenced in this manual are as follows:
A. Assist charge gauge B. Energy flow display *1 C. READY indicator (green)
D. Energy flow display *1 E. Trunk lid release switch F. Hood release handle
G. START/STOP switch and ON
indicator lamp (orange) H. Trunk release power cancel
switch
*1: This screen may not be displayed due to customer settings. A
F GE
HB
C D
AAYIA0178ZZ
DG–7

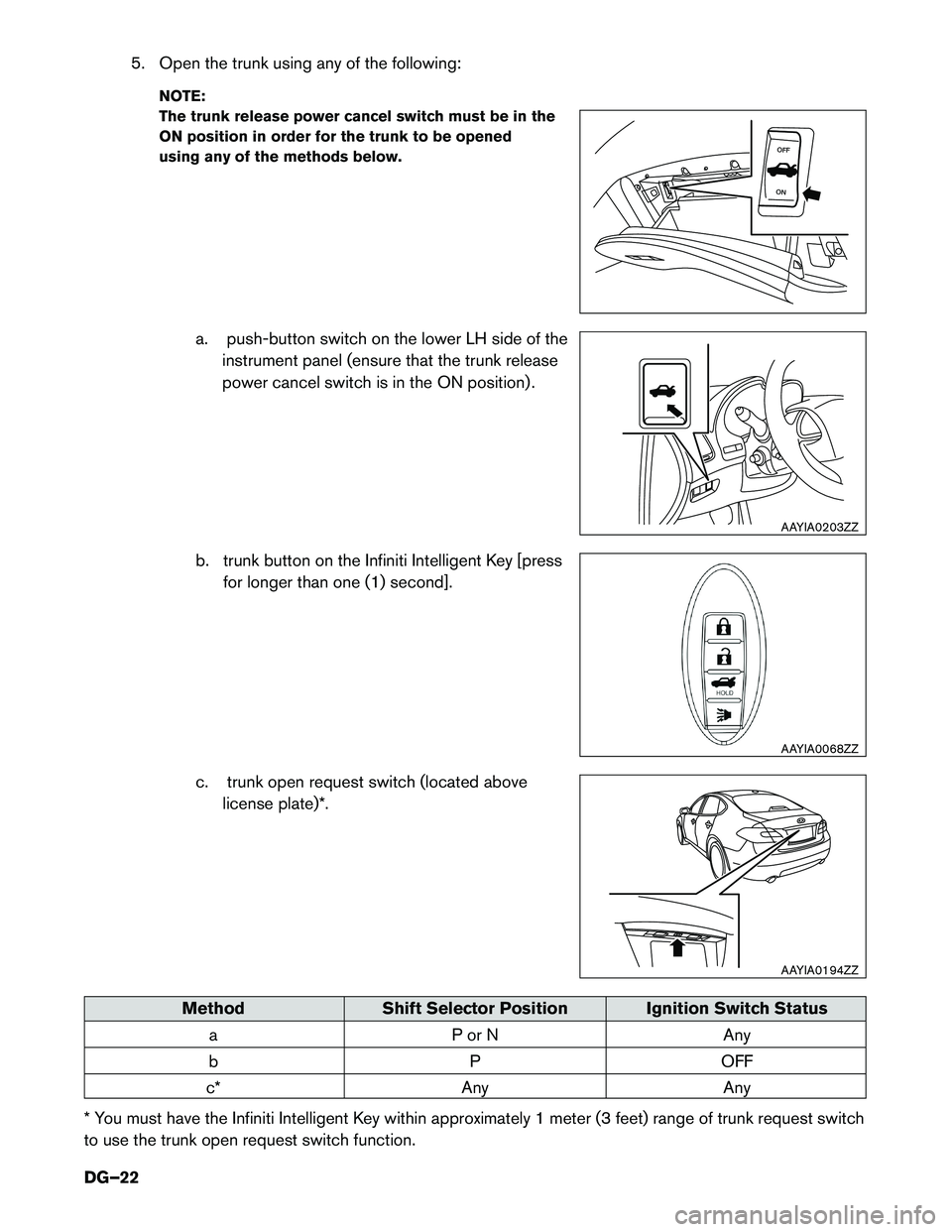

5. Open the trunk using any of the following:
NO TE:
The trunk release power cancel switch must be in the
ON position in order for the trunk to be opened
using any of the methods below.
a. push-button switch on the lower LH side of theinstrument panel (ensure that the trunk release
power cancel switch is in the ON position) .
b. trunk button on the Infiniti Intelligent Key [press for longer than one (1) second].
c. trunk open request switch (located above license plate)*. Method
Shift Selector Position Ignition Switch Status
a
P or N Any
b POFF
c* Any Any
* You must have the Infiniti Intelligent Key within approximately 1 meter (3 feet) range of trunk request switch
to use the trunk open request switch function.
OFF
ON AAYIA0203ZZ
AAYIA0068ZZ
AAYIA0194ZZ
DG–22

NOTE:
If
the electrical release does not work, the trunk will have to be forced open.
6. Open the 12-volt battery service access cover.
7. Disconnect negative (-) battery cable and cover it withinsulated tape.
8. Wait approximately ten (10) minutes for complete discharge of the high-voltage capacitor
after the battery cable has been disconnected.
9. Perform the dismantling operation. Refer to 6. Dismantling Information (DG–40).
Alternate

Procedure 1 (Disconnect Underhood Fuse Panel)
NOTE:
Before disconnecting the underhood fuse panel and the negative (-) battery cable, if
necessary, lower the windows, adjust the steering column, adjust the seats, unlock the
doors, etc. Once the underhood fuse panel and negative (-) battery cable are disconnected,
power controls will not operate. 1. Pull release handle (1) and pull up release lever (2) to open the hood. AAYIA0195ZZ
AAYIA0196ZZ
AAYIA0205ZZ
DG–23

7. Open the trunk using any of the following:
NO TE:
The trunk release power cancel switch must be in the
ON position in order for the trunk to be opened
using any of the methods below.
a. push-button switch on the lower LH side of theinstrument panel (ensure that the trunk release
power cancel switch is in the ON position) .
b. trunk button on the Infiniti Intelligent Key [press for longer than one (1) second].
c. trunk open request switch (located above license plate)*.
* You must have the Infiniti Intelligent Key within
approximately 1 meter (3 feet) range of trunk
request switch to use the trunk open
request switch function.
NOTE:
If the electrical release does not work, the
trunk will have to be forced open.
OFF
ON AAYIA0203ZZ
AAYIA0068ZZ
AAYIA0194ZZ
DG–25

2. Place the shift selector in the Park (P) position.
3.Push the ignition switch once to turn OFF the high-voltage
system. Then verify whether the READY indicator is off.
If the READY indicator does not turn off, continue to
step 4.
4. If possible, keep the Infiniti Intelligent Key at least 5 meters (16 feet) away from the vehicle (except to
open the trunk as noted below) .
5. Open the trunk using any of the following: NOTE:
The trunk release power cancel switch must be in the
ON position in order for the trunk to be opened
using any of the methods below. AAYIA0191ZZ
LOCK
ACC
(OFF)
ON
AAYIA0192ZZ
AAYIA0068ZZ
OFF
ON
DG–27

a. push-button switch on the lower LH side of the
instrument panel.
b. trunk button on the Infiniti Intelligent Key [press for longer than one (1) second].
c. trunk open request switch (located above license plate)*. Method
Shift Selector Position Ignition Switch Status
a
P or N Any
b POFF
c* Any Any
* You must have the Infiniti Intelligent Key within approximately 1 meter (3 feet) range of trunk request switch
to use the trunk open request switch function.
NOTE:
If the electrical release does not work, the trunk will have to be forced open. AAYIA0203ZZ
AAYIA0068ZZ
AAYIA0194ZZ
DG–28
