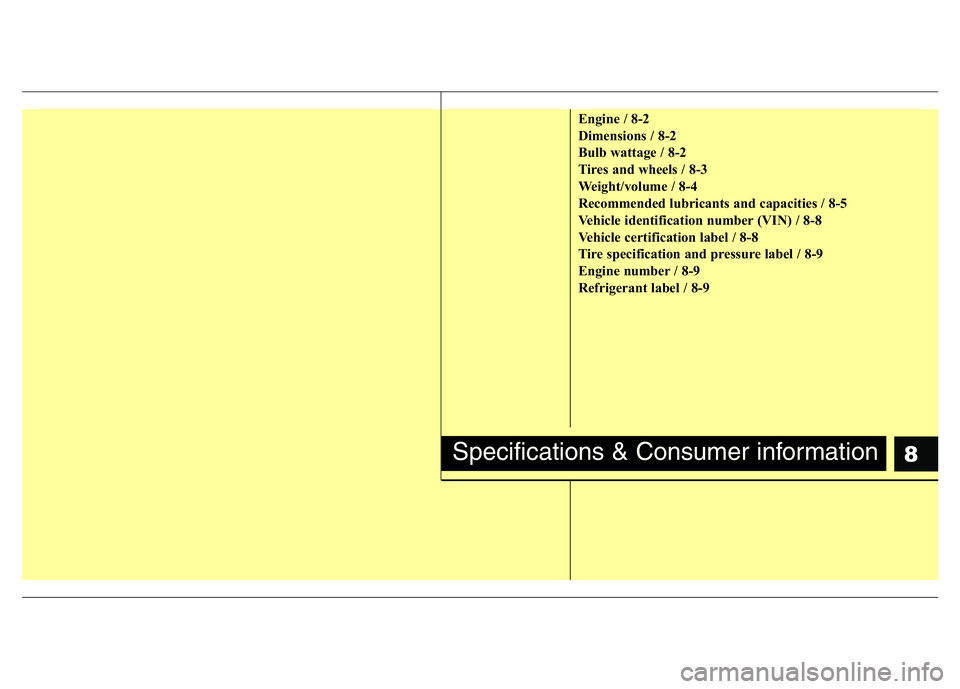

8
Engine / 8-2
Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Weight/volume / 8-4
Recommended lubricants and capacities / 8-5
Vehicle identification number (VIN) / 8-8
Vehicle certification label / 8-8
Tire specification and pressure label / 8-9
Engine number / 8-9
Refrigerant label / 8-9
Specifications & Consumer information
Specifications & Consumer information
2 8

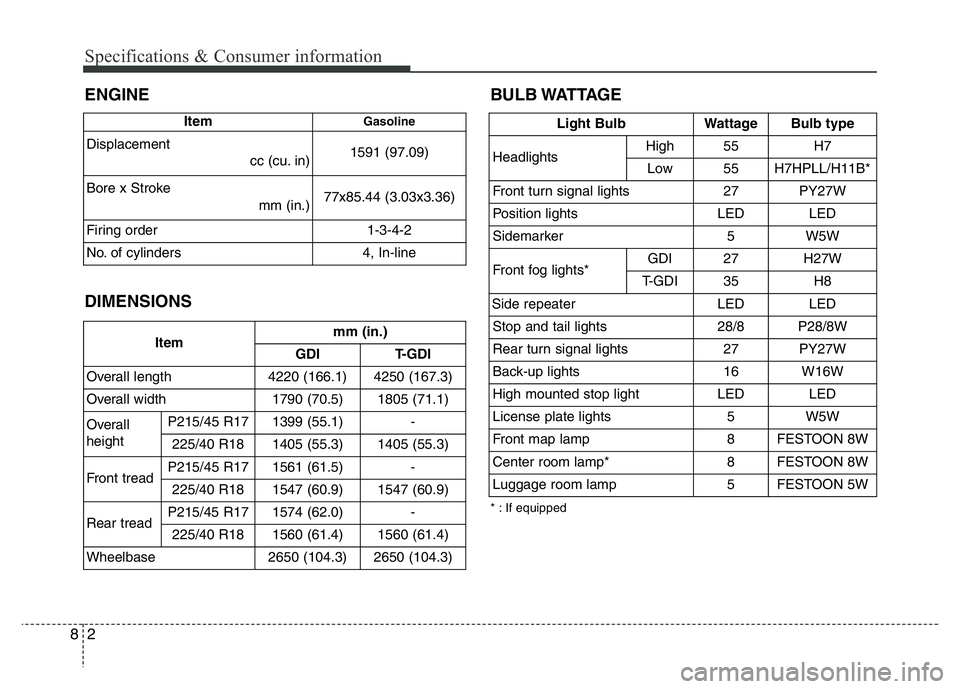

ENGINE
DIMENSIONS
ItemGasoline
Displacement
cc (cu. in) 1591 (97.09)
Bore x Stroke
mm (in.)77x85.44 (3.03x3.36)
Firing order 1-3-4-2
No. of cylinders 4, In-line
BULB WATTAGE
* : If equipped
Light BulbWattageBulb type
HeadlightsHigh55H7
Low55H7HPLL/H11B*
Front turn signal lights27PY27W
Position lightsLEDLED
Sidemarker5W5W
Front fog lights*GDI27H27W
T-GDI35H8
Side repeaterLEDLED
Stop and tail lights28/8P28/8W
Rear turn signal lights 27PY27W
Back-up lights16W16W
High mounted stop lightLEDLED
License plate lights5W5W
Front map lamp8FESTOON 8W
Center room lamp*8FESTOON 8W
Luggage room lamp5FESTOON 5W
Itemmm (in.)
GDI T-GDI
Overall length 4220 (166.1) 4250 (167.3)
Overall width 1790 (70.5) 1805 (71.1)
Overall
heightP215/45 R17 1399 (55.1) -
225/40 R18 1405 (55.3) 1405 (55.3)
Front treadP215/45 R17 1561 (61.5) -
225/40 R18 1547 (60.9) 1547 (60.9)
Rear treadP215/45 R17 1574 (62.0) -
225/40 R18 1560 (61.4) 1560 (61.4)
Wheelbase 2650 (104.3) 2650 (104.3)
