2016 HYUNDAI TUCSON turn signal

7-84
Maintenance
Turn signal lamp
1. Open the hood.
2. Disconnect the negative batterycable.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. 5. Install a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Front fog lamp
1. Remove the front bumper undercover.
2. Reach your hand into the back of the front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots onthe housing.
OTLE075019OTL075068L

7-85
7
Maintenance
Parking lamp/Side marker lamp/
Daytime running lamp (LED type)
Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized HYUNDAI
dealer.
Type C – LED Headlamp (Low beam)
(1) Headlamp (Low) (2) Headlamp (High)
(3) Turn signal lamp
(4) Parking lamp
(5) Side marker lamp
(6) Daytime running lamp (DRL)
(7) Fog lamp
Headlamp (High, Halogen type)
OTLA075032
OLMB073042L
Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glassthat could cause injuries if
broken.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-dling it.
WARNING

7-87
7
Maintenance
Turn signal lamp
1. Open the hood.
2. Disconnect the negative batterycable.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. 5. Install a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Front fog lamp
1. Remove the front bumper undercover.
2. Reach your hand into the back of the front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots onthe housing.
OTL075068LOTLE075019

7-88
Maintenance
Headlamp (Low)/Parking lamp/
Side marker lamp/Daytime running
lamp (LED type)
Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized HYUNDAI
dealer.
Side repeater lamp replace- ment
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.

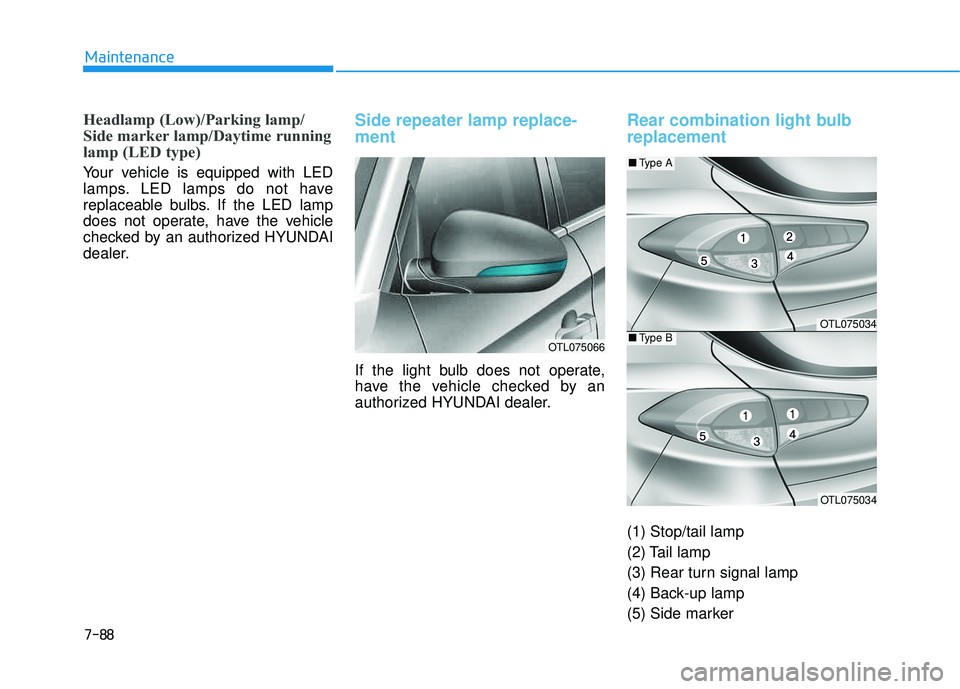

Rear combination light bulb replacement
(1) Stop/tail lamp
(2) Tail lamp
(3) Rear turn signal lamp
(4) Back-up lamp
(5) Side marker
OTL075066
OTL075034
OTL075034
■Type A
■Type B

7-89
7
Maintenance
Outside lamp
Stop/tail Lamp, Turn signal Lamp
and Side marker lamp
1. Turn off the engine.
2. Open the liftgate.3. Loosen the lamp assembly retain-
ing screws with a cross-tip screw-
driver.
4. Remove the rear combination lamp assembly from the body of
the vehicle.
5. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
OTL075035
OTL075036
OTL075037
OTLA075071
Turn Signal lamp
Stop/tail lamp
Side marker

8-4
Specifications, Consumer information and Reporting safety defects

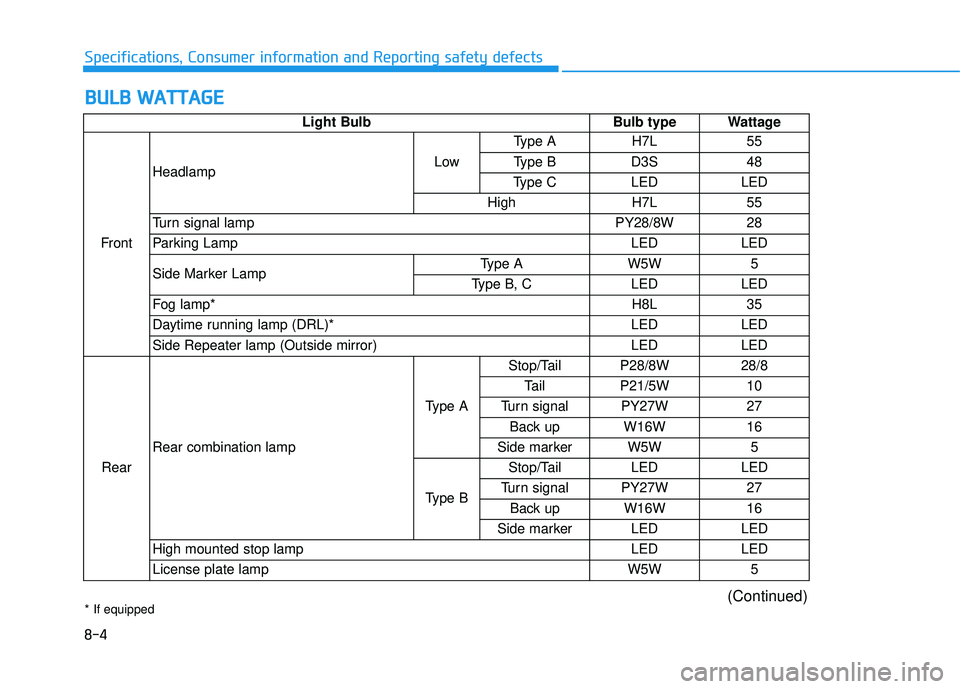

BBUU LLBB WW AATTTTAA GG EE
Light Bulb Bulb type Wattage
Front Headlamp
LowType A H7L 55
Type B D3S 48
Type C LED LED
High H7L 55
Turn signal lamp PY28/8W 28
Parking Lamp LED LED
Side Marker Lamp Type A W5W 5
Type B, C LED LED
Fog lamp* H8L 35
Daytime running lamp (DRL)* LED LED
Side Repeater lamp (Outside mirror) LED LED
Rear Rear combination lamp Type A
Stop/Tail P28/8W 28/8
Tail P21/5W 10
Turn signal PY27W 27
Back up W16W 16
Side marker W5W 5
Type B Stop/Tail LED LED
Turn signal PY27W 27 Back up W16W 16
Side marker LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
* If equipped (Continued)
