7-83
7
Maintenance
Side marker
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.

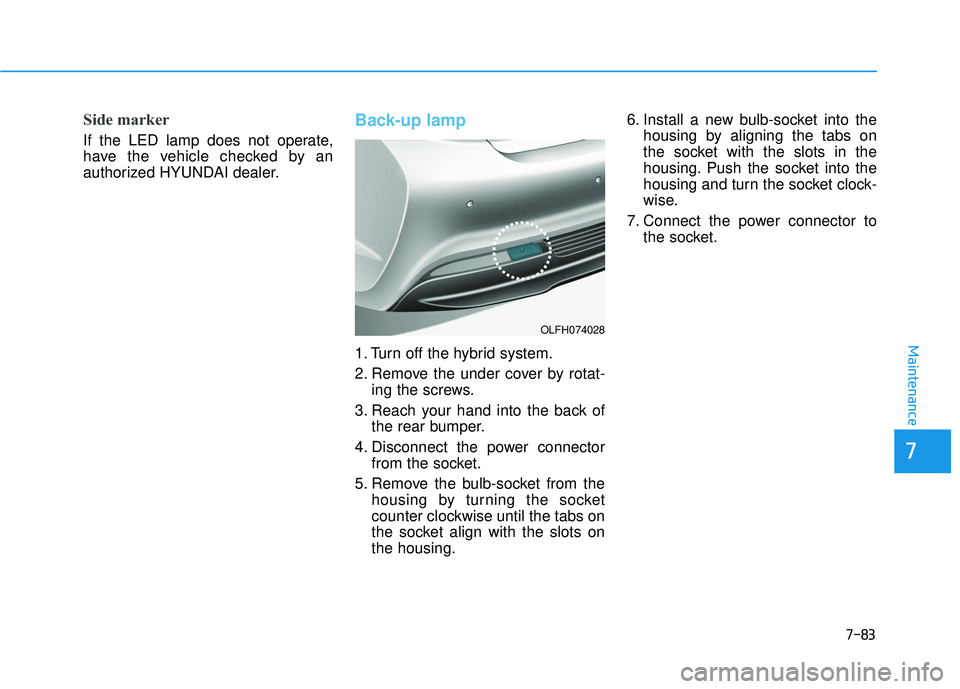

Back-up lamp
1. Turn off the hybrid system.
2. Remove the under cover by rotat-ing the screws.
3. Reach your hand into the back of the rear bumper.
4. Disconnect the power connector from the socket.
5. Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing. 6. Install a new bulb-socket into the
housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
7. Connect the power connector to the socket.
OLFH074028

I-3
Back-up lamp ..................................................................7-83
Battery ........................................................................\
.....7-41
Battery saver function ...................................................3-113
Before driving ...................................................................5-3
Blind spot detection system (BSD) ................................5-70
Bluetooth
®Wireless Technology Hands-Free...................4-4
Brake fluid ......................................................................7-\
33
Brake system ...................................................................5-19 Disc brakes wear indicator ........................................5-20
Electronic parking brake (EPB) .................................5-22
Foot parking brake .....................................................5-20
Power brakes ..............................................................5-19
Anti-lock brake system (ABS) ...................................5-32
Auto hold ....................................................................5-28\
Electronic stability control (ESC) ..............................5-34
Hill-start assist control (HAC) ...................................5-39
Vehicle Stability Management ...................................5-37
Bulb replacement ............................................................7-73
Bulb wattage .....................................................................8-3\
Button start/stop, see engine start/stop button ..................5-4 California perchlorate notice ..........................................7-97
Capacities (Lubricants) .....................................................8-6
Care
Exterior care ...............................................................7-86
Interior care ................................................................7-91
Tire care ......................................................................7-\
44
Center console storage ..................................................3-145
Central door lock switch .................................................3-10
Certification label .............................................................8-8
Chains Tire chains ..................................................................5-83
Checking tire inflation pressure ......................................7-46
Child restraint system (CRS) ..........................................2-36 Children always in the rear ........................................2-36
Installing a Child Restraint System (CRS) ................2-39
Lower anchors and tether for children (LATCH) system .....................................................2-40
Securing with lap/shoulder belt..................................2-44
Securing with Tether anchors .....................................2-43
Selecting a Child Restraint System (CRS).................2-37
Child-protector rear door lock ........................................3-12
Climate control air filter ......................................3-139, 7-37
Clock ........................................................................\
.....3-150
I
Index
BC

I-6
Highway driving .............................................................5-81
Hill-start assist control (HAC)........................................5-39
Hood........................................................................\
........3-46
Horn ........................................................................\
........3-18
How to use this manual ....................................................F-6
Hybrid Battery SOC (State of Charge) Gauge ...............3-60
Hybrid starter and generator belt (HSG belt) .................7-32
Hybrid System Gauge .....................................................3-59
If an accident occurs .......................................................6-26
If the engine overheats ......................................................6-7
If the vehicle stalls at a crossroad or crossing ..................6-2
If the vehicle stalls while driving .....................................6-2
If the vehicle will not start ................................................6-3
If you have a flat tire ......................................................6-15
If you have a flat tire while driving ..................................6-3
Immobilzer system............................................................3-7
Improtant safety precautions.............................................2-2Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator lights (Instrument cluster) ...............................3-63
Information Mode ...........................................................3-91 Inside rearview mirror ....................................................3-19
Instrument cluster ...........................................................3-57
Automtice transaxle shift indicator ............................3-72
Gauges ........................................................................\
3-59
Instrument panel illumination ....................................3-58
LCD Display Control .................................................3-88
Instrument panel fuse......................................................7-61
Instrument panel overview ...............................................1-5
Interior care .....................................................................7-9\
1
Interior features .............................................................3-147 Clock ........................................................................\
3-150
Clothes hanger ..........................................................3-151
Cup holder ................................................................3-147
Floor mat anchor(s) ..................................................3-152
Power outlet..............................................................3-148
Side curtain...............................................................3-153
Sunvisor ....................................................................3-14\
8
Interior lamp AUTO cut................................................3-116
Interior light bulb replacement .......................................7-84
Interior lights .................................................................3-116 Door courtesy lamp ..................................................3-118
Front lamp ................................................................3-116
Glove box lamp ........................................................3-119
Interior lamp AUTO cut ...........................................3-116
Rear lamp...............................................................\
...3-118
Room lamp ...............................................................3-116
Trunk room lamp ......................................................3-118
Vanity mirror lamp ...................................................3-119
Interior overview...............................................................1-4
Index
