2016 Hyundai Sonata Hybrid headlamp

7-77
7
Maintenance
Information
HID lamps have superior perform-
ance vs. halogen bulbs.
HID lamps are estimated by the man-
ufacturer to last twice as long or
longer than halogen bulbs depending
on their frequency of use. They will
probably require replacement at some
point in the life of the vehicle. Cycling
the headlamps on and off more than
typical use will shorten HID lamps
life. HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID light-
ing components are more complex
than conventional halogen bulbs thus
have higher replacement cost.
The headlamp aiming should be
adjusted after an accident or after
the headlamp assembly is rein-
stalled at an authorized HYUNDAI
dealer.
Turn signal lamp
1. Open the hood.
2. Disconnect the negative batterycable.
3.Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. 5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly and turn the socket clockwise.
NOTICE
i
OLFH074031
Turn signal lamp

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
8-3
88

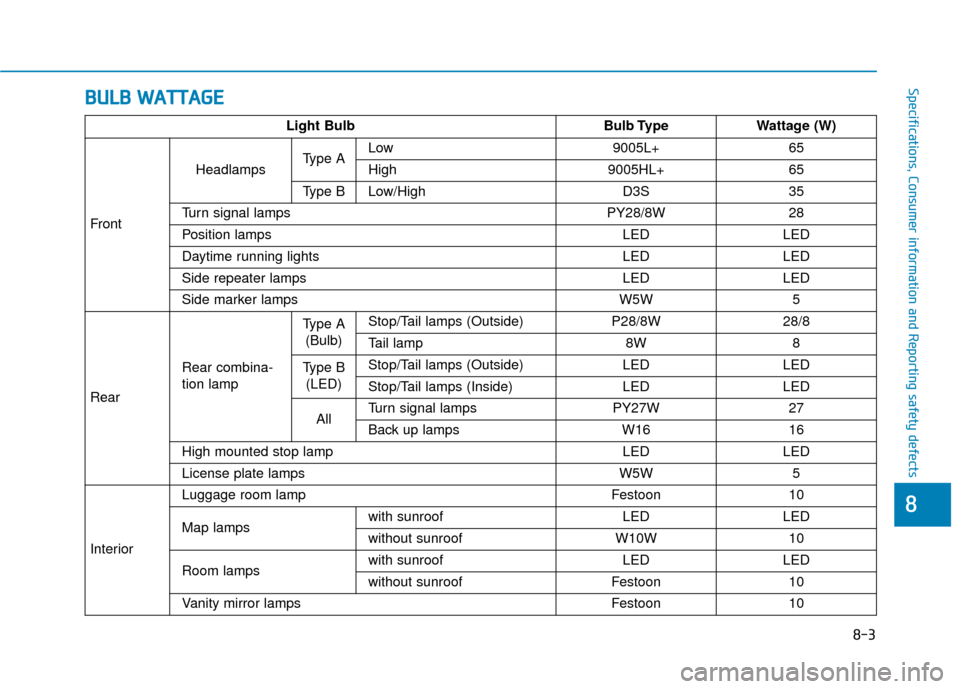

Specifications, Consumer information and Reporting safety defects
Light BulbBulb TypeWattage (W)
Front
Headlamps Type ALow 9005L+65
High9005HL+65
Type BLow/HighD3S35
Turn signal lampsPY28/8W28
Position lampsLEDLED
Daytime running lightsLEDLED
Side repeater lamps LEDLED
Side marker lampsW5W5
Rear
Rear combina-
tion lamp
Type A
(Bulb)Stop/Tail lamps (Outside)P28/8W28/8
Tail lamp8W8
Type B (LED)Stop/Tail lamps (Outside)LEDLED
Stop/Tail lamps (Inside)LEDLED
AllTurn signal lampsPY27W27
Back up lampsW1616
High mounted stop lampLEDLED
License plate lampsW5W5
Interior
Luggage room lampFestoon10
Map lampswith sunroofLEDLED
without sunroofW10W10
Room lampswith sunroofLEDLED
without sunroofFestoon10
Vanity mirror lampsFestoon10

I-5
