2016 Hyundai Sonata Hybrid glove box

3-139
Convenient features of your vehicle
3
System maintenance
Climate control air filter
The climate control air filter installed
behind the glove box filters the dust
or other pollutants that come into the
vehicle from the outside through the
heating and air conditioning system.
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
air position is selected. If this hap-
pens, we recommend that the cli-
mate control air filter be replaced by
an authorized HYUNDAI dealer.
Information
• Replace the filter according to theMaintenance Schedule.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate con-
trol air filter inspections and
changes are required.
• When the air flow rate suddenly decreases, we recommend that the
system be checked by an authorized
HYUNDAI dealer.
Checking the amount of air conditioner refrigerant andcompressor lubricant
When the amount of refrigerant is
low, the performance of the air con-
ditioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, we recommend that the sys-
tem be inspected by an authorized
HYUNDAI dealer.
i
1LDA5047
Outside air
Recirculatedair
Climate control air filter Blower
Evaporatorcore Heater core
Because the refriger-
ant is at very high
pressure, the air con-
ditioning system
should only be serv-
iced by trained and certified
technicians. It is important that
the correct type and amount of
oil and refrigerant is used.
Otherwise, it may cause damage
to the vehicle and personal injury.
WARNING

3-145
Convenient features of your vehicle
3
S
ST
T O
O R
RA
A G
G E
E
C
C O
O M
M P
PA
A R
RT
TM
M E
EN
N T
T
To avoid possible theft, do not
leave valuables in the storage
compartments.
Center Console Storage
To open :
Pull lever (1).
Glove Box
The glove box can be locked and
unlocked with the mechanical key (1).
To open:
Pull the lever (2).
NOTICE
Never store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
peratures for extended periods.
WARNING
ALWAYS keep the storage com-
partment covers closed secure-
ly while driving. Items inside
your vehicle are moving as fast
as the vehicle. If you have to
stop or turn quickly, or if there
is a crash, the items may fly out
of the compartment and may
cause an injury if they strike the
driver or a passenger.
WARNING
OLF044261OLF044262
ALWAYS close the glove box
door after use.
An open glove box door can
cause serious injury to the pas-
senger in an accident, even if the
passenger is wearing a seat belt.
WARNING

7-37
7
Maintenance
C
CL
LI
IM
M A
AT
TE
E
C
C O
O N
NT
TR
R O
O L
L
A
A I
IR
R
F
F I
IL
L T
T E
ER
R

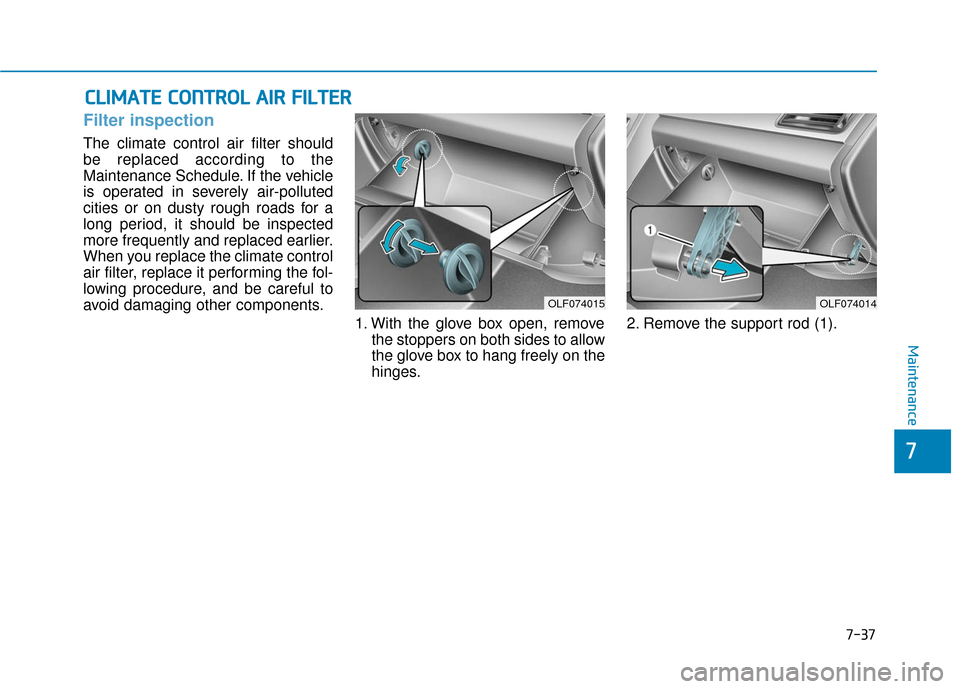

Filter inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
1. With the glove box open, removethe stoppers on both sides to allow
the glove box to hang freely on the
hinges. 2. Remove the support rod (1).
OLF074015OLF074014

7-65
7
Maintenance
Instrument panel fuse panel
Fuse Name Fuse rating Protected Component
SAFETY WINDOW LH25ADriver Safety Power Window Module
P/SEAT PASS30APassenger Seat Manual Switch
P/WDW LH20APower Window Main Switch, Rear Power Window Module LH
P/WDW RH25APower Window Main Switch, Rear Power Window Module RH, Passenger Door Module, Passenger
Power Window Switch
DR LOCK20ADoor Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
S/HEATER FRT25AFront Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE SWITCH10AStop Lamp Switch, Immobilizer Module, Smart Key Control Module8MODULE7.5ABCM, Smart Key Control Module
SAFETY POWER WINDOW RH25APassenger Safety Power Window Module
BATTERY
MANAGEMENT10ABMS Control Module
SMART KEY15ASmart Key Control Module
TRUNK10ATrunk Lid Relay, Fuel Filler Door & Trunk Lid Switch
7MODULE10ADriver/Passenger Door Module, Rear Parking Assist Sensor, Electric Parking Brake Module, Digital
Clock, Blind Spot Detection Radar
INTERIOR LAMP10AGlove Box Lamp, Foot Lamp IND., Driver/Passenger Foot Lamp, Front Vanity Lamp Switch LH/RH,
Overhead Console Lamp, Room Lamp, Rear Personal Lamp LH/RH, Trunk Room Lamp,
Driver/Passenger Door Lamp
2MEMORY7.5AElectro Chromic Mirror
P/SEAT DRV30ADriver Seat Manual Switch, Driver IMS Module
CLUSTER10AInstrument Cluster

I-5
Engine number ..................................................................8-9
Engine oil ........................................................................\
7-27
Engine start/stop button ....................................................5-4
Explanation of scheduled maintenance items.................7-24
Exterior care....................................................................7-86\
Exterior overview (front) ..................................................1-2
Exterior overview (rear) ...................................................1-3
Flat tire (with Tire Mobility kit) .....................................6-15
Floor mat anchor(s).......................................................3-152
FluidBrake fluid ..................................................................7-33
Washer fluid ...............................................................7-34
Folding rear seats ............................................................2-12
Folding the outside rearview mirror ...............................3-36
Foot parking brake ..........................................................5-20
Forward collision warning system (FCWS) ...................5-63
Front lamp .....................................................................3-1\
16
Front seats ........................................................................\
.2-6
Fuel Economy ...............................................................3-100
Fuel filler lid ...................................................................3-53 Emergency fuel filler door release .............................3-53
Fuel Gauge ......................................................................3-\
60
Fuel requirements .............................................................F-7
Fuse switch .....................................................................7-6\
2 Fuses ........................................................................\
.......7-60
Engine compartment panel fuse .................................7-62
Fuse switch .................................................................7-62
Fuse/relay panel description .......................................7-64
Instrument panel fuse .................................................7-61
Main fuse ....................................................................7-63\
Multi fuse ...................................................................7-63
Gauges........................................................................\
.....3-59
Glove box......................................................................3-\
145
Glove box lamp .............................................................3-119
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .........................................5-78
Head restraints ................................................................2-16
Headlamp bulb replacement ...........................................7-73
Headlamp delay function ..............................................3-113
Headlamp position ........................................................3-108
Heated steering wheel .....................................................3-17
Heater Automatic climate control system............................3-128
Manual climate control system ................................3-129
HEV(Hybrid Electric Vehicle) system.............................H-2
High - beam operation ..................................................3-109
High mounted stop lamp.................................................7-84
I
Index
FG
H

I-6
Highway driving .............................................................5-81
Hill-start assist control (HAC)........................................5-39
Hood........................................................................\
........3-46
Horn ........................................................................\
........3-18
How to use this manual ....................................................F-6
Hybrid Battery SOC (State of Charge) Gauge ...............3-60
Hybrid starter and generator belt (HSG belt) .................7-32
Hybrid System Gauge .....................................................3-59
If an accident occurs .......................................................6-26
If the engine overheats ......................................................6-7
If the vehicle stalls at a crossroad or crossing ..................6-2
If the vehicle stalls while driving .....................................6-2
If the vehicle will not start ................................................6-3
If you have a flat tire ......................................................6-15
If you have a flat tire while driving ..................................6-3
Immobilzer system............................................................3-7
Improtant safety precautions.............................................2-2Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator lights (Instrument cluster) ...............................3-63
Information Mode ...........................................................3-91 Inside rearview mirror ....................................................3-19
Instrument cluster ...........................................................3-57
Automtice transaxle shift indicator ............................3-72
Gauges ........................................................................\
3-59
Instrument panel illumination ....................................3-58
LCD Display Control .................................................3-88
Instrument panel fuse......................................................7-61
Instrument panel overview ...............................................1-5
Interior care .....................................................................7-9\
1
Interior features .............................................................3-147 Clock ........................................................................\
3-150
Clothes hanger ..........................................................3-151
Cup holder ................................................................3-147
Floor mat anchor(s) ..................................................3-152
Power outlet..............................................................3-148
Side curtain...............................................................3-153
Sunvisor ....................................................................3-14\
8
Interior lamp AUTO cut................................................3-116
Interior light bulb replacement .......................................7-84
Interior lights .................................................................3-116 Door courtesy lamp ..................................................3-118
Front lamp ................................................................3-116
Glove box lamp ........................................................3-119
Interior lamp AUTO cut ...........................................3-116
Rear lamp...............................................................\
...3-118
Room lamp ...............................................................3-116
Trunk room lamp ......................................................3-118
Vanity mirror lamp ...................................................3-119
Interior overview...............................................................1-4
Index
I

I-10
Steering wheel audio control ............................................4-3
Storage compartment ....................................................3-145Center console storage .............................................3-145
Glove box .................................................................3-145
Multi box ..................................................................3-146
Sunglass holder ........................................................3-146
Sunglass holder .............................................................3-146
Sunroof, see panoramic sunroof .....................................3-42
Sunvisor ........................................................................\
3-148
Telescope steering ...........................................................3-17
The components of hybrid system .................................H-18
Theft-alarm system .........................................................3-13
Tilt steering .....................................................................3-1\
7
Tire chains .......................................................................5\
-83
Tire Mobility kit..............................................................6-15
Tire pressure monitoring system(TPMS) .........................6-9
Tire rotation ....................................................................7-47\
Tire specification and pressure label ................................8-9
Tires and wheels ......................................................7-44, 8-4 Checking tire inflation pressure .................................7-46
Low aspect ratio tires .................................................7-58
Recommended cold tire inflation pressures ...............7-45
Tire care ......................................................................7-\
44
Tire maintenance ........................................................7-50
Tire replacement .........................................................7-48 Tire rotation ................................................................7-47
Tire sidewall labeling .................................................7-50
Tire traction ................................................................7-49
Wheel alignment and tire balance ..............................7-48
Wheel replacement .....................................................7-48
Towing ........................................................................\
....6-22
Trailer towing..................................................................5-92
Transaxle Automatic transaxle....................................................5-12
Shift lock system ........................................................5-16
Shift-lock release ........................................................5-16
Trip A/B ........................................................................\
..3-99
Trip computer..................................................................3-98 Digital speedometer..................................................3-102
Fuel Economy ..........................................................3-100
Trip A/B ......................................................................3-\
99
Trunk ........................................................................\
.......3-47 Smart trunk .................................................................3-50
Trunk room lamp ..........................................................3-118
Turn by turn (TBT) mode ...............................................3-90
Turn signals ...................................................................3-112
User settings mode..........................................................3-93
Index
T
U
