Maintenance

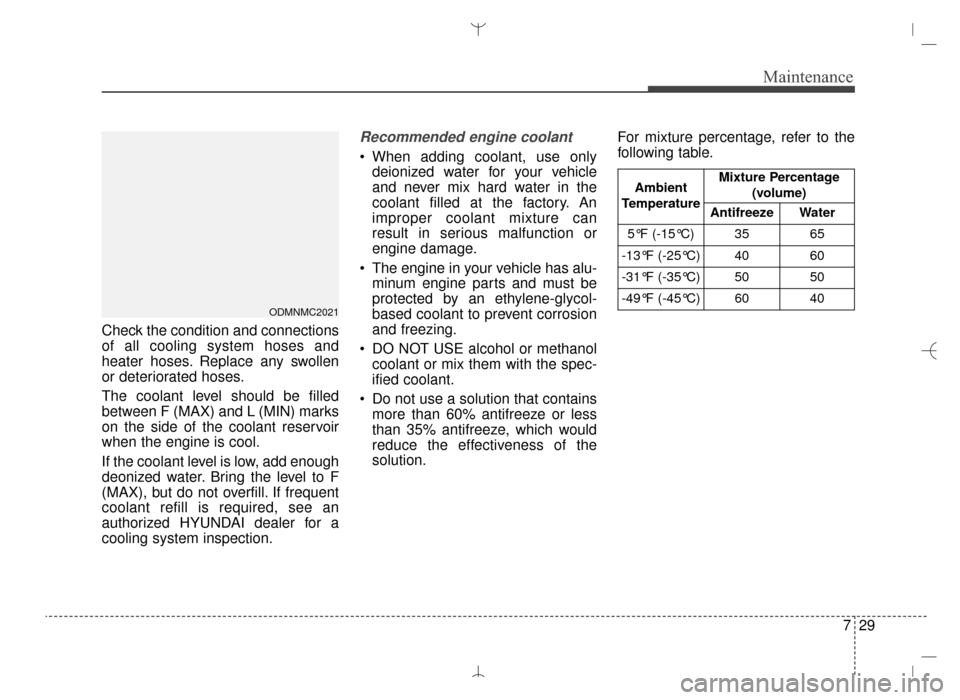

Check the condition and connections
of all cooling system hoses and
heater hoses. Replace any swollen
or deteriorated hoses.
The coolant level should be filled
between F (MAX) and L (MIN) marks
on the side of the coolant reservoir
when the engine is cool.
If the coolant level is low, add enough
deonized water. Bring the level to F
(MAX), but do not overfill. If frequent
coolant refill is required, see an
authorized HYUNDAI dealer for a
cooling system inspection.
Recommended engine coolant
When adding coolant, use onlydeionized water for your vehicle
and never mix hard water in the
coolant filled at the factory. An
improper coolant mixture can
result in serious malfunction or
engine damage.
The engine in your vehicle has alu- minum engine parts and must be
protected by an ethylene-glycol-
based coolant to prevent corrosion
and freezing.
DO NOT USE alcohol or methanol coolant or mix them with the spec-
ified coolant.
Do not use a solution that contains more than 60% antifreeze or less
than 35% antifreeze, which would
reduce the effectiveness of the
solution. For mixture percentage, refer to the
following table.
ODMNMC2021
Ambient
Temperature Mixture Percentage
(volume)
Antifreeze Water
5°F (-15°C) 35 65
-13°F (-25°C) 40 60
-31°F (-35°C) 50 50
-49°F (-45°C) 60 40
AN HMA 7.QXP 3/5/2015 3:25 PM Page 29

789
Maintenance

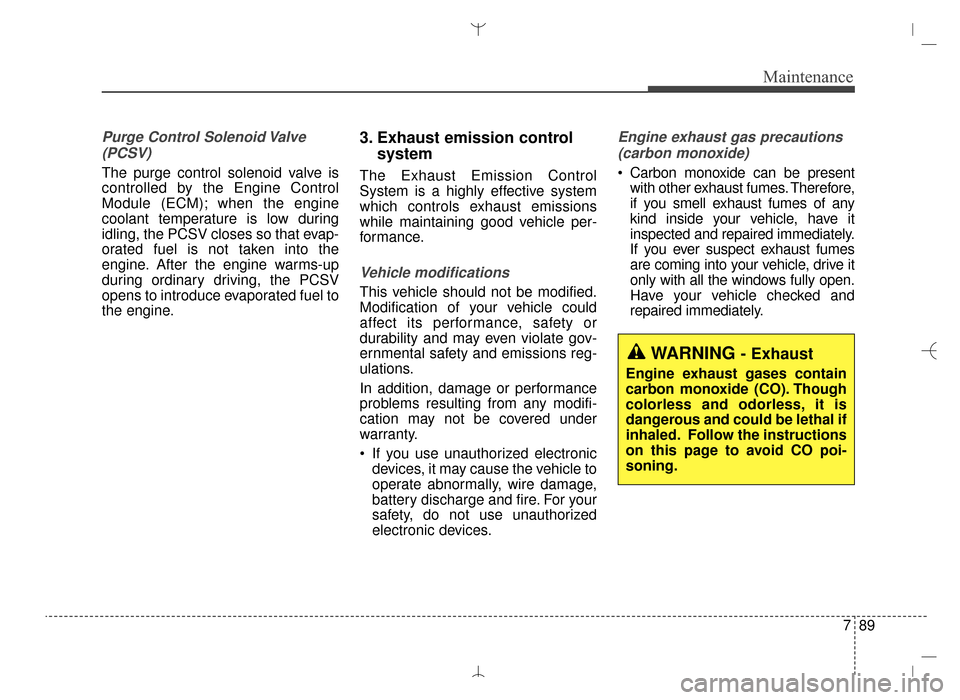

Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes. Therefore,
if you smell exhaust fumes of any
kind inside your vehicle, have it
inspected and repaired immediately.
If you ever suspect exhaust fumes
are coming into your vehicle, drive it
only with all the windows fully open.
Have your vehicle checked and
repaired immediately.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.
AN HMA 7.QXP 3/5/2015 3:25 PM Page 89

Index
4I
Defrosting (Windshield) ..............................................4-153
Dimensions ......................................................................8-\
2
Display illumination, see Instrument cluster illumination ............................4-80
Displays, see Instrument cluster ....................................4-79
Door locks ......................................................................4-\
21 Central door lock switch ............................................4-23
Child-protector rear door lock ....................................4-25
Downhill Brake Control (DBC) ....................................5-40
Drinks holders, see Cup holders ..................................4-159
Driver position memory system ......................................3-8
Driver selectable steering mode ....................................4-57
Driver's front air bag ......................................................3-56
Driving at night ..............................................................5-62
Driving in flooded areas ................................................5-64
Driving in the rain ..........................................................5-63
Driving off-road ..............................................................5-64
Economical operation ....................................................5-58
Electric Chromic Mirror (ECM) ....................................4-61
Electric Chromic Mirror (ECM) with compass ..............4-61
Electric Power Steering (EPS) ........................................4-54
Electronic Stability Control (ESC) ................................5-35
Emergency fuel filler door release..................................4-47
Emergency starting ..........................................................6-5 Jump starting ................................................................6-5 Emergency tailgate safety release ..................................4-36
Emergency while driving ..................................................6-3
Emission control system ................................................7-88
Crankcase emission control system ............................7-88
Evaporative emission control system ..........................7-88
Exhaust emission control system ................................7-89
Engine ........................................................................\
......8-2
Engine compartment ........................................................2-7
Engine compartment panel fuse ............................7-61, 7-67
Engine coolant ................................................................7-28
Engine coolant temperature gauge ................................4-82
Engine number ................................................................8-10
Engine oil ........................................................................\
7-26
Engine overheats ..............................................................6-8
Engine start/stop button ....................................................5-9
Engine will not start..........................................................6-4
Evaporative emission control system ............................7-88
Exhaust emission control system....................................7-89
Explanation of scheduled maintenance items ................7-23
Exterior care....................................................................7-81\
Exterior overview (front) ..................................................2-2
Exterior overview (rear) ..................................................2-3
Flat tire (with spare tire) ................................................6-20 Changing tires..............................................................6-23
Compact spare tire ......................................................6-27
E
F
AN HMA INDEX.QXP 3/3/2015 11:36 AM Page 4
