Maintenance
68
7
DescriptionFuse ratingProtected Component
START7.5AW/O IMMO. & Smart Key : ICM Relay Box (Burglar Alarm Relay)
With IMMO. or Smart Key : INHIBIT_SW(POSITION_SW)
MODULE 210ACrash Pad Switch, Multipurpose Check Connector, Head Lamp Leveling Device Actuator LH/RH, Auto
Head Lamp Leveling Device Module, Stop Lamp Switch,AFLS_UNIT, F_WATER_SNSR,
GLOW_RLY_UNIT_METAL, FPAS_SNSR, DSL_BOX
SUNROOF 220ASunroof_MTR
S/HEATER RR15ARear Seat Warmer LH/RH
IGN20AE/R Fuse & Relay Box (Fuse - ABS 3, SENSOR 5, TCU)
A/CON 17.5AE/R Fuse & Relay Box (Blower Relay), A/C Control Module, Cluster Ionizer, DSL_BOX(PTC_RLY)
WIPER RR15ARear Wiper Relay, Rear Wiper Motor, Multifunction Switch,BCM
SMART KEY 125ASmart Key Control Module
S/HEATER FRT20ADriver/Passenger Seat Warmer Module
A/CON 27.5AA/C Control Module
C/LIGHTER20AFront Power Outlet & Cigarette Lighter, Luggage Power Outlet
WIPER FRT15AMultifunction Switch, E/R Fuse & Relay Box (Wiper HI Relay, IG2 Relay)
BLOWER RR20AICM Relay Box (RR BLOWER Relay)
P/WDW RH25APassenger Door Module, Rear Power Window Switch RH
RR HTD10AA/C Control Module
BRAKE SWITCH7.5ASmart Key Control Module, Stop Lamp Switch

769
Maintenance
DescriptionFuse ratingProtected Component
SUNROOF 120ASUNROOF_MTR
P/WDW LH25ADriver Safety Power Window Module, Driver Door Module, Rear Power Window Switch LH
FUEL LID15AFuel Fillar Door Switch (DOOR_EXT)
SMART KEY 37.5ASmart Key Control Module
STOP LAMP15AStop Signal Electronic Module
P/SEAT PASS20APassenger Seat Manual Switch, Passenger Lumbar Support Switch
AMP30AAMP
MODULE 410AAudio, A/V & Navigation Head Unit, BCM, Overhead Console Lamp, AMP, MTS Module, Power Outside
Mirror Switch, E/R Fuse & Relay Box (Power Outlet Relay),PGS,D_CLOCK
DR LOCK20ADoor Lock/Unlock Relay, Tail Gate Relay, ICM Relay Box (Dead Lock Relay)
P/SEAT DRV30ADriver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch

Maintenance
72
7
DescriptionFuse ratingProtected Component
MULTI
FUSE
MDPS80AMDPS Unit
B+260ASmart Junction Box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), Fuse - SUNROOF 1, P/SEAT
PASS, P/SEAT DRV), RR A/CON
BLOWER40ABlower Relay
RR HTD40ARear Defogger Relay
ABS140AESC Module, Multipurpose Check Connector
ABS240AESC Module
C/FAN60ACooling Fan Relay
B+360ASmart Junction Box (Fuse - MODULE 1, SMART KEY 4, SUNROOF 2, SMART KEY 1, Leak
Current Autocut Device)
FUSE
B+450ASmart Junction Box (IPS 3 (4CH), IPS 6 (2CH), Fuse - F/LID, STOP LAMP, DR LOCK, BRAKE
SWITCH), FUEL LID
EMS40AEMS Box
IG140AW/O Smart Key : Ignition Switch, With Smart Key - ACC Relay, IG1 Relay
IG240AStart Relay, IG2 Relay, W/O Smart Key : Ignition Switch
TRAILER30ATrailer Power Outlet
B+150ASmart Junction Box (Fuse - S/HEATER RR, S/HEATER FRT, P/WDW RH, P/WDW LH)
HORN15AHorn Relay
DEICER15AFront Deicer Relay
POWER OUTLET25APower Outlet Relay
AC INVERTER30AAC Inverter Module

795
Maintenance

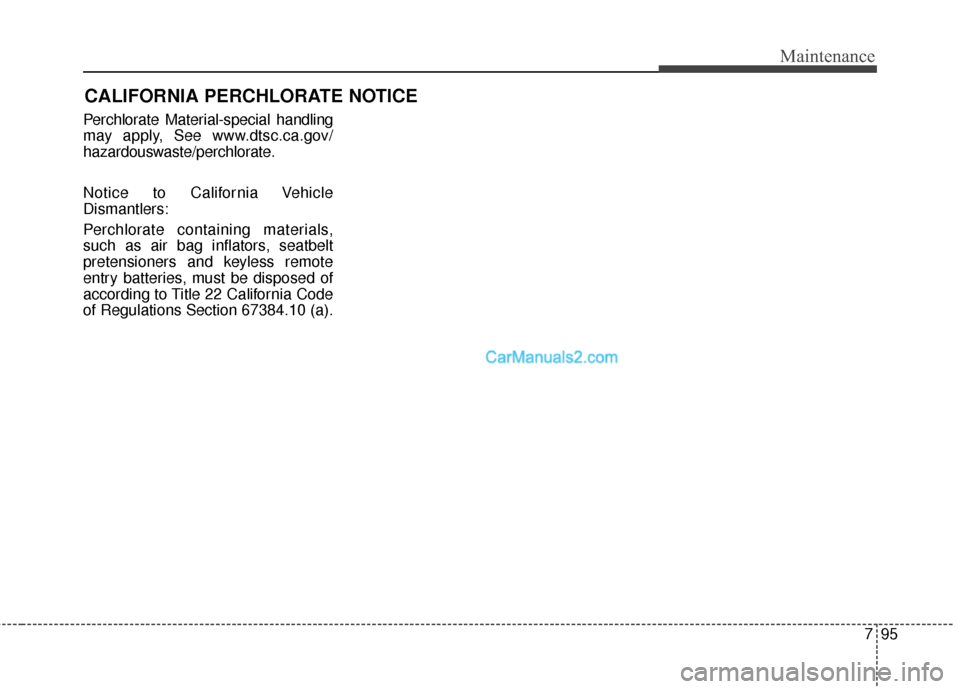

CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.
Notice to California Vehicle
Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Section 67384.10 (a).

I5
Index
Jack and tools ............................................................6-20
Jack label ...................................................................6-29
Removing and storing the spare tire .........................6-21
Floor mat anchor(s) ....................................................4-155
Fluid Brakes fluid ...............................................................7-35
Washer fluid ..............................................................7-37
Folding Key ....................................................................4-4
Folding the rear seat .....................................................3-21
Front fog light .............................................................4-116
Front seat adjustment - Manual ......................................3-5
Front seat adjustment - power ........................................3-6
Fuel Economy ...............................................................4-91
Fuel filler lid .................................................................4-43 Emergency fuel filer door release .............................4-46
Fuel Gauge....................................................................4-74\
Fuel requirements ...........................................................1-3
Fuse switch ...................................................................7-64
Fuse/relay panel description .........................................7-66
Fuses ........................................................................\
.....7-62 Engine compartment panel fuse ......................7-64, 7-70
Fuse switch ................................................................7-64
Fuse/relay panel description......................................7-66
Instrument panel fuse ................................................7-63
Main fuse...................................................................7-65
Multi fuse ..................................................................7-65 Gauges ........................................................................\
..4-73
Glove box ...................................................................4-147\
Glove box lamp ..........................................................4-122
Good braking practices .................................................5-43
Good driving practices .................................................5-19
Gross vehicle weight ......................................................8-5
Hazard warning flasher...............................................4-110
Hazardous driving conditions .......................................5-59
Headlamp delay ..........................................................4-111
Headlamp welcome ....................................................4-123
Headlight bulb replacement..........................................7-74
Headlight position.......................................................4-113
Headrest(3rd row) .........................................................3-18
Headrest(front)..............................................................3-10
Headrest(rear) ...............................................................3-17
Heated steering wheel...................................................4-55
Height adjustment (Front) ............................................3-30
High beam operation ..................................................4-114
Highway driving ...........................................................5-63
Hill-start assist control (HAC) .....................................5-42
Hood ........................................................................\
.....4-41
Horn ........................................................................\
......4-55
How to use this manual ..................................................1-2G
H

Index
6I
Immobilizer system ...............................................4-8, 4-14
Indicator lights ............................................................4-101
Inside rearview mirror ..................................................4-59
Instrument cluster .........................................................4-71Gauges .......................................................................4\
-73
Instrument cluster illumination .................................4-72
LCD Display Control ................................................4-72
Transaxle Shift Indicator ...........................................4-76
Instrument panel fuse ...................................................7-63
Instrument panel overview .............................................2-6
Interior care...................................................................7-89
Interior features...........................................................4-150 AC inverter ..............................................................4-153
Aux, USB and iPod
®...............................................4-156
Cargo security screen ..............................................4-157
Cigarette lighter.......................................................4-150
Clothes hanger.........................................................4-155
Cup holder ...............................................................4-150
Floor mat anchor(s) .................................................4-155
Luggage net (holder) ...............................................4-157
Power outlet ............................................................4-152
Side curtain..............................................................4-159
Sunvisor...................................................................4-151\
Interior light ................................................................4-120 Automatic turn off function ....................................4-120
Glove box lamp .......................................................4-122
Luggage room lamp ................................................4-122 Map lamp ................................................................4-120
Room lamp ..............................................................4-121
Vanity mirror lamp ..................................................4-122
Interior light welcome ................................................4-123
Interior overview ............................................................2-4
Jack and tools ...............................................................6-20
Jump starting...........................................................\
........6-5
Key positions ..................................................................5-6
Keys Folding key..................................................................4-4
Immobilizer system ...........................................4-8, 4-14
Smart key ..................................................................4-10
Label Air bag warning label................................................3-77
Jack label ...................................................................6-29
Refrigerant label ..............................................4-134, 8-9
Tire sidewall labeling ................................................7-54
Tire specification and pressure label...........................8-9
Vehicle certification label............................................8-8
I
K
J
L

I9
Index
Seat belts .......................................................................3\
-27Care of seat belts .......................................................3-39
Height adjustment (Front) .........................................3-30
Pre-tensioner seat belt ...............................................3-33
Seat belt precautions .................................................3-36
Seat belt warning.......................................................3-28
Seat warmer (Rear seat) ...............................................3-19
Seat warmer(front)........................................................3-13
Seatback pocket ............................................................3-15
Seats ........................................................................\
........3-2 Armrest (Rear seat) ...................................................3-19
Driver position memory system ..................................3-8
Folding the rear seat ..................................................3-21
Front seat adjustment - Manual ..................................3-5
Front seat adjustment - power .....................................3-6
Headrest(3rd row) .....................................................3-18
Headrest(front) ..........................................................3-10
Headrest(rear) ............................................................3-17
Rear seat adjustment .................................................3-15
Seat warmer (Rear seat) ............................................3-19
Seat warmer(front) ....................................................3-13
Seatback pocket.........................................................3-15
Service Mode ................................................................4-78
Shift-lock override ........................................................5-18
Side curtain .................................................................4-159
Side impact air bag .......................................................3-67
Smart key ......................................................................4-\
10
Smooth cornering .........................................................5-61 Snow tires .....................................................................5-6\
5
Spare tire
Changing tires ...........................................................6-23
Removing and storing the spare tire .........................6-21
Special driving conditions ............................................5-59 Driving at night .........................................................5-61
Driving in flooded areas............................................5-63
Driving in the rain .....................................................5-62
Driving off-road ........................................................5-63
Hazardous driving conditions ...................................5-59
Highway driving........................................................5-63
Reducing the risk of a rollover .................................5-59
Rocking the vehicle...................................................5-60
Smooth cornering ......................................................5-61
Speedometer .................................................................4-73
Sports mode ..................................................................5-17
SRS components and functions ....................................3-50
Starting difficulties, see engine will not start .................6-4
Steering wheel ..............................................................4-53 Driver selectable steering mode ................................4-56
Electric power steering (EPS) ...................................4-53
Heated steering wheel ...............................................4-55
Horn........................................................................\
...4-55
Power steering ...........................................................4-53
Tilt & telescopic steering ..........................................4-54
