Maintenance
78
7
Headlamp (HID type), position
(LED), turn signal, and front foglamp bulb replacement
If the lamp bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽ NOTICE
A skilled technician should check or
repair the LED light. Otherwise, it
may damage related parts.
✽ ✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer
to last twice as long or longer than
halogen bulbs depending on their
frequency of use. They will probably
require replacement at some point
in the life of the vehicle. Cycling the
headlamps on and off more than
typical use will shorten HID lamps
life. HID lamps do not fail in the
same manner as halogen incandes-
cent lamps. If a headlamp goes out
after a period of operation but will
immediately relight when the head-
lamp switch is cycled it is likely the
HID lamp needs to be replaced. HID
lighting components are more com-
plex than conventional halogen
bulbs thus have higher replacement
cost.
Side repeater lamp
replacement
If the lamp bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽NOTICE
A skilled technician should check or
repair the side repeater lamp.
Otherwise, it may damage related
parts (ex. outside mirror).
WARNING - HID
Headlamp low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized HYUNDAI Dealer.
ONCEMC3214

779
Maintenance
Rear combination lamp bulb
replacement
(1) Rear turn signal lamp
(2) Back-up lamp
(3) Rear stop and tail lamp
(4) Rear tail lamp/Rear stop and taillamp*
(5) Rear side marker
* : if equipped
Outside lamp
1. Open the liftgate (tailgate).
2. Remove the service cover using a flat-blade screwdriver.
3. Loosen the lamp assembly retain- ing please verify.
4. Remove the rear combination lamp assembly from the body of
the vehicle.
5. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket. (Side
marker : Remove the bulb from the
socket by pulling it out)
ONCNMC2037
ONCNMC2038

Maintenance
80
7
7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
8. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Reinstall the lamp assembly to the body of the vehicle.Inside lamp
1. Open the liftgate (tailgate).
2. Remove the service cover using aflat-blade screwdriver. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. (Back-up lamp : Remove
the bulb from the socket by pulling
it out)
OANNMC2036
ONCNMC2039

781
Maintenance
5. Insert a new bulb by inserting itinto the socket and rotating it until
it locks into place.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.High mounted stop lamp
replacement
1.Open the liftgate (tailgate).
2.Gently remove the center cover ofthe rear liftgate (tailgate) trim.
3.Disconnect the electrical connector. 4.Loosen the retaining nuts and
remove the spoiler.
ODMEMC2022
ONCNMC3204

Maintenance
82
7

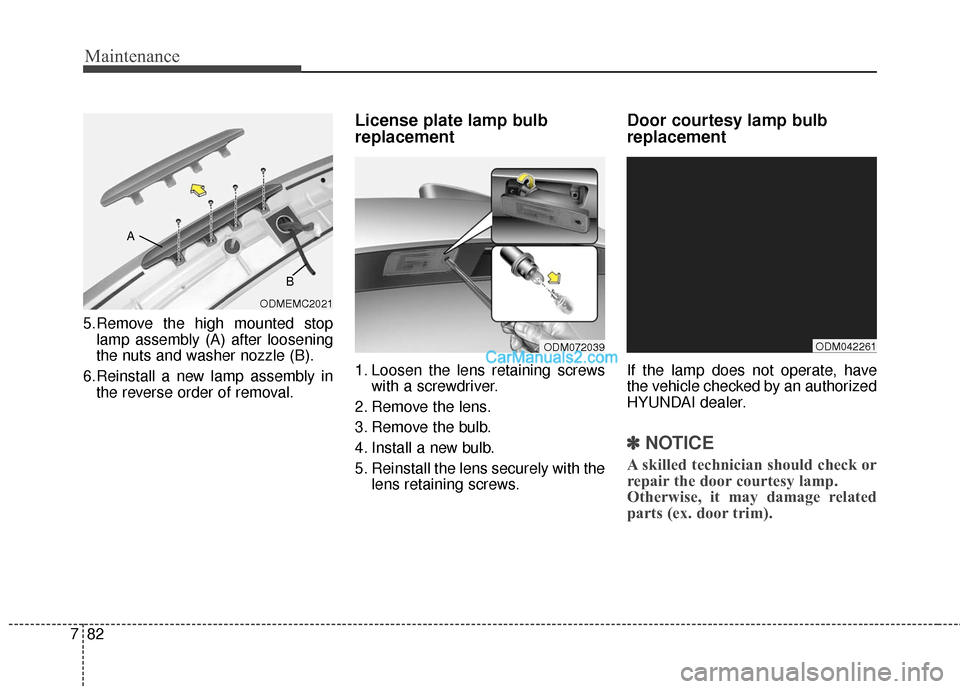

5.Remove the high mounted stop
lamp assembly (A) after loosening
the nuts and washer nozzle (B).
6.Reinstall a new lamp assembly in the reverse order of removal.
License plate lamp bulb
replacement
1. Loosen the lens retaining screws with a screwdriver.
2. Remove the lens.
3. Remove the bulb.
4. Install a new bulb.
5. Reinstall the lens securely with the lens retaining screws.
Door courtesy lamp bulb
replacement
If the lamp does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
✽ ✽NOTICE
A skilled technician should check or
repair the door courtesy lamp.
Otherwise, it may damage related
parts (ex. door trim).
ODM072039ODM042261
ODMEMC2021
B
A

783
Maintenance

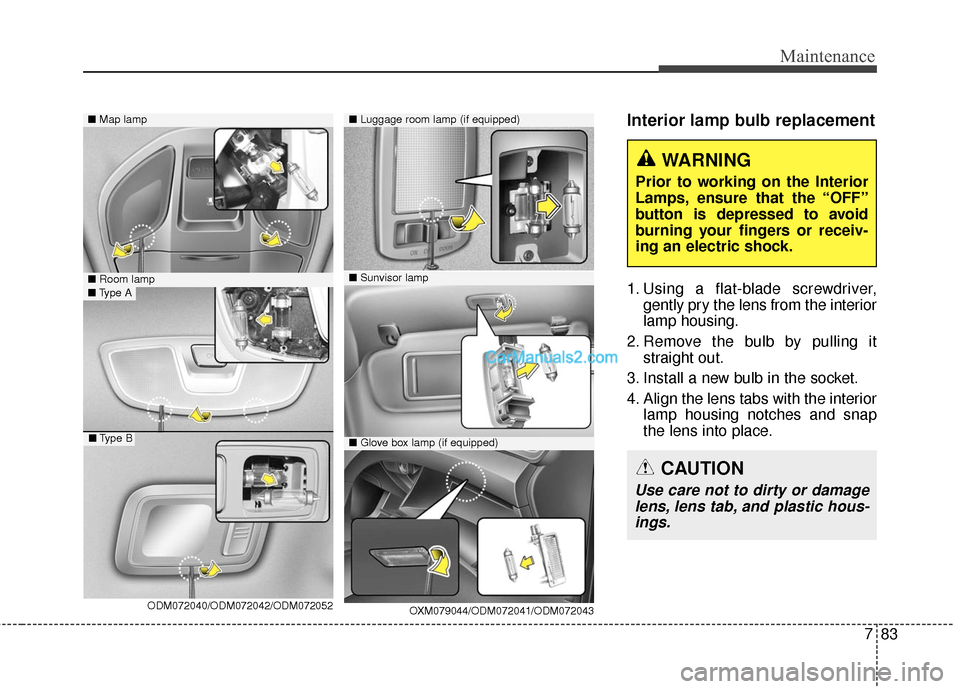

Interior lamp bulb replacement
1. Using a flat-blade screwdriver,gently pry the lens from the interior
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior lamp housing notches and snap
the lens into place.
■Map lamp
OXM079044/ODM072041/ODM072043
■Glove box lamp (if equipped)
■Luggage room lamp (if equipped)
■Room lamp
ODM072040/ODM072042/ODM072052■Type A
■Type B
WARNING
Prior to working on the Interior
Lamps, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
CAUTION
Use care not to dirty or damage
lens, lens tab, and plastic hous-ings.
■ Sunvisor lamp

Specifications, Consumer information and Reporting safety defects
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . . 8-6
• Recommended SAE viscosity number . . . . . . . . . . . 8-7
Vehicle identification number (VIN) . . . . . . . . . . . 8-8
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-8
Tire specification and pressure label . . . . . . . . . . . 8-9
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Consumer information. . . . . . . . . . . . . . . . . . . . . . 8-10
Reporting safety defects. . . . . . . . . . . . . . . . . . . . . 8-11
8

83
Specifications, Consumer information and Reporting safety defects

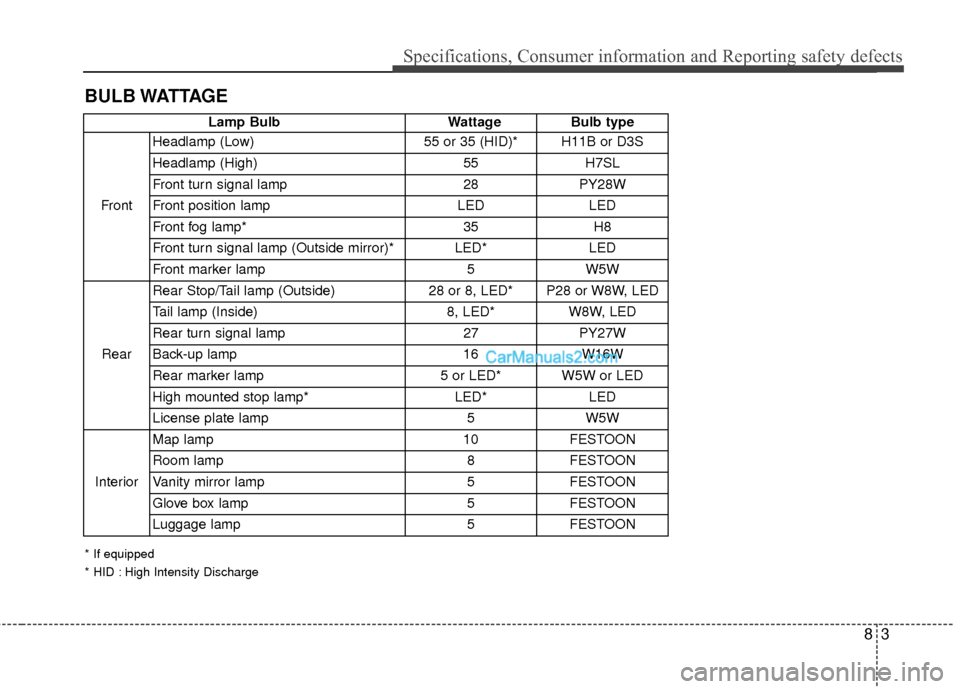

BULB WATTAGE
Lamp BulbWattageBulb type
Front Headlamp (Low)
55 or 35 (HID)* H11B or D3S
Headlamp (High) 55H7SL
Front turn signal lamp 28PY28W
Front position lamp LEDLED
Front fog lamp* 35H8
Front turn signal lamp (Outside mirror)* LED* LED
Front marker lamp 5W5W
Rear Rear Stop/Tail lamp (Outside)
28 or 8, LED* P28 or W8W, LED
Tail lamp (Inside) 8, LED*W8W, LED
Rear turn signal lamp 27PY27W
Back-up lamp 16W16W
Rear marker lamp 5 or LED* W5W or LED
High mounted stop lamp* LED*LED
License plate lamp 5W5W
Interior Map lamp
10FESTOON
Room lamp 8FESTOON
Vanity mirror lamp 5FESTOON
Glove box lamp 5FESTOON
Luggage lamp 5FESTOON
* If equipped
* HID : High Intensity Discharge
