2016 Hyundai H350 bulb

7-72
Maintenance
H1H2H3
W1
W 3
W2
Vehicle condition Head light
Fog light
H1 H2 W1 W2 H3 W3
Projection type Without driver
960.5 (37.8) 942 (37) 1,488 (58.6) 1,274 (50.2) 456.5 (18) 1,480 (58.3)
With driver 960.5 (37.8) 942 (37) 1,488 (58.6) 1,274 (50.2) 456.5 (18) 1,480 (58.3)
MFR type Without driver
948 (37.3) 944 (37.2) 1,540(60.2) 1,280 (50.4) 456.5 (18) 1,480 (58.3)
With driver 948 (37.3) 944 (37.2) 1,540(60.2) 1,280 (50.4) 456.5 (18) 1,480 (58.3)
Unit: mm (in)


H1 : Height between the head light (Low beam) bulb center and ground
H2 : Height between the head light (High beam) the high beam bulb center and ground
H3 : Height between the fog light bulb center and ground
W1 : Distance between the two head light (Low beam) bulbs centers
W2 : Distance between the two head light (High beam) high beam bulbs centers.
W3 : Distance between the two fog light bulbs centers

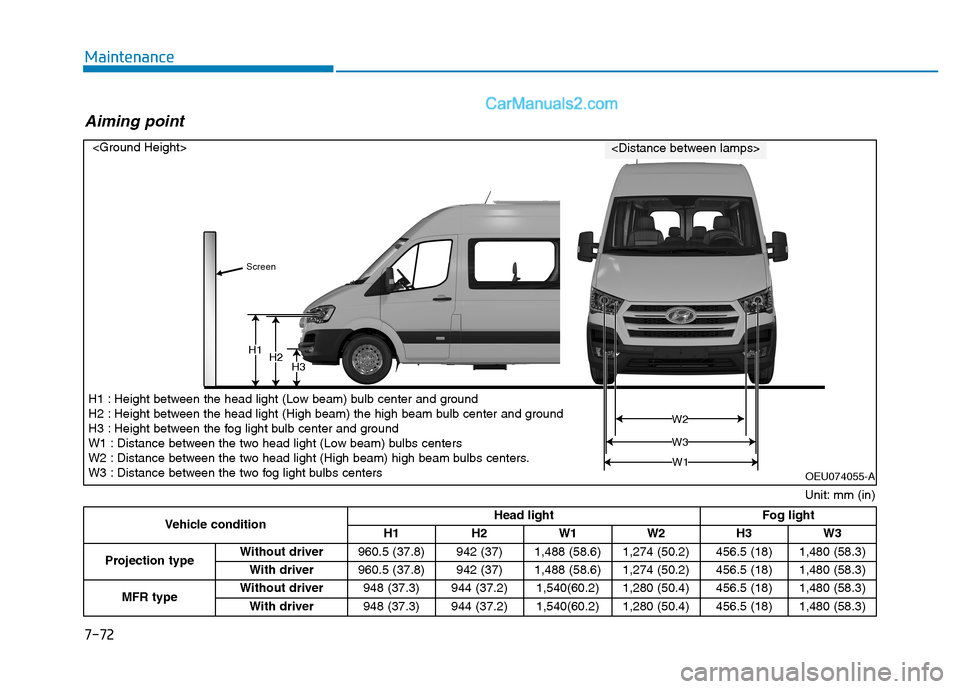

Aiming point
OEU074055-A

7-75
7
Maintenance

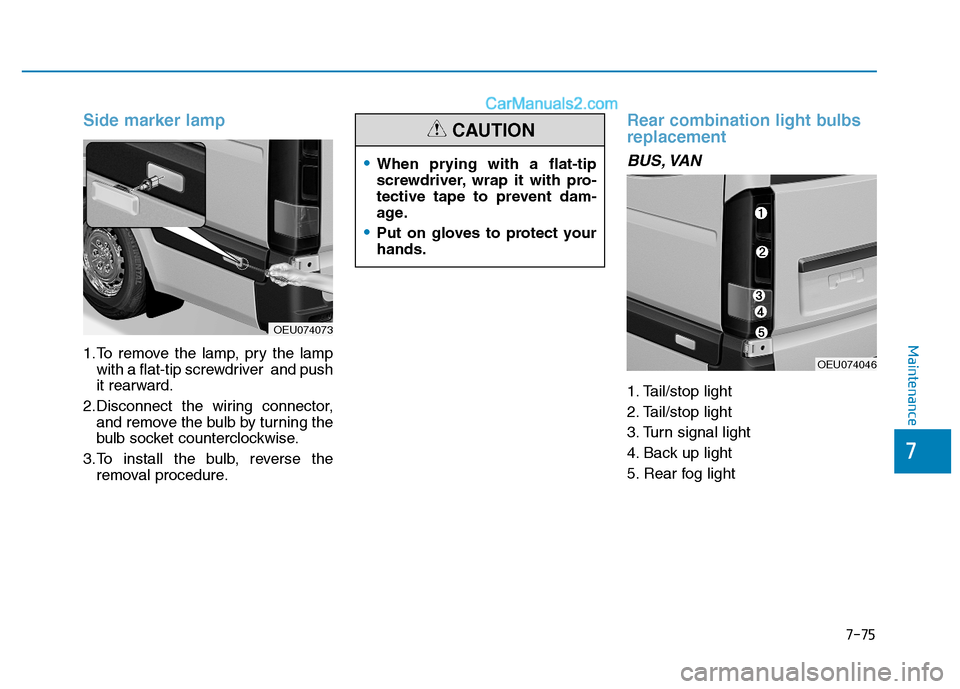

Side marker lamp
1.To remove the lamp, pry the lampwith a flat-tip screwdriver and push
it rearward.
2.Disconnect the wiring connector, and remove the bulb by turning the
bulb socket counterclockwise.
3.To install the bulb, reverse the removal procedure.
Rear combination light bulbs replacement
BUS, VAN
1. Tail/stop light
2. Tail/stop light
3. Turn signal light
4. Back up light
5. Rear fog light
OEU074046
OEU074073
When prying with a flat-tip
screwdriver, wrap it with pro-
tective tape to prevent dam-
age.
Put on gloves to protect your hands.
CAUTION

1.Open the rear door.
2.Loosen the light assembly retain-ing screws with a cross-tip screw-
driver.
3.Remove the rear combination light assembly from the body of the
vehicle. 4.Remove the socket from the
assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly.
5.Remove the bulb from the socket by pressing it in and rotating it
counter clockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place. 7.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Reinstall the light assembly to the body of the vehicle.
7-76
Maintenance
OEU074053OEU074051

7-77
7
Maintenance

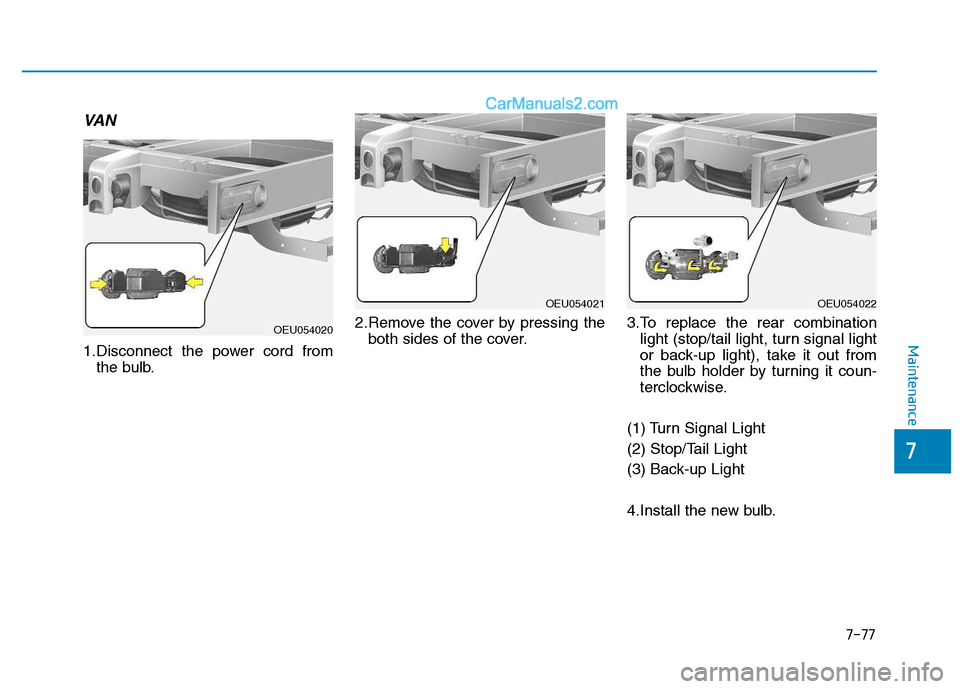

VA N
1.Disconnect the power cord fromthe bulb. 2.Remove the cover by pressing the
both sides of the cover. 3.To replace the rear combination
light (stop/tail light, turn signal light
or back-up light), take it out from
the bulb holder by turning it coun-
terclockwise.
(1) Turn Signal Light
(2) Stop/Tail Light
(3) Back-up Light
4.Install the new bulb.
OEU054020
OEU054021OEU054022

7-78
Maintenance

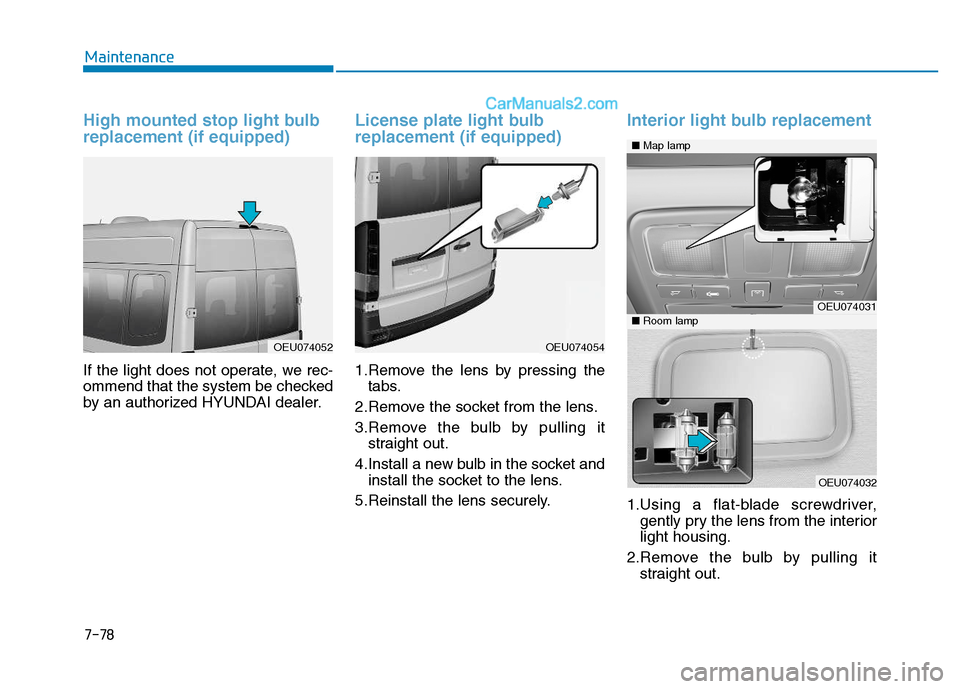

High mounted stop light bulb replacement (if equipped)
If the light does not operate, we rec-
ommend that the system be checked
by an authorized HYUNDAI dealer.
License plate light bulb replacement (if equipped)
1.Remove the lens by pressing thetabs.
2.Remove the socket from the lens.
3.Remove the bulb by pulling it straight out.
4.Install a new bulb in the socket and install the socket to the lens.
5.Reinstall the lens securely.
Interior light bulb replacement
1.Using a flat-blade screwdriver, gently pry the lens from the interior light housing.
2.Remove the bulb by pulling it straight out.
OEU074052OEU074054
OEU074031
OEU074032
■Map lamp
■Room lamp

7-79
7
Maintenance

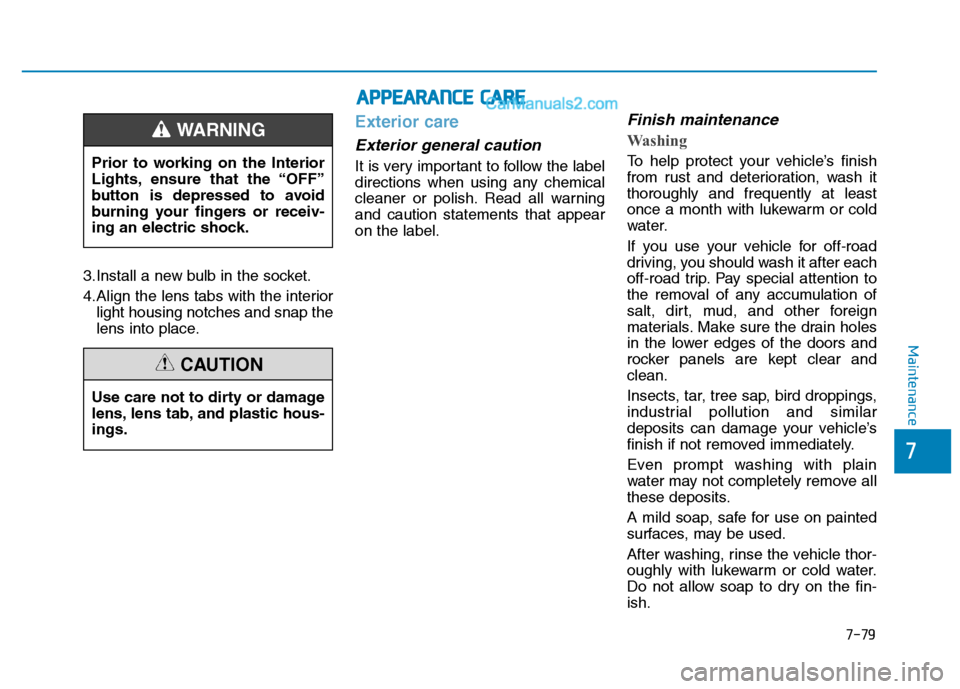

3.Install a new bulb in the socket.
4.Align the lens tabs with the interiorlight housing notches and snap the
lens into place.
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warningand caution statements that appearon the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash itthoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear andclean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain
water may not completely remove all
these deposits.
A mild soap, safe for use on painted
surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the fin-ish.
Prior to working on the Interior
Lights, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
WARNING
Use care not to dirty or damage
lens, lens tab, and plastic hous-ings.
CAUTION
AA
PPPPEEAA RRAA NN CCEE CC AA RREE

8
Specifications & Consumer information
8
Specifications & Consumer information
8
Dimensions ..............................................................8-2
Engine ......................................................................8-3
Air conditioning system ........................................8-3
Bulb wattage ...........................................................8-4
Tires and wheels ....................................................8-5
Load and speed capacity tires .............................8-5
Gross vehicle weight .............................................8-6
Recommended lubricants and capacities ...........8-7Available engine oil (For Europe) ..................................8-8
Recommended SAE viscosity number ..........................8-9
Vehicle identification number (VIN) ..................8-10
Vehicle certification label ...................................8-10
Tire specification and pressure label ...............8-11
Engine number .....................................................8-11
Air conditioner compressor label ......................8-11
Declaration of conformity ..................................8-12

8-4
Specifications & Consumer informationB
B UU LLBB WW AATTTTAA GG EE
* If equipped
Light BulbWattage
MFRProjection
Headlights (Low/High)55
Front fog lights*35
Front turn signal lights2121
Front position lights5LED
DRL lights*21LED
Side repeaterLED
Side marker lights*5
Rear stop / tail lamp21/5
Back up lamp16
Rear turn signal lamp21
Rear fog lights21
License plate light5
High mounted stop lightLED
Over head console lamps10
Room lamps*LED (if equipped)10
Step lamp*5
Cargo lamps*10
Reading lamps*LED
