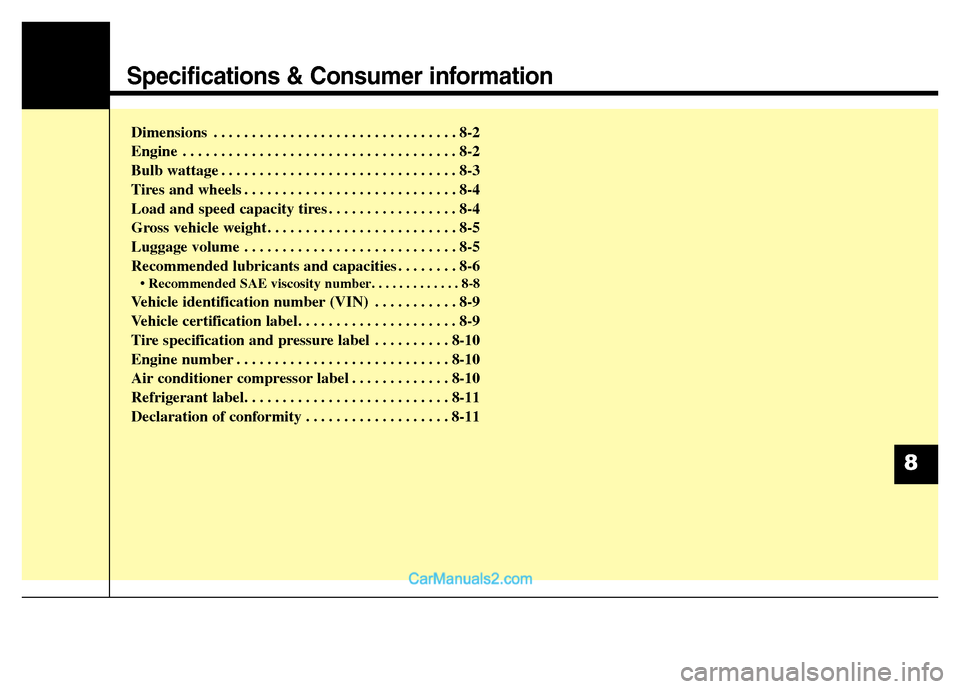

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Load and speed capacity tires . . . . . . . . . . . . . . . . . 8-4
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . . 8-6
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Air conditioner compressor label . . . . . . . . . . . . . 8-10
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Declaration of conformity . . . . . . . . . . . . . . . . . . . 8-11
8
Specifications & Consumer information
2 8
DIMENSIONS
ENGINE
ItemGasoline
lambda II 3.3Diesel R2.2
Displacement
cc (cu. in) 3,342
(203.94)
2,199
(134.19)
Bore x Stroke
mm (in.)92X83.8
(3.62X3.29)
85.4X96
(3.34X3.77)
Firing order 1-2-3-4-5-6
1-3-4-2
No. of cylinders V - type
4. In-line
item mm(in)
Overall length 4,915 (193.5)
Overall width 1,885 (74)
Overall height For Europe 1,685 (66.3)/1,695 (66.7) *
1
Except Europe 1,690 (66.5)/1,700 (66.9) *1
Front tread235/60R18 1,628 (64.1)
235/55R19 1,628 (64.1)
Rear tread235/60R18 1,639 (64.5)
235/55R19 1,639 (64.5)
Wheelbase 2,800 (110)
*1with roof rack
