Driving your vehicle
Your vehicle's fuel economy depends
mainly on your style of driving, where
you drive and when you drive.
Each of these factors affects how
many miles (kilometers) you can get
from a gallon (liter) of fuel. To operate
your vehicle as economically as possi-
ble, use the following driving sugges-
tions to help save money in both fuel
and repairs:
Drive smoothly. Accelerate at a mod-erate rate. Don't make "jack-rabbit"
starts or full-throttle shifts and main-
tain a steady cruising speed. Don't
race between stoplights. Try to adjust
your speed to that of the other traffic
so you don't have to change speeds
unnecessarily. Avoid heavy traffic
whenever possible. Always maintain
a safe distance from other vehicles
so you can avoid unnecessary brak-
ing. This also reduces brake wear.
Drive at a moderate speed. The faster you drive the more fuel your
vehicle uses. Driving at a moderate
speed, in the highest gear appropri-
ate for the conditions, especially on
the highway, is one of the most effec-
tive ways to reduce fuel consump-
tion. Don't "ride" the brake or clutch
pedal. This can increase fuel con-
sumption and also increase wear
on these components. In addition,
driving with your foot resting on the
brake pedal may cause the brakes
to overheat, which reduces their
effectiveness and may lead to
more serious consequences.
Take care of your tires. Keep them inflated to the recommended pres-
sure. Incorrect inflation, either too
much or too little, results in unnec-
essary tire wear. Check the tire
pressures at least once a month.
Be sure that the wheels are aligned correctly. Improper align-
ment can result from hitting curbs
or driving too fast over irregular
surfaces. Poor alignment causes
faster tire wear and may also result
in other problems as well as
greater fuel consumption. Keep your car in good condition.
For better fuel economy and
reduced maintenance costs, main-
tain your car in accordance with
the maintenance schedule in sec-
tion 7. If you drive your car in
severe conditions, more frequent
maintenance is required (see sec-
tion 7 for details).
Keep your car clean. For maximum service, your vehicle should be
kept clean and free of corrosive
materials. It is especially important
that mud, dirt, ice, etc. not be
allowed to accumulate on the
underside of the car. This extra
weight can result in increased fuel
consumption and also contribute to
corrosion.
Travel lightly. Don't carry unneces- sary weight in your car. Weight
reduces fuel economy.
Don't let the engine idle longer than necessary. If you are waiting
(and not in traffic), turn off your
engine and restart only when
you're ready to go.
ECONOMICAL OPERATION

Driving your vehicle
50
5
Use high quality ethylene gly-
col coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in section 7. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on
the battery system. Visually inspect
the battery and cables as described
in section 7. The level of charge in
your battery can be checked by an
authorized HYUNDAI dealer or a
service station.
Change to "winter weight" oil
if necessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
section 8 for recommendations. If
you aren't sure what weight oil you
should use, consult an authorized
HYUNDAI dealer.
Check spark plugs and igni-
tion system
Inspect your spark plugs as
described in section 7 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.
WARNING- Tire chains
The use of chains may adversely affect vehicle han-
dling.
Do not exceed 20 mph (30 km/h) or the chain manufac-
turer’s recommended speed
limit, whichever is lower.
Drive carefully and avoid bumps, holes, sharp turns,
and other road hazards, which
may cause the vehicle to
bounce.
Avoid sharp turns or locked- wheel braking.
CAUTION
Chains that are the wrong size or improperly installed candamage your vehicle's brakelines, suspension, body andwheels.
Stop driving and retighten the chains any time you hear themhitting the vehicle.

Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner’s responsibility. . . . . . . . . . . . . . . . . . . . . . 7-4
. . . . . . . . . . . . . . . 7-4
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
. . . . . . . . . . . . . . . . . 7-5
Scheduled maintenance service . . . . . . . . . . . . . . . 7-7
. . . . . . . . . . . . . . . . 7-8
. . . . . . 7-19
Explanation of scheduled maintenance items . . . . 7-20
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25
Brake and clutch fluid . . . . . . . . . . . . . . . . . . . . . . . 7-28
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Automatic transmission fluid . . . . . . . . . . . . . . . . . 7-30
Manual transmission fluid . . . . . . . . . . . . . . . . . . . 7-30
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Climate control air filter . . . . . . . . . . . . . . . . . . . . . 7-33
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-38 Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
. . . . . . . 7-41
. . . . . . . . . . . . . . . 7-42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
. . . . . . . . . . . . . . 7-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
. . . . . . . . . . . . . . . . . . . . . . . . . 7-46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
. . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
. . . . . . . . . . . . . . . . . . . . . . . 7-47
. . . . . . . . . . . . . . . 7-51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-55
. . . . . . . . . . . . . 7-56
. . . . . . . . . . 7-57
. . . . . . . . . . . . . . . . . . . . 7-587

Maintenance
47

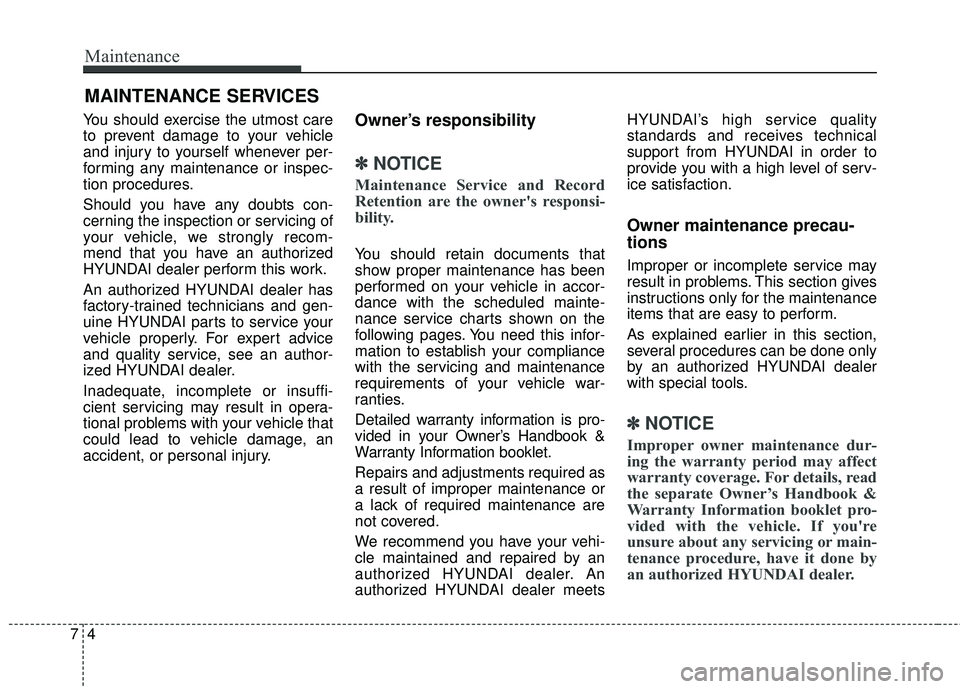

MAINTENANCE SERVICES
You should exercise the utmost care
to prevent damage to your vehicle
and injury to yourself whenever per-
forming any maintenance or inspec-
tion procedures.
Should you have any doubts con-
cerning the inspection or servicing of
your vehicle, we strongly recom-
mend that you have an authorized
HYUNDAI dealer perform this work.
An authorized HYUNDAI dealer has
factory-trained technicians and gen-
uine HYUNDAI parts to service your
vehicle properly. For expert advice
and quality service, see an author-
ized HYUNDAI dealer.
Inadequate, incomplete or insuffi-
cient servicing may result in opera-
tional problems with your vehicle that
could lead to vehicle damage, an
accident, or personal injury.Owner’s responsibility
✽ ✽NOTICE
Maintenance Service and Record
Retention are the owner's responsi-
bility.
You should retain documents that
show proper maintenance has been
performed on your vehicle in accor-
dance with the scheduled mainte-
nance service charts shown on the
following pages. You need this infor-
mation to establish your compliance
with the servicing and maintenance
requirements of your vehicle war-
ranties.
Detailed warranty information is pro-
vided in your Owner’s Handbook &
Warranty Information booklet.
Repairs and adjustments required as
a result of improper maintenance or
a lack of required maintenance are
not covered.
We recommend you have your vehi-
cle maintained and repaired by an
authorized HYUNDAI dealer. An
authorized HYUNDAI dealer meets HYUNDAI’s high service quality
standards and receives technical
support from HYUNDAI in order to
provide you with a high level of serv-
ice satisfaction.
Owner maintenance precau-
tions
Improper or incomplete service may
result in problems. This section gives
instructions only for the maintenance
items that are easy to perform.
As explained earlier in this section,
several procedures can be done only
by an authorized HYUNDAI dealer
with special tools.
✽ ✽
NOTICE
Improper owner maintenance dur-
ing the warranty period may affect
warranty coverage. For details, read
the separate Owner’s Handbook &
Warranty Information booklet pro-
vided with the vehicle. If you're
unsure about any servicing or main-
tenance procedure, have it done by
an authorized HYUNDAI dealer.

77
Maintenance
SCHEDULED MAINTENANCE SERVICE
At least once a year:
Clean the body and door drainholes.
Lubricate the door hinges and checks, and hood hinges.
Lubricate the door and hood locks and latches.
Lubricate the door rubber weather- strips.
Check the air conditioning system.
Check the power steering fluid level.
Inspect and lubricate the automat- ic transmission linkage and con-
trols.
Clean the battery and terminals.
Check the brake fluid level. Follow Normal Maintenance
Schedule if the vehicle is usually
operated where none of the following
conditions apply. If any of the following
conditions apply, follow Maintenance
Under Severe Usage Conditions.
Repeated short distance driving.
Driving in dusty conditions or
sandy areas.
Extensive use of brakes.
Driving in areas where salt or other corrosive materials are being used.
Driving on rough or muddy roads.
Driving in mountainous areas.
Extended periods of idling or low speed operation.
Driving for a prolonged period in cold temperatures and/or extremely
humid climates.
More than 50% driving in heavy city traffic during hot weather
above 90°F (32°C).
If your vehicle is operated under theabove conditions, you shouldinspect, replace or refill more fre-quently than the following NormalMaintenance Schedule. After 120months or 150,000 miles (240,000km) continue to follow the prescribedmaintenance intervals.

Maintenance
87
NORMAL MAINTENANCE SCHEDULE
The following maintenance services must be performed to ensure good emission control and performance. Keep
receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the fre-
quency of service is determined by whichever occurs first.
*
1: Check the engine oil level and leak every 350 miles(500 km) or before starting a long trip.
*
2: The drive belt should be replaced when cracks occur or tension is reduced excessively.
*
3: If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are
available from your authorized HYUNDAI dealer
along with information on how to use them. Do not
mix other additives.
*
4: Rear differential oil should be changed anytime they have been submerged in water.
*
5: Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recom-
mended for this maintenance schedule depends on
fuel quality. If there are some important safety matters
like fuel flow restriction, surging, loss of power, hard
starting problem etc, replace the fuel filter immediately
regardless of maintenance schedule and consult an
authorized HYUNDAI dealer for details. *
6: When adding coolant, use only deionized water or
soft water for your vehicle and never mix hard water
in the coolant filled at the factory. An improper coolant
mixture can result in serious malfunction or engine
damage.
*
7: Inspect for excessive valve noise and/or engine vibra- tion and adjust if necessary. We recommend that the
system be checked by an authorized HYUNDAI dealer.

I7
Index
Key positions··················\
··················\
··············5-5
Keys ··················\
··················\
··················\
·······4-3
Immobilizer key ··················\
··················\
········4-4
Remote key battery replacement ··················\
·····4-13
Smart key battery replacement ··················\
·········4-8
Label Air bag warning labels ··················\
··············· ·3-63
Engine compartment fuse label ··················\
······7-60
Instrument panel fuse label ··················\
···········7-59
Refrigerant label ··················\
··················\
·······8-7
Tire sidewall labeling ··················\
················· ·7-47
Tire specification and pressure label ··················\
··8-7
Vehicle certification label ··················\
···············8-6
LCD display warning ··················\
··················\
·· ·4-57
Light bulbs ··················\
··················\
··············· ·7-66
Lighting ··················\
··················\
··················\
·4-82
Battery saver function ··················\
················ ·4-82
Daytime running light (DRL) ··················\
········4-83
Headlamp welcome function ··················\
·········4-82
Headlight escort function ··················\
·············4-82
Lighting control ··················\
··················\
····· ·4-83
Lighting control ··················\
··················\
········· ·4-83Lower anchor
··················\
··················\
············ ·3-34
Lubricants and capacities ··················\
················· ·8-4
Luggage net ··················\
··················\
············ ·4-126
Lumbar support ··················\
··················\
··········· ·3-9
Maintenance Explanation of scheduled maintenance items · · · · · · · ·7-20
Maintenance services ··················\
··················\
· ·7-4
Maintenance under severe usage conditions ·········7-19
Normal maintenance schedule ··················\
·········7-8
Owner maintenance ··················\
··················\
·· ·7-5
Scheduled maintenance service ··················\
········7-7
Tire maintenance ··················\
··················\
···· ·7-47
Maintenance schedule ··················\
··················\
··· ·7-7
Maintenance under severe usage conditions ·········7-19
Normal maintenance schedule ··················\
·········7-8
Maintenance services ··················\
··················\
···· ·7-4
Manual climate control system ··················\
·········
·4-92
Air conditioning ··················\
··················\
····· ·4-98
Climate control air filter

· · · ··················\
··· ·4-100, 112
Heating and air conditioning ··················\
·········4-93
Manual tranmission ··················\
··················\
···· ·5-13
Manual tranmission fluid ··················\
················ ·7-30
Map lamp ··················\
··················\
·················4-89
K
L
M

I9
Index
Satellite Radio··················\
··················\
········· ·4-153
Scheduled maintenance service ··················\
···········7-7
Maintenance under severe usage conditions ·········7-19
Normal maintenance schedule ··················\
·········7-8
Seat belt warning ··················\
··················\
······· ·3-17
Seat belts ··················\
··················\
················· ·3-16
Pre-tensioner seat belt ··················\
················ ·3-20
Seat belt - Driver's 3-point system ··················\
···3-18
Seat belt warning ··················\
··················\
···· ·3-17
Shoulder belt extension guide ··················\
········3-20
Seat Warmer ··················\
··················\
··············3-10
Seatback pocket ··················\
··················\
··········3-11
Seating capacity ··················\
··················\
········· ·5-52
Seats ··················\
··················\
··················\
·······3-2
Active headrest ··················\
··················\
·········3-9
Folding the rear seat ··················\
··················\
·3-13
Front seat adjustment (manual) ··················\
········3-4
Front seat adjustment (Power) ··················\
·········3-5
Headrest ··················\
··················\
·················3-7
Lumbar support ··················\
··················\
········3-9
Rear seat ··················\
··················\
··············3-13
Rear seat entry ··················\
··················\
······· ·3-12
Seatback pocket ··················\
··················\
·······3-11
Walk in device ··················\
··················\
······· ·3-12
Warmer ··················\
··················\
··············· ·3-10Security indicator
··················\
··················\
······· ·4-16
Shift Lock ··················\
··················\
·················5-22
Shoulder belt extension guide ··················\
···········3-20
Side impact air bag ··················\
··················\
····· ·3-52
Sirius XM satellite Radio ··················\
···············4-153
Smart key ··················\
··················\
··················\
·4-6
Smart key battery replacement ··················\
·········4-8
Smart key battery replacement ··················\
············4-8
Smooth cornering ··················\
··················\
······· ·5-44
Snow tires ··················\
··················\
·················5-48
Spare tire Compact spare tire replacement ··················\
······7-47
Removing and storing the spare tire ··················\
·6-13
Special driving conditions ··················\
··············· ·5-43
Driving at night ··················\
··················\
······ ·5-44
Driving in flooded areas ··················\
···············5-46
Driving in the rain ··················\
··················\
··· ·5-45
Driving of

f-road ··················\
··················\
····· ·5-46
Hazardous driving conditions ··················\
········5-43
Highway driving ··················\
··················\
····· ·5-46
Rocking the vehicle ··················\
··················\
· ·5-43
Smooth cornering ··················\
··················\
··· ·5-44
Speed sensing door lock system ··················\
·········4-19
Speedometer ··················\
··················\
··············4-46
Sports mode ··················\
··················\
··············5-20
SRS components and functions ··················\
··········3-39
Starting difficulties, see engine will not start ·············6-3
S
