1-4
Key Product Features
This device is an all-in-one Driver Information System equipped with a multifunctional DVD player, Navigation, Bluetooth® Handsfree, Blue
Link and various other features. The WIDE VGA LCD provides a high quality resolution to both driver and passengers while the po werful and
rich sound system adds to driving enjoyment.
Display Wide TFT-LCD Display Provides high quality video through a Wide TFT-LCD Display using an LED Back Light.
AV Support for various Media
Formats
!Ÿ Support for various media formats, including HD Radio, XM Radio, Audio/MP3/Video CD, DVD, AUX.
!Ÿ Supports USB, iPod, and Bluetooth Audio Streaming modes.
Jukebox Supports copy and play of music, video, image stored within USB into Jukebox (internal memory) mode (Max.
30GB).
Gracenote When playing music, automatically receives detailed music information, such as song name, artist, album, and
genre and displays on the screen. (Audio CD, USB, Jukebox modes supported)
Navigation Voice Guidance
!Ÿ Voice route guidance to safely and conveniently reach set destinations.
!Ÿ Various map scales that enables drivers to accurately view map and surrounding areas.
Traf c Information
!Ÿ Displays traf c congestion information on the map.
!Ÿ Provides route guidance optimized according to traf c conditions.
Etc Bluetooth
® Handsfree
Convenient use of Bluetooth® Handsfree by using buttons within the steering remote controller.
Front Central Controller 8-directional jog-dial controllers for convenient control and access to various system features.
XM Data Provides Weather, Traf c, Sports, Stock related information.
Blue Link Provides Downloaded POI, ECO Driving, Gas Station, Location sharing and various other features.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 59 of 261
DISC
DISC l 2-21
Dual-Layer DVD Video Discs
!Ÿ When playing a dual-layer disc, video/
sound lags may occur for up to several
seconds. Such phenomena are not
unusual when using a dual-layer disc
and do not signal a product malfunction.
!Ÿ CD-R or CD-RW DISC without quality
guarantees or discs over 650mb may not
be properly recognized by the device.
!Ÿ Inserting an abnormal disc may result in
faulty operation/recognition.
DVD Region Code
!Ÿ The DVD Player and DVD discs are
assigned region codes. The region code
of this device is <1>.
!Ÿ Discs that have region codes besides
<1> or
PBC (Play-Back Control)-
Compatible Video CD
!Ÿ This device supports PBC-compatible
Video CDs.
PC-created Disc Compatibility
!Ÿ When burning a disc on the PC, the disc
may not operate in this device depending
on the software settings. In such cases,
inquire with the software manufacturer.
!Ÿ Additional information regarding compat-
ibility is displayed on the CD-R/RW soft-
ware disc box.
!Ÿ DVD-R/W discs are not compatible with
this device.
Compressed Audio Compatibility
!Ÿ Physical formats of CD : Model 1, Model
2 XA format 1.
!Ÿ This device supports audio file com-
pressed through MPEG-1 audio stream
layer 3 (MP3) using 8kbps ~ 320kbps
(CBR), VBR. For stable operation, the
use of files in 95kbps~192kbps bit rate
range and 44.1kHz SAMPLING fre-
quency is recommended.
!Ÿ This device supports WMA audio files
using 20kbps ~ 320kbps(CBR), VBR.
!Ÿ Variable bit rate files may operate, but
the play time information may not be
properly displayed.
!Ÿ This device only supports tracks with file
extension of “.mp3” or “.wma”.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 60 of 261
DISC
2-22

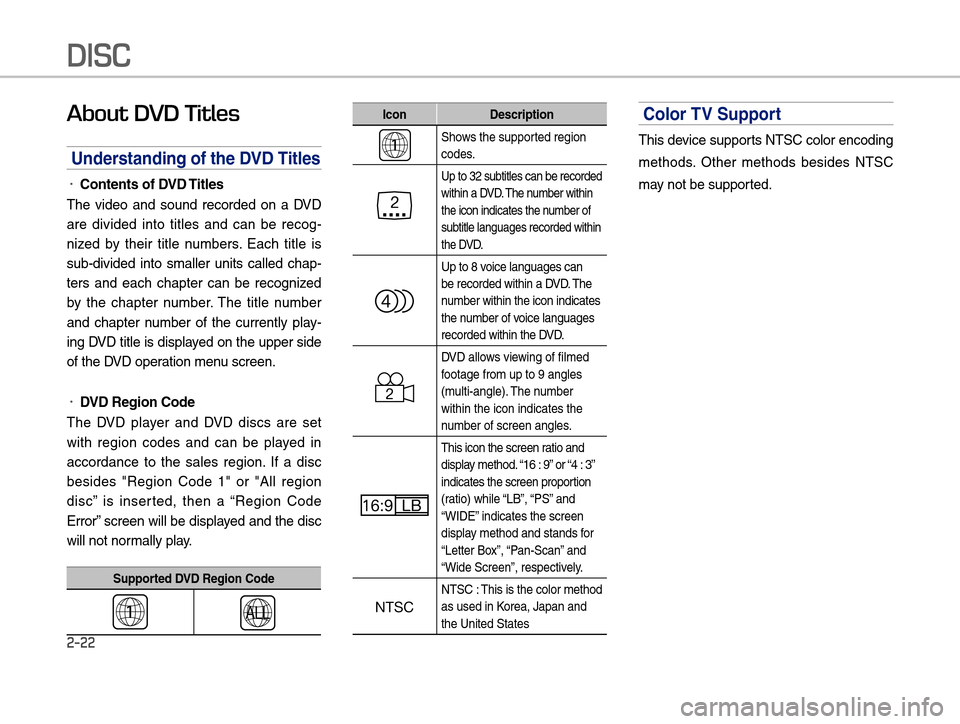

About DVD Titles
Understanding of the DVD Titles
!Ÿ Contents of DVD Titles
The video and sound recorded on a DVD
are divided into titles and can be recog-
nized by their title numbers. Each title is
sub-divided into smaller units called chap-
ters and each chapter can be recognized
by the chapter number. The title number
and chapter number of the currently play-
ing DVD title is displayed on the upper side
of the DVD operation menu screen.
!Ÿ DVD Region Code
The DVD player and DVD discs are set
with region codes and can be played in
accordance to the sales region. If a disc
besides "Region Code 1" or "All region
disc” is inserted, then a “Region Code
Error” screen will be displayed and the disc
will not normally play.
Supported DVD Region Code
Icon Description
Shows the supported region
codes.
Up to 32 subtitles can be recorded
within a DVD. The number within
the icon indicates the number of
subtitle languages recorded within
the DVD.
Up to 8 voice languages can
be recorded within a DVD. The
number within the icon indicates
the number of voice languages
recorded within the DVD.
DVD allows viewing of lmed
footage from up to 9 angles
(multi-angle). The number
within the icon indicates the
number of screen angles.
This icon the screen ratio and
display method. “16 : 9” or “4 : 3”
indicates the screen proportion
(ratio) while “LB”, “PS” and
“WIDE” indicates the screen
display method and stands for
“Letter Box”, “Pan-Scan” and
“Wide Screen”, respectively.
NTSC : This is the color method
as used in Korea, Japan and
the United States
Color TV Support
This device supports NTSC color encoding
methods. Other methods besides NTSC
may not be supported.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 131 of 261
AUX
AUX l 2-93
Starting Mode
Press the HOME key Ü Select the AUX
icon.
i Information
!Ÿ If an external device connector is con-
nected with the AUX terminal, then AUX
mode will automatically operate. Once the
connector is disconnected, the previous
mode will be restored.
!Ÿ AUX mode can be used only when an
external audio/video player (camcorder,
car VCR, etc.) has been connected.
!Ÿ The AUX volume can be controlled sepa-
rately from other AV modes.
NOTICE
!Ÿ Connecting a connector jack to the AUX
terminal without an external device will
convert the system to AUX mode, but only
output noise. When an external device is
not being used, also remove the connec-
tor jack.
!Ÿ When the external device power is con-
nected to the power jack, playing the
external device may output noise. In such
cases, disconnect the power connection
before use.
External AUDIO and VIDEO players
(Camcorders, car VCR, etc.) can be played
through a dedicated cable. The position of
the AUX jack is at the top of the gear box
located between the driver and passenger
seats.
NOTICE
!Ÿ This device supports the NTSC color
system. Other color systems are not sup-
ported.
AUX
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 196 of 261
Voice Command List
5-6
Voice Command List
Voice commands within this system are categorized into “Common
Commands” and “Mode Commands”.
!Ÿ Common Commands ( ) : commands that can be used in all
situations.
!Ÿ Mode Commands ( ) : commands that can be used in specific
multimedia/navigation/Bluetooth
® mode states.
i Information
!Ÿ Some commands will operate properly only when a USB, iPod,
Bluetooth
® or other device has been connected.
Help Command List
Command Operation
HelpDisplays the main Help screen.
Destination
HelpDisplays the Destination related command list.
Map Help Displays the Map related command list.
Radio Help Displays the FM/AM radio related command list.
XM Help Displays the XM radio related command list.
Disc HelpDisplays the DISC mode related command list for the
disc inserted in the CD Player.
iPod Help Displays the iPod related command list.
USB Help Displays the USB related command list.
Jukebox Help Displays the Jukebox related command list.
Phone Help Displays the Phone related command list.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 198 of 261
Voice Command List
5-8
CD (Audio Type)
CommandOperation
CDPlays disc media currently inserted in the disc player.
Play Plays the currently paused song.
PausePauses the current song.
Repeat Repeats the current track.
Repeat OffCancels repeat play to play tracks in sequential
order.
Shuf
e Randomly plays the tracks within the CD.
Shuf e Off Cancels random Play to play tracks in sequential
order.
Track <1~99> Plays the desired track number.
CD (MP3 Type)
Command
Operation
CDPlays disc media currently inserted in the disc player.
Play Plays the currently paused song.
PausePauses the current song.
Next Folder Plays the rst le in the next folder.
Previous Folder Plays the rst le in the previous folder.
Repeat Repeats the current le
Repeat Off Cancels repeat play to play les in sequential order.
Shuf e Plays all les within the CD in r andom order.
Shuf e Off Cancels random play to play les in sequential order.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 199 of 261
Voice Command List
Voice Command List l 5-9
DVD
CommandOperation
DVDPlays disc media currently inserted in the disc player.
PlayPlays the currently paused DV D movie.
PausePauses the current DV D movie.
Chapter <1~99>Plays the desired chapter number.
VCD (Video CD)
Command Operation
VCDPlays disc media currently inserted in the disc player.
Play Plays the currently paused VCD movie.
PausePauses the current VCD movie.
Repeat Repeats the current track.
Repeat OffCancels repeat play to play tracks in sequential order.
Track <1~99> Plays the desired track number.
USB Audio
Command Operation
USBIf the USB has been connected to the device, plays
the MP3
les within the USB
.
PlayPlays the currently paused le.
PausePauses the current le.
Next Folder Plays the rst le in the next folder.
Previous Folder Plays the rst le in the previous folder.
Repeat Repeats the current le.
Repeat Off Cancels repeat play to play les in sequential order.
Shuf e Plays all les within the USB in random order.
Shuf e Off Cancels random play to play les in sequential order.
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
Page 240 of 261
Appendix
8-2
Product Specification
DOLBY
Manufactured under license from Dolby Laboratories. Dolby and double-D
symbol
are trademarks of Dolby Laboratories.
DTS
Manufactured under license under U.S. Patent Nos : 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks & DTS
Digital Surround and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc.
All Rights Reserved.
AV/Navigation Product Specifications
Power &
Specifi ca-
tion Power Voltage
14.4V (10~15V supported)
Negative ground
Dimensions (WxHxD) 178x102x175 Weight 2.7 kg
Tuner FMFrequency Range 87.5MHz~107.9MHz
Sensitivity (mono) (30dB S/N) Under 10dBu
Signal to Noise Ratio Over 50dB Stereo Separation (1kHz) Over 20dB
AM Frequency Range 530kHz~1710kHz
Sensitivity (20dB S/N) Under 40dBu Signal to Noise Ratio Over 40dB
Audio Max Output 45W PER CHANNEL
BASS 8dB ± 3dB
MIDDLE 8dB ± 3dB
TREBLE 8dB ± 3dB
DVD
Player AUDIO
SPDIF 2CH OUT
VIDEO Analog video out (Composite)
Supported Disc Type CD/DVD
Supported Disc Format MP3/CD-DA/WMA/VIDEO CD/
MPEG4 (VIDEO)
) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E ) @ 7 * @ŠÙ < 6 4 " @ / > 1 B S U J O E E
