2016 Hyundai Elantra GT fuse box

Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ................................4-22
2. Power window switch ............................4-27
3. Power window lock switch......................4-31
4. Central door lock switch ........................4-22
5. Outside rearview mirror control..............4-54
6. Hood release lever ................................4-32
7. Instrument panel illumination control system....................................................4-57
8. Active ECO button ................................5-41
9. Steering wheel ......................................4-43
10. Tilt and telescopic steering control lever..........................................4-44
11. Fuse box ..............................................7-59
12. Manual transaxle shift lever/ Automatic transaxle shift lever ....5-14, 5-17
OGD012003N❈ The actual shape may differ from the illustration.

Your vehicle at a glance
62
ENGINE COMPARTMENT
OGDE073001N
❈The actual engine room in the vehicle may differ from the illustration. 1. Engine oil filler cap ............................7-27
2. Brake/clutch fluid reservoir ................7-32
3. Positive battery terminal ....................7-41
4. Negative battery terminal ..................7-41
5. Fuse box ............................................7-59
6. Air cleaner ........................................7-34
7. Radiator cap ......................................7-31
8. Engine coolant reservoir....................7-30
9. Engine oil dipstick..............................7-27
10. Windshield washer fluid reservoir ....7-33

73

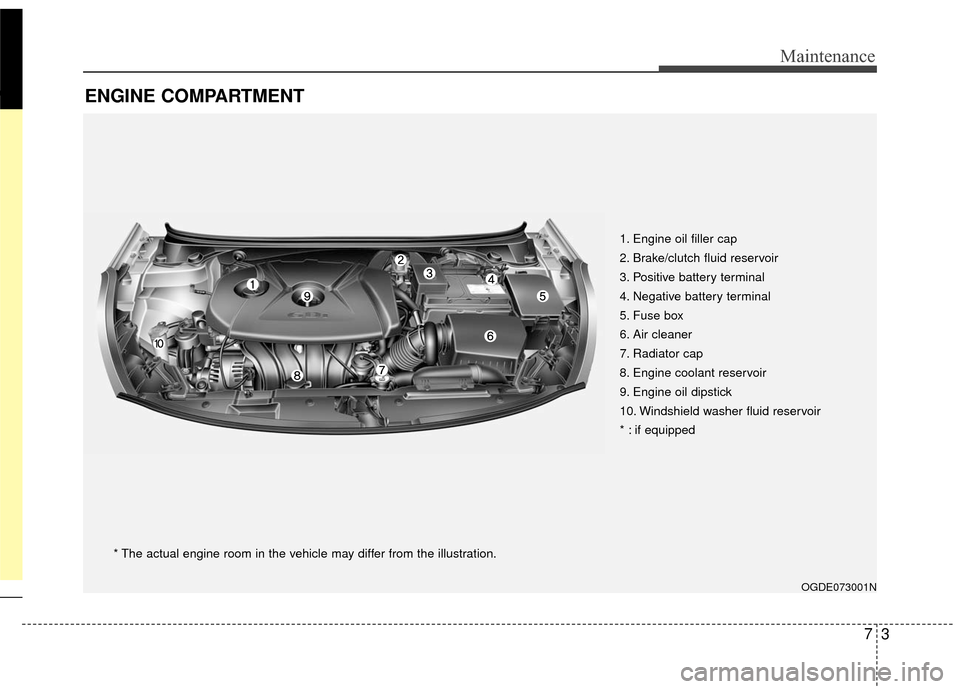

Maintenance
ENGINE COMPARTMENT
OGDE073001N
* The actual engine room in the vehicle may differ from the illustration.1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir
* : if equipped

Maintenance
64
7
Instrument panel (Driver’s side fuse panel)
DescriptionFuse ratingProtected component
C/LIGHTER20AConsole Cigar Light, Rear Power Outlet
1 MODULE7.5ASport Mode Switch
4 MODULE 7.5AA/C Control Module, Head Lamp Leveling Device Actuator LH/RH,
Fuel Filter Warning Sensor(D4FD), Rear Parking Assist System
3 MODULE7.5AInstrument Cluster, BCM, Tire Pressure Monitoring Module, Audio,
Driver/Passenger Seat Warmer Module, ATM shift lever Ind
POWER
OUTLET FRT15AFront Power Outlet
HTD MIRR10ADriver/Passenger Power Outside Mirror, A/C Control Module, ECU
WIPER FRT25AICM Relay Box (Rain Sensor Relay), Multifunction Switch,
E/R Fuse & Relay Box (RLY. 7) Front Wiper Motor
A/CON7.5AA/C Control Module, E/R Fuse & Relay Box (RLY. 4)
P/WDW LH25AP/WDW LH Relay, Driver Safety Power Window Module (LHD)
T/GATE OPEN10ATail Gate, Rear Camera Open Actuator
P/SEAT DRV30ADriver Manual Switch
2 MODULE7.5AICM Relay Box, Rear Camera Module, Electro Chromic Mirror

765
Maintenance
DescriptionFuse ratingProtected component
WIPER RR15ARear Wiper Relay, Rear Wiper Motor, Multifunction Switch
STOP LAMP15AStop Lamp Switch
P/WDW RH25AP/WDW RH Relay, Driver Safety Power Window Module (RHD)
2 PDM7.5ASmart Key Control Module, Start/Stop Button Switch, Ultrasonic Instruction Protection Sensor
5 MODULE7.5AEMS BOX (Head Lamp Washer Relay), Ionizer Unit, Panorama Sunroof, DSL BOX (PTC Relay),
E/R Fuse & Relay BOX(RLY. ), Driver/Passenger Seat Warmer Module
IG120AE/R Fuse & Relay Box (Fuse – F)
6 MODULE10AOutside Mirror Switch, Audio, Navigation Head Unit, Digital Clock
MDPS7.5AEPS Control Module
DR LOCK20ADoor Lock/Unlock Relay, ICM Relay BOX (Dead Lock Relay),
Driver/Passenger Door Lock Actuator, Fuel filler actuator, Door Lock Actuator LH/RH
INTERIOR LAMP10AVanity Lamp LH/RH, Overhead Console Lamp, Room Lamp, Luggage Lamp,
DR Warning Switch
MULTI MEDIA15AAudio, Navigation Head Unit
A/BAG15ASRS Control Module

Maintenance
66
7
DescriptionFuse ratingProtected component
1 MEMORY7.5AInstrument Cluster
A/BAG IND7.5AInstrument Cluster
3 PDM7.5ASmart Key Control Module, Ultrasonic instrusion Protection Sensor
2 MEMORY10AOutside Mirror Switch, Tire Pressure Monitoring Module, BCM, Auto Light & Photo Sensor,
OBD, Digital Clock, A/C Control Module
1 PDM25ASmart Key Control Module
START7.5AW/O Button Start : E/R Fuse & Relay Box (RLY. ) Ignition Lock Switch,
Transaxle Range Switch
With Button Start : ECM/PCM, Transaxle Range Switch
SUNROOF20APanorama Sunroof
BCM7.5ABCM, Smart Key Control Module
A/CON SWITCH7.5AA/C Control Module
7 MODULE7.5ABCM, Smart Key Control Module
FOG LAMP RR10ARear Fog Lamp
PUDDLE LAMP10ADriver/Passenger Power Outside Mirror

Maintenance
68
7
DescriptionFuse ratingProtected component
MULTI
FUSE
MDPS80AEPS Control Module
1B+60AI/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH),
Fuse - F13/F14/F19/F20/F21/F26/ F36)
1 ABS40AESC Control Module, Multipurpose Check Connector
BLOWER40ARLY. 4 (Blower Relay)
2B+60AI/P Junction Box (IPS 3 (4CH), IPS 4 (4CH), Fuse - F2/F7/F9/F15)
GSL PTC HEATER60ARLY. 12 (GASOLINE PTC Relay)
FUSE
COOLING FAN40ARLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay)
2 ABS20AESC Control Module, Multipurpose Check Connector
IG240ARLY. 9 (Start Relay), Ignition Switch (W/O Button Start),
RLY. 6 (PDM 4 (IG2) Relay, With Button Start)
IG140AW/O Button Start : Ignition Switch,
With Button Start : RLY. 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay
DEICER15AICM Relay Box (Front Deicer Relay)
3B+50AI/P Junction Box (Leak Current Autocut Device, Fuse - F18/F25/F30/F34/F38)
BRAKE SWITCH10ASmart Key Control Module, Stop Signal Relay

769
Maintenance
DescriptionFuse ratingProtected component
FUSE
S/HEATER FRT20ADriver/Passenger Seat Warmer Module
WIPER10APCM/ECM
HORN15ARLY. 5 (Horn Relay), ICM Relay Box (B/A Horn Relay)
1 TCU15AA/T - TCM (D4FD), Transaxle Range Switch
6 ECU15ARLY. 9 (D4FD, Start Relay), ECM/PCM
3 ABS10AESC Control Module, Multipurpose Check Connector
3 ECU10AECM/PCM, Air Flow Sensor, Stop Lamp Switch
B/UP
LAMP10AM/T - Back-Up Lamp Switch, A/T - Rear Combination Lamp (IN) LH/RH,
Rear Curtain Module, Navigation Head Unit, Electro Chromic Mirror, IPS Control Module
