2016 Hyundai Azera dimensions

Specifications, Consumer information and Reporting safety defects
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Weight and volume . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Air conditioning system. . . . . . . . . . . . . . . . . . . . . . 8-4
Recommended lubricants and capacities . . . . . . . 8-5
• Recommended SAE viscosity number. . . . . . . . . . . 8-6
Vehicle identification number (VIN) . . . . . . . . . . . 8-7
Vehicle certification label . . . . . . . . . . . . . . . . . . . . 8-7
Tire specification and pressure label . . . . . . . . . . . 8-8
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Consumer information . . . . . . . . . . . . . . . . . . . . . . 8-9
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . 8-10
8

Specifications, Consumer information and Reporting safety defects
28
BULB WATTAGE
Itemin (mm)
Overall length 193.7 (4920)
Overall width 73.2 (1860)
Overall height 57.9 (1471)
Front tread P 245/45 R18 63.2 (1606)
P 245/40 R19 63.1 (1602)
Rear tread P 245/45 R18 63.3 (1607)
P 245/40 R19 63.1 (1603)
Wheelbase 112.0 (2845)
Light BulbWattage Bulb type
Front Headlights (Low)
55 or 35
(HID) H7 or D1S
Headlights (High)/DRL*
155 H7
Front turn signal light 21 HY21W
Position light LED LED
Side repeater light LED LED
Front fog lightType A51HB4
Type BLEDLED
Front side markerLEDLED
Rear
Stop lightLEDLED
Tail light LED LED
Rear turn signal light 27 PY27W
Back-up light 16 W16W
High mounted stop light LED LED
License plate light 5 W5W
Rear side marker LED LED
Interior Map lamp LED LED
Room lamp LED LED
Luggage lamp 5 FESTOON
Glove box lamp 5 FESTOON
Vanity mirror lamp LED LEDDIMENSIONS ENGINE
Item
Gasoline 3.3L
Displacement cu. in
(cc) 203.9
(3342)
Bore x Stroke in
(mm) 3.62 x 3.30
(92 x 83.8)
Firing order 1-2-3-4-5-6
No. of cylinders 6, V-type
*1DRL : Daytime Running Light

I3

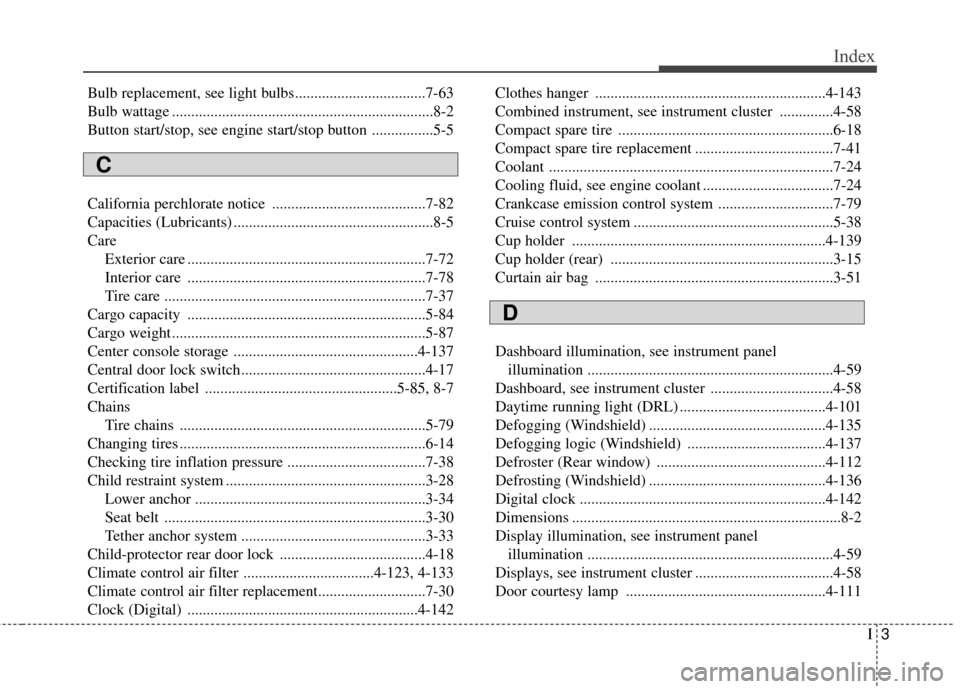

Index
Bulb replacement, see light bulbs..................................7-63
Bulb wattage ....................................................................8-2
Button start/stop, see engine start/stop button ................5-5
California perchlorate notice ........................................7-82
Capacities (Lubricants) ....................................................8-5
CareExterior care ..............................................................7-72
Interior care ..............................................................7-78
Tire care ....................................................................7-37\
Cargo capacity ..............................................................5-84
Cargo weight ..................................................................5-87
Center console storage ................................................4-137
Central door lock switch................................................4-17
Certification label ..................................................5-85, 8-7
Chains Tire chains ................................................................5-79
Changing tires ................................................................6-14
Checking tire inflation pressure ....................................7-38
Child restraint system ....................................................3-28 Lower anchor ............................................................3-34
Seat belt ....................................................................3-30\
Tether anchor system ................................................3-33
Child-protector rear door lock ......................................4-18
Climate control air filter ..................................4-123, 4-133
Climate control air filter replacement............................7-30
Clock (Digital) ............................................................4-142 Clothes hanger ............................................................4-143
Combined instrument, see instrument cluster ..............4-58
Compact spare tire ........................................................6-18
Compact spare tire replacement ....................................7-41
Coolant ........................................................................\
..7-24
Cooling fluid, see engine coolant ..................................7-24
Crankcase emission control system ..............................7-79
Cruise control system ....................................................5-38
Cup holder ..................................................................4-139
Cup holder (rear) ..........................................................3-15
Curtain air bag ..............................................................3-51
Dashboard illumination, see instrument panel
illumination ................................................................4-59
Dashboard, see instrument cluster ................................4-58
Daytime running light (DRL) ......................................4-101
Defogging (Windshield) ..............................................4-135
Defogging logic (Windshield) ....................................4-137
Defroster (Rear window) ............................................4-112
Defrosting (Windshield) ..............................................4-136
Digital clock ................................................................4-142
Dimensions ......................................................................8-\
2
Display illumination, see instrument panel illumination ................................................................4-59
Displays, see instrument cluster ....................................4-58
Door courtesy lamp ....................................................4-111
C
D
