2016 HONDA ODYSSEY tailgate

309
uuCustomized Features u
Continued
Features
“Trip A” Reset Timing
“Trip B” Reset Timing

Language Selection*
Adjust Outside Temp. Display




Forward Collision Warning Distance

Keyless Start Guidance Screens
Default
Memory Position Link

Door Unlock Mode
Keyless Access Light Flash

Interior Light Dimming Time
Headlight Auto Off Timer
Auto light Sensitivity
Key And Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Auto Door Lock
Auto Door Unlock

Maintenance Reset
Meter
Setup
Driver
Assist
System
Setup
*
Driving Position Setup*
Keyless Access Setup
Lighting Setup
Door
Setup
Maintenance Info.
Keyless Access Beep
Blind Spot Info*
Power Slide Door Keyless Open Mode
Power Tailgate Keyless Open Mode
Power Tailgate Open by Outer Handle
Power
Tailgate
Setup
*
Vehicle
Settings
* Not available on all models
16 US ODYSSEY-31TK86500.book 309 ページ ２０１５年６月２４日　水曜日　午後３時０分

318
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Settings Power
Tailgate
Setup
*
Power Tailgate Keyless
Open Mode
Changes the keyless setting for when the power
tailgate opens. Anytime*1/
When
Unlocked
Power Tailgate Open by
Outer Handle Selects whether to enable the power tailgate
open operation using the tailgate outer handle. Off (Manual Only)
/
On (Power/
Manual)
*1
Mainte-
nance
Info. Maintenance Reset
Resets the engine oil life display when you have
performed the maintenance service. —
Default Cancels/Resets all cust
omized items in the
Vehicle Settings group as default. Default
/OK
* Not available on all models
16 US ODYSSEY-31TK86500.book 318 ページ ２０１５年６月２４日　水曜日　午後３時０分

Continued397
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle's
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 399
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 118
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 161
2 Adjusting the Head Restraints P. 164
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 158
2 Adjusting the Steering Wheel P. 157
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
16 US ODYSSEY-31TK86500.book 397 ページ ２０１５年６月２４日　水曜日　午後３時０分

509
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 510
If a Tire Goes Flat Changing a Flat Tire ......................... 511
Engine Does Not Start Checking the Engine ........................ 520
If the Smart Entry Remote Battery is Weak...521
Emergency Engine Stop ................... 522
Jump Starting .................................... 523
Shift Lever Does Not Move .............. 525
Overheating How to Handle Overheating ............. 526 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 528
If the Charging System Indicator Comes
On ................................................. 528
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 529
If the Brake System Indicator (Red) Comes On ................................................. 530
If the Low Tire Pressure Indicator Comes On ................................................. 531 If the TPMS Indicator Comes On ...... 531
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 532
Fuses Fuse Locations ................................. 533
Inspecting and Changing Fuses ........ 538
Emergency Towing ........................... 539
When You Cannot Open or Close the Tailgate ............................................ 540
16 US ODYSSEY-31TK86500.book 509 ページ ２０１５年６月２４日　水曜日　午後３時０分

537
uuFuses uFuse Locations
Handling the Unexpected
Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.
■Rear Fuse Box■Circuit protected and fuse rating
Circuit ProtectedAmps
1Power Tailgate Closer*(20 A)
2Trailer Small Light*(7.5 A)
3−−
4Tailgate*(10 A)
5Rear Driver’s Side Door Lock7.5 A
6−−
7−−
8Trailer*(10 A)
9Trailer Charge*(20 A)
10 Trailer Back Light*(7.5 A)
11Trailer Hazard*(7.5 A)
12 Rear Wiper 10 A
13ECU RR7.5 A
14 Power Tailgate Motor*(40 A)
15AC Inverter*(30 A)
16 − −
17−−
18 − −
* Not available on all models
16 US ODYSSEY-31TK86500.book 537 ページ ２０１５年６月２４日　水曜日　午後３時０分

540
Handling the Unexpected

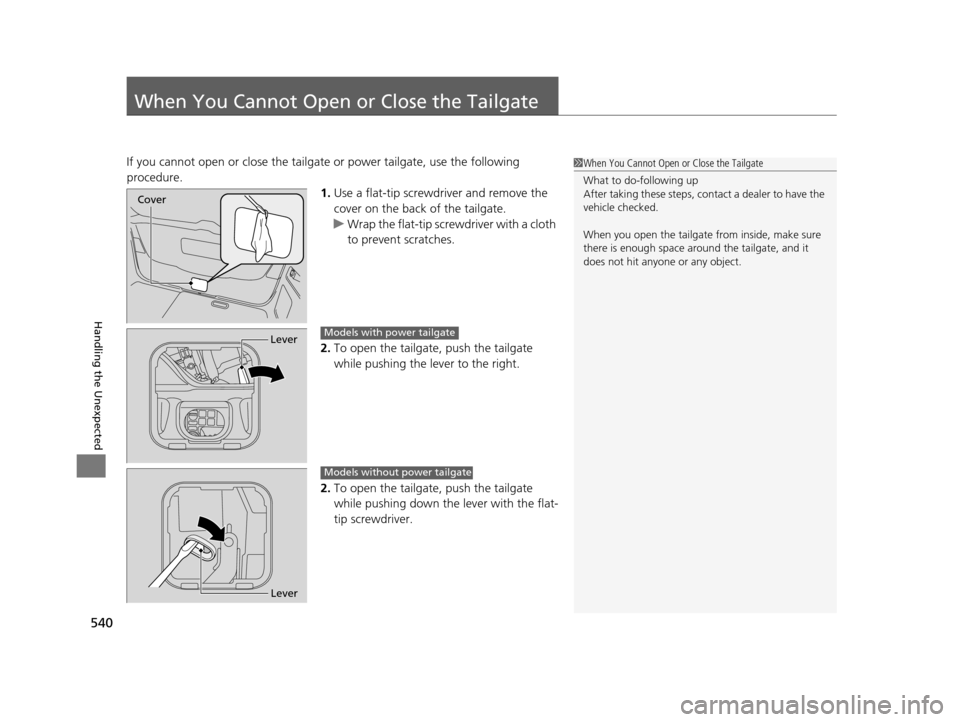

When You Cannot Open or Close the Tailgate
If you cannot open or close the tailgate or power tailgate, use the following
procedure. 1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgat e, push the tailgate
while pushing the lever to the right.
2. To open the tailgat e, push the tailgate
while pushing down the lever with the flat-
tip screwdriver.1 When You Cannot Open or Close the Tailgate
What to do-following up
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
LeverModels with power tailgate
Lever
Models without power tailgate
16 US ODYSSEY-31TK86500.book 540 ページ ２０１５年６月２４日　水曜日　午後３時０分

555
Index
DimmingHeadlights .............................................. 147
Rearview Mirror ...................................... 158
Dipstick (Engine Oil) ................................ 466
Directional Signals (Turn Signal) ............. 147
Display Button .................................. 212, 238
Door Mirrors ............................................. 159
Doors ........................................................ 110
Auto Door Locking.................................. 120
Auto Door Unlocking .............................. 120
Door and Tailgate Open Indicator ....... 29, 75
Keys........................................................ 110
Locking/Unlocking the Doors from the Inside .............................................. 118
Locking/Unlocking the Doors from the Outside ........................................... 113
Lockout Prevention System ..................... 117
DOT Tire Quality Grading ........................ 493
Driving ...................................................... 395
Automatic Transmission .......................... 412
Braking ................................................... 436
Cruise Control ........................................ 415
Shifting Gear .......................................... 413
Starting the Engine ......................... 407, 409
Driving Position Memory System ............ 155
Dust and Pollen Filter .............................. 504
E
Elapsed Time.............................................. 97
Electronic Stability Control (ESC) ............ 426Emergency
................................................ 539
Emergency Engine Stop ........................... 522
Emissions Testing (Readiness Codes) ....... 547
Engine ....................................................... 544
Coolant ................................................... 470
Jump Starting .......................................... 523
Oil ........................................................... 465
Starting ........................................... 407, 409
Switch Buzzer .......................................... 142
Engine Coolant ......................................... 470
Adding to the Radiator ............................ 471
Adding to the Reserve Tank ..................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Engine Oil ................................................. 465
Adding .................................................... 467
Checking ................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator .................. 71, 528
Recommended Engine Oil ........................ 465
ENGINE START/STOP Button .................... 143
Exhaust Gas Hazard (Carbon
Monoxide) ................................................. 66
Expanded View Driver’s Mirror ............... 160
Exterior Care (Cleaning) ........................... 507
Exterior Mirrors ........................................ 159
F
Features..................................................... 205 Filters
Dust and Pollen ....................................... 504
Oil ........................................................... 468
Flat Tire ..................................................... 511
Flip-up Trash Bag Ring ............................. 179
Floor Mats ................................................. 506
Fluids Automatic Transmission .......................... 472
Brake ...................................................... 473
Engine Coolant ....................................... 470
Power Steering ........................................ 474
Windshield Washer ................................. 474
Fog Light Indicator ..................................... 78
Folding Down the Rear Seats .......... 162, 173
Foot Brake ................................................ 437
Forward Collision Warning (FCW) ........... 418
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 161
Adjusting ................................................ 161
Fuel ...................................................... 19, 446
Economy ................................................. 449
Gauge ....................................................... 92
Instant Fuel Economy .......................... 94, 97
Low Fuel Indicator ..................................... 73
Range ................................................. 94, 97
Recommendation .................................... 446
Refueling................................................. 446
Fuel Economy ........................................... 449
Fuel Fill Cap ........................................ 19, 448
Message.................................................. 529
Fuel Fill Door ...................................... 19, 447
16 US ODYSSEY-31TK86500.book 555 ページ ２０１５年６月２４日　水曜日　午後３時０分

556
Index
Fuses.......................................................... 533
Inspecting and Changing ......................... 538
Locations ................. 533, 534, 535, 536, 537
G
Gasoline (Fuel)
Economy ................................................. 449
Gauge ....................................................... 92
Information ............................................. 446
Instant Fuel Economy ........................... 94, 97
Low Fuel Indicator ..................................... 73
Refueling ................................................. 446
Gauges ......................................................... 92
Gear Shift Lever Positions Automatic Transmission ........................... 413
Glass (care) ........................................ 505, 508
Glove Box .................................................. 178
Grocery Bag Hooks ................................... 187
H
Halogen Bulbs................................... 475, 479
Handling the Unexpected ........................ 509
HandsFreeLink® (HFL)....................... 327, 360
Auto Answer ................................... 342, 374
Automatic Import of Ce llular Phonebook and
Call History .................................... 344, 376
Automatic Transferring .................... 342, 374
Displaying e-mail messages ...................... 389
Displaying Text Me ssages................. 356, 388 HFL Buttons..................................... 327, 360
HFL Menus ...................................... 329, 362
HFL Status Display ........................... 328, 361
Limitations for Manual Operation .... 328, 361
Making a Call .................................. 348, 380
Options During a Call ...................... 354, 385
Phone Setup.................................... 334, 366
Receiving a Call ............................... 353, 384
Receiving a Text Message ........................ 355
Receiving a Text/E-mail Message.............. 386
Ring Tone........................................ 343, 375
Selecting a Mail Account ......................... 387
Speed Dial ....................................... 345, 377
To Create a Security PIN .................. 341, 373
To Set Up a Text Message Options .......... 339
To Set Up a Text/E-mail Message
Options ................................................. 371
Use Contact Photo .................................. 375
Hazard Warning Button .............................. 4
Head Restraints ........................................ 164
Headlights ................................................. 147
Aiming .................................................... 475
Automatic Operation............................... 148
Dimming ......................................... 147, 150
Operating................................................ 147
Heaters (Seat) ........................................... 189
Heating and Cooling System ................... 194
Cooling ................................................... 196
Defrosting the Windshield and Windows ............................................... 196
Dust and Pollen Filter............................... 504 Heating................................................... 195
HFL (HandsFreeLink ®) ...................... 327, 360
High Beam Indicator .................................. 77
HondaVAC
TM............................................. 191
I
Identification Numbers Engine and Transmission ......................... 544
Vehicle Identification............................... 544
Ignition Switch ......................................... 142
Illumination Control ................................ 153
Knob ...................................................... 153
Immobilizer System .................................. 135
Indicator ................................................... 78
Indicators .................................................... 70
Anti-lock Brake System (ABS) .................... 73
Blind spot information (BSI) ....................... 83
Brake System (Amber) ............................... 70
Charging System............................... 72, 528
CRUISE CONTROL ............................. 82, 416
CRUISE MAIN.................................... 82, 415
Daytime Running Lights ............................ 75
Door and Tailgate Open ...................... 29, 75
Fog Light .................................................. 78
Forward Collision Wa rning (FCW) ............. 80
Fuel Economy ........................................... 82
Hazard Warning........................................ 77
High Beam ................................................ 77
Immobilizer System ................................... 78
Lane Departure Warning (LDW) ................ 81
16 US ODYSSEY-31TK86500.book 556 ページ ２０１５年６月２４日　水曜日　午後３時０分
