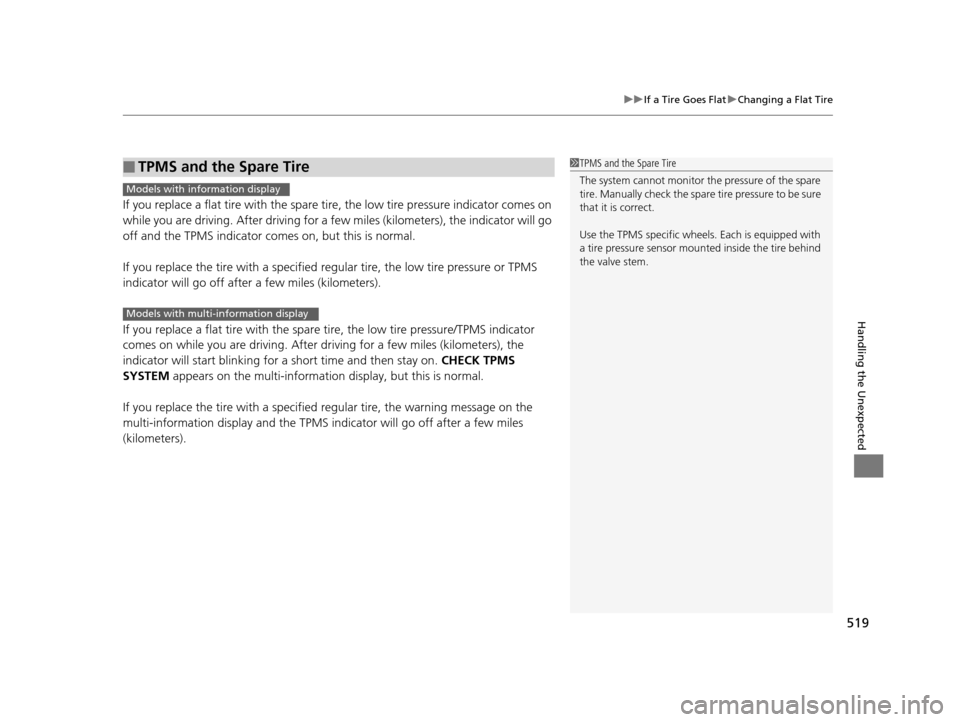

uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
If you replace a flat tire with the spare ti re, the low tire pressure indicator comes on
while you are driving. After driving for a fe w miles (kilometers), the indicator will go
off and the TPMS indicator co mes on, but this is normal.
If you replace the tire with a specified re gular tire, the low tire pressure or TPMS
indicator will go off after a few miles (kilometers).
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
multi-information display and the TPMS indicator will go off after a few miles
(kilometers).
■TPMS and the Spare Tire1 TPMS and the Spare Tire
The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure se nsor mounted inside the tire behind
the valve stem.
Models with info rmation display
Models with multi- information display
16 US ODYSSEY-31TK86500.book 519 ページ ２０１５年６月２４日　水曜日　午後３時０分

520
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the multi-information display.
●If the TO START, HOLD REMOTE NEAR START BUTTON message appears
2If the Smart Entry Remote Battery is Weak P. 521
uMake sure the smart entry remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 143
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 499●If the interior lights come on normally 2 Fuses P. 533
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 407, 409
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 135
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 92
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 538
If the problem continues:
2Emergency Towing P. 539
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 523
Models with multi- information display
16 US ODYSSEY-31TK86500.book 520 ページ ２０１５年６月２４日　水曜日　午後３時０分

521
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the indicator on the ENGINE START/STOP button flashes,
and the engine won’t start.
The TO START, HOLD REMOTE NEAR START BUTTON message appears on the
multi-information display.
Start the engine as follows. 1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the smart entry remote
should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
indicator stays on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
Models with smart entry system
Models with multi- information display
All models
16 US ODYSSEY-31TK86500.book 521 ページ ２０１５年６月２４日　水曜日　午後３時０分

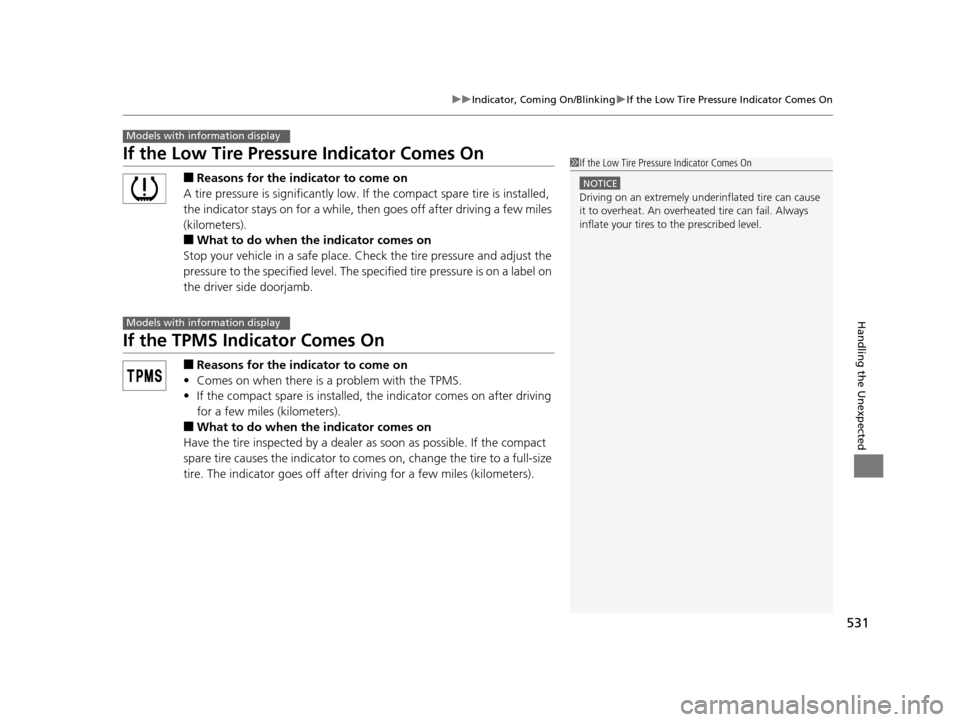

531
uuIndicator, Comin g On/BlinkinguIf the Low Tire Pressure Indicator Comes On
Handling the Unexpected
If the Low Tire Pressu re Indicator Comes On
■Reasons for the indicator to come on
A tire pressure is significantly low. If the compact spare tire is installed,
the indicator stays on for a while, then goes off after driving a few miles
(kilometers).
■What to do when th e indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
If the TPMS Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the TPMS.
• If the compact spare is installed, the indicator comes on after driving
for a few miles (kilometers).
■What to do when th e indicator comes on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indi cator to comes on, change the tire to a full-size
tire. The indicator goes off after driving for a few miles (kilometers).
Models with information display
1If the Low Tire Pressure Indicator Comes On
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
Models with info rmation display
16 US ODYSSEY-31TK86500.book 531 ページ ２０１５年６月２４日　水曜日　午後３時０分

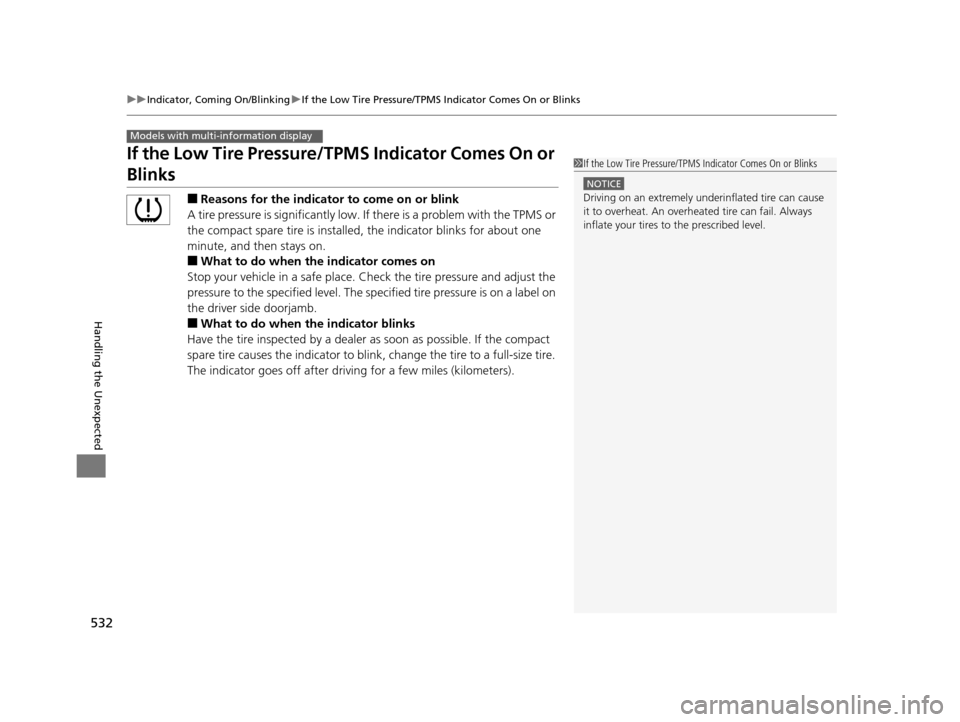

532
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire is installed, the indicator blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
Models with multi- information display
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
16 US ODYSSEY-31TK86500.book 532 ページ ２０１５年６月２４日　水曜日　午後３時０分

555
Index
DimmingHeadlights .............................................. 147
Rearview Mirror ...................................... 158
Dipstick (Engine Oil) ................................ 466
Directional Signals (Turn Signal) ............. 147
Display Button .................................. 212, 238
Door Mirrors ............................................. 159
Doors ........................................................ 110
Auto Door Locking.................................. 120
Auto Door Unlocking .............................. 120
Door and Tailgate Open Indicator ....... 29, 75
Keys........................................................ 110
Locking/Unlocking the Doors from the Inside .............................................. 118
Locking/Unlocking the Doors from the Outside ........................................... 113
Lockout Prevention System ..................... 117
DOT Tire Quality Grading ........................ 493
Driving ...................................................... 395
Automatic Transmission .......................... 412
Braking ................................................... 436
Cruise Control ........................................ 415
Shifting Gear .......................................... 413
Starting the Engine ......................... 407, 409
Driving Position Memory System ............ 155
Dust and Pollen Filter .............................. 504
E
Elapsed Time.............................................. 97
Electronic Stability Control (ESC) ............ 426Emergency
................................................ 539
Emergency Engine Stop ........................... 522
Emissions Testing (Readiness Codes) ....... 547
Engine ....................................................... 544
Coolant ................................................... 470
Jump Starting .......................................... 523
Oil ........................................................... 465
Starting ........................................... 407, 409
Switch Buzzer .......................................... 142
Engine Coolant ......................................... 470
Adding to the Radiator ............................ 471
Adding to the Reserve Tank ..................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Engine Oil ................................................. 465
Adding .................................................... 467
Checking ................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator .................. 71, 528
Recommended Engine Oil ........................ 465
ENGINE START/STOP Button .................... 143
Exhaust Gas Hazard (Carbon
Monoxide) ................................................. 66
Expanded View Driver’s Mirror ............... 160
Exterior Care (Cleaning) ........................... 507
Exterior Mirrors ........................................ 159
F
Features..................................................... 205 Filters
Dust and Pollen ....................................... 504
Oil ........................................................... 468
Flat Tire ..................................................... 511
Flip-up Trash Bag Ring ............................. 179
Floor Mats ................................................. 506
Fluids Automatic Transmission .......................... 472
Brake ...................................................... 473
Engine Coolant ....................................... 470
Power Steering ........................................ 474
Windshield Washer ................................. 474
Fog Light Indicator ..................................... 78
Folding Down the Rear Seats .......... 162, 173
Foot Brake ................................................ 437
Forward Collision Warning (FCW) ........... 418
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 161
Adjusting ................................................ 161
Fuel ...................................................... 19, 446
Economy ................................................. 449
Gauge ....................................................... 92
Instant Fuel Economy .......................... 94, 97
Low Fuel Indicator ..................................... 73
Range ................................................. 94, 97
Recommendation .................................... 446
Refueling................................................. 446
Fuel Economy ........................................... 449
Fuel Fill Cap ........................................ 19, 448
Message.................................................. 529
Fuel Fill Door ...................................... 19, 447
16 US ODYSSEY-31TK86500.book 555 ページ ２０１５年６月２４日　水曜日　午後３時０分

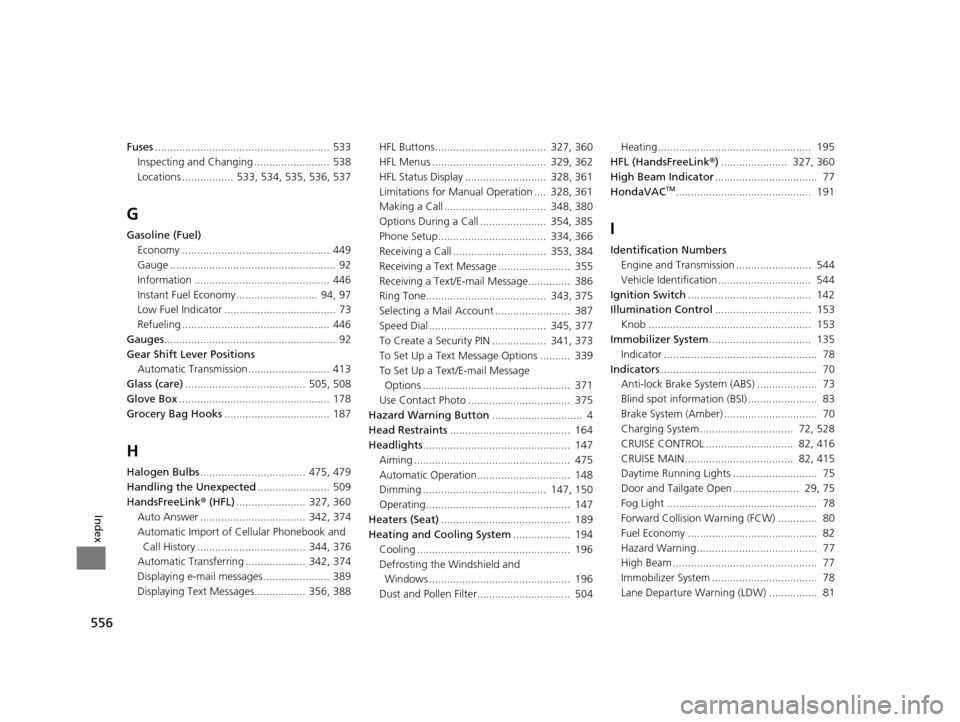

556
Index
Fuses.......................................................... 533
Inspecting and Changing ......................... 538
Locations ................. 533, 534, 535, 536, 537
G
Gasoline (Fuel)
Economy ................................................. 449
Gauge ....................................................... 92
Information ............................................. 446
Instant Fuel Economy ........................... 94, 97
Low Fuel Indicator ..................................... 73
Refueling ................................................. 446
Gauges ......................................................... 92
Gear Shift Lever Positions Automatic Transmission ........................... 413
Glass (care) ........................................ 505, 508
Glove Box .................................................. 178
Grocery Bag Hooks ................................... 187
H
Halogen Bulbs................................... 475, 479
Handling the Unexpected ........................ 509
HandsFreeLink® (HFL)....................... 327, 360
Auto Answer ................................... 342, 374
Automatic Import of Ce llular Phonebook and
Call History .................................... 344, 376
Automatic Transferring .................... 342, 374
Displaying e-mail messages ...................... 389
Displaying Text Me ssages................. 356, 388 HFL Buttons..................................... 327, 360
HFL Menus ...................................... 329, 362
HFL Status Display ........................... 328, 361
Limitations for Manual Operation .... 328, 361
Making a Call .................................. 348, 380
Options During a Call ...................... 354, 385
Phone Setup.................................... 334, 366
Receiving a Call ............................... 353, 384
Receiving a Text Message ........................ 355
Receiving a Text/E-mail Message.............. 386
Ring Tone........................................ 343, 375
Selecting a Mail Account ......................... 387
Speed Dial ....................................... 345, 377
To Create a Security PIN .................. 341, 373
To Set Up a Text Message Options .......... 339
To Set Up a Text/E-mail Message
Options ................................................. 371
Use Contact Photo .................................. 375
Hazard Warning Button .............................. 4
Head Restraints ........................................ 164
Headlights ................................................. 147
Aiming .................................................... 475
Automatic Operation............................... 148
Dimming ......................................... 147, 150
Operating................................................ 147
Heaters (Seat) ........................................... 189
Heating and Cooling System ................... 194
Cooling ................................................... 196
Defrosting the Windshield and Windows ............................................... 196
Dust and Pollen Filter............................... 504 Heating................................................... 195
HFL (HandsFreeLink ®) ...................... 327, 360
High Beam Indicator .................................. 77
HondaVAC
TM............................................. 191
I
Identification Numbers Engine and Transmission ......................... 544
Vehicle Identification............................... 544
Ignition Switch ......................................... 142
Illumination Control ................................ 153
Knob ...................................................... 153
Immobilizer System .................................. 135
Indicator ................................................... 78
Indicators .................................................... 70
Anti-lock Brake System (ABS) .................... 73
Blind spot information (BSI) ....................... 83
Brake System (Amber) ............................... 70
Charging System............................... 72, 528
CRUISE CONTROL ............................. 82, 416
CRUISE MAIN.................................... 82, 415
Daytime Running Lights ............................ 75
Door and Tailgate Open ...................... 29, 75
Fog Light .................................................. 78
Forward Collision Wa rning (FCW) ............. 80
Fuel Economy ........................................... 82
Hazard Warning........................................ 77
High Beam ................................................ 77
Immobilizer System ................................... 78
Lane Departure Warning (LDW) ................ 81
16 US ODYSSEY-31TK86500.book 556 ページ ２０１５年６月２４日　水曜日　午後３時０分

557
Index
Lights On .................................................. 77
Low Fuel ................................................... 73
Low Oil Pressure ............................... 71, 528
Low Tire Pressure .............................. 76, 428
Low Tire Pressure/TPMS ............ 76, 428, 429
Maintenance Minder......................... 82, 455
Malfunction Indicator Lamp .............. 71, 529
Parking Brake and Brake System (Red) ............................................... 70, 530
Parking Sensor .......................................... 75
Power Sliding Door ................................... 83
Power Tailgate .......................................... 82
Seat Belt Reminder.............................. 31, 73
Security System Alarm............................... 79
Shift Lever Position.................................... 72
Smart Entry System ................................... 79
Starter System........................................... 79
Supplemental Restraint System ........... 49, 74
System Message ....................................... 77
TPMS ................................................ 76, 430
Transmission ............................................. 72
Turn Signal ............................................... 77
Vehicle Stability Assist (VSA® ) System ........ 74
VSA ® (Vehicle Stability Assist) System ...... 426
VSA ® OFF.......................................... 74, 427
Washer Level ............................................ 82
Information .............................................. 541
Information Button ................................... 96
Information Display ................................... 93
Instant Fuel Economy .......................... 94, 97 Instrument Panel
........................................ 69
Brightness Control ................................... 153
Integrated Sunshades ............................... 190
Interface Dial ............................................ 234
Interior Lights ........................................... 176
Interior Rearview Mirror .......................... 158
J
Jack (Wheel Nut Wrench) ........................ 514
Jump Starting ........................................... 523
K
Key Number Tag ....................................... 111
Keyless Lockout Prevention ..................... 117
Keys ........................................................... 110
Lockout Prevention .................................. 117
Master Keys ............................................. 110
Number Tag ............................................ 111
Rear Door Won’t Open ............................ 119
Remote Transmitter ................................. 115
Types and Functions ................................ 110
Valet Key ................................................. 111
Won’t Turn ................................................ 22
Kickdown (Automatic Transmission) ....... 412
L
Lane Departure Warning (LDW).............. 422
LaneWatchTM............................................. 434 Language (HFL)
................................ 328, 361
LATCH (Child Seats) .................................... 57
Lights ................................................. 147, 475
Automatic ............................................... 148
Bulb Replacement ................................... 475
Daytime Running Lights........................... 150
Fog Lights ............................................... 150
High Beam Indicator .................................. 77
Interior .................................................... 176
Light Switches ......................................... 147
Lights On Indicator .................................... 77
Turn Signals ............................................ 147
Load Limits ................................................ 399
Locking/Unlocking .................................... 110
Auto Door Locking/Unlocking.................. 120
Childproof Door Locks............................. 119
From Inside ............................................. 118
From Outside .......................................... 113
Keys ........................................................ 110
Using a Key ............................................. 116
Lockout Prevention System ..................... 117
Low Battery Charge ................................. 528
Low Fuel Indicator ...................................... 73
Low Oil Pressure Indicator ................. 71, 528
Low Smart Entry Remote Signal
Strength .................................................. 112
Lower Anchors ............................................ 57
Luggage (Maximum Load Limit) ............. 399
16 US ODYSSEY-31TK86500.book 557 ページ ２０１５年６月２４日　水曜日　午後３時０分
