2016 HONDA CR-Z navigation

4
Quick Reference Guide
Quick Reference Guide

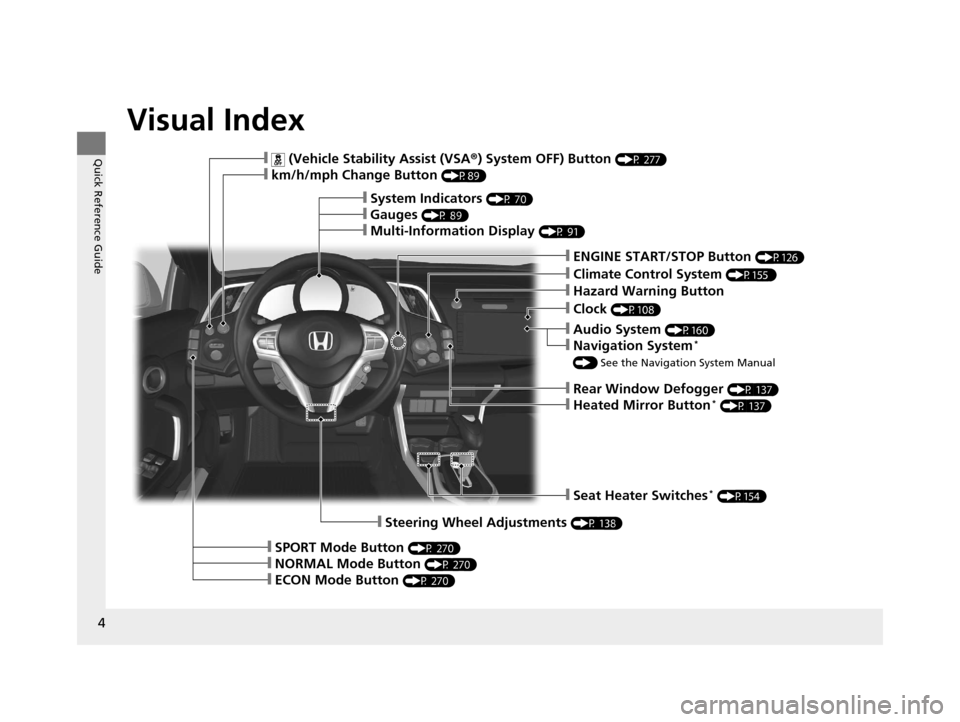

Visual Index
❙Steering Wheel Adjustments (P 138)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 277)
❙km/h/mph Change Button (P89)
❙Climate Control System (P155 )
❙ENGINE START/STOP Button (P126)
❙Clock (P108)
❙Hazard Warning Button
❙Audio System (P160)
❙Navigation System*
() See the Navigation System Manual
❙System Indicators (P 70)
❙Gauges (P 89)
❙Multi-Information Display (P 91)
❙Seat Heater Switches* (P154)
❙SPORT Mode Button (P 270)
❙NORMAL Mode Button (P 270)
❙ECON Mode Button (P 270)
❙Rear Window Defogger (P 137)
❙Heated Mirror Button* (P 137)
16 CR-Z-31SZT6500.book 4 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

5

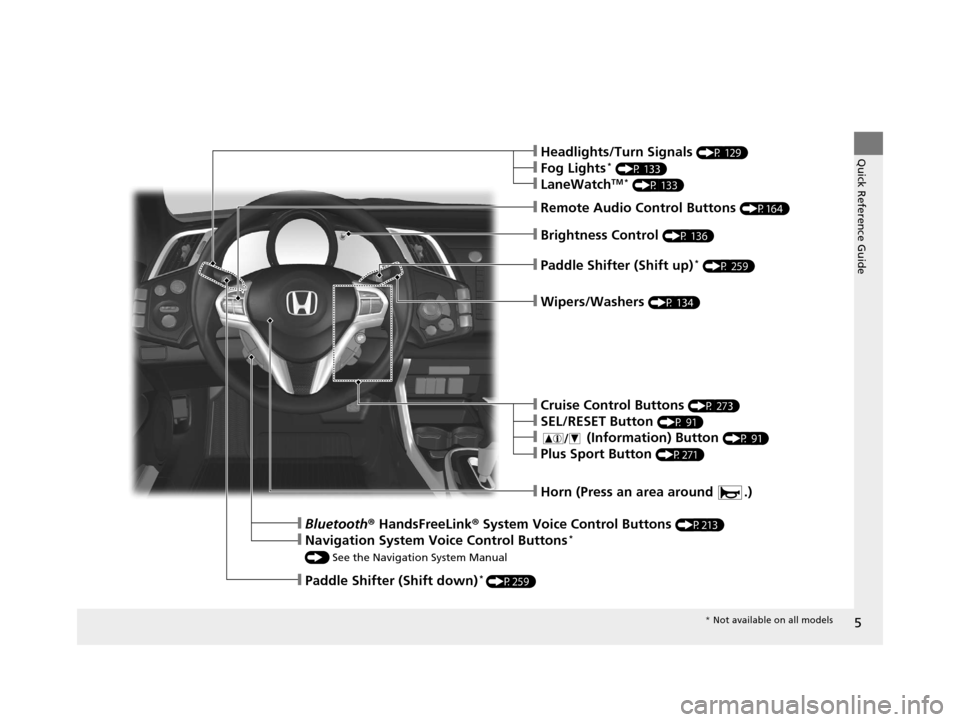

Quick Reference Guide
❙Paddle Shifter (Shift up)* (P 259)
❙Remote Audio Control Buttons (P164)
❙Paddle Shifter (Shift down)* (P259)
❙Horn (Press an area around .)
❙Bluetooth® HandsFreeLink® System Voice Control Buttons (P213)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Cruise Control Buttons (P 273)
❙SEL/RESET Button (P 91)
❙ (Information) Button (P 91)
❙Plus Sport Button (P271)
❙Wipers/Washers (P 134)
❙Brightness Control (P 136)
❙Headlights/Turn Signals (P 129)
❙Fog Lights* (P 133)
❙LaneWatchTM * (P 133)
* Not available on all models
16 CR-Z-31SZT6500.book 5 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

17
Quick Reference Guide
Controls (P107)
Clock (P108)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
aPress the (Home) button, then
select Settings .
bSelect Clock/Info , then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
Models with navigation system
Models without navigation system
(Home) Button
34
ENGINE START/STOP
Button
(P126)
Press the button to ch ange the vehicle's
power mode.
Turn Signals (P129)
Lights (P129)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
16 CR-Z-31SZT6500.book 17 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

20
Quick Reference Guide
Climate Control System (P155)
● Press the button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to de frost the windshield.
The climate control system is voice operable. See the Navigation System Manual for complete details.
Models with navigation system
Button
Temperature Control Dial (ON/OFF) Button
(Recirculation) Button
(Fan Control) Button

(Windshield Defroster) Button
(Air Conditioning) Button
( MODE Control) Button
Air flows from
floor and
windshield
defroster vents. Air flows from
floor vents.
Air flows from
floor and
dashboard
vents. Air flows from
dashboard
vents.
16 CR-Z-31SZT6500.book 20 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

21
Quick Reference Guide
Features (P159)
Audio System (P160)
For navigation system operation () See the Navigation System Manual
● Press the (Eject/ CLOSE) button to open the screen.
(Power) Button
(Home) Button
VOL (Volume)
Buttons
(Menu) Button
(Back) Button
(Eject/ CLOSE)
Button
Button
Audio/Information Screen
Microphones
● Press the (Eject/ CLOSE) button to
return the screen to the upright position.
(Eject/CLOSE) ButtonCD Slot
16 CR-Z-31SZT6500.book 21 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

108
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display, with the power mode in ON.1.Press the (Home) button, then select
Settings .
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
The navigation system receives signals from GPS satellites, updating the clock
automatically.
■Adjusting the Time
Models without navigation system
1 Adjusting the Clock
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 202
(Home) Button
34
Models with navigation system
16 CR-Z-31SZT6500.book 108 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

202
Features
Customized Features
Use the audio/information screen to customize certain features.
■How to customize
While the vehicle is at a complete stop with the power mode in ON, select Settings,
then select a setting item.
1 Customized Features
See the Navigation System Manual for information of
the customized features.
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
Models with navigation system
1 How to customize
To customize other features, select Settings.
2 List of customizable options P. 206
Audio/Information Screen
16 CR-Z-31SZT6500.book 202 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

213Continued
Features
Bluetooth® HandsFreeLink ®
See the Navigation System Manual for how to operate the Bluetooth® HandsFreeLink® .
Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the p hone screen, or to answer an
incoming call. (Hang-up/Back) button: Press to end a call, go back to the previous
command, or to cancel a command.
(Talk) button: Press to call a number with a st ored voice tag, a phonebook,
name, or a number.
■HFL Buttons
Models with navigation system
Models without navigation system
1 Using HFL
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
To use HFL, the Bluetooth On/Off Status setting
must be in On.
2 Customized Features P. 202
Voice control tips
•Aim the vents away from the bottom part of the
audio/information screen and close the windows,
as noise coming from them may interfere with the
microphones.
•Press the button when you want to call a
number using a stored voice tag, a phonebook,
name or a number. Speak clearly and naturally
after the beep.
•If the microphones pick up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system's
VOL (Volume) or use the remote audio controls on
the steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Place your phone where y ou can get good reception.Microphones
(Pick-up) Button (Hang-up/Back) Button
Volume up
(Talk) Button
Volume down
(Menu) Button
(Home) Button
