2016 HONDA CR-V display

uuFor Safe Driving uYour Vehicle's Safety Features
32
Safe DrivingFor the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 137
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 175
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Head Restraints P. 178
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 36
•Protect children by using seat belts or chil d seats according to a child's age, height
and weight.
2 Child Safety P. 54
■Safety Checklist1Safety Checklist
If the door and/or the tail gate open indicator will
come on and a message appears on the multi-
information display
*, a door and/or the tailgate is not
completely closed. Close all doors and the tailgate
tightly until the indicator goes off. 2 Door and Tailgate Open Indicator P. 75
2 Door Open Indicator P. 75
2 Tailgate Open Indicator P. 75
* *
* Not available on all models
15 CR-V-31T0A6300.book 32 ページ ２０１５年２月２日　月曜日　午前１０時３５分

69
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 70
Gauges and Displays Gauges .............................................. 92
Information Display
*.......................... 93
Multi-Information Display*................. 96
intelligent Multi-Information Display (i- MID) .............................................. 111
* Not available on all models
15 CR-V-31T0A6300.book 69 ページ ２０１５年２月２日　月曜日　午前１０時３５分

75
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Door and Tailgate
Open Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if any door or the tailgate
is not completely closed.
●The beeper sounds and the indicator
comes on if any door or the tailgate is
opened while driving.
●Goes off when all doors and the tailgate are
closed.
Door Open
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if any door is not
completely closed.
●The beeper sounds and the indicator
comes on if any door is opened while
driving.
●Goes off when all doors are closed.
—
Tailgate Open
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if the tailgate is not
completely closed.
●Goes off when the tailgate is closed.
—
Models with
multi-information
display
Models without
multi-information
display
Models without
multi-information
display
* Not available on all models
15 CR-V-31T0A6300.book 75 ページ ２０１５年２月２日　月曜日　午前１０時３５分

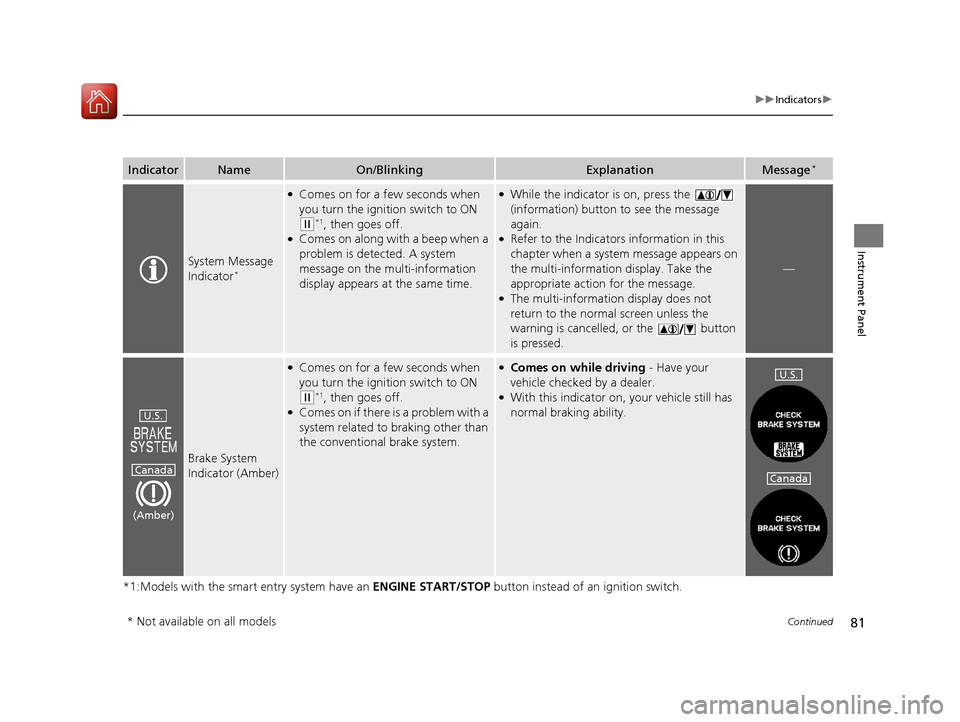

81
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System Message
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, press the
(information) button to see the message
again.
●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
●The multi-information display does not
return to the normal screen unless the
warning is cancelled, or the button
is pressed.
—
Brake System
Indicator (Amber)
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem with a
system related to braking other than
the conventional brake system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●With this indicator on, your vehicle still has
normal braking ability.
U.S.
Canada
(Amber)
U.S.
Canada
* Not available on all models
15 CR-V-31T0A6300.book 81 ページ ２０１５年２月２日　月曜日　午前１０時３５分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the CMBSTM
off - Have your vehicle checked by a dealer.
2Collision Mitigation Braking SystemTM
(CMBSTM)* P. 409
Models with CMBSTM
* Not available on all models
15 CR-V-31T0A6300.book 83 ページ ２０１５年２月２日　月曜日　午前１０時３５分

86
uuIndicators uDisplay Warning and Information Messages*
Instrument Panel
Display Warning and Information Messages*
The following messages appear on the multi-information display* or intelligent multi-information display (i-MID). Press the
(information) button to see the message agai n with the system message indicator on.
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 497
●Appears when the wa sher fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 451
MessageConditionExplanation
●Appears when the differential temperature is too high.Stop in a safe place, shift to (P, and idle the engine until
the message goes off. If it does not goes off, take your
vehicle to a dealer.
2 Real Time AWD with Intelligent Control SystemTM*
P. 400
Canadian models
Models with AWD system
* Not available on all models
15 CR-V-31T0A6300.book 86 ページ ２０１５年２月２日　月曜日　午前１０時３５分

87
uuIndicators uDisplay Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the keyless remote inside the vehicle.●Disappears when you bring the keyless remote back
inside the vehicle, and close the door.
2Smart Entry Remote Reminder P. 156
●Appears when the smart entry remote battery becomes
weak.●Replace the battery as soon as possible.
2Smart Entry Remote* P. 476
●Appears when the starting system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for 15 seconds while depressing
the brake pedal and manually start the engine. Have the
vehicle checked by a dealer.
2 Starting the Engine P. 362
Models with smart entry system
* Not available on all models
15 CR-V-31T0A6300.book 87 ページ ２０１５年２月２日　月曜日　午前１０時３５分

88
uuIndicators uDisplay Warning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the power tailgate
system.●Manually open or close the power tailgate.●Have your vehicle checked by a dealer.
MessageConditionExplanation
●Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the radar sensor gets di rty, stop your vehicle in a
safe place, and wipe off dirt using soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even af ter you clean the sensor
cover.
2 Adaptive Cruise Control (ACC)* P. 375
Models with power tailgate system
U.S.
Canada
Models with ACC
* Not available on all models
15 CR-V-31T0A6300.book 88 ページ ２０１５年２月２日　月曜日　午前１０時３５分
